Турбина для выработки электроэнергии
US $890.00-$1100
DTEC 500 кВт микро Гидротурбина гидроэлектрическая станция Пелтон турбинное
- Категория: Генерация электроэнергии >>>
- Поставщик: Dongturbo,Electric,Company,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.51 $* | 0.1 $* |
| Aug-20-2025 | 0.18 $* | 0.61 $* |
| Jul-20-2025 | 0.13 $* | 0.26 $* |
| Jun-20-2025 | 0.91 $* | 0.85 $* |
| May-20-2025 | 0.80 $* | 0.14 $* |
| Apr-20-2025 | 0.35 $* | 0.41 $* |
| Mar-20-2025 | 0.30 $* | 0.14 $* |
| Feb-20-2025 | 0.32 $* | 0.91 $* |
| Jan-20-2025 | 0.76 $* | 0.87 $* |
Характеристики
Product Description
Water Head | 50m - 1300m |
Power range | 50KW-20MW |
Frequency | 50HZ/60HZ |
Generator Voltage | 400V, 800V, 6300V, 10500V |
Runner diameters | 0.35m-4m |
Layout pattern | Horizontal or Vertical |
Material | Stainless Steel ZG0Cr13Ni4Mo |
Excitation | Brushless or Static excitation system |
Lifespan | 50 years |
Nozzle numbers | 1-6 |
Specification
Hydro Turbine Generator Unit
1. Francis Turbine
Francis turbine is a kind of turbine suit to water head 20-300meters and with certain suitable flow.
It could be divided into vertical and horizontal arrangement. Francis turbine have the advantage of high efficiency, small size and reliable structure.
Horizontal Francis turbine unit, with horizontal shaft, could be 2 or three supports. Which is normally one stair arrangement.
Simple structure, easier operation and maintenance.
Vertical Francis turbine unit, with vertical shaft, metal spiral case or concrete spiral case. With adjustable guide vane, and
stay ring etc parts, are suit to runner diameter bigger than 1000mm. Our engineer will select the most suitable Francis turbine
for your hydro power project.
Ø Suitable water head: 20-300m;
Ø Output scope: 50Kw -50Mw;
Ø Runner diameter: 35cm -250cm;
Ø Runner material: stainless steel;
Ø Arrangement type: Vertical and Horizontal;
It could be divided into vertical and horizontal arrangement. Francis turbine have the advantage of high efficiency, small size and reliable structure.
Horizontal Francis turbine unit, with horizontal shaft, could be 2 or three supports. Which is normally one stair arrangement.
Simple structure, easier operation and maintenance.
Vertical Francis turbine unit, with vertical shaft, metal spiral case or concrete spiral case. With adjustable guide vane, and
stay ring etc parts, are suit to runner diameter bigger than 1000mm. Our engineer will select the most suitable Francis turbine
for your hydro power project.
Ø Suitable water head: 20-300m;
Ø Output scope: 50Kw -50Mw;
Ø Runner diameter: 35cm -250cm;
Ø Runner material: stainless steel;
Ø Arrangement type: Vertical and Horizontal;

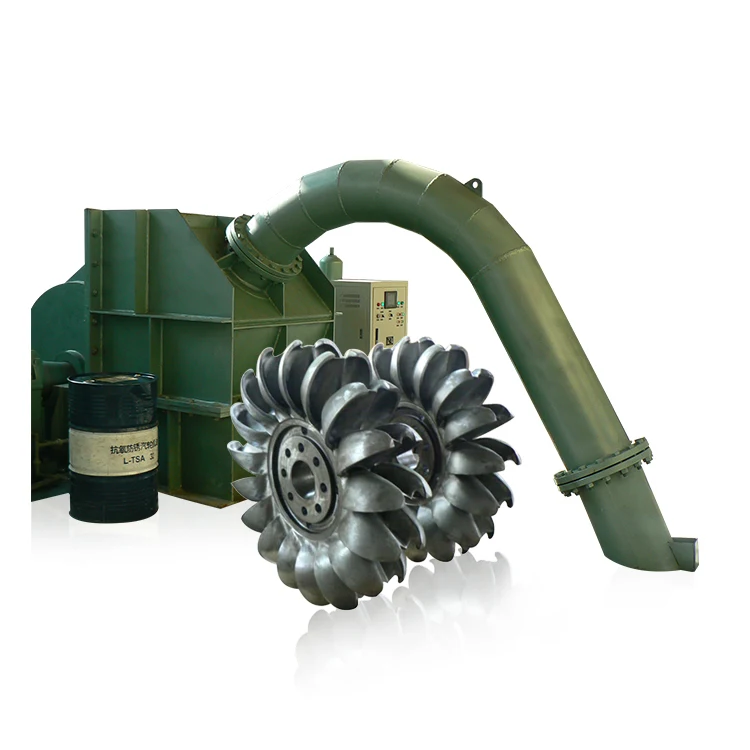

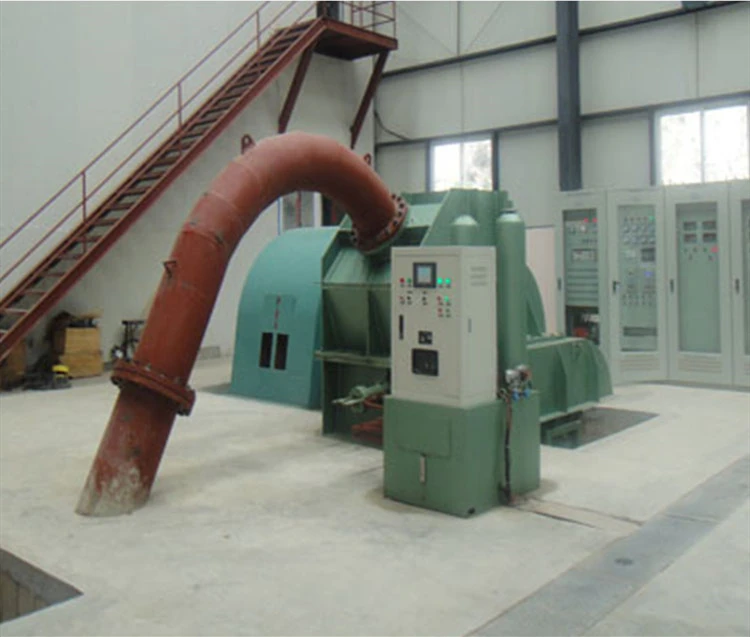

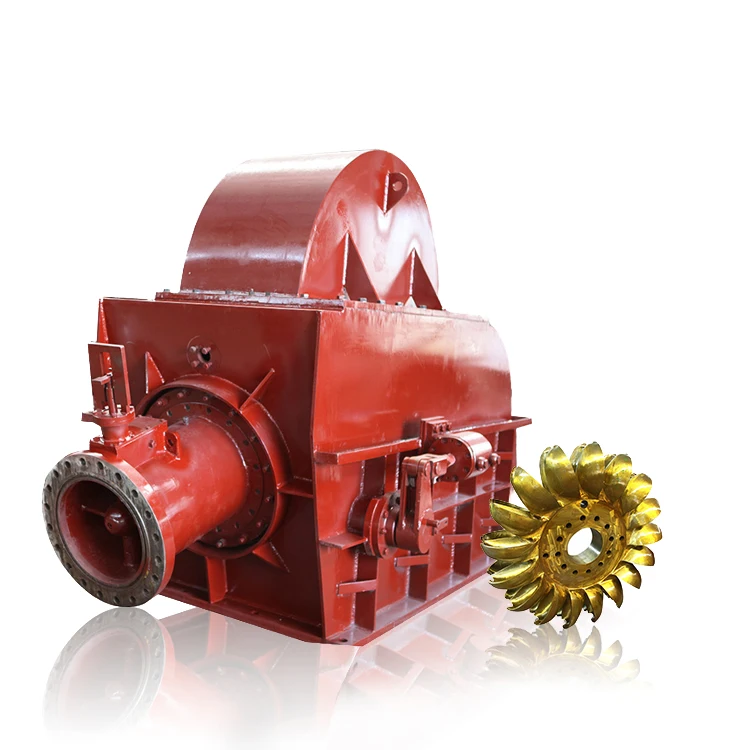

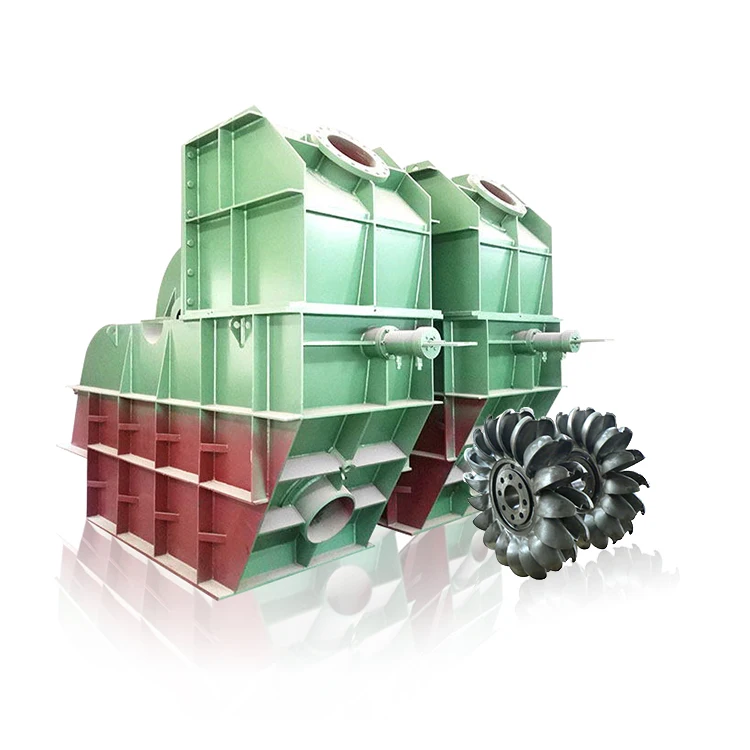

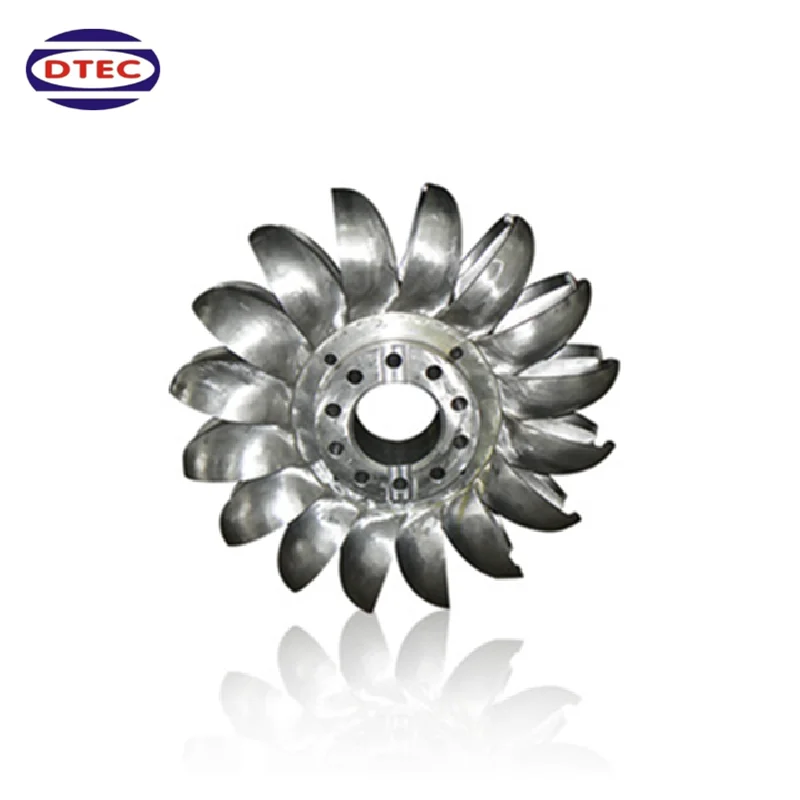

2. Pelton Turbine
Pelton turbine suit to water head 100 to 1000 meters and with certain small flow. It could vertical and horizontal arrangement, nozzle numbers from one to six. Pelton turbine with feature of wide flow high efficiency region. It could start turbine with 10% of rated flow. Pelton turbine with one or two nozzles usually adopt horizontal arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement. Pelton turbine units are wildly used in mountain area all over the world, and well known by its simple structure, less investment, high efficiency, and reliable long service life.
Ø Suitable water head: 80-1000m;
Ø Output scope: 50Kw -20Mw;
Ø Runner diameter: 55cm -230cm;
Ø Runner material: cast or forged stainless steel;
Ø Arrangement type: Vertical and Horizontal;
Ø Nozzle numbers: 1-6;
Ø Suitable water head: 80-1000m;
Ø Output scope: 50Kw -20Mw;
Ø Runner diameter: 55cm -230cm;
Ø Runner material: cast or forged stainless steel;
Ø Arrangement type: Vertical and Horizontal;
Ø Nozzle numbers: 1-6;
3. Kaplan Turbine
Kaplan turbine is a kind of turbine suit to low water head 3-45 meters, and with certain big flow, normally divided into fixed
blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 80cm to 4meters, with rated output 50Kw to 20Mw.
Turbine units normally be vertical shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size.
Ø Suitable water head: 3-45m;
Ø Output scope: 100Kw -30Mw;
Ø Runner diameter: 80cm -400cm;
Ø Runner material: stainless steel;
Ø Arrangement type: Vertical;
blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 80cm to 4meters, with rated output 50Kw to 20Mw.
Turbine units normally be vertical shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size.
Ø Suitable water head: 3-45m;
Ø Output scope: 100Kw -30Mw;
Ø Runner diameter: 80cm -400cm;
Ø Runner material: stainless steel;
Ø Arrangement type: Vertical;

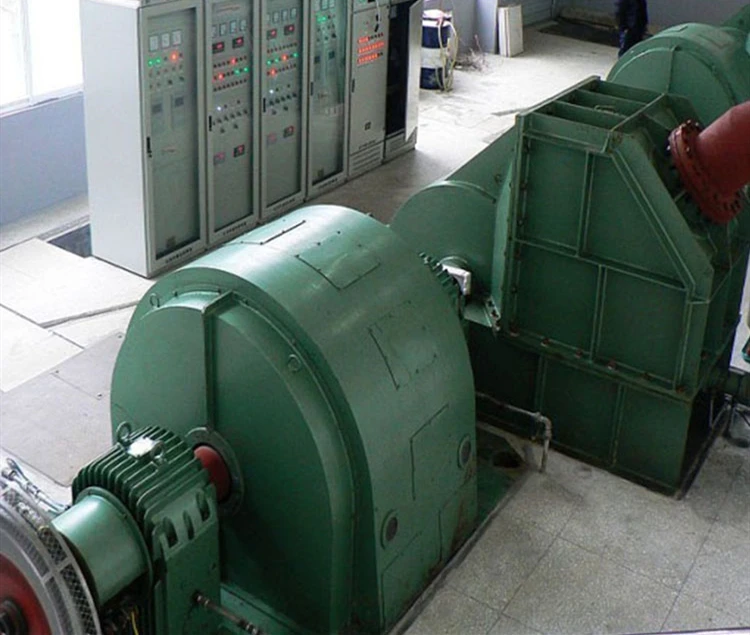

Generator
Hydro turbine generator is driven directly or indirectly by hydro turbine. The rotating speed is less than 1500r/min, with
horizontal and vertical arrangement. Excitation mode with brushless and static silicon type. Components including stator, rotor, base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 50Kw to 50Mw. Our generator is high efficiency, reliable, manufacture and tests all follow related IEC standards.
Ø Frequency: 50 or 60Hz;
Ø Voltage scope: 0.38-13.8KV;
Ø Arrangement: vertical and horizontal;
Ø Speed scope: 93.75-1500r/m;
Ø Power factor: 0.8 – 1;
Ø Insulation Level: F/F;
Ø Output scope: 50Kw- 50Mw
horizontal and vertical arrangement. Excitation mode with brushless and static silicon type. Components including stator, rotor, base frame, bearing, excitation motor or collecting ring. The outlet voltage from 400V to 13.8KV, and frequency could be 50Hz or 60Hz, output from 50Kw to 50Mw. Our generator is high efficiency, reliable, manufacture and tests all follow related IEC standards.
Ø Frequency: 50 or 60Hz;
Ø Voltage scope: 0.38-13.8KV;
Ø Arrangement: vertical and horizontal;
Ø Speed scope: 93.75-1500r/m;
Ø Power factor: 0.8 – 1;
Ø Insulation Level: F/F;
Ø Output scope: 50Kw- 50Mw
Manufacturing Technique
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We, Dongturbo Electric Company Ltd.(DTEC). DTEC is an international corporation, with its headquarter in Chengdu, China, and manufacturing bases in Deyang and Kunming, China, mainly engaged in the manufacturing of power & electric equipments, EPCC (engineering, procurement, construction, commissioning), and export and import business. DTEC also has branches and joint venture in Malaysia, Thailand, and Philippine. Our business scope covers EPC, supply equipment and materials for thermal power including boiler, turbine, generator and their auxiliaries, BOP, electric and C& I etc.; EPC and equipment supply for PV, thermal solar power, Wind & PV hybrid and energy storage system.; spare parts supply and power plant overhaul and maintenance;
We have established close partner relationship with design institute, manufacturers, erection company, traders and end customers both in China and all over the world.
We actively and continuously engaged in the domestic and global electrical markets. Our professional Engineering, Project
Management etc. contributed to the success of the contracted projects, meanwhile, we also shared a lot from those success, we became one of the technical expertise for systematic solution for power industry.
We are willing to grow with our customers, and we always believe our success can only rely on the success of our customer. We are always prepared to provide the best solution to our customer, provide the best service to our customer, and make the most gain to our customer.
We have established close partner relationship with design institute, manufacturers, erection company, traders and end customers both in China and all over the world.
We actively and continuously engaged in the domestic and global electrical markets. Our professional Engineering, Project
Management etc. contributed to the success of the contracted projects, meanwhile, we also shared a lot from those success, we became one of the technical expertise for systematic solution for power industry.
We are willing to grow with our customers, and we always believe our success can only rely on the success of our customer. We are always prepared to provide the best solution to our customer, provide the best service to our customer, and make the most gain to our customer.
FAQ
Hydro turbine is a customized product, please provide the following parameters
Pls can you let me know the below parameters so we can offer you the best suggestions.
1.Water head:___m
2.Water flow:____m³/s
3.Frequency: 50Hz/60Hz?
4.Generator outgoing line voltage:__Kv
5.On-grid or Off-grid type? (On-grid type voltage:____Kv)
6. Unit Capacity: ___KW
So I can choose the model for you and send you pictures.
Pls can you let me know the below parameters so we can offer you the best suggestions.
1.Water head:___m
2.Water flow:____m³/s
3.Frequency: 50Hz/60Hz?
4.Generator outgoing line voltage:__Kv
5.On-grid or Off-grid type? (On-grid type voltage:____Kv)
6. Unit Capacity: ___KW
So I can choose the model for you and send you pictures.
