1U 2 Ом стабильную мощность усилителя D2-3000 Профессиональный канала 7140 Вт высокой мощности цифровой
- Категория: Amplifier >>>
- Поставщик: GUANGZHOU,XINBAOSHENG,AUDIO,EQUIPMENT,COMPANY,LIMITED
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 918.21 $* | 936.96 $* |
| Jul-16-2025 | 745.6 $* | 760.87 $* |
| Jun-16-2025 | 904.90 $* | 922.16 $* |
| May-16-2025 | 897.46 $* | 915.42 $* |
| Apr-16-2025 | 716.70 $* | 730.10 $* |
| Mar-16-2025 | 882.15 $* | 900.93 $* |
| Feb-16-2025 | 875.22 $* | 893.83 $* |
| Jan-16-2025 | 868.59 $* | 885.31 $* |
Характеристики
Product Description
1U Amplifier | D2-3000 |
8Ω/Stereo 2X3000W 4Ω/Stereo 2X5100W 2Ω/Stereo 2X7140W 16Ω/Bridge 1X6000W 8Ω/Bridge 1X10200W 4Ω/Bridge 1X14280W | |
Bridge RMS voltage(THD+N=1%, 1kHz) | 126.5V |
Slew rate(1kHZ, low-pass filter bypassed) | 50V/us |
Sensitivity(Rated Power,1kHz) | selectable 41dB 38dB 35dB 32dB |
THD+N(10%Rated Power,typical) | 0.01% |
IMD-SMPTE(10%Rated Power,typical) | 0.01% |
DIM30(10%Rated Power,typical) | 0.01% |
Cross-talk(20Hz-1kHz,below Rated Power) | ≥90dB |
Frequency response(10% Rated Power,20Hz-20kHz,8Ω | ±0.2dB |
Input impedance | 20kΩ (Balance),10kΩ(Unbalance) |
Damp factor(8Ω,20Hz-200Hz | ≥5000 |
SNR(A weighted 20Hz-22kHz) | ≥115dB |
Protection | Under voltage, DC, Over temperature,Over load limiter,Short protection |
Main power | 90~260VAC,50~60Hz |
PROFESSIONAL POWER AMPLIFIER
1 Performance overview
A,High efficiency and energy saving, operation cost is low,
B,Compact and light weight,structure is firm.
C,Comply with the safety and EMC standards.
D,90~260VAC / 50~60HZ Wide range power supply.
E,First-class quality, thanks for the components from international high-end manufacturers.
F,Temperature control fan for quiet operation.
G,Modular design and maintenance is convenient.
H,Very suitable for mobile show.
I , Reasonable design makes you feel relaxed in the process of using.
B,Compact and light weight,structure is firm.
C,Comply with the safety and EMC standards.
D,90~260VAC / 50~60HZ Wide range power supply.
E,First-class quality, thanks for the components from international high-end manufacturers.
F,Temperature control fan for quiet operation.
G,Modular design and maintenance is convenient.
H,Very suitable for mobile show.
I , Reasonable design makes you feel relaxed in the process of using.
Product Usage
Advantages of high efficiency:
* Low working temperature, rlability will be improved obviously.
* The size and weight are only 1/3 of tradition amplifier.
" The cost for transportation, handling, installation will reduce obviously.
* Saving energy, reducing operating costs
* Environmental protection
* Low working temperature, rlability will be improved obviously.
* The size and weight are only 1/3 of tradition amplifier.
" The cost for transportation, handling, installation will reduce obviously.
* Saving energy, reducing operating costs
* Environmental protection

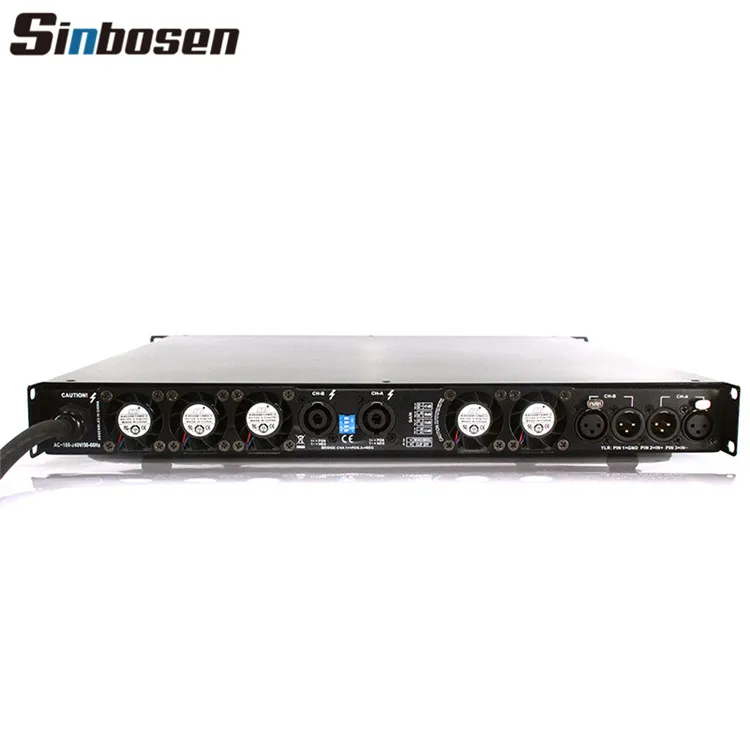

The cooling mode of the equipment is as follows: the cold air is sucked through the ventilation hole of the front panel, and the heat is taken out from the rear panel.
