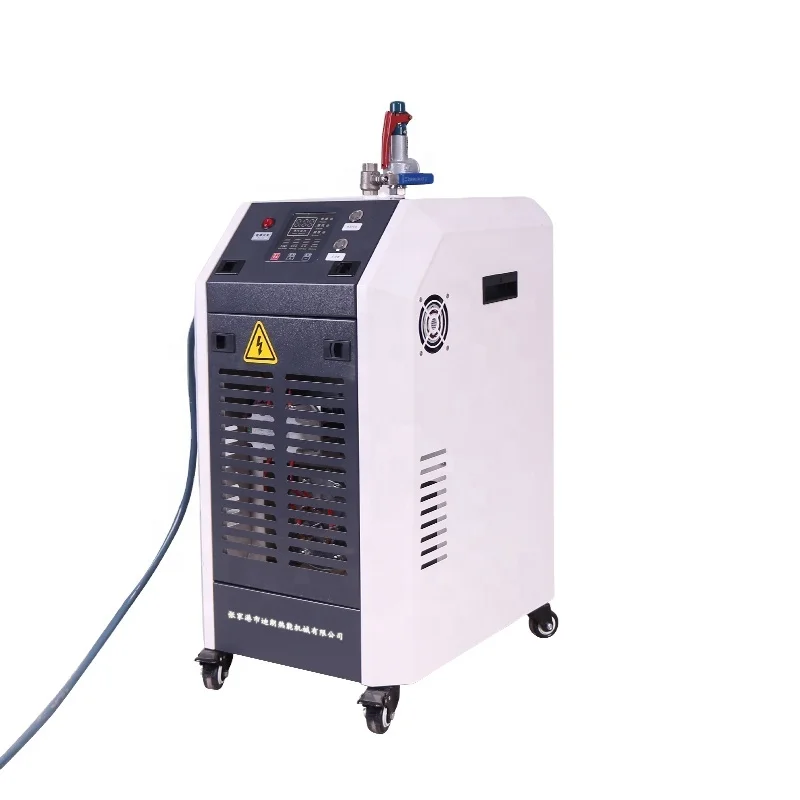

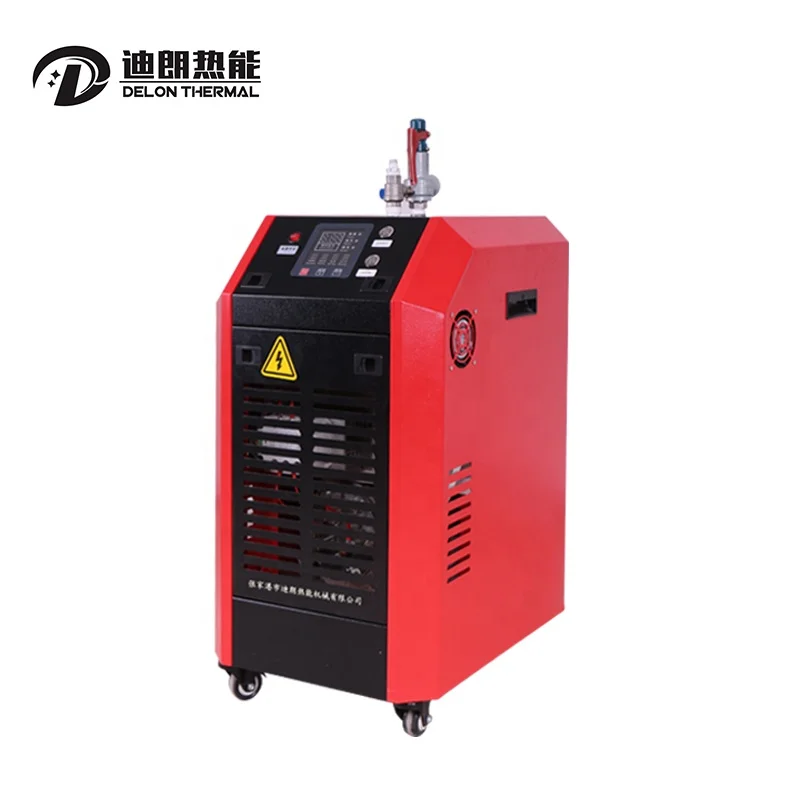

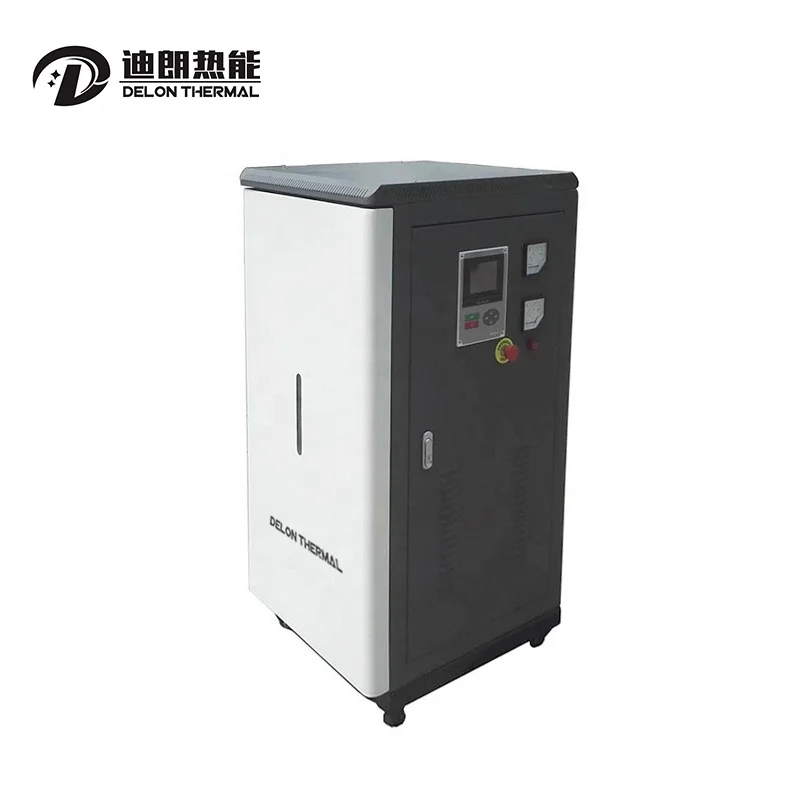

Characteristics for Electric Steam Boiler:


  "Delon" CE certified electric steam boiler is run by power energy, no noise, no pollution. Using high stainless steel quality heaters, with a lower surface heat load and higher thermal efficiency. This product adopts compactt design style, elegant appearance, compact internal structure and it's ideal for saving space.

1. LED digital display screen
2. P.I.D control system with high effieciency & energy saving functions
3. One-key sewage discharge
4. Intelligent security function

5. Steam pressure could be adjustable

6. Input power could be adjustable

7. Electrical components are marked CE & UL



Technical Specifications for Electric Steam Boiler:



Model / Series	Unit	NS-6D	NS-9D	NS-12D	NS-18D	NS-24D	NS-36D
Rated steam capacity	Kg/h	9	13	17	25	35	50
Input power	kW	6	9	12	18	24	36
Rated current	A	9.2	13.8	18.4	27.6	36.7	55.1
Main power supply	V/HZ	380V±5%/50HZ, 3Ph (3P+N+E) or Customs Made
Rated working pressure	MPa	0.7 (Customs made)
Saturated steam temperature	°C	170 (Customs made)
Steam outlet diameter	mm	DN15	DN15	DN15	DN15	DN15	DN15
Safety valve outlet diameter	mm	DN15	DN15	DN15	DN15	DN15	DN15
Water inlet diameter	mm	DN15	DN15	DN15	DN15	DN15	DN15
Blow-down outlet valve diameter	mm	DN15	DN15	DN15	DN15	DN15	DN15
Overall size	C  mm	660	660	700	700	750	750
	B  mm	395	395	410	410	460	460
	A  mm	740	740	790	790	920	920
Net weight	Kg	62	62	78	78	95	95
