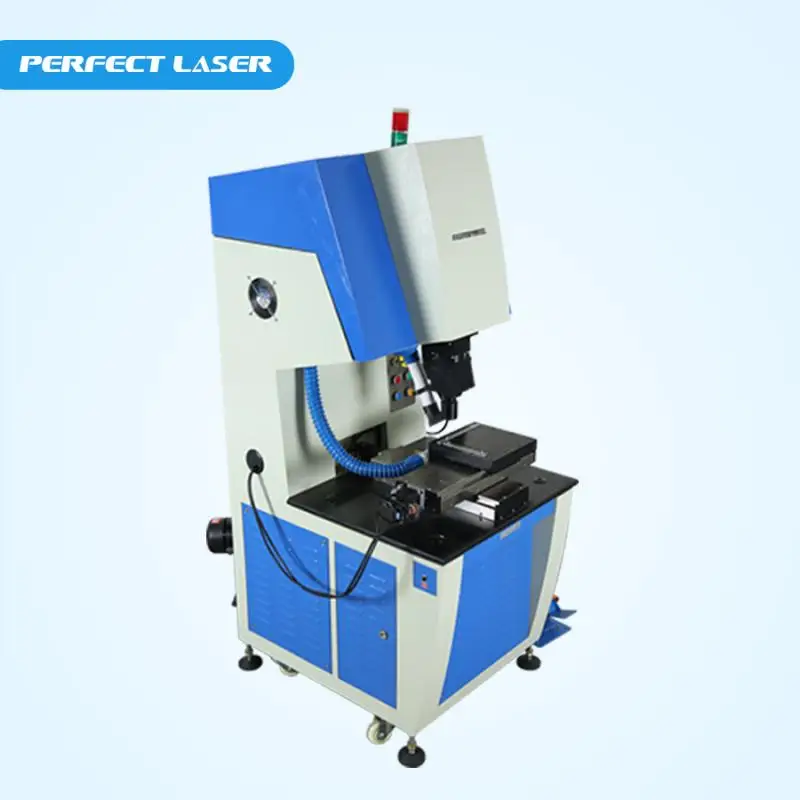

30W Fiber Solar Cell Laser Cutting Machine Solar Cell Scribing Machine

(Model: PE-20W/50WII)

Contact: Eva   Skype:  perfectlaser018   Email: sales018(@)perfectlaser.net



 Product Description



Perfect Laser launched the latest full-enclosed type fiber laser scribing and cutting machine with dust-proof cover PE-20W/50WII, the biggest difference between the first generation is that the machine is fully enclosed design, machine with dust cover, can avoid environmental pollution, to prevent the operator's vision damage. High output power, high precision scribing, fast speed and could cut curve and straight line graph.

Adopting Continuous pumping acousto-optic adjustable Q’s Nd: YAG laser as work light source, The two-dimensional work table is controlled by computer,and could do kinds of movement according to what graphics be input in. Mainly used for metal and silicon, germanium, gallium arsenide and other semiconductor material substrate scribing and cutting, machinable solar panels, silicon, ceramic , aluminum foil, etc., the workpiece is fine and beautiful with smooth cutting edges.



Application areas



Machine Features



Machine Details



Technical Data



Model specification	PE-20W/50W(II) Laser Scribe Machine
Laser wavelength	1064nm
Laser power	20W
Scribing line width	50um
Scribing speed	240mm/s
Scribing precision	±10um
Workbench wide	200×200mm
Temperature control precision	0.5℃
Working power supply	220V/50Hhz/1.5KVA
Workbench	Cell automatic adsorption, dust removal
Cooling way	High precision and constant temperature circulating water cooling professional integration	Air cooling



Our Service

1> All of our machine will be full-checked by our quality control department before the shipment.

We make sure that customers will be get good products from us. and all of our machine with a12

months quality guarantee period.

2> We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English

version) to you, which is easily understood and handle by the customer.

3> We will offer plenty of online supports,  by email, video, telephone and fax.

4> Our engineer can make a door-to-door instruction training service.
