2 м3 Электрический вакуумный дорожный уборочный

Описание и отзывы

Трекер стоимости

Характеристики

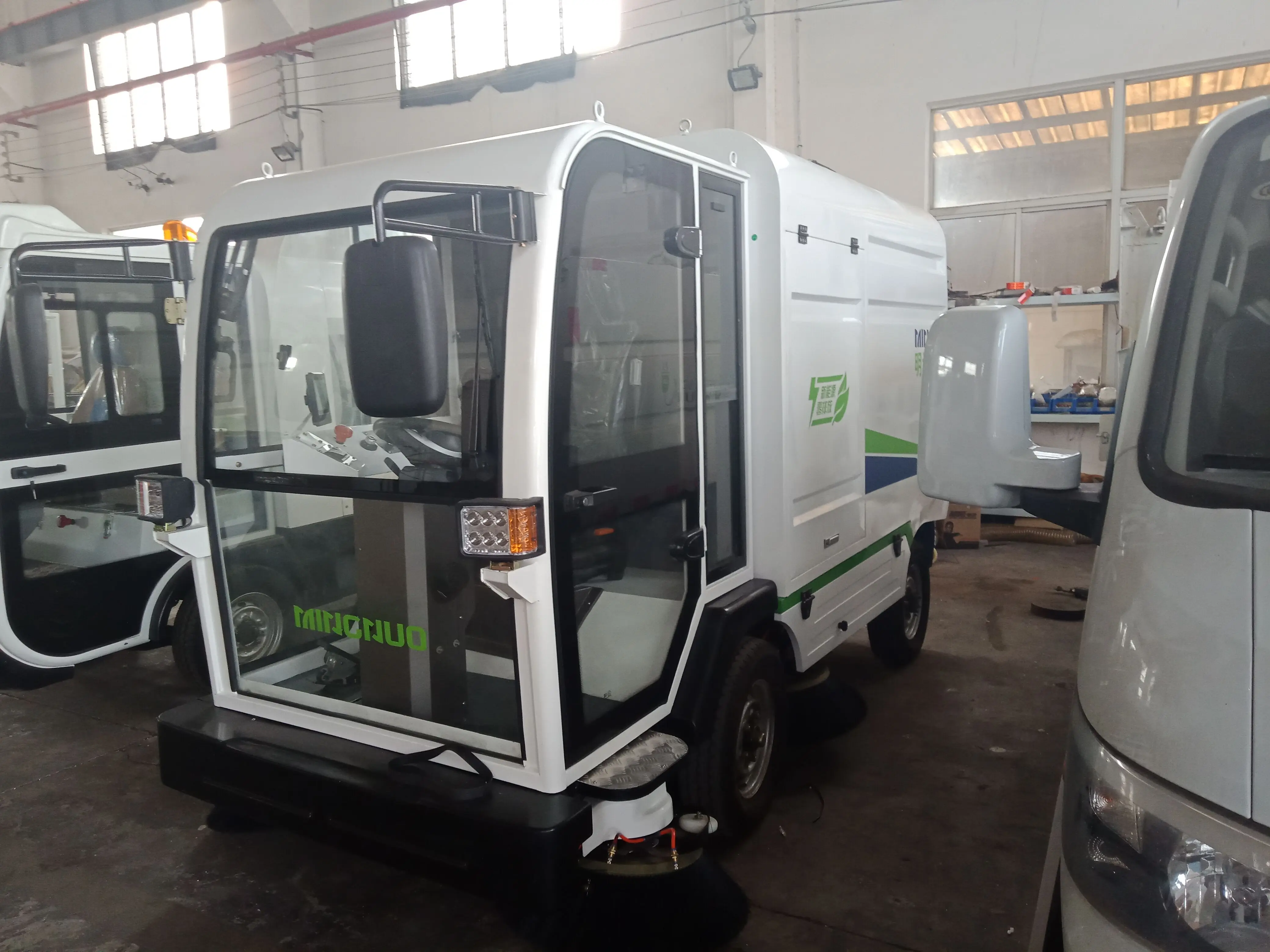

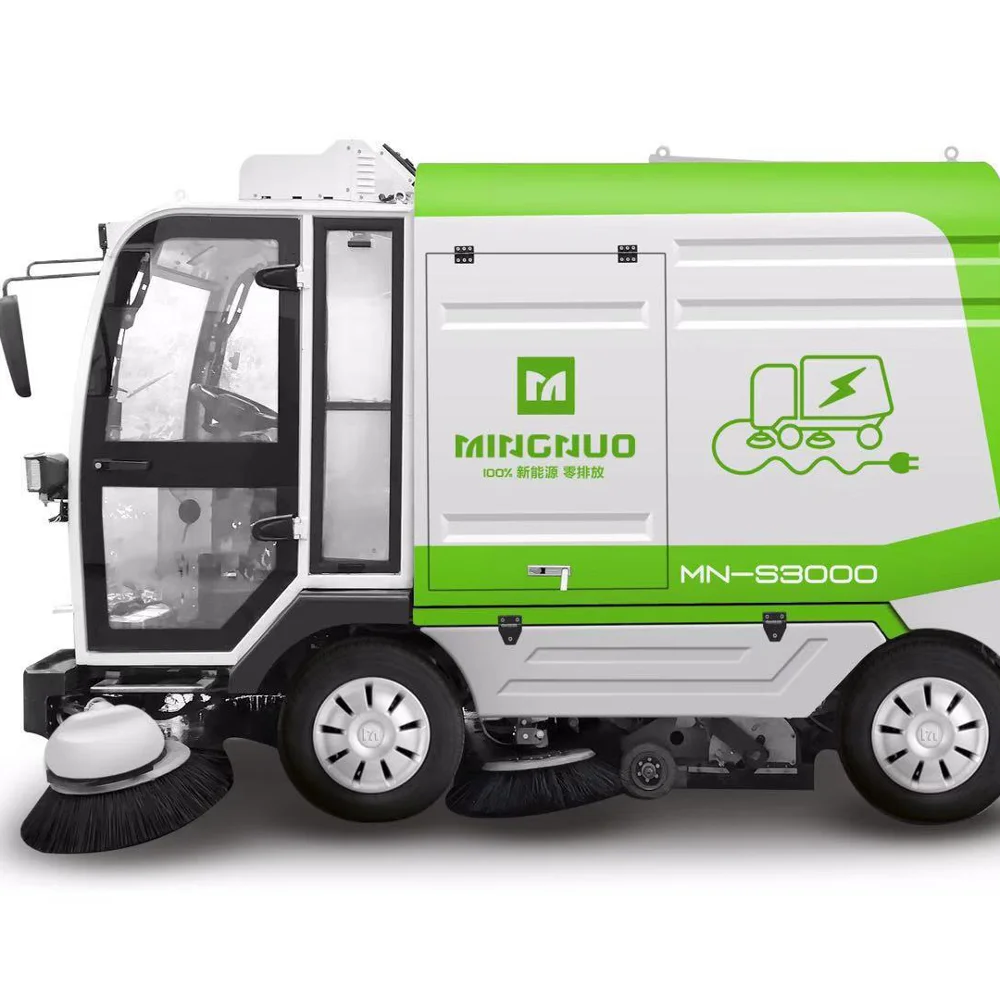

MN-S3000 is an electric vacuum road sweeper with the special chassis overall structure of the combined mode of sweeping and vacuuming.The sweeper is superior to the similar domestic products, which is featured by the stylish appearance and flexible operation. Hence,it is the ideal sweeper model for the occasions such as street, public road ,community, school, etc. requiring the sweeping and cleaning of large areas.

PARAMETERS

NO	Item Name	Unit	Specification
1	Sweeping width	mm	2000~2200
2	Cleaning efficiency	m²/h	>20000
3	Max gradeability	%	25
4	Main brush’s Diameter	mm	700
5	Side brush’s diameter	mm	700
6	Power supply	kwh	37.8kwh
7	Working time	h	6~9
8	Water tank capacity	L	400
9	Maximum pump pressure	Mpa	10
10	Dustbin design capacity	L	1500
11	Actual effective capacity of garbage can	L	1000L
12	Ground clearance	mm	1000
13	Driving power	w	7500
14	Vacuum power	w	5500
15	Working power (motor)main brush +fan+side brushes+oil pump+water pump	w	600+5500+80*4+2200+2200
16	Working speed	km/h	10
17	Driving speed	km/h	>25
18	Max noise	db	80
19	Turning radius	mm	4500
20	Dimension(L/W/H)	mm	3720×1400×2300
21	Wheelbase	m	1900
22	Tread	mm	1200
23	Tyre model		175R13
24	Net weight	kg	2200
25	Air conditioner	v	72( optional )
26	Parking gradient	%	15
27	Hand-held suction pipe		Yes









PERFORMANCE FEATURES

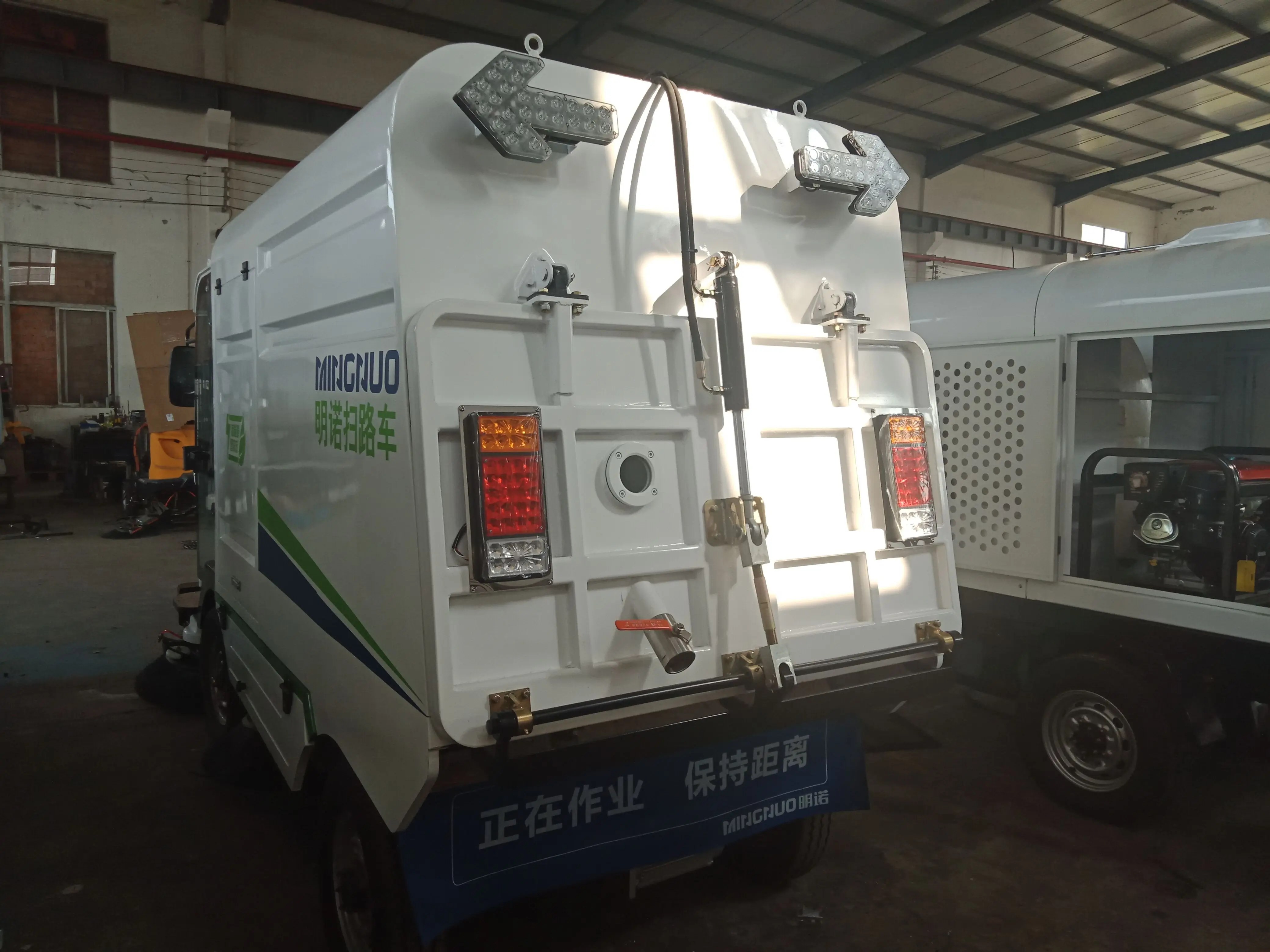

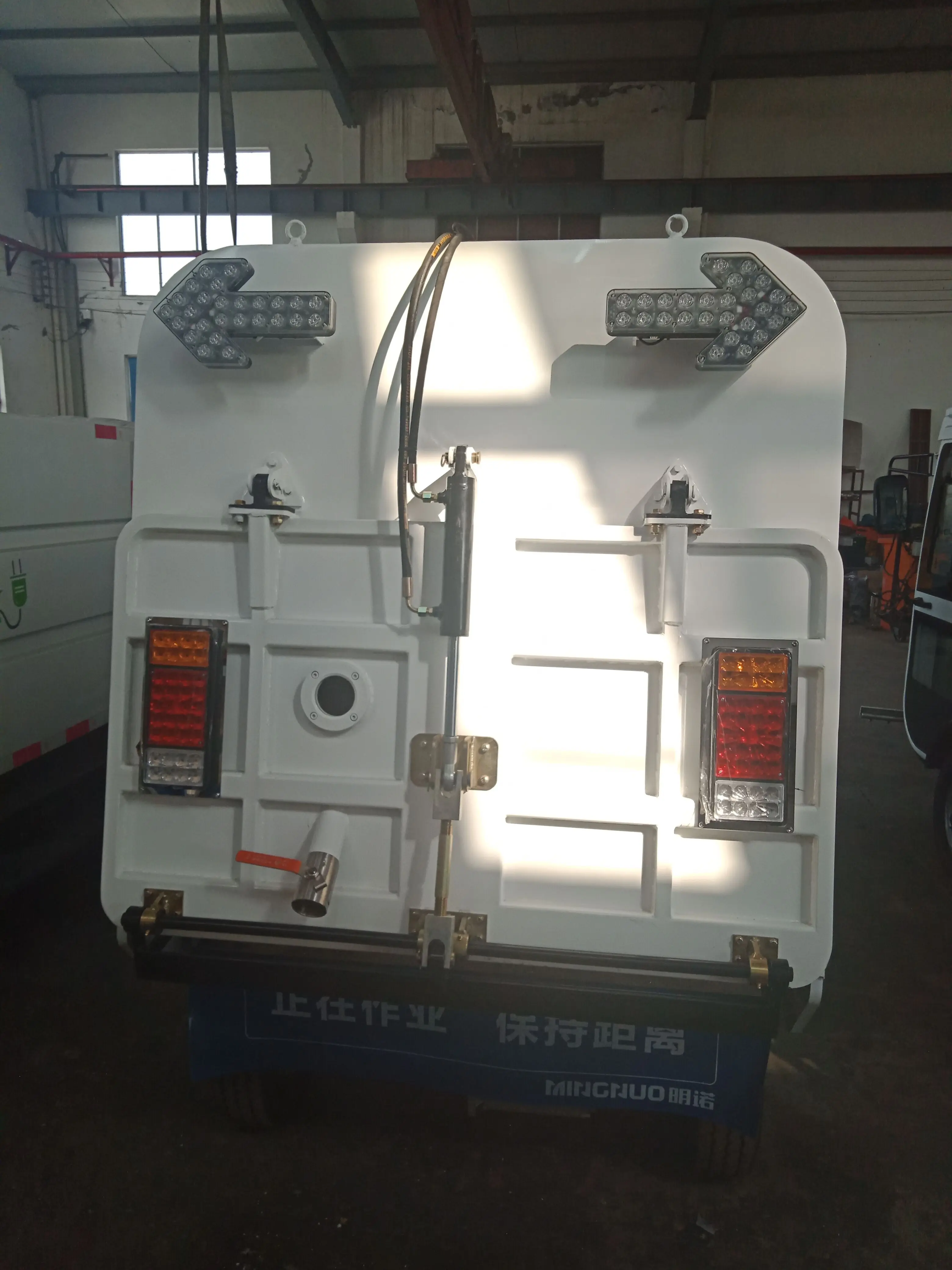

l The waste hopper has the ultra-large capacity of one point five cubic meter, and it is equipped with hydraulic dumping system, the dustbin ground clearance has 1.5meter that dust bin can match with different garbage container,very which is convenient for emptying the waste hopper.

l With the lightweight vehicle design,37.8kwh of lithium batteries provide strong power supply.

l High power AC 3-gear fan motor, which can adjust the fan motor speed according to the road conditions.

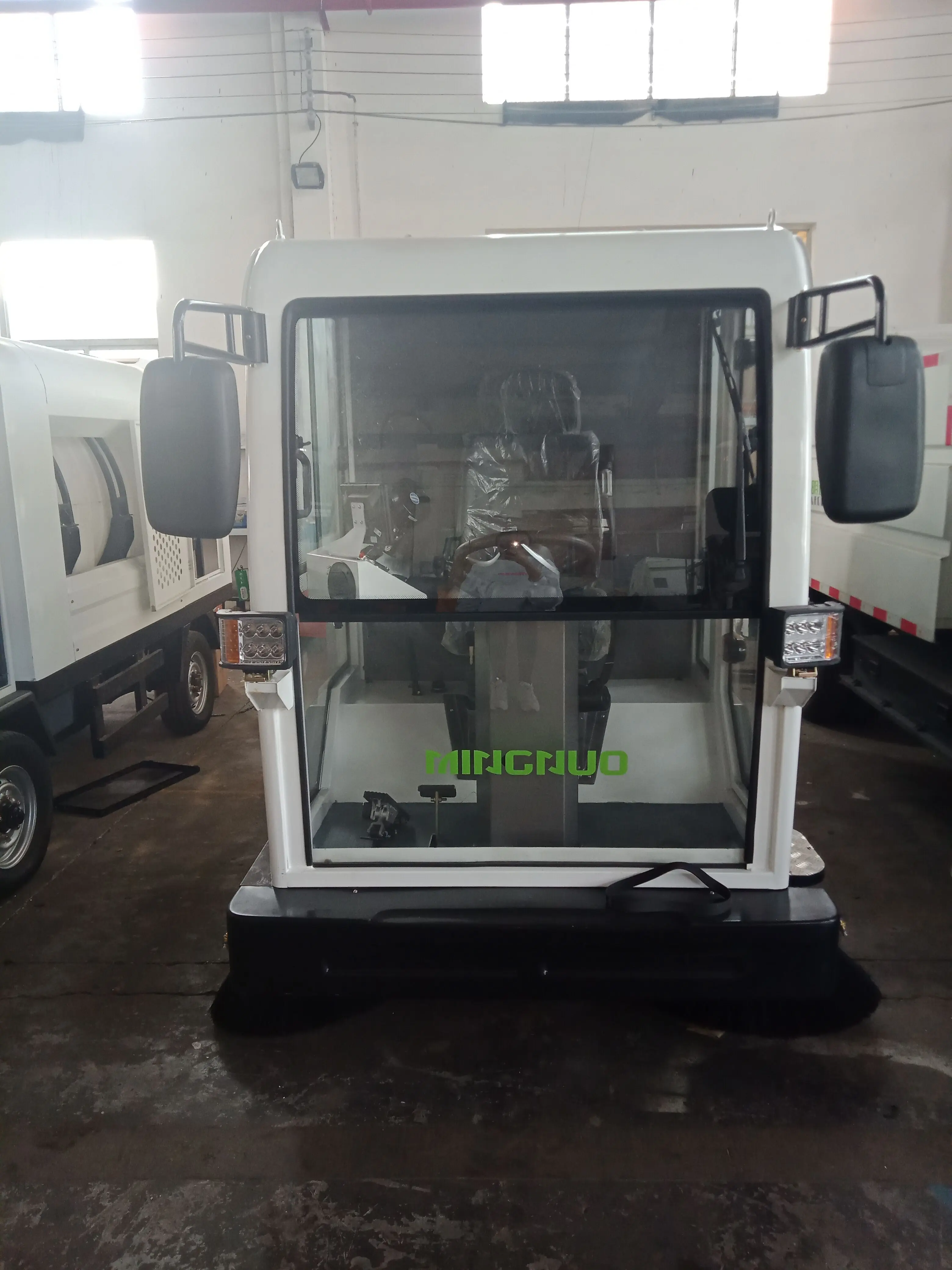

l The comfortable cab is equipped with reverse image and electric power steering, and the configurations such as leather damping seats, etc. are adjustable.

l 13-inch pneumatic tires are convenient for climbing along the road kerb.

l The hand brake and foot brake also increase the safety.

l Equipped with large touchable color LED display, the side brush, main brush and fan motor can be individually controlled.

l Equipped with water tank and high-pressure spray and dust suppression system to avoid secondary dust reentrainment.

l The front is configured with adjustable disk brush, and the middle with dual-disk brush and rolling, which ensure the good cleaning effect.

l Air conditioner is optional.
