Портативный автоматический детектор концентрации
- Категория: Газоанализаторы >>>
- Поставщик: Zhengzhou,Glory,Enterprise,Development,Corporation
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 150.2 $* | 158.45 $* |
| Aug-15-2025 | 149.61 $* | 156.55 $* |
| Jul-15-2025 | 125.33 $* | 131.13 $* |
| Jun-15-2025 | 146.85 $* | 153.90 $* |
| May-15-2025 | 127.66 $* | 133.29 $* |
| Apr-15-2025 | 144.63 $* | 151.38 $* |
| Mar-15-2025 | 142.69 $* | 149.84 $* |
| Feb-15-2025 | 141.81 $* | 148.54 $* |
| Jan-15-2025 | 140.11 $* | 147.52 $* |
Характеристики
Product Description
The ozone detector is an intrinsically safe gas detector developed by our company for environments containing ozone gas. The detector uses natural diffusion. The gas is detected by an electrochemical gas sensor, which has excellent sensitivity and excellent repeatability. The product can store up to 100,000 pieces of test data, and can view historical data at any time with the software.
Specification
Detect gas | Ozone（O3） |
Detection range | 0~10.00ppm |
Duplicate value | ≤2% |
Zero drift | ≤±1ppm |
Range drift | ≤±2ppm |
Alarm action value | 3/6ppm |
Response time | Diffusion ≤60S |
Insulation resistance | ≥20MΩ |
Alarm function | Sound, light, vibration |
working environment | Temperature -10 ℃ -50 ℃; humidity <95% RH without condensation |
Operating Voltage | DC3.7V (Lithium battery capacity 3000mAh) |
Explosion-proof mark | Ex ib IIB T3 Gb |
Charging time | 6h-8h |
Standby time | Continuous for more than 8h |
Main features
FEATURES:
1. The product uses an electrochemical sensor with excellent sensitivity and repeatability
1. The product uses an electrochemical sensor with excellent sensitivity and repeatability
2. The product shell has high strength and belongs to intrinsically safe explosion-proof products

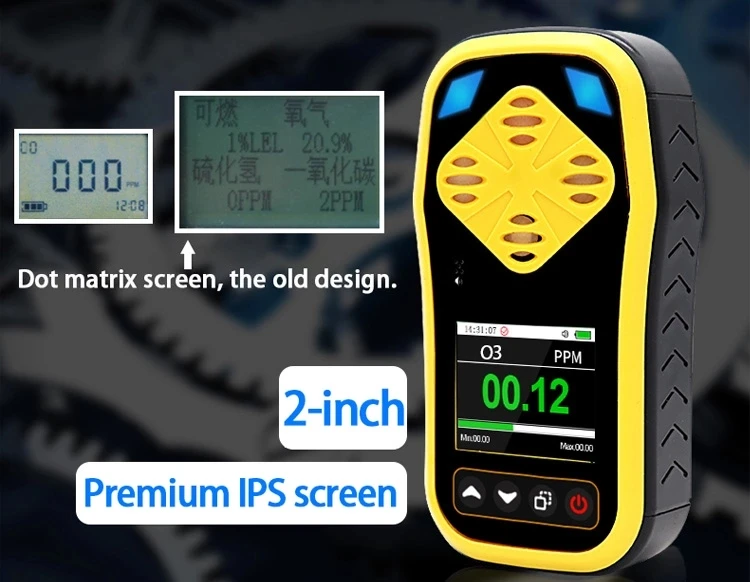

3. High-definition color screen design, easy to check gas status
4.High and low alarm value can be set
5. Full-function self-test, the product adopts three-level sound and light vibration alarm
6.Shortcut keys to quickly turn on and off the sound alarm and storage mode
7. Store up to 100,000 data, with the software to view historical data at any time

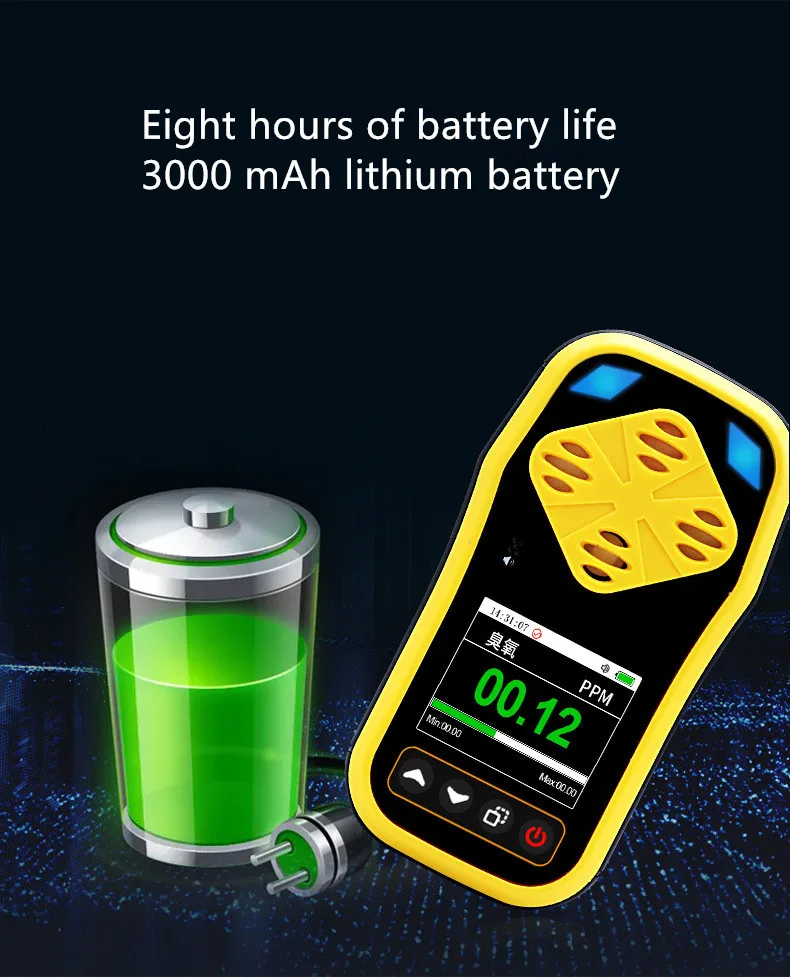

8. Large-capacity battery, the device can be used continuously for at least 8 hours in the constant
light mode.
light mode.

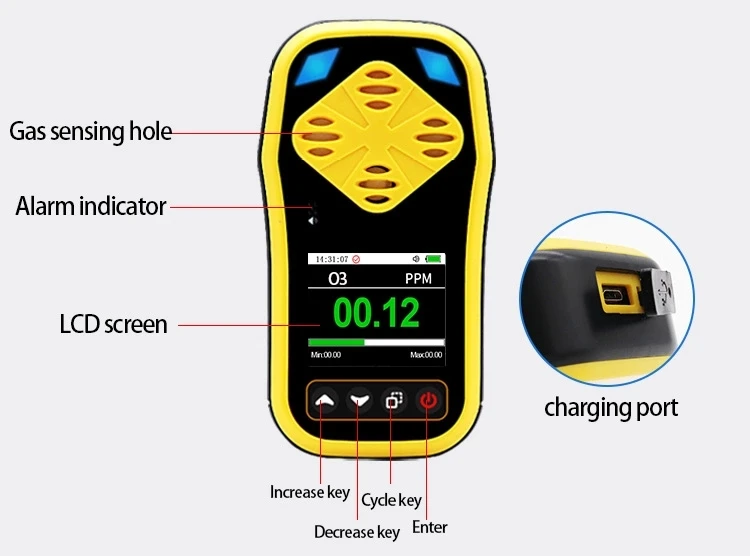

NO | Name | Description |
1 | Real-time value | Display the current actual gas concentration value |
2 | Gas name | Display gas name |
3 | Time | Display the current time (manual adjustment) |
4 | Call the police | As shown in the figure, the total alarm sound, light and vibration are turned on (the buzzer alarm can be turned off separately).When displayed, it means that the total alarm is turned off |
5 | USB socket | After plugging in the USB, this logo is displayed |
6 | Shock | This symbol appears to indicate that the device is in a vibration state |
7 | An alarm occurred | This sign appears to indicate that the equipment is in alarm state |
8 | Storage status | Display ■ indicates that the device is in the state of storing data. When ▶ is displayed, it indicates that the device is in the state of storing data |
9 | Buzzer | As shown in the figure, the buzzer is normally enabled. When the buzzer is disabled, it displays: When the alarm is turned off, the buzzer cannot be activated |
10 | Power | Display the remaining battery power |
11 | Proportion | The proportion of current gas concentration to the range of this sensor |
12 | Minimum value | Minimum range |
13 | Maximum | Maximum range |
Details Images
Our Advantages
Our OZONE DETECTOR is easy to use and maintain, and meets the requirements of industrial field safety monitoring for high reliability of the equipment. The shell is made of high-strength engineering plastic and composite anti-skid rubber. It has high strength and good hand feel.
Appilcation
This detector is widely used in petroleum, chemical, environmental protection, metallurgy, refining, gas transmission and distribution, biochemical medicine, agriculture and other industries.
Recommend Products
FAQ
Q: Are you manufacturer?
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the shell and logo for you.
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
Q: What payment ways do you accept?
A: You can pay us by credit card, T/T , and West Union .
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.
Q: How is your quality assurance service?
A: 24 months quality guarantee.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed .
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the shell and logo for you.
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
Q: What payment ways do you accept?
A: You can pay us by credit card, T/T , and West Union .
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.
Q: How is your quality assurance service?
A: 24 months quality guarantee.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed .
