OSETMAC деревообрабатывающая пила скользящий стол панельная MJ6132S для деревообрабатывающего

OSETMAC деревообрабатывающая пила скользящий стол панельная MJ6132S для деревообрабатывающего

Категория: Торцовочный станок >>>
Поставщик: Qingdao,Oset,International,Trading,Co.,Ltd.

Цена:4 280,00 $ - 4 880,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	5093.99 $*	5348.76 $*
Aug-19-2025	5050.3 $*	5303.23 $*
Jul-19-2025	4237.86 $*	4449.37 $*
Jun-19-2025	4965.10 $*	5213.93 $*
May-19-2025	4323.55 $*	4539.55 $*
Apr-19-2025	4879.96 $*	5123.92 $*
Mar-19-2025	4836.70 $*	5078.36 $*
Feb-19-2025	4794.1 $*	5034.67 $*
Jan-19-2025	4751.66 $*	4989.2 $*

Характеристики

Product Description

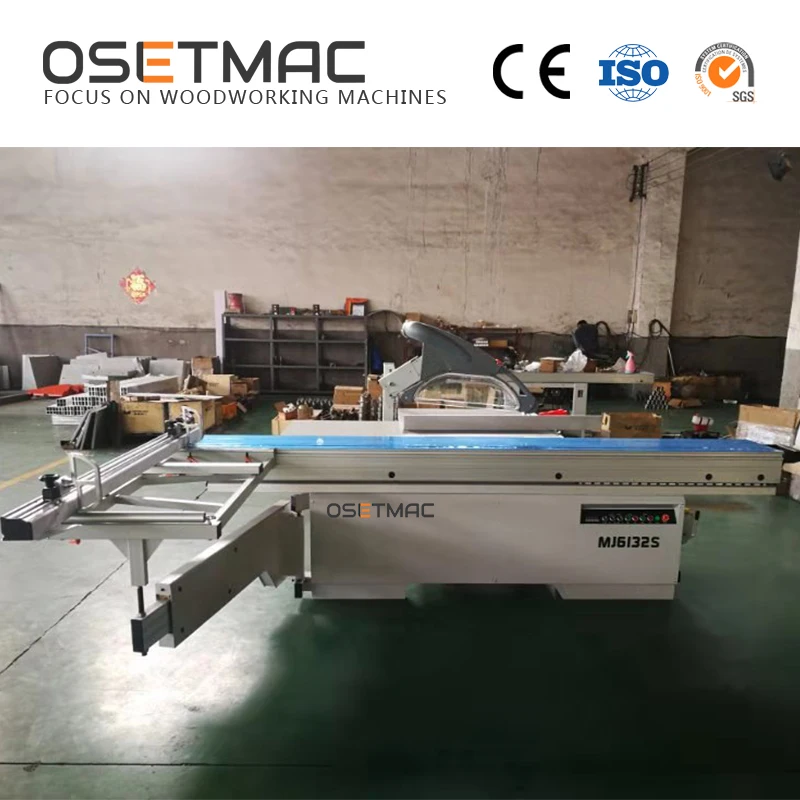

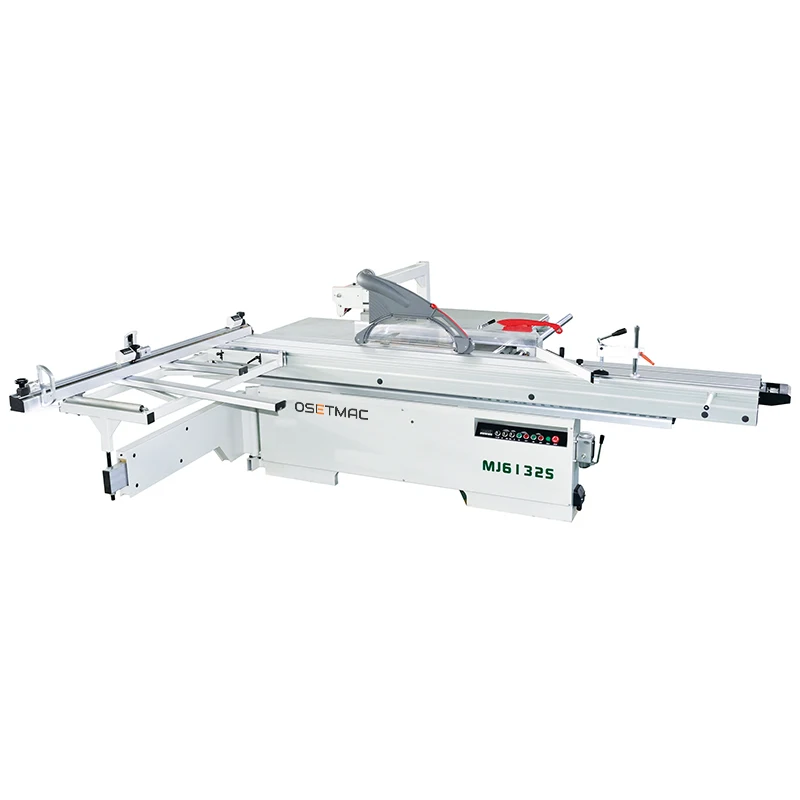

Sliding Table Saw MJ6132S With full Digital Display for Wood Cutting

Inner Structure

This machine uses linear guideway to lift the
saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate
guarantees the compress strength and the high precision of the inter-machine, which can also reduce the shock of the machine.

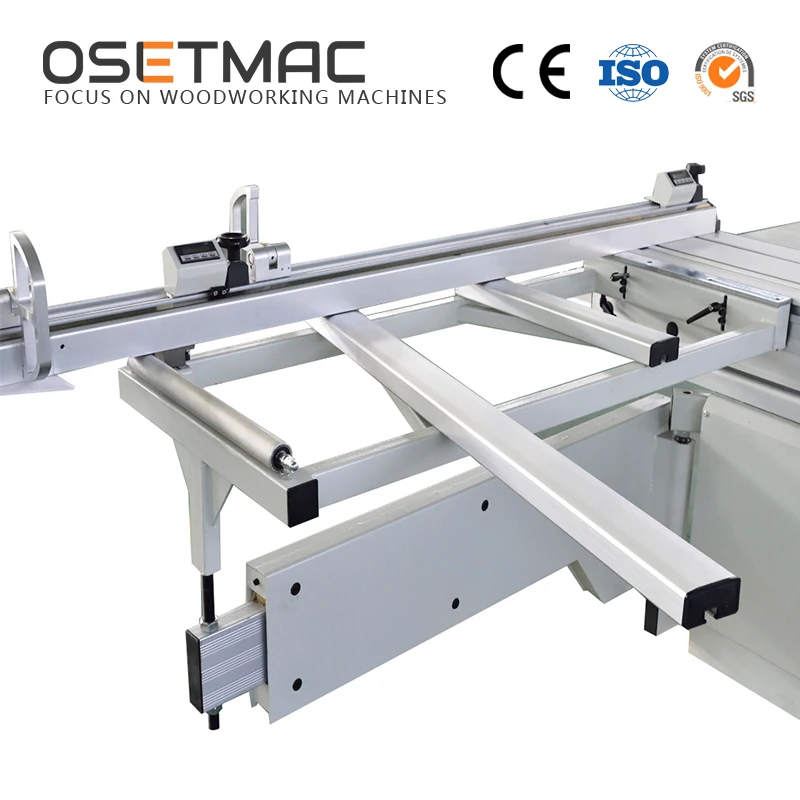

Sliding Table Structure and Feature

Our sliding table supplier is the same as SCM.Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock
on the table makes it convenient to stop anywhere.

Product Paramenters

Sliding Table Dimension	3200*390mm
Cast Iron Table Dimension	91062080mm
length extension table	90568070mm
width cutting extension table	64068070mm
Main Saw Diameter	300mm
Main Saw Blade Diameter Maximum	350mm
Main Saw Bore Diameter	30mm
Max. Cutting Height With Bade at 90	80/100mm（φ300/350）
Max. Cutting Height With Bade at 45	50/70mm（φ300/350）
Main Motor Power	5.5KW
Main Blade Speed	4000/6000RPM
Scorning Saw Blade Diameter	120mm
Scorning Saw Bore Diameter	20mm
Scorning Saw Motor Power	1.1KW
Scorning Blade Speed	8000RPM
Max. Cutting Width	1250mm
Max. Cutting Length	3100mm
Blade Tilting Adjustment	0-45°
Main Saw Height Adjustment	Electric
Scorning Saw Height Adjustment	Electric
Dust Guard Outlet Diameter	80mm
Dust System Outlet Diameter	100mm
Dimension of Wood Packing Carton	225012001100mm(Main Crate )
		3400450290mm(Sliding Table)
Dimension	32503450900mm
G. W.	800KG

Packing&Shipping

Detailed Images

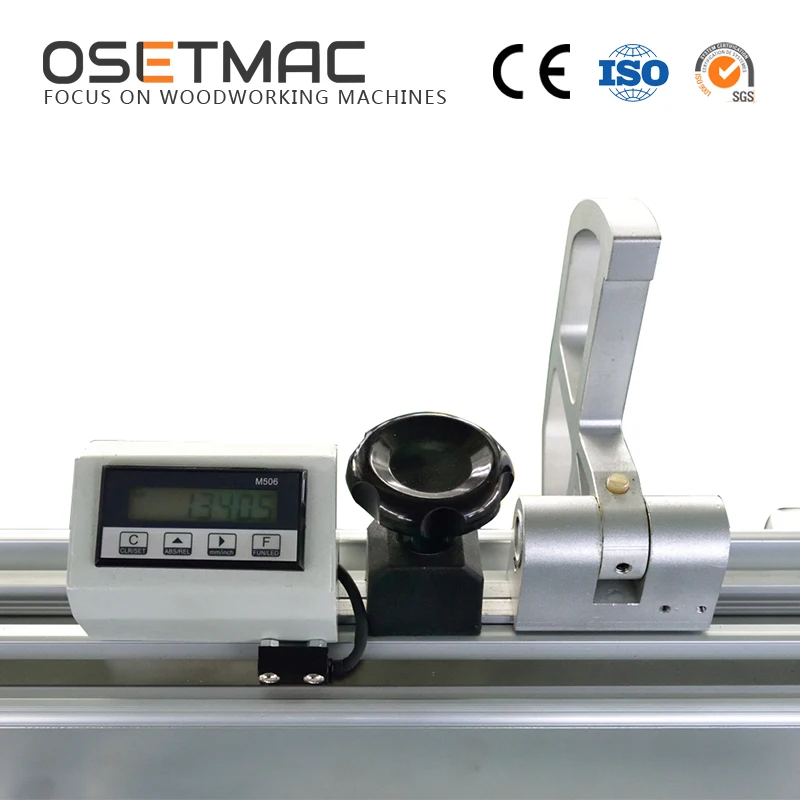

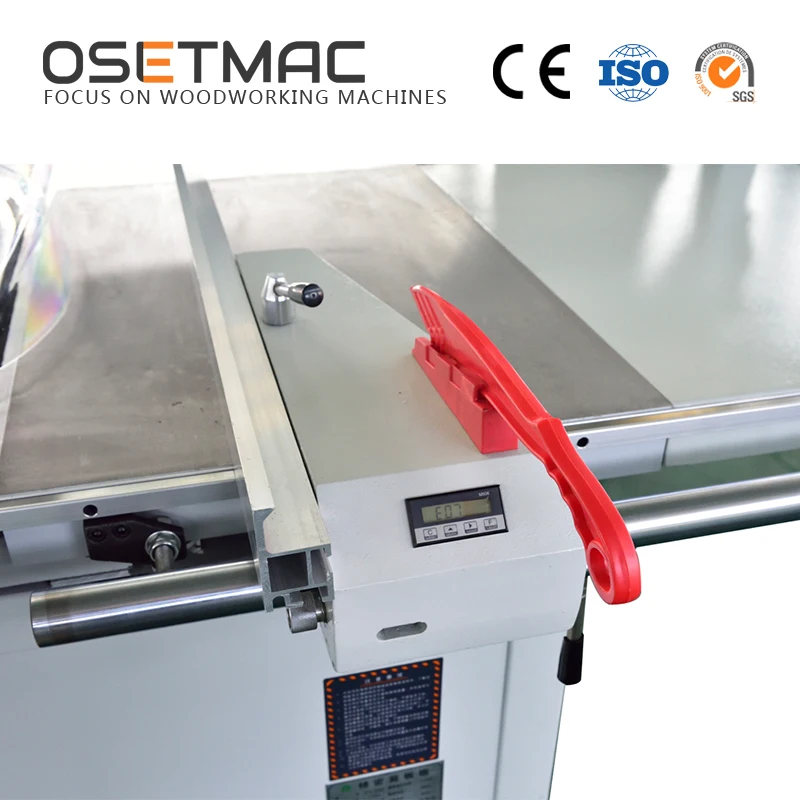

Full digital display with big dust cover to make sure better dust collection effect and keep safety.

All bearings in our sliding table saw are imported SKF brand.

Big dust cover is optional in this sliding table saw. This device can make sure better dust collection effect and keep safety.

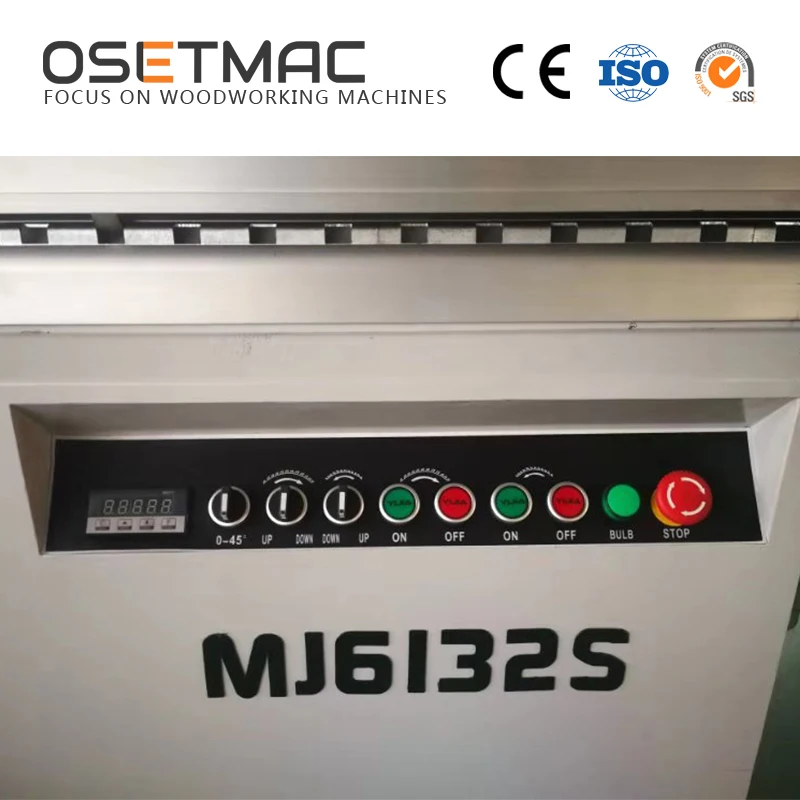

The main saw blade and scoring saw blade are both electric lifting, which makes it easy to operate. The tilting function is also electric control.

Company Introduction

OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
