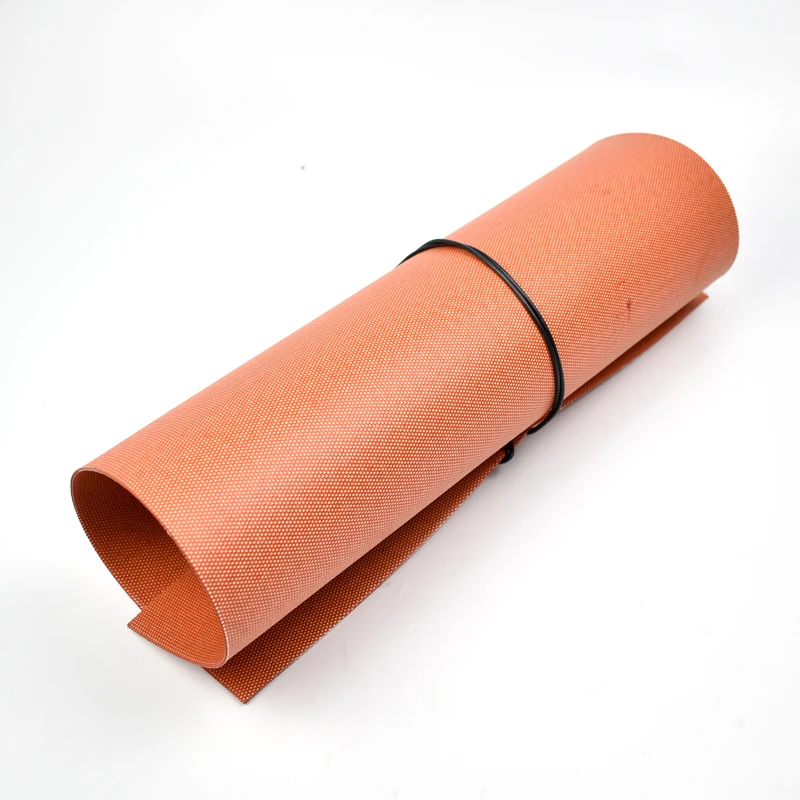

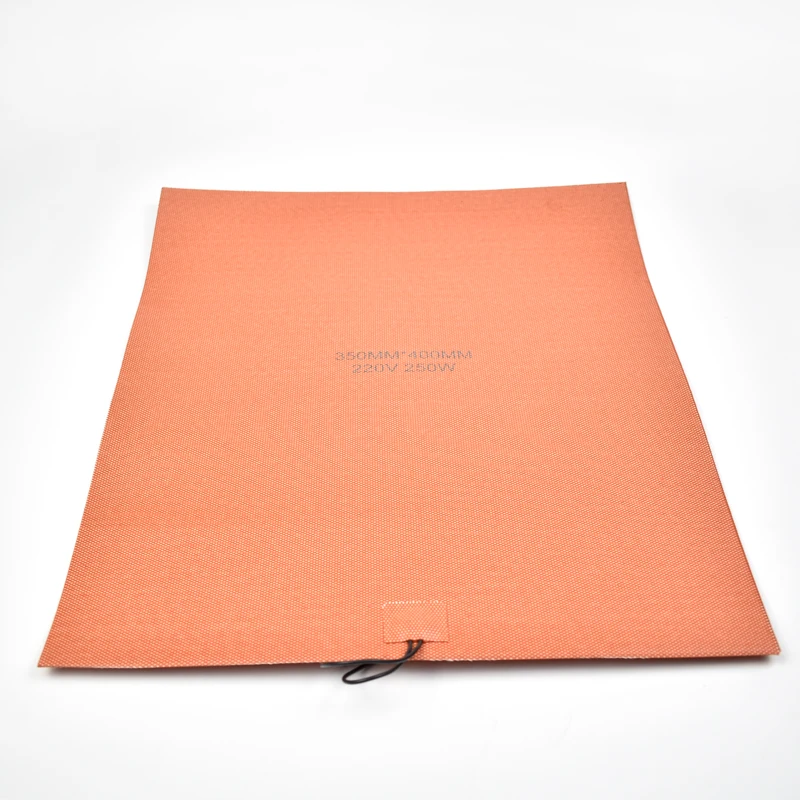

Гибкая Водонепроницаемая силиконовая резиновая печатная плата с подогревом для 3D-принтера 1000 мм
- Категория: Industrial Heater >>>
- Поставщик: Yancheng,Laiyuan,Electric,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 50.78 $* | 53.98 $* |
| Aug-19-2025 | 50.33 $* | 53.19 $* |
| Jul-19-2025 | 42.42 $* | 44.37 $* |
| Jun-19-2025 | 49.1 $* | 51.55 $* |
| May-19-2025 | 42.94 $* | 44.4 $* |
| Apr-19-2025 | 48.46 $* | 50.20 $* |
| Mar-19-2025 | 47.84 $* | 49.9 $* |
| Feb-19-2025 | 47.49 $* | 49.64 $* |
| Jan-19-2025 | 47.45 $* | 49.13 $* |
Характеристики
All Silicone Heaters
Product Pramameters
Insulating resistance | ≥50MΩ | ||||
Size Deviation | ±0.5% | ||||
Output | Up to 5KW/M2 | ||||
Wattage Tolerance | ±5% | ||||
Compressive strength | 1500V/S | ||||
Thermocouple | K or J type,PT100,PT1000 | ||||
Temperature controller | Dial, Digital thermostat or thermistor, thermal protection or thermocouples etc | ||||
Power lead wire | Silicone rubber, SJ Power Cord, or PTFE insulated stranded wire | ||||
High voltage resistance | 1.5KV | ||||
Features
1. Thinness, lightness, sticky and flexibility
2. Improve heat transfer, accelerate warming and decrease power under the process of operation
3. Heat fast and high thermal conversion efficiency
4. Flexible customized shapes
5.Surface Sensing Thermostats
6.Adjustable Thermostats dial or digital
7.Thermocouples (K, J or PT100 etc)
8.Thermistor
9.Thermal Protectors
Silicone Heating Plates beneficial to take out liquid and coagulum from drums easily by heating, such as adhesive, oil, asphalt, paint, paraffin wax, oil and various resin raw materials in the drum. It can make viscosity of materials descending and uniform by heating the drum, and reduce the power of pump. Therefore, the heater does not be restricted by seasons, and can be used throughout the year.
The heating element is a Nickel-Chromium or Copper-Nickel alloy wire, this resistance is embedded between two layers of silicone impregnated glass cloth, making drum heater. A fitted stainless steel spring makes the mounting easy.
A dial thermostat graduated from 30°C to 150°C allows the temperature maintenance adjustment. Or digital thermostat 0--280 degree C can adjust and display temperature as your need.The drum heater is weatherproof.
The heating element is a Nickel-Chromium or Copper-Nickel alloy wire, this resistance is embedded between two layers of silicone impregnated glass cloth, making drum heater. A fitted stainless steel spring makes the mounting easy.
A dial thermostat graduated from 30°C to 150°C allows the temperature maintenance adjustment. Or digital thermostat 0--280 degree C can adjust and display temperature as your need.The drum heater is weatherproof.
Product Application
1.3D printer Hotbed
2.Food heating pad and candy making hot plates
3.Industry heating blanket.
4. Thermal transfer equipment;
5.Prevent condensation in motors or instrument cabinets;
6. Freeze or condensation prevention in housings containing electronic equipment, for examples: traffic signal boxes, automatic teller machines, temperature control panels, gas or liquid control valve housings
7. Composite bonding processes
8. Airplane engine heaters and aerospace industry
9. Drums and other vessels and viscosity control and asphalt storage
10. Medical equipment such as blood analyzers, medical respirators, test tube heaters, etc.
11.Curing of plastic laminates
12.Computer peripherals such as laser printers, duplicating machines
Productive Process
Our Company
LAIYUAN HEATER
Since its foundation,Yancheng Laiyuan Electric Equipment Co. Ltd, a company based on the actual needs of clients, has always been adhering to the purposes of quality-first,integrity-based and joint development. Laiyuan focuses on development,production,sales of customized products and serves the industry of electric heat and industrial automation instrumentation.The products are widely used in Plastic Machinery ,Vacuum Packaging, Petroleum Chemical Industry, Electric Power, Metallurgy, Medicine, Food, Industrial Furnaces, Industrial Automation and other industries.
Our Partners
Customers from all over the world,such as European countries, Middle East, USA, Sourth America, Asia,Africa etc.Since 2018, we have customers in more than 30 countries all over the world.we have obtained good recognition from our customers in the industry. With the support of highly-skilled engineers, we can provide professional technical support and after-sales service.
