Характеристики
Liyond
Product display

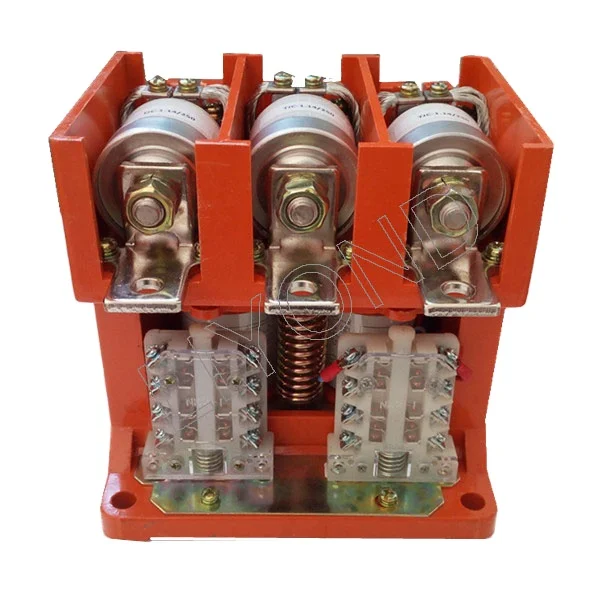

electric contactor price series AC three-phase contactor price is designed for long-distance making and breaking in circuit, frequency starting and controlling AC motor in the power system with AC 50 Hz-60Hz, rated operating voltage to 1140V. It also can be formed with thermal relay and all kinds of protection apparatus, as electromagnetic starter, especially applies to explosion electromagnetic starter and all sorts of power control equipment. It may apply to the department of mine, metallurgy, petroleum, chemical industry, power, communication transportation and so on.
Structure:

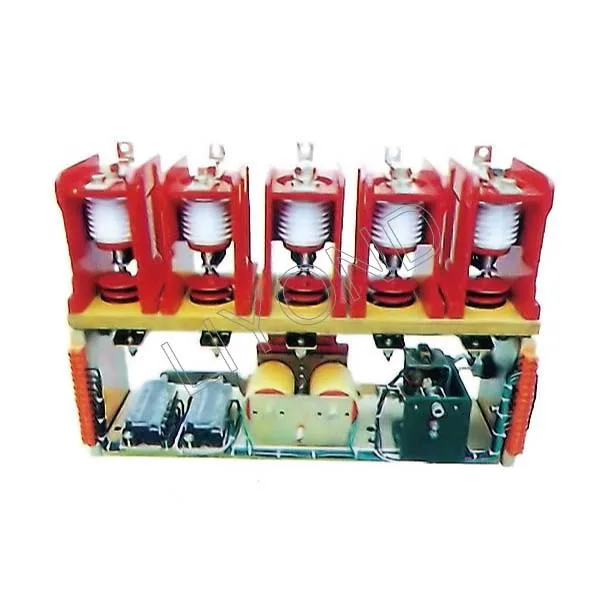

The vacuum contactor is arranged up and down, consisting of a vacuum interrupter, an insulating frame, an insulator, a snap-on closing electromagnetic mechanism, a mechanical locking mechanism, a diverter switch and a chassis. Insulators and insulating frames can achieve high voltage loop to ground and phase insulation and support.
The model meanings are as follows:
Normal working and installation conditions
Attitude no more than 2000m,Ambient temperature within -5℃~+40℃, and the average temperature no more than +35℃ in 24hours.
Specification:
| Model | Rated voltage(V) | Rated Current(A) | Main contact parameter | Power frequency withstand voltage | ||||
| Main circuit | Control circuit | Main circuit | Open distance (mm) | Overtravel (mm) | Main circuit | Auxiliary circuit | Control circuit | |
| electric contactor price-63 | 1140 | 38.110.220.380 | 63 | 1.8 ±0.2 | 1.0 ±0.2 | 4200 | 2500 | 200 |
| electric contactor price-80 | 1140 | 38.110.220.380 | 80 | 1.8 ±0.2 | 1.0 ±0.2 | 4200 | 2500 | 200 |
| electric contactor price-125 | 1140 | 38.110.220.380 | 125 | 1.8 ±0.2 | 1.0 ±0.2 | 4200 | 2500 | 200 |
| electric contactor price-160 | 1140 | 38.110.220.380 | 160 | 1.8 ±0.2 | 1.0 ±0.2 | 4200 | 2500 | 200 |
| electric contactor price-250 | 1140 | 38.110.220.380 | 250 | 2.0 ±0.2 | 1.0 ±0.2 | 4200 | 2500 | 200 |
| electric contactor price-400 | 1140 | 38.110.220.380 | 400 | 2.0 ±0.2 | 1.0 ±0.2 | 4200 | 2500 | 200 |
| electric contactor price-600 | 1140 | 38.110.220.380 | 600 | 2.0 ±0.2 | 1.0 ±0.2 | 4200 | 2500 | 200 |
