N Женский 4 отверстие фланец припоя для монтажа на шасси
- Категория: Разъемы >>>
- Поставщик: Danyang,Hengtong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.66 $* | 0.17 $* |
| Aug-16-2025 | 0.88 $* | 0.59 $* |
| Jul-16-2025 | 0.1 $* | 0.22 $* |
| Jun-16-2025 | 0.62 $* | 0.57 $* |
| May-16-2025 | 0.14 $* | 0.97 $* |
| Apr-16-2025 | 0.59 $* | 0.37 $* |
| Mar-16-2025 | 0.74 $* | 0.84 $* |
| Feb-16-2025 | 0.48 $* | 0.34 $* |
| Jan-16-2025 | 0.52 $* | 0.51 $* |
Характеристики
Product Description
Product Name | N female chassis mount solder Connector |
Material | brass |
Finishing | Nickel Plated |
Standard | IEC 169-16 & MIL-C-39012 |
Style | Square Flange |
Used | Communication Systems, RF Microwave, etc. |

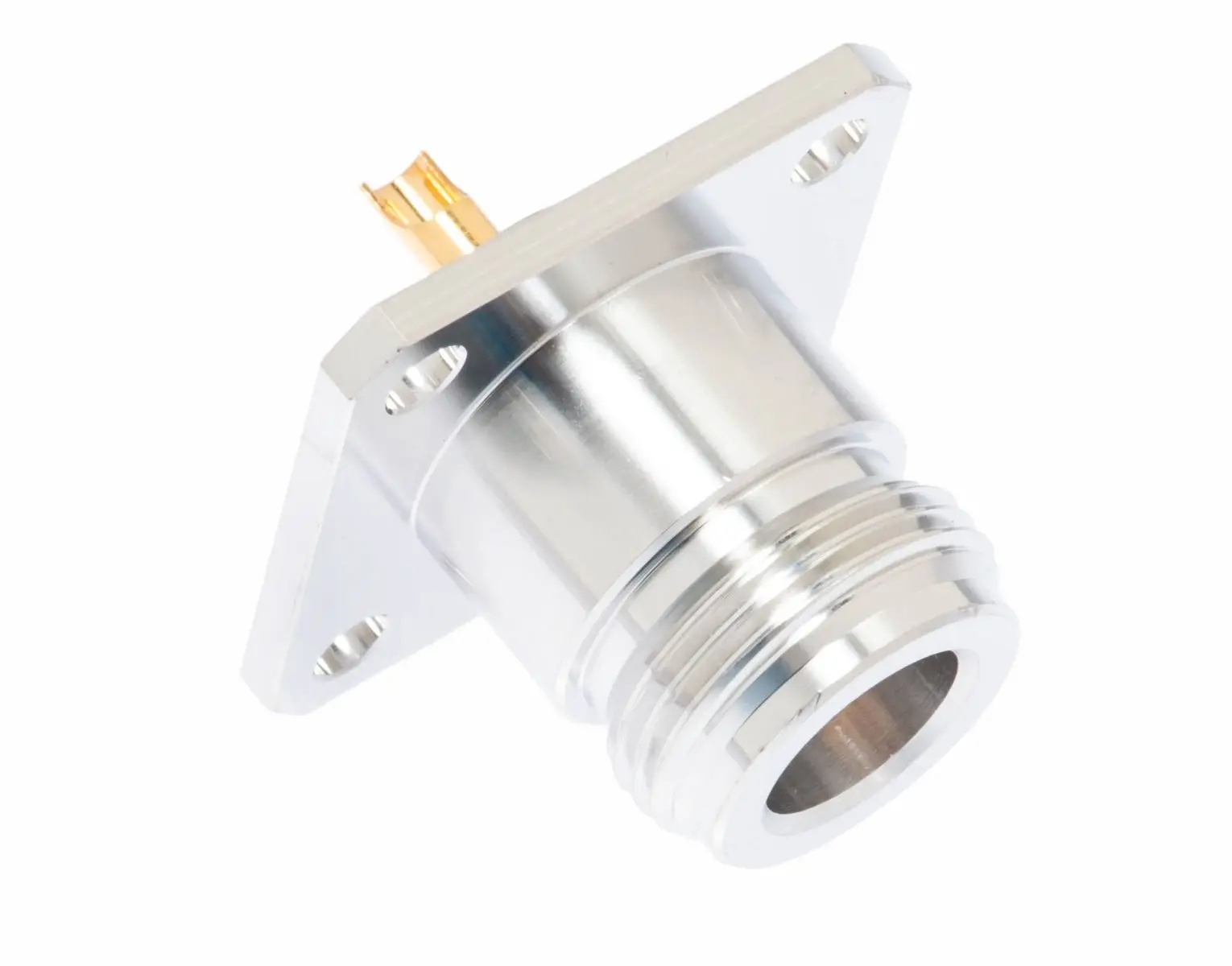

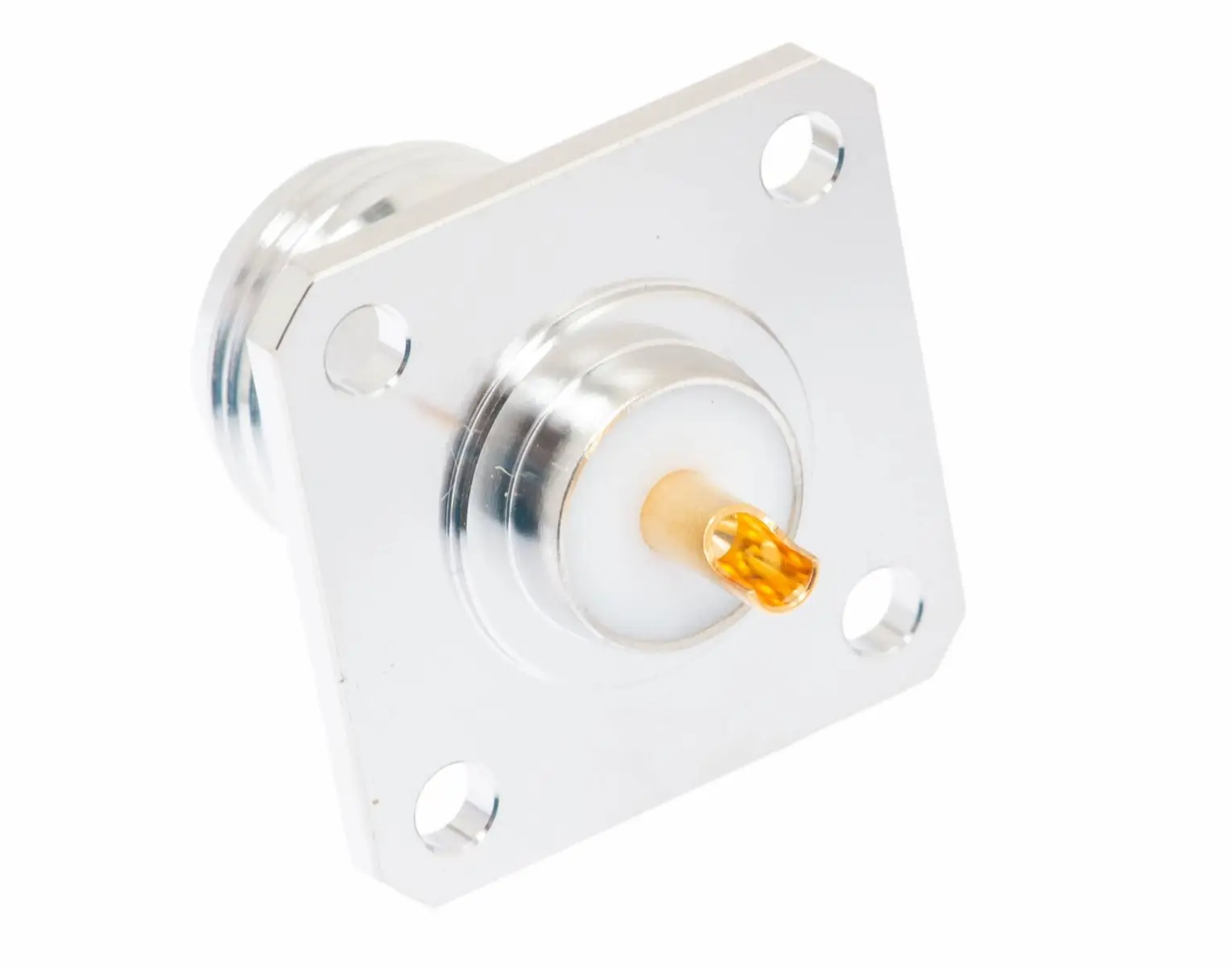

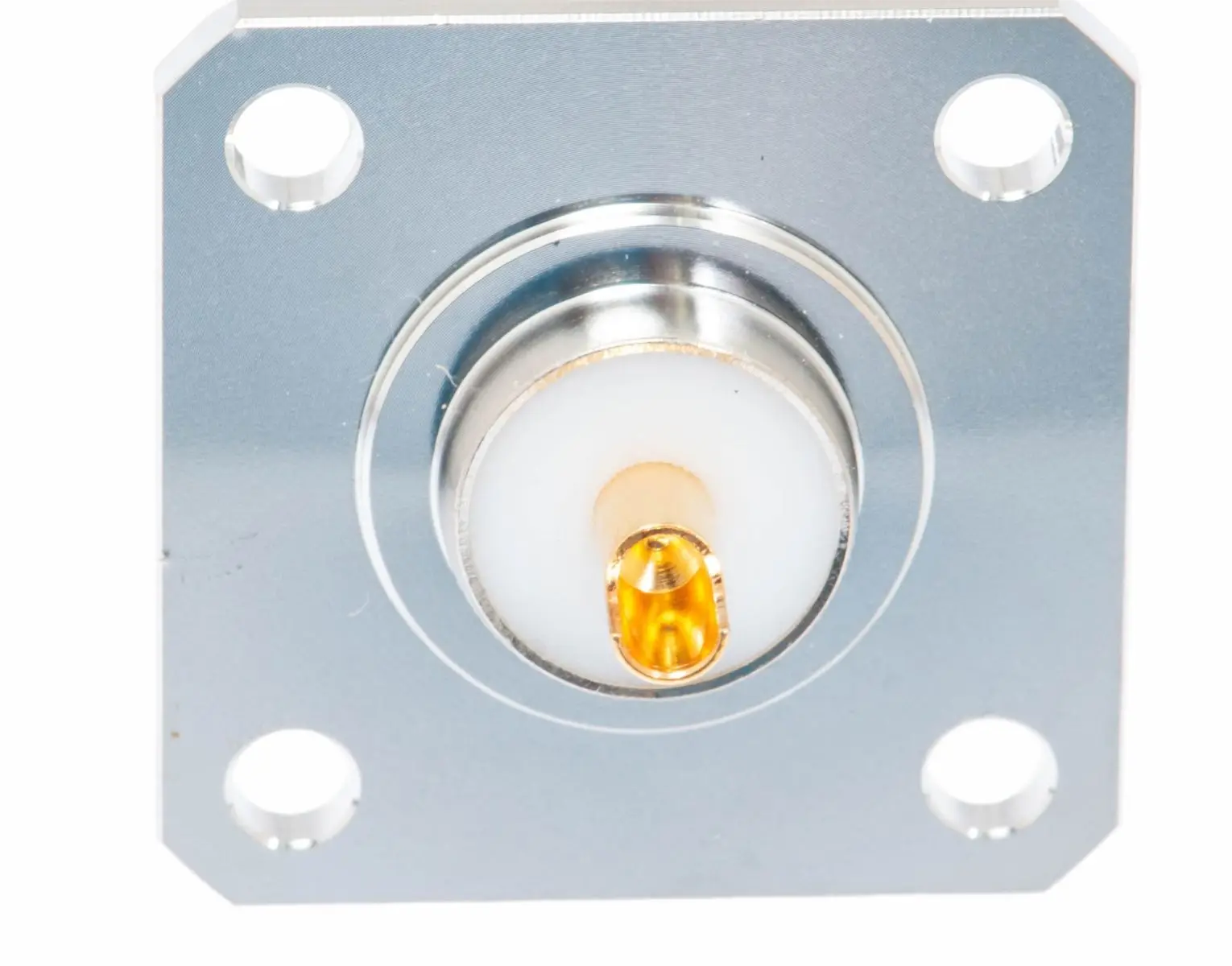

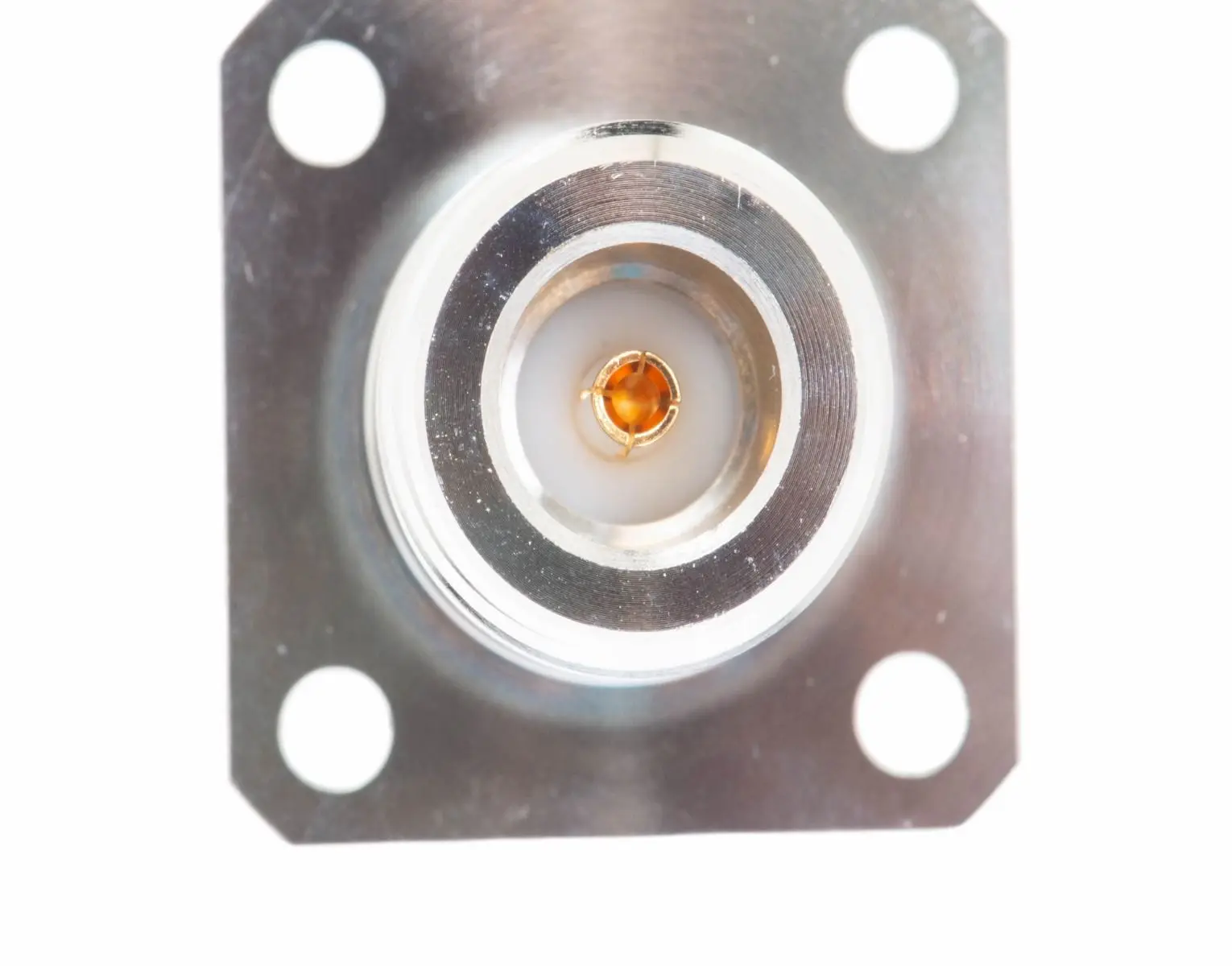

Products Show
Material & Plating
Item | Part | Material | Plating | Remark |
1 | Shelll | Brass | Nickel | |
2 | Body | Brass | Nickel | |
3 | Center Contacts | Phosphor bronze Beryllium copper | Gold or Silver | |
4 | Insulator | PP/ PTFE | Natural | |
5 | Gasket | Steel | Natural | |
6 | Washer | silica gel | Red | |
7 | Ferrule | Brass | Nickel |
Performance
Temp range | -55 ~ +155℃ -40 ~ +85℃ PE | Contact resistance | Center conductor ≤ 10mΩ Outer conductor ≤ 2.5mΩ |
Frequency range | 0~11 GHz | VSWR | Straight 0~1GHz ≤1.15 ＞1~11GHz≤1.30 Angle ≤ 0~9GH ≤1.35 ＞9~11GHz≤1.50 |
Center conductor withdrawal force | ≥0.56N | Insulation resistance | ≥5000MΩ |
Withstand voltage | 2500V(rms) | Impedance | 50/75 Ω |
Shock | 500m/S2 | Durability | 500 Cycles |
The connectors are a kind of low to medium power connectors,with screw coupling mechanism,are widely used connect of the RF coaxial-cable in electronic equipment and instruments,and can be interchange able with the same-type connectors of abroad.Characteristic impedance 50Ω and 75Ω.
INTERFACE DIMENSIONS (mm）
