Высокоточный персональный датчик

Категория: Датчики >>>
Поставщик: ForThink,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.89 $*	0.7 $*
Aug-17-2025	0.9 $*	0.21 $*
Jul-17-2025	0.70 $*	0.74 $*
Jun-17-2025	0.34 $*	0.7 $*
May-17-2025	0.18 $*	0.0 $*
Apr-17-2025	0.10 $*	0.66 $*
Mar-17-2025	0.66 $*	0.94 $*
Feb-17-2025	0.91 $*	0.13 $*
Jan-17-2025	0.55 $*	0.28 $*

Характеристики

proximity alarm sensor

The most recent period, almost all of essential businesses are being under significant challenges in maintaining social distancing guidelines because they lack real-time insight into whether these guidelines are being observed in their facilities. EHIGH have dedicated to develop the distance triggered alarm and perfectly help you to reopen your business.

EHIGH’s proximity alarm sensor is based on Ultra-Wideband indoor ranging technology and many improvements have been made by EHIGH, through which the social distance can be set in advance and the error can be within only 10 centimeters.
In the facility, every one should carry a ranging tag which can be a sticker tag or a wristband. Our alarm system continuously monitors the actual distance between two tags. Once the distance between two people is less than the approved parameter set in advance(e.g, 6 feet), the system will send alarm signals to them: both sound and vibration. So individuals know when to adjust their current distance to a proper social distance.
More importantly, each alarm event will be recorded in the tag and upload to the server through the wireless gateway or by the wired connection that the tag is connected to computer and then gets to the server via network, through which a contact tracing solution is achieved.

Details Images

Product Features

1.Precise distance measurement（the error within 10 centimeters）

2.Stable real-time monitoring

3.Proximity alert with both sound and vibration

4.Contact tracing

5.Adjustable alarm distance

Social distancing tag (Easy to place on helmet or belt)
EH100606A05-P
Primary	Enhanced
1. Ranging Error: 10cm	1. Ranging Error: 10cm
2. Operating temperature: -20~60℃	2. Operating temperature: -20~60℃
3. IP67	3. IP67
4. Working Hours 12h（chargeable）	4. Working Hours 30h（chargeable）

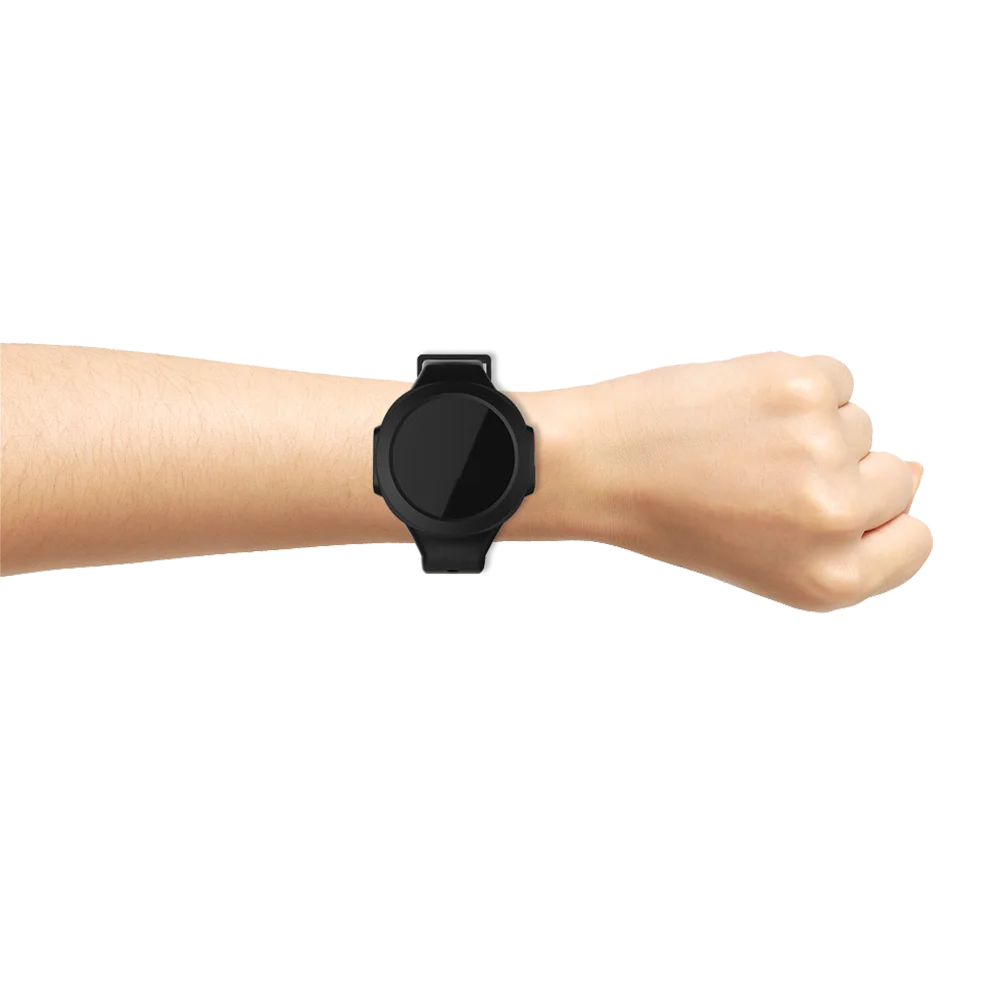

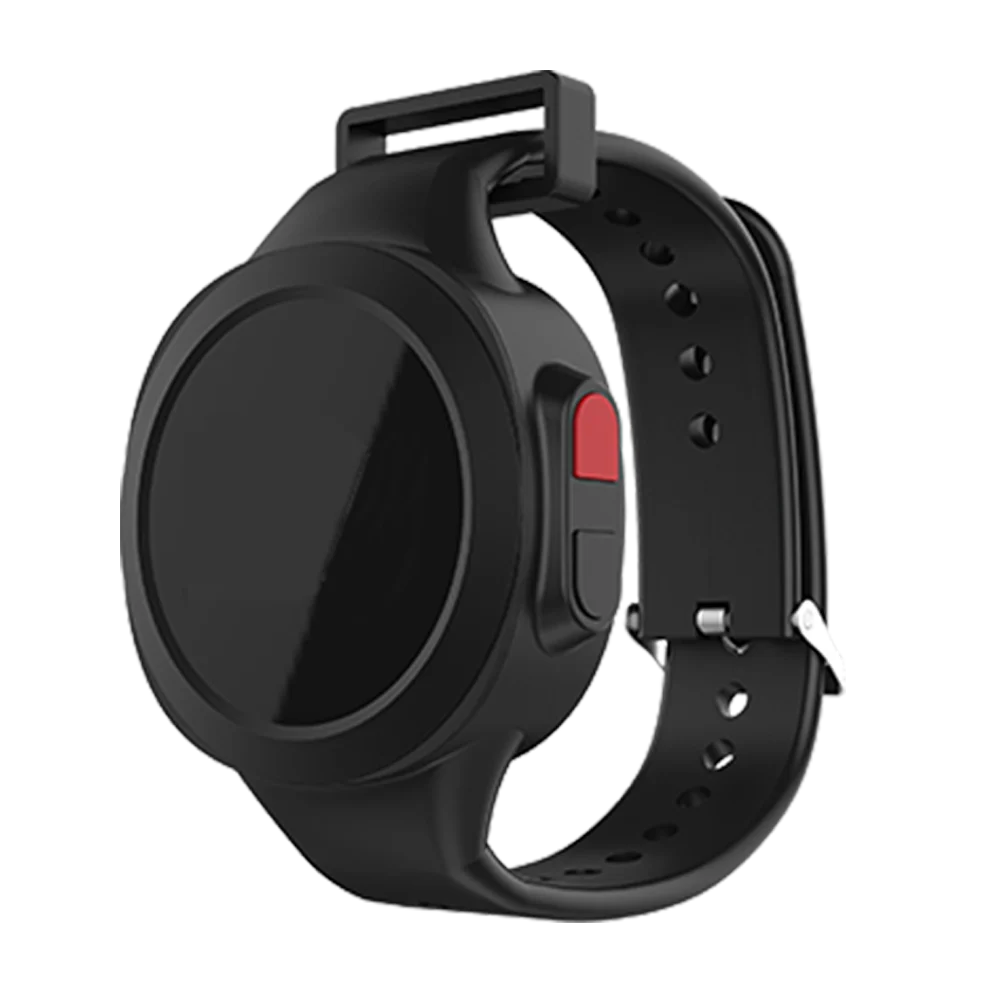

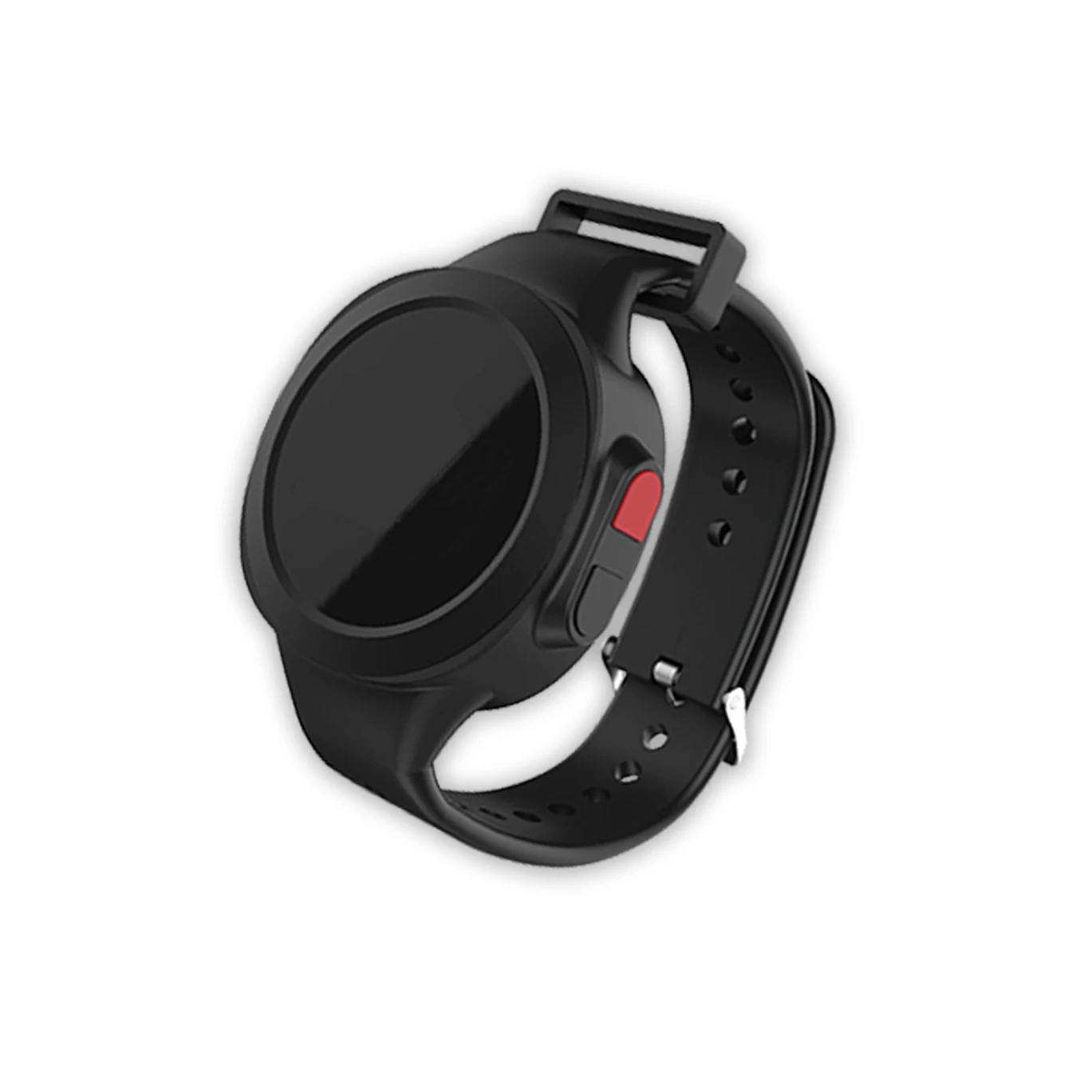

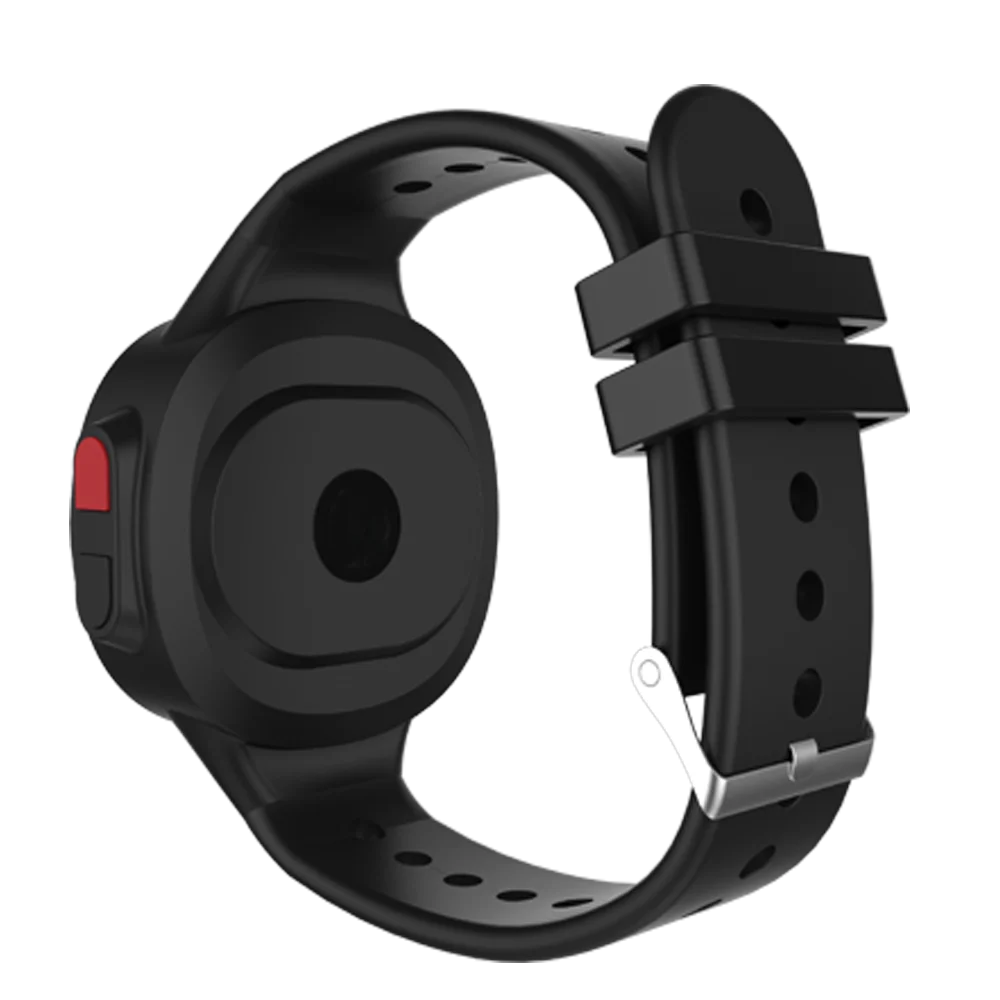

Social distancing wristband (Wear on wrist)
EH100606A04-X
Primary	Enhanced
1. Ranging Error: 10cm	1. Ranging Error: 10cm
2. Operating temperature: -20~60℃	2. Operating temperature: -20~60℃
3. IP67	3. IP67
4. Working Hours 10h（chargeable）	4. Working Hours 30h（chargeable）

First solution

* With gateway, real-time upload of contact data, wide coverage

Second solution

* Wired connection, low investment cost, 30000 contact data storage

Application

Application industries

Building & Construction, Logistics & Warehousing, Manufacturing, Healthcare and Education:

Other application scenarios

The system can also ensure people’s safety if we put location tag on the forklifts, moving vehicles or other dangerous objects.

Certifications

Production Process

Customer Photos

Exhibition

Packing&Shipping

Highly standardized production process,which doesn't rely on Professional people,can be replicated quickly;dust-free plant with ESD protection;

PMS can track the real time production data which will be store permanently;

emphasizing quality,there are more than 50 ex-factory test indexes.

Company Introduction

ForThink Technology Co., Ltd.

As an expert in UWB positioning, “EHIGH” remains one of the world's leading 10 cm high-precision positioning service providers, and has always been committed to providing customers with customized services integrating positioning software, hardware and precise positioning solutions.
Founded in 2014, "EHIGH" is affiliated to Chengdu Forthink Technology Co., Ltd. and locates in Chengdu Intelligent Information Port Park.
The R&D team and core technologies of "EHIGH" are derived from Electronic Science and Technology and Information and Communication Engineering—being national key disciplines of University of Electronic Science and Technology of China that share the first place in the national ranking.
8 years of experience accumulation in such specialties as mobile communication, radar, microwave circuit, cloud computing, and big data processing, etc.
6 years of experience accumulation in product development including such product lines as industrialized HENGJI TM high-precision radio positioning products and HENGYING TM artificial intelligence visual products and SDK secondary development platform.
500+ industry application experience covering 500+ application scenarios such as intelligent manufacturing, petrochemical industry, power and energy, public security and justice, etc.
More than 40 national patents including invention patents, utility model patents, design patents, etc.
IoT High-Tech Enterprise
The ISO9001 quality management system certification.
EHIGH is making its contribution to the prosperous development of smart IoT and Industry 4.0.
