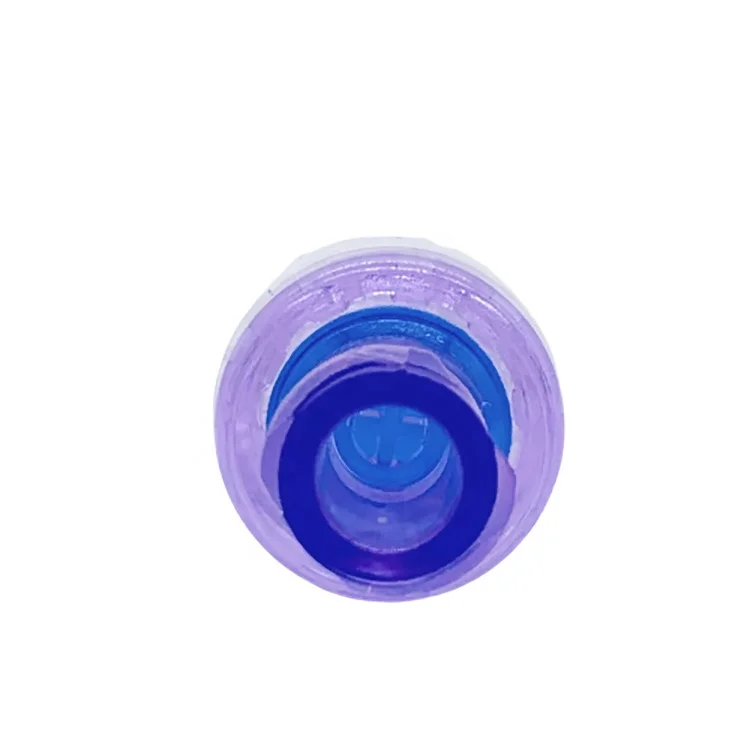

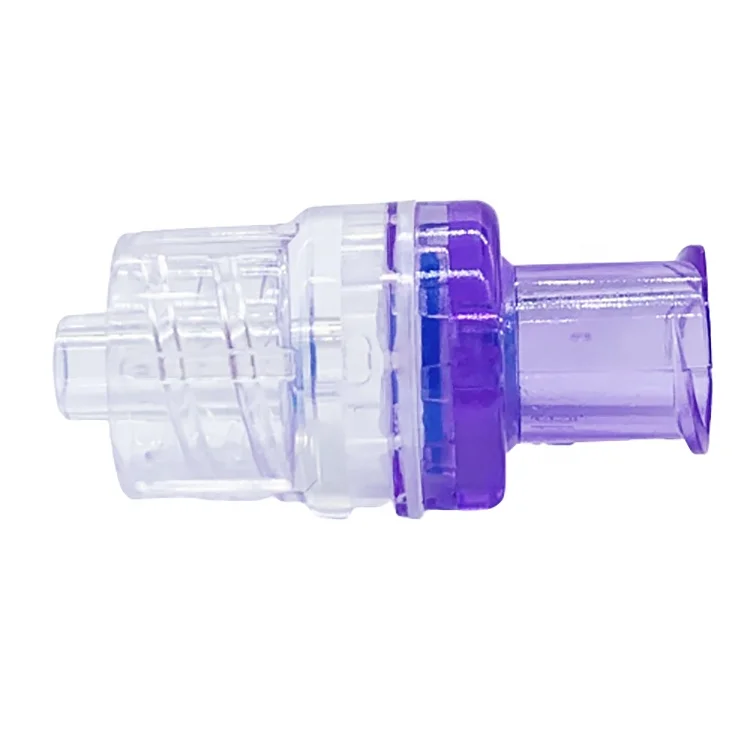

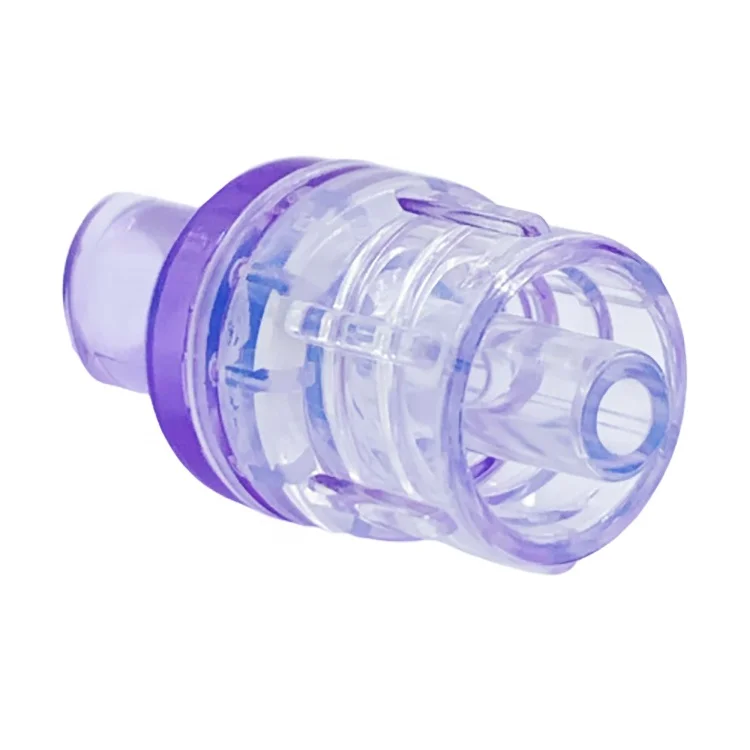

Маленький пластиковый односторонний невозвратный медицинский обратный клапан с вентиляционным отверстием luer lock 1/8
- Категория: >>>
- Поставщик: Fuzhou,Jingteng,Seiko,Rubber,&,Plastic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.53 $* | 0.87 $* |
| Aug-17-2025 | 0.61 $* | 0.32 $* |
| Jul-17-2025 | 0.86 $* | 0.6 $* |
| Jun-17-2025 | 0.30 $* | 0.8 $* |
| May-17-2025 | 0.51 $* | 0.15 $* |
| Apr-17-2025 | 0.24 $* | 0.41 $* |
| Mar-17-2025 | 0.30 $* | 0.76 $* |
| Feb-17-2025 | 0.64 $* | 0.48 $* |
| Jan-17-2025 | 0.71 $* | 0.61 $* |
Характеристики
1/" luer lock pressure small mini vent plastic air one way non-return medical check val
Part No. | Material | Type | Opening Pressure | Back Pressure | Port Size/Tube ID |
CJT061 | PC+Silicone | Diaphragm | 0-2Kpa | <=300Kpa | 1/8''(3.2mm)Male+Female Luer Lock |
Available Sizes | 1/16''(1.6mm),1/8''(3.2mm),3/16''(4.8mm),1/4''(6.4mm),5/16''(7.9mm),3/8''(9.5mm) | ||||
Optional Body Material | ABS,PP,PC,PA66,PVDF,etc | ||||
Optional Sealing Material | Silicone/VMQ,Viton/FKM,Fluorosilicone/FVMQ,NBR,EPDM etc. | ||||
|
| Applicable Accessories | |
Silicone | TPU | ||
1/8” CJT036 | OD:3.44 ID:1.85 | OD:5 ID:2 | OD:5 ID:2.5 |
1/8 ” CJT047 | OD:3.5 ID:1.95 | OD:5 ID:2 | OD:5 ID:2.5 |
1/8 ” CJT061 | [purple]OD:7.75 ID:4.27 | OD:9 ID:6 | OD:8.5 ID:6.5 |
[ Transparent]OD:4 ID:2.16 | OD:5 ID:2.5 | OD:6 ID:3 | |
1/8 ” CJT066 | OD:3.55 ID:2.4 | OD:5 ID:2 | OD:5 ID:2.5 |
1/8 ” CJT079 | [purple]OD:7.75 ID:4.27 | OD:9 ID:6 | OD:8.5 ID:6.5 |
[ Transparent]OD:3.56 ID:2.45 | OD:5 ID:2 | OD:4.5 ID:2.5 | |
1/8 ” CJT080 | [purple] OD:3.56 ID:2.45 | OD:5 ID:2 | OD:4.5 ID:2.5 |
[ Transparent] OD:4 ID:2.16 | OD:5 ID:2.5 | OD:6 ID:3 | |
1/8” CJT095 | OD:3.4 ID:1.8 | OD:5 ID:2 | OD:5.5 ID:2.5 |
According to different uses, our company can provide matching parts | |||
Product selling point advantages:
Used in different medical equipment and instruments, the structure and material of various medical one-way valves can have many choices, easy to install, diverse structure, meet the installation needs of various medical equipment
Material conforms to FDA medical grade
Material has biocompatibility report
