Светодиодная печатная плата с алюминиевой базой для ламп A60 2835
- Категория: Односторонняя печатная плата >>>
- Поставщик: Hubei,Zhongpei,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.86 $* | 0.21 $* |
| Aug-15-2025 | 0.54 $* | 0.84 $* |
| Jul-15-2025 | 0.52 $* | 0.25 $* |
| Jun-15-2025 | 0.85 $* | 0.14 $* |
| May-15-2025 | 0.70 $* | 0.51 $* |
| Apr-15-2025 | 0.85 $* | 0.88 $* |
| Mar-15-2025 | 0.25 $* | 0.37 $* |
| Feb-15-2025 | 0.4 $* | 0.28 $* |
| Jan-15-2025 | 0.87 $* | 0.78 $* |
Характеристики
Product Description

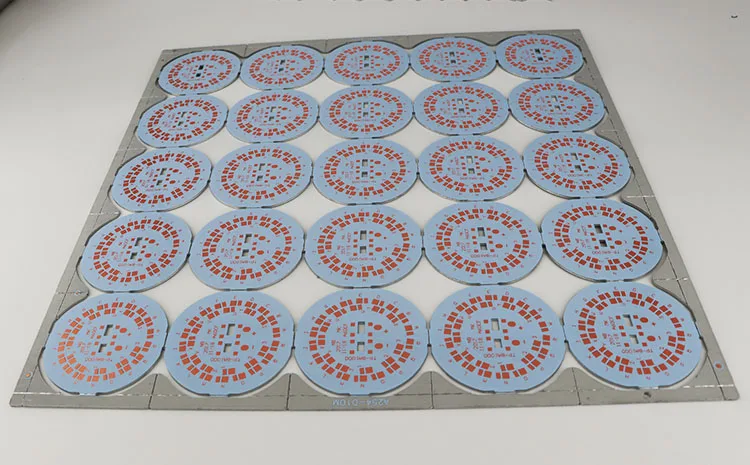

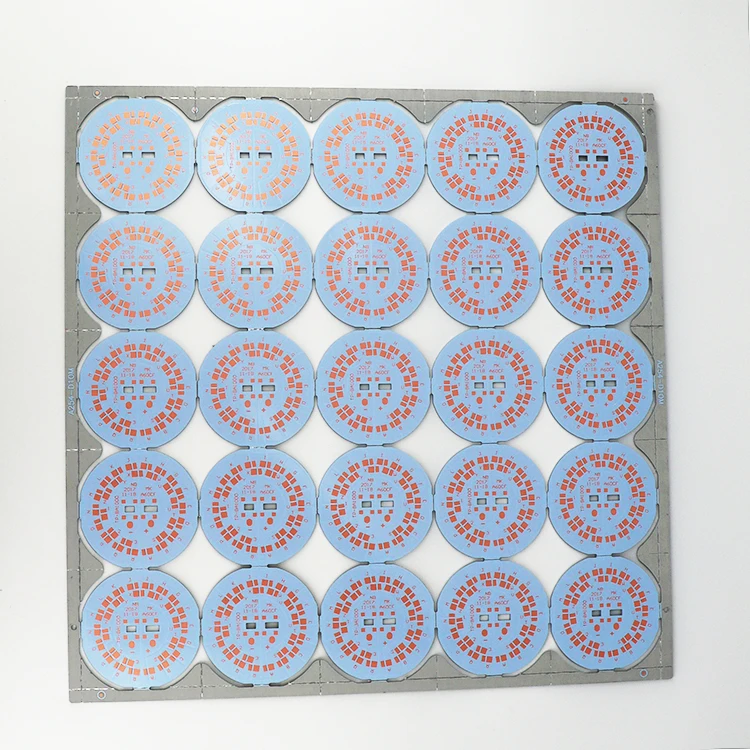

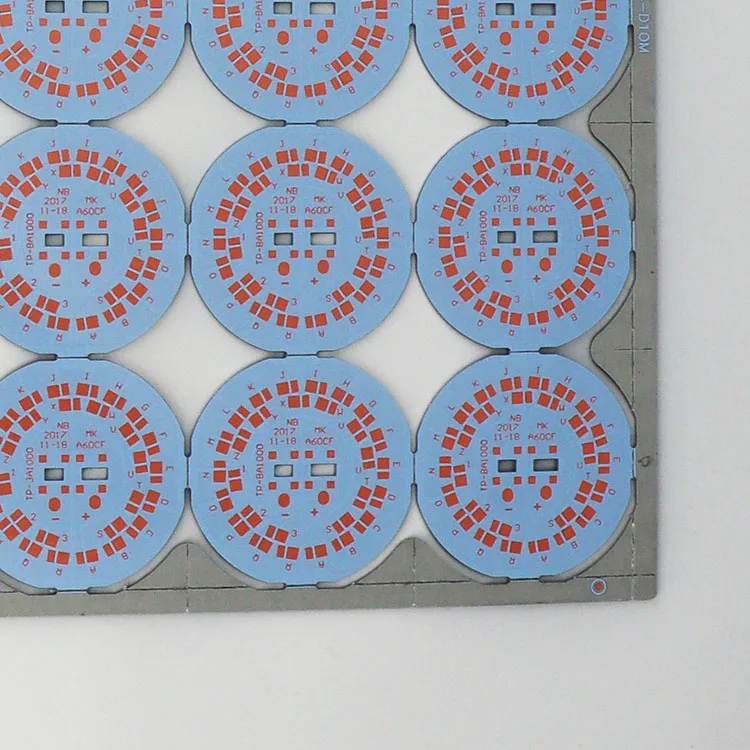

Aluminum Base Bulb Pcb Led Circuit Board Used for 2835 leds A60 Bulb Light
Product Specification:Model Number: A254-D1OM
Material:Aluminum Base
Board thickness: 1.0mm
Copper foil thickness:35um
Product Size:45.9*45.9mm

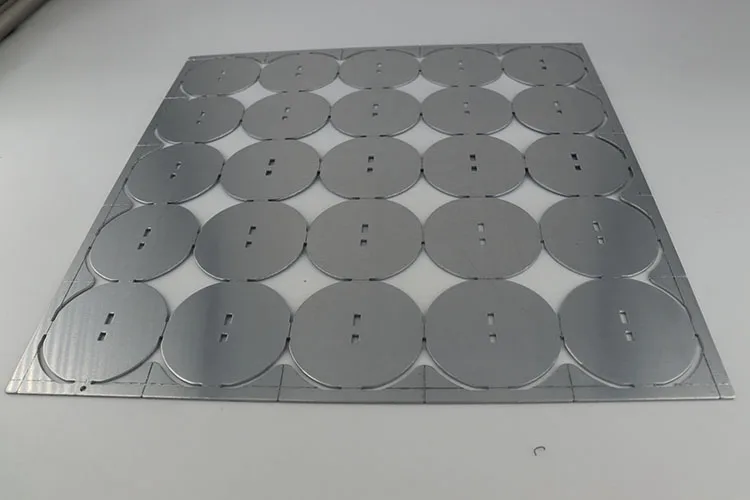

Panel Size: 239.5*239.5/25
Surface treatment: OSP
number of layers: Single layer
Soldermask color:white
Legend: Silkprinting yellow

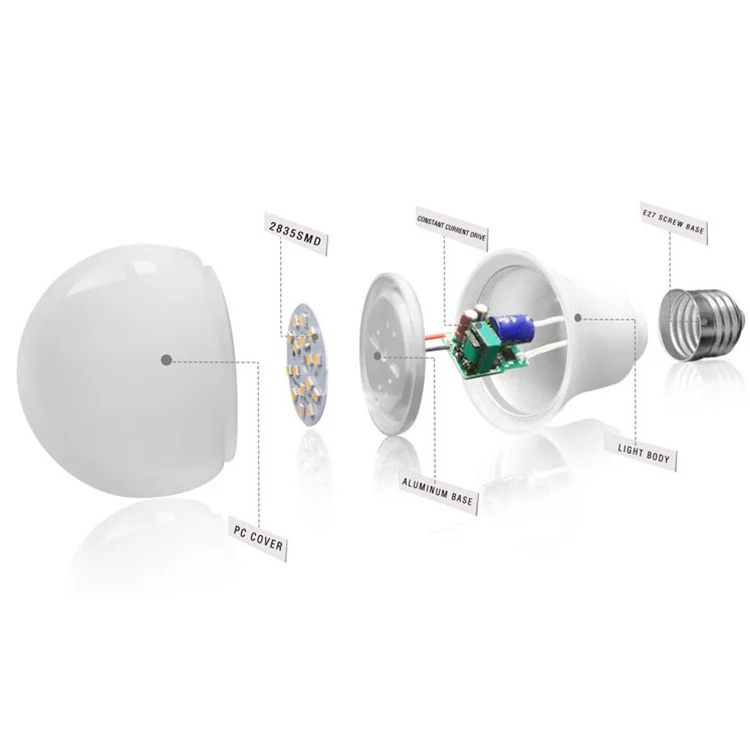

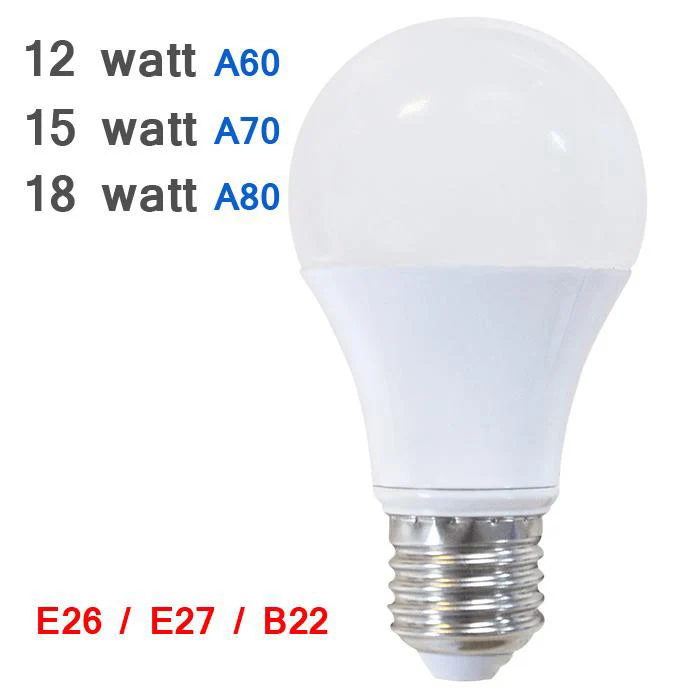

Application: A60 bulb light
Material:Aluminum Base
Board thickness: 1.0mm
Copper foil thickness:35um
Product Size:45.9*45.9mm
Panel Size: 239.5*239.5/25
Surface treatment: OSP
number of layers: Single layer
Soldermask color:white
Legend: Silkprinting yellow
Application: A60 bulb light
Benefit of Aluminum base Pcb:
* Faster heat removal from high power density devices
* Lower peak temperature compared with standard PCB substrates
* Superior heat dissipation beyond the capability of standard PCB substrates
* 2 W/mK thermal conductivity, 6-8 times higher than FR4
* Uniform conductivity in vertical and horizontal axes as dielectric contains no glass layer
* Extends life expectancy of power devices by reducing device temperature
* Lower peak temperature compared with standard PCB substrates
* Superior heat dissipation beyond the capability of standard PCB substrates
* 2 W/mK thermal conductivity, 6-8 times higher than FR4
* Uniform conductivity in vertical and horizontal axes as dielectric contains no glass layer
* Extends life expectancy of power devices by reducing device temperature
Recommend Products
Main Products
Company Profile
ZhongPei Capacity | ||
Layers | rigid board 1- 8 layers,Single layer FPC, Double Layers FPC, Led PCBA | |
Daily production | For regid simple layer 2000sqm per day. FPC 20000 sqm per day. | |
Material can process | FR4, 94V0, Aluminum substrates ,copper base, CEM-1,CEM-3,FR1,22F,FPC,etc | |
Surface treatment | OSP, HASL Lead Free, Soldermask, chemical silver, chemical gold, golden finger. | |
Board thickness | 0.5-3.0mm | |
Cooper foil thickness | 18-105um, 0.5-3oz | |
Finished Size | Rigid Board:Min 3*3mm, max 500*1500mmFPC: max width245mm, max coverlay length 600mm | |
Min line width for rigid board | 0.2mm for single rigid board, 8mil for multi-layer rigid board. 0.4mm for single layer fpc, 0.3 mm for double layer fpc, | |
Quality Controlling | IQC, IPQC,FQC to ensure quality meet IPC 610J, IPS calss 2. | |
Certification | UL, ISO9001,ROHS,CQC | |
Application | Power supplies, Relays (automotive and industrial),Timing circuits,Sensor products,LED light, linear Light, Pool Light, Garden Light, Street Light, Floor Light, spot light, indoor light , outdoor light, Radio and stereo equipment,· Packaging equipment,· Surveillance,· Calculators,· Printers,· Coffee makers,· Vending machines,· Solid state drives,· Camera systems. | |
Product packaging
FAQ
Q:How can I get a price?
A: 1. You can offer gerber file, we will offer price in 24 hours based on the file.
A: 1. You can offer gerber file, we will offer price in 24 hours based on the file.
2. You can send us a physical sample, we can offer price in 24 hours based on sample.
3. For single layer pcb, you can directly offer detail specification, including pictuer, base material thickiness, copper foil thickness, product size, surface treatment way,packing requirement,etc, we can offer price in 24 hours.
A: We are a PCB factory with 13 years experience in this area,We have self desinging team and sales team, we have both auto pcb production ling and traditional line available in our factory.
Q:What is your minimum order quantity?
A: For mass production, our min order amount is USD300.
If less than this, it will be considered as a sample order. Sample order cost will depends on the pcb or pcba. Min sample cost USD30 per item.
Q:What is your advandage than other supplier ?
A: 1.Located in Mid-China causing low labor cost.
Q:What is your advandage than other supplier ?
A: 1.Located in Mid-China causing low labor cost.
2.We have IPC, IPQC, FQC controlling quality in the factory, ensuring our products meet IPC Class 2. And all the prodcuts will pass E-test before shipping out.
3. We can process both rigid board (1-8 layers)and flexible pcb(1-2 layers), also copper base board.
4.For many bulbs pcb items, we already have existed knife mold, this can save knife mold cost for new customers.
Q:How about your supply capacity?
A: Our supply capacity is around 2000sqm to 6000sqm each day. For rigid board(Aluminum base, copper base, FR-4 base),The min size we can process is 3*3mm, and the max size is 500*1500mm. For the FPC, due to film limit,max length is 600mm.
A: Our supply capacity is around 2000sqm to 6000sqm each day. For rigid board(Aluminum base, copper base, FR-4 base),The min size we can process is 3*3mm, and the max size is 500*1500mm. For the FPC, due to film limit,max length is 600mm.
Q:What 's the lead time for an order?
A:Normally,it will take 3 to 15 days depends on the order volume.If you need urgent, please contact our sales people.
For other details, Please Contact Alice!
For other details, Please Contact Alice!
