Гибкий плетеный шланг из ПТФЭ с гладким отверстием 1/4 дюйма в сборе
- Категория: Plastic Tubes >>>
- Поставщик: Hangzhou,Paishun,Rubber,And,Plastic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.93 $* | 0.98 $* |
| Aug-19-2025 | 0.32 $* | 0.71 $* |
| Jul-19-2025 | 0.39 $* | 0.37 $* |
| Jun-19-2025 | 0.36 $* | 0.28 $* |
| May-19-2025 | 0.9 $* | 0.39 $* |
| Apr-19-2025 | 0.36 $* | 0.89 $* |
| Mar-19-2025 | 0.3 $* | 0.40 $* |
| Feb-19-2025 | 0.82 $* | 0.86 $* |
| Jan-19-2025 | 0.64 $* | 0.57 $* |
Характеристики
Why Choose PTFE
Character of PTFE
The PTFE hose material is made of Japanese Daikin.
The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.
PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:
1. Excellent weather resistance, long service life, no brittle fracture and no aging.
2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.
3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
4. With a very low friction coefficuent. non-flammable.
5. With very low evaporate transpiration rate, cold liquid is not volatile.
6. With excellent electrical charateristics (does not change with frequency and temperature changes)
7. Excellent mechanical properties, shock resistance and flexibility.

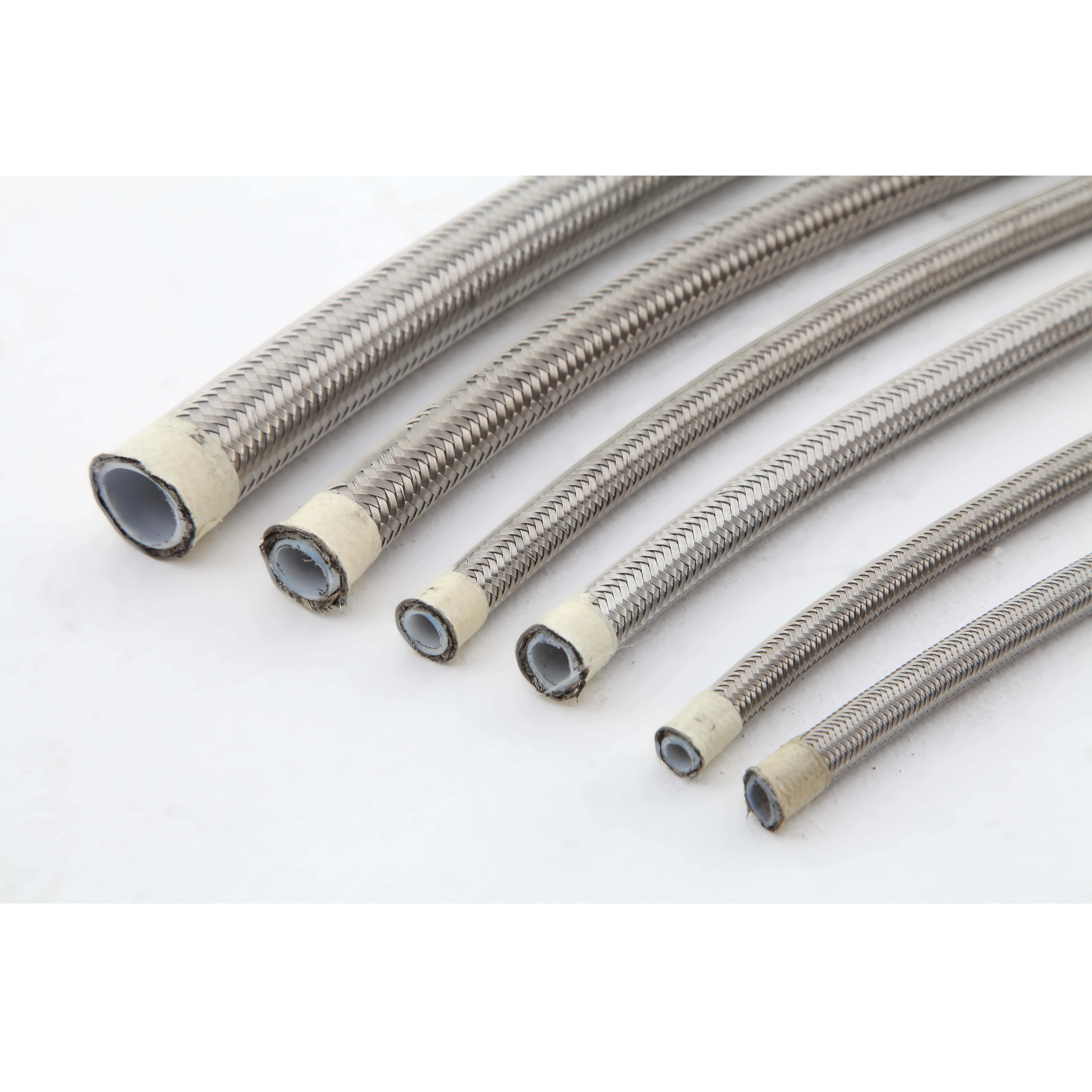

Product Overview

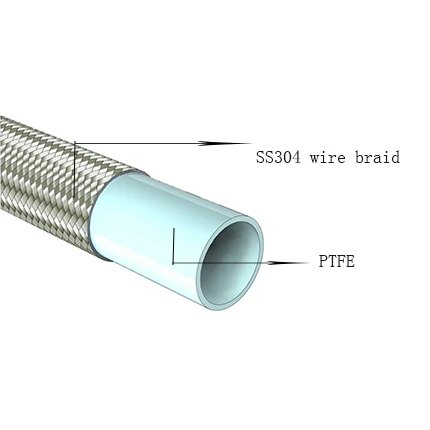

Inner tube: PTFE
Outer tube: stainless steel 304 wire braided
Temperature range: -65℃ to +260℃
Temperature range: -65℃ to +260℃
Advantage:
Because of its high temperature resistance, low temperature resistance, corrosion resistance high lubricating property, inadhesion, toxicity and electrical insulation it is widely used in mechanical, electrical applicances, automotive, aerospace,, chemical, pharmaceutical, communication and other fields.
No | Specification | I.D. | O.D. | Thickness | W.P. | B.P | Min. Bending Radius |
mm | mm | mm | bar | bar | mm | ||
1 | 1/8 | 3.5 | 6.6 | 1 | 320 | 988 | 51 |
2 | 3/16 | 4.8 | 7.6 | 0.85 | 242 | 726 | 75 |
3 | 1/4 | 6.4 | 9.2 | 0.85 | 210 | 653 | 81 |
4 | 5/16 | 8 | 11 | 0.85 | 188 | 587 | 92 |
5 | 3/8 | 9.7 | 12.8 | 0.85 | 185 | 556 | 131 |
6 | 1/2 | 12.7 | 15.9 | 1 | 106 | 461 | 182 |
7 | 5/8 | 16 | 19.2 | 1 | 90 | 382 | 211 |
8 | 3/4 | 19 | 22.7 | 1.2 | 78 | 269 | 338 |
9 | 7/8 | 22.2 | 26 | 1.2 | 60 | 195 | 421 |
10 | 1 | 25 | 29.3 | 1.5 | 40 | 153 | 539 |
11 | 2 | 50 | 55.6 | 2 | 30 | 120 | 1015 |

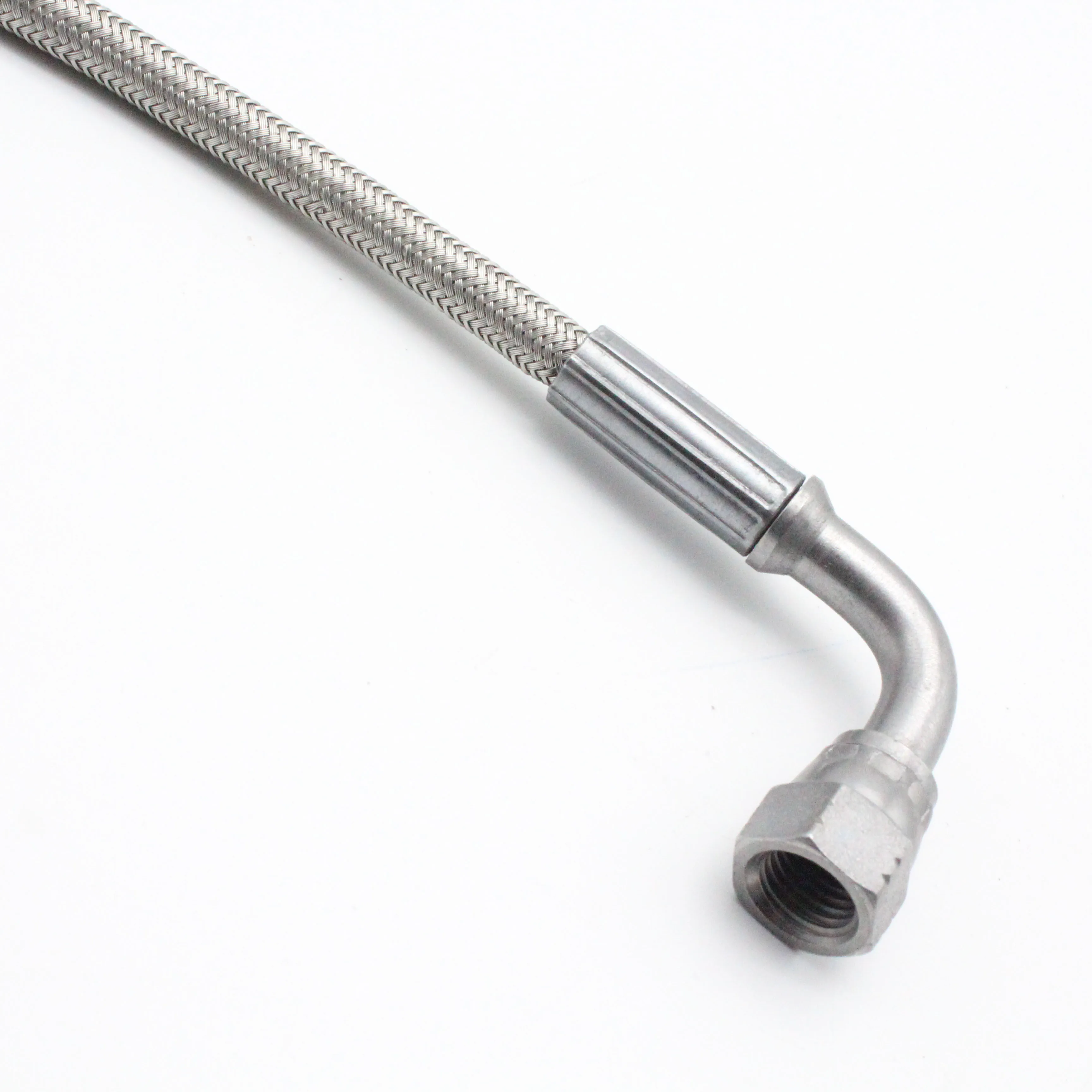

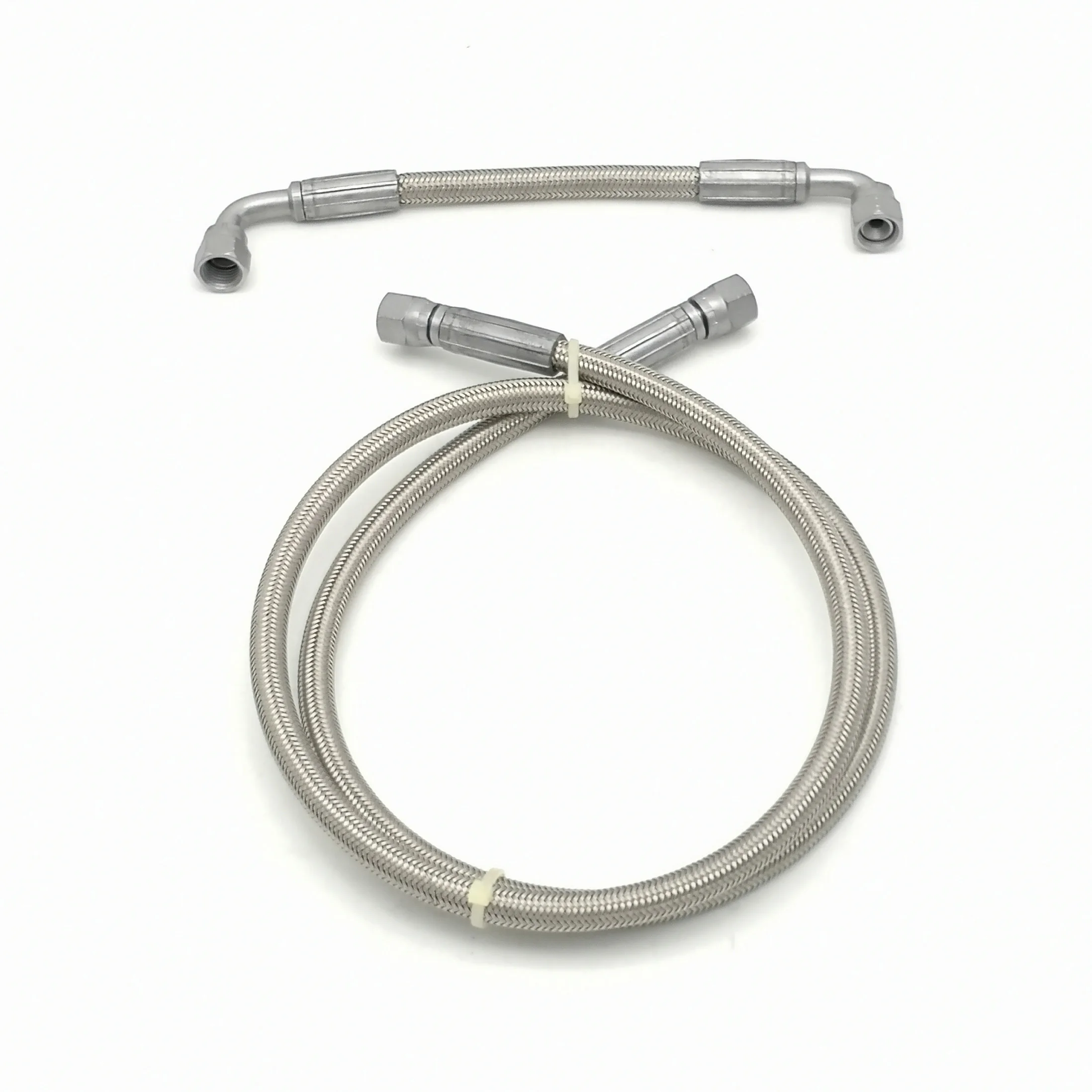

PTFE Hose Assembly
Ferrule: 00TF0
Fitting: According to customers' request. Most of them use JIC Female thread.
Material 1: carbon steel with zinc plated
Material 2: carbon steel with nickel alloy plated
Material 3: SS304 / SS316
Application
Because of wide using temeprature range, it can be used for food processing, high temperature fluid, chemicals and compressed gas, like
-Flamethrower

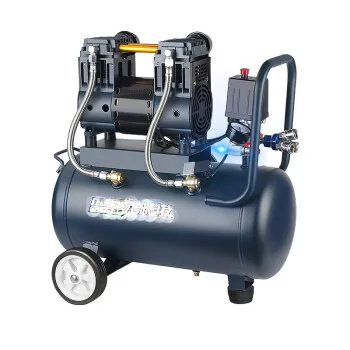

-Air Compressor
Packing&Shipping

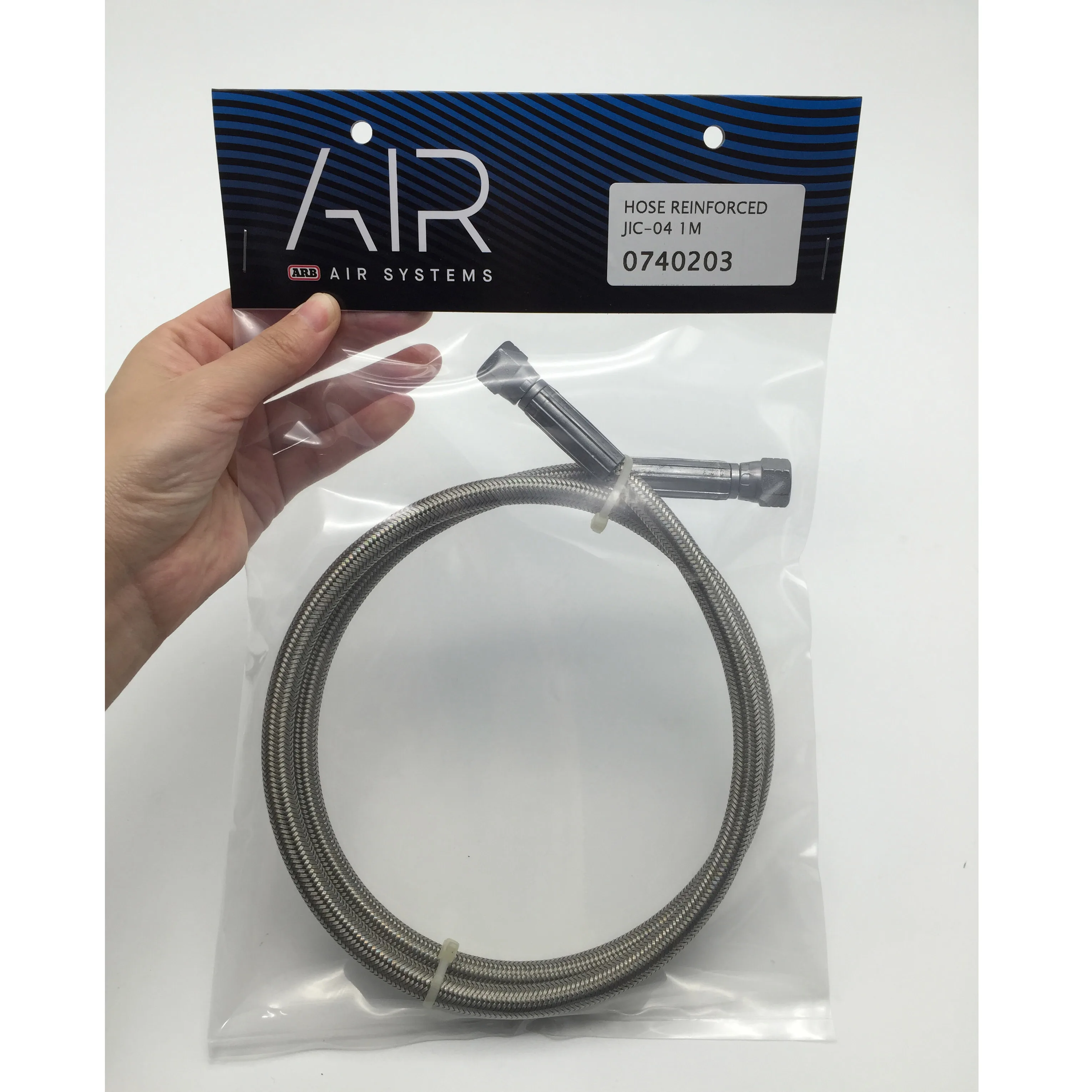

Packing 1: PE bag with headcard for short hose assembly
Packing 2: by rolls with poly stripes
Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.
If you need the goods urgently, ship
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.
If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.
If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.
The goods also can sent to your other suppliers in China to make full container, or send to your agents in Yiwu, Guangzhou, Suifenhe, etc.
PASSION Team
