Принтер Shanghai Demac TTO Intermittent непрерывного типа с 300 точек/дюйм для производственной
- Категория: Кодирующие машины >>>
- Поставщик: Shanghai,Demac,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2951.6 $* | 3099.33 $* |
| Aug-16-2025 | 2926.67 $* | 3072.65 $* |
| Jul-16-2025 | 2455.10 $* | 2578.8 $* |
| Jun-16-2025 | 2877.98 $* | 3021.61 $* |
| May-16-2025 | 2505.76 $* | 2630.47 $* |
| Apr-16-2025 | 2827.50 $* | 2968.22 $* |
| Mar-16-2025 | 2802.28 $* | 2942.10 $* |
| Feb-16-2025 | 2778.16 $* | 2917.54 $* |
| Jan-16-2025 | 2753.66 $* | 2891.74 $* |
Характеристики
Products Description

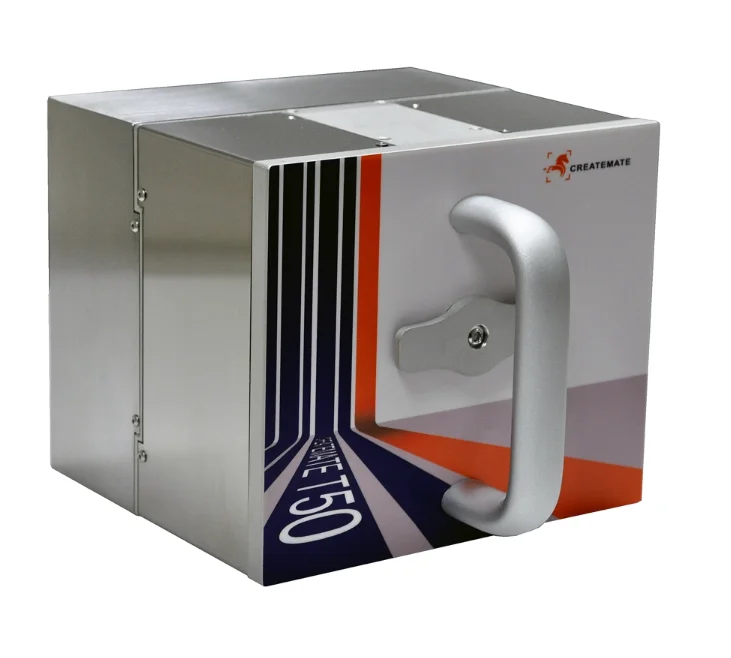

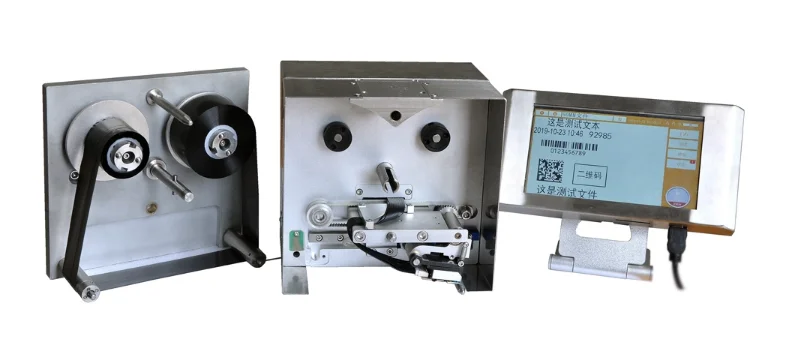

T50 CREATEMATE T series Thermal Transfer Overprinter
With 53 mm print head, T50 TTO is one of the world's best cost-effective smart coding machines that can meet the personalized and diversified demands of customers, praised by the users in various industries such as food, medicine, daily chemical, seeds,
veterinary drugs, pesticides, household paper, finance and so on.
Features:
◆Intermittent/Continuous Combined – more flexible to meet customers’ coding requirements.
◆Excellent Quality Prints – improving your company brand image and quality.
◆Wide Printing Area – maximum 90mm (intermittent) and 150mm (continuous) in length
◆Superior Printing Speed – can be set from 33mm to 666mm per second allowing 350 printed packs per min at 300dpi.
◆More Print Flexibility – can print real time, variable data, bar codes, QR codes, logo, pictures, dates, nutrition tables, etc. and can achieve the product traceability.
◆Ribbon Saving – 0.1mm gap between prints, help to minimize reduce ribbon consumption and waste.
◆Free Editing in Multiple Languages – Simplified Chinese, English, traditional Chinese, Spanish, Portuguese, French, Arabic, German, Russian, etc.
Especially Bar Codes:
Code128(Support GS1 Mode),
EANX, Code11,
QR code(Support GS1 Mode),
C25matrix,
C25inter, C25iata,
Upca, Upce,
EAN128,
PDF417,
DataMatrix(Support GS1 Mode), etc.
DataMatrix(Support GS1 Mode), etc.
Hot-plugging Handle Touch Pad
‘One-to-Many’ (One Handle Touch Pad controls multiple machines)

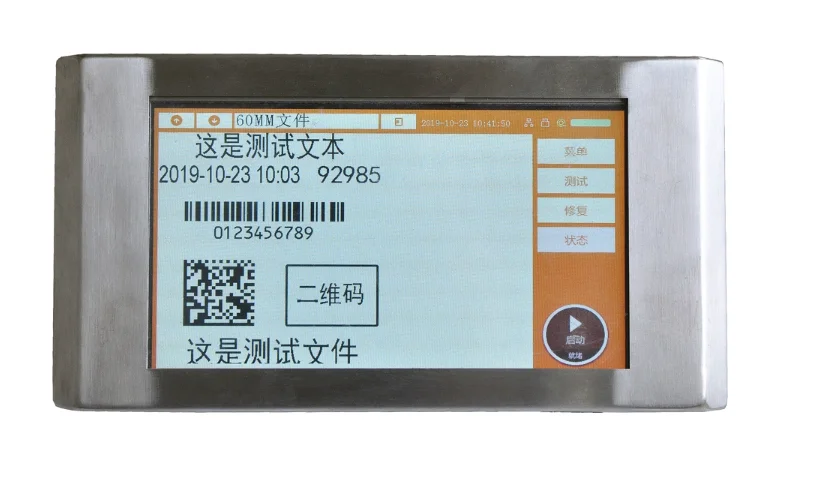

Dockable 7-inch LCD handheld Touch Pad can be removed during the printer running, to control different printer units, largely reducing the cost.
* Up to 6 machines can be controled at the same time in the PC ( after successful upgrade).
High-performance Printing

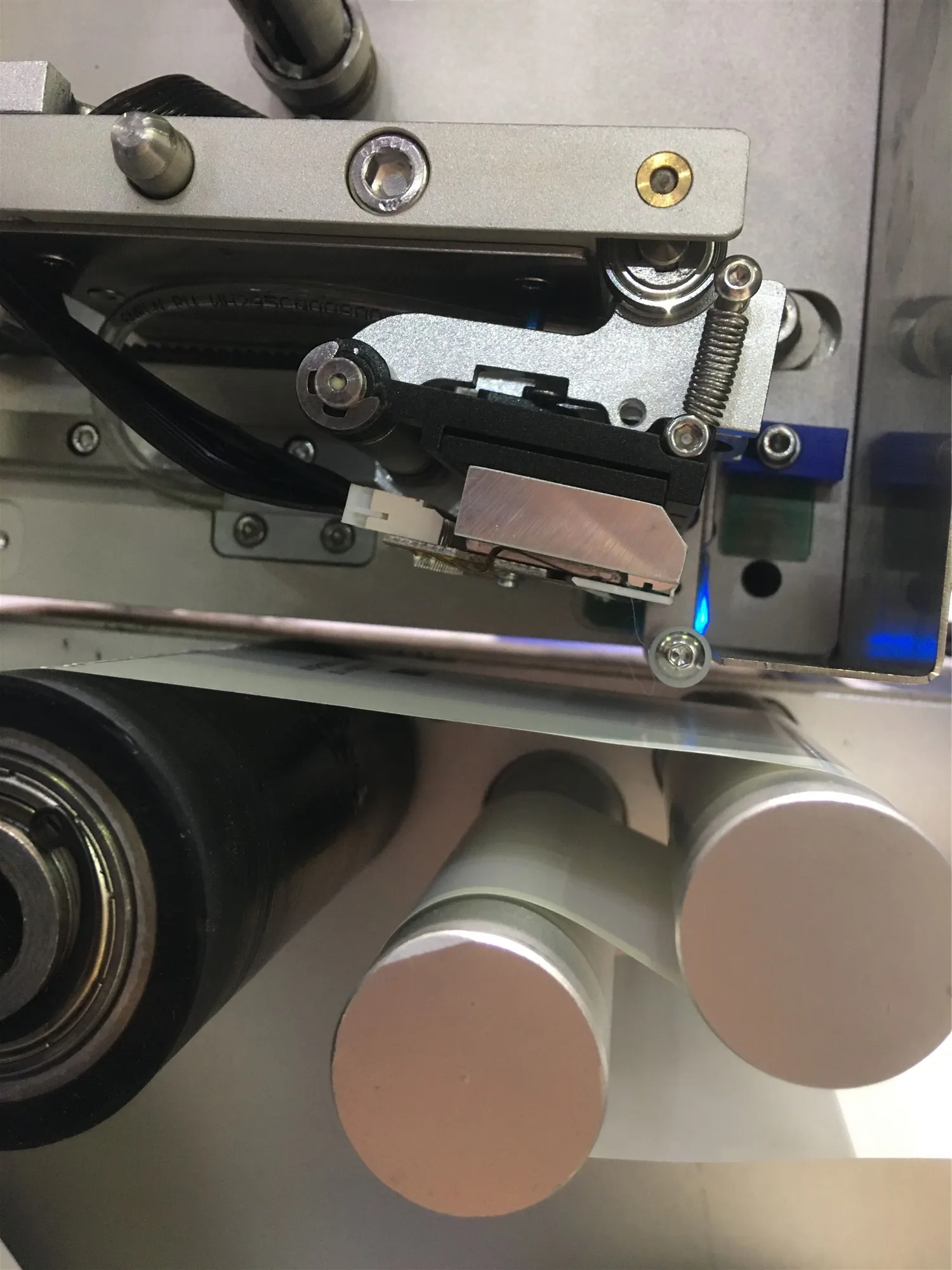

* Introducing intelligent printhead, with automatic setup for optimum print quality.
* Optional promotional coding feature allowing for a unique code on each pack.
Intermittent/Continuous Mode Combined
Choose which Mode as you like! (A universal hand direction）
Specifications | ||||
Model | T50 Intermittent | T50 Continuous | ||
Print Head | 53mm,300DPI (12points/mm) | |||
Print Area | 53mm*90mm | 53mm*150mm | ||
Print Speed | ≤30 m/min | ≤40 m/min | ||
Print Frequency | ≤200 times/min | ≤350 times/min | ||
Print Job | Real time clock (hours/minutes), dates, user entered alphanumeric date, automatic shift code, automatic serial number, logos, barcodes, QR codes, nutrition tables, etc. | |||
PC Based Interface | Include all features of the Touch Pad interface, support promotional codes, unique random codes, manage max. 6 printer units meantime, provide communications protocols. | |||
More Features | Ribbon saving modes; automatic repeat prints; position-compensation prints (can have multiple choices) | |||
Max Ribbon Length | 600m | |||
Ribbon Width | 35mm~55mm | |||
Touch Pad | Support Hot-plugging | |||
COM Interface | USB,RS232,TCP/IP | |||
Power Supply | AV110~240V 50/60Hz | |||
Power | 200W | |||
Working Env. | Temperature: 0-40℃ ; Humidity: 10-90% (non-condensing) | |||
Air Supply | 0.35~0.6Mpa, Dry, Clean | |||
Weight | Print Unit: 8.0kg, Touch Pad: 0.75kg | |||
Dimension(L*W*H) | Print Unit: 210mm*180mm*170 mm; Handheld Touch Pad: 220mm*120mm*30 mm | |||
Suitable material:
Plastic film PT, PE, PVC, OPP, KT, aluminum foil;
All kinds of plastic composites, plastic bags, paper, stickers, cards), leather, cloth;
Packing container bags, plastic products;
Coated, Synthetics, Polypropylene & Polyester, Flexible Packaging, etc.
Print Samples
Optional Accessories
◆ Code-detection System
( To avoid missing/incomplete/wrong prints bring any disputes and legal liability)
◆ PC Based Interface
(Friendly interface makes the menu & parameters setting convenient)

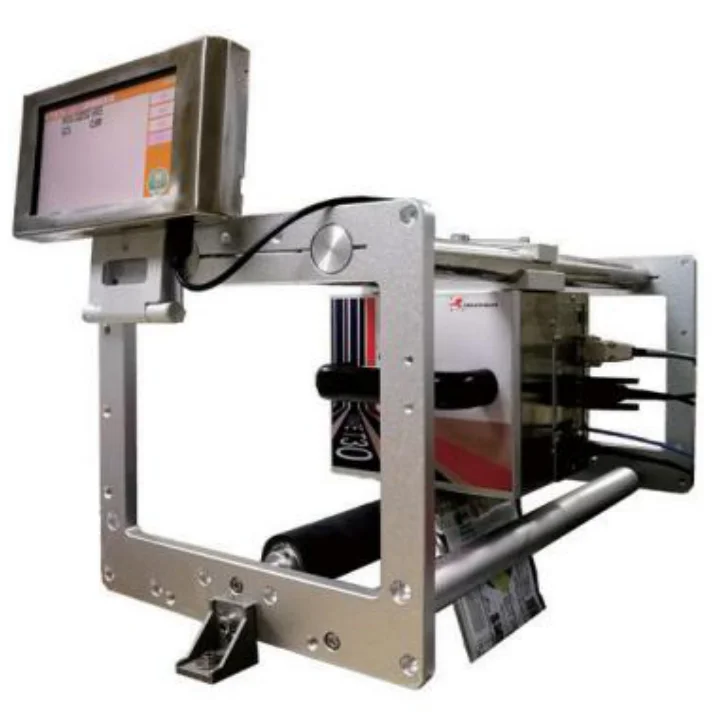

◆ Mounting Bracket
(Optional standard mounting bracket helps installation become easy)
◆ Encoder Assy
◆ PC Based Interface
(Friendly interface makes the menu & parameters setting convenient)
◆ Mounting Bracket
(Optional standard mounting bracket helps installation become easy)
◆ Encoder Assy
(Only used in continuous mode, support synchronous tracking with the packing machine, ensuring high efficient printing)
Related Products
Packing & Delivery
Shipping method: By sea, by air, by international express company.
Delivery time: 10-15 days after order confirm.
Forwarder: We have shipping forwarder agent for sending the goods to customers all over the world, and can arrange shipment to destination port ,even to the door for customer.
We also accept forwarder agent of customer.
The goods are packed in foam, plastic and cartons to ensure a good condition during transportation.
Company Profile
Shanghai Demac Machinery Equipment Co.,Ltd. is a technology-oriented manufacturer integrating independent research and development, production, sales, service and other businesses. It is committed to providing industrial code marking technology, inspection technology, system solutions of traceable products, and production and sales services for related equipment products.
High efficiency and professional service make our company have a good reputation in this industry.
With more than 15 years of experience, the company has provided the best product identification solutions for customers in more than 70 countries around the world.
Our company has dozens of dealers and partners in the world, and provides perfect and careful after-sales service and technical support for customers from local and surrounding markets.
The above pictures are from domestic and international exhibitions.
Why Choose Us
Benefit from Our Competitive Strengths
We are committed to deliver your orders within the stipulated time, as it plays a vital role in establishing our company as a reliable brand. Our wide distribution network and flexibility in production and service enable us to meet your objectives.
Several factors have made us the preferred choice of our valued clients:
♦ Client-centric approach
♦ Assurance of optimum quality in our products
♦ OEM and customized service
♦ Ability to undertake bulk and urgent requirements
♦ Timely deliveries
♦ Competitive pricing policy
♦ 1-year warranty
FAQ
- Q: What’s your product range?
A: Hot Ink Coder, Laser Coder, Thermal Transfer Overprinter (TTO),Laser Coder, Thermal Inkjet Coder (TIJ),
Code Inspection System, etc.
Office Consumables:TTO Ribbons, Hot Ink Roll, Hot Stamping Ribbon, Metal Types(steel & brass) Holder
Q: Are You a Manufacturer?
A: Yes, 15 years specialized in hot ink coder, hot stamp coder, thermal transfer overprinter (TTO),integrating independent research and development, production, sales, service and other businesses.
Q: What Information Shall offered if I Want to Get one Quotation?
A: The print content, material, speed, size, type, direction, color, quantity.
Q:Do you provide custom barcode ribbons?
A: Yes, we could provide custom size even custom formulation per client request.
We have color ribbon in Gold, White,Silver,Yellow,Grey,Red,Blue,Green, etc.
Q:What's the Minimum Order Quantity and warranty?
A: MOQ: 1 set Warranty:12 months.
Q:How about your warranty?
A: We provide 12 months warranty against BL date, if any issues,please contact us for solution.We will response within 24 hours in the first time.
Q:What is your payment?
A:TT,LC,Western Union,Paypal,Money gram or negotiation payment etc.
Q:How do you ship the products?
A: -By sea
-By air
-By courier, DHL, FEDEX, TNT, UPS, EMS. etc.
Q: Why choose your company?
We have been engaged in the manufacturing of various packing machines professionally over 15 years, and we can provide better after-sales service.
