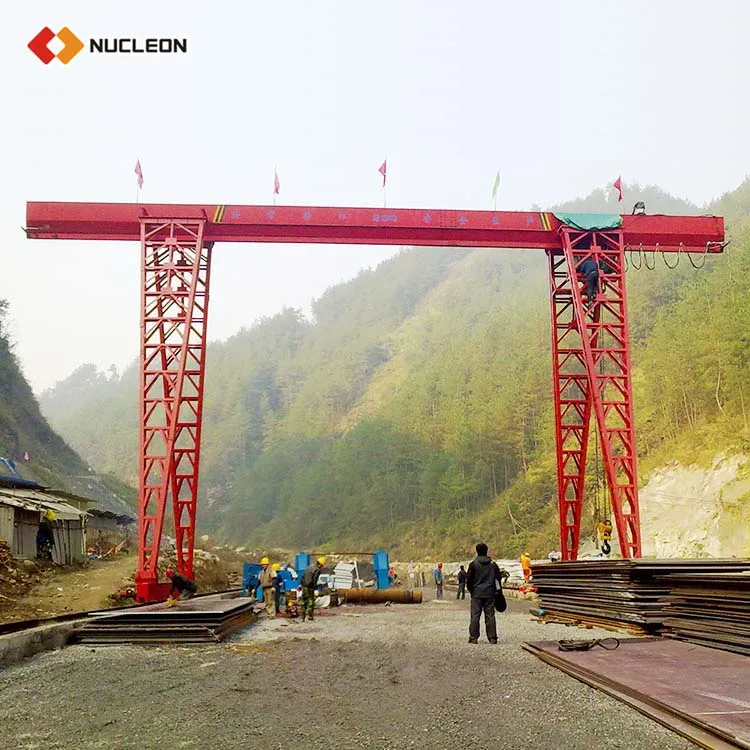

Best price trestle truss 16 ton gantry crane





Capacity			T	3	5	10	16
Span			m	12,16,20,24,30
Operational method				Pendent Line With Press Button /Cabin/ Remote
Speed	Lifting		m/min	8 ,8/0.8	8,8/0.8	7,7/0.7	3.5
	Cross travelling			20	20	20	20
	Long travelling	Ground		20	20	20	20
		Cabin		20, 30,45	20, 30,40	30,40	30,40
Motor	Lifting		Type /kw	ZD41-4/4.5 ZDS1-4/0.4/4.5	ZD141-4/7.5 ZDS10.8/4.5	ZD151-4/13 ZDS11.5/4.5	ZD151-4/13
	Cross travelling			ZDY12-4/0.4	ZDY121-4/0.8	ZDY21-4/0.8×2	ZDY121-4/0.8×2
Electric hoist			Model	CD1/MD1	CD1/MD1	CD1/MD1	CD1
Lifting height			m	6,9,12,18,24,30
Working duty				A3
Power supply				380V 60HZ 3phase AC (According to your demand )

A:  What is the best crane for my need?

B:  We can customize all kinds of crane according to your requirements, so don’t worry about your needs, just tell us your demands, and we can design and manufature your own crane based on your needs.



A:  Which industries do you serice?

B:  We service many industries inluding machinery, metallurgy, electric power, railway, water conservancy, port, aviation, military, auto, shipbuliding, petroleum, chemical, tabulation, coal, steel fabricators, pre-cast concrete, steel warehouse, marble and stone and other fields.



A:  Which ereas do you service?

B:  We have very big market in China local market, at same time, we have export our crane to all over the world, including European, Africa, Middle-East, Asia, North American, South America and so on. Tatal more than 95 countries all over the world.



A:  What types of overhead cranes do you supply?

B:  We are a leading suppiler of overhead cranes and we can offer thres different types including the single girder top running crane, the single girder underslung crane and the double girders top ruuning crane.



A:  Which cranes are most suitable for outdoors?

B:  The gantry crane range is often most suitable for outfoor type work. There are types- the single girder gantry crane and double girder gantry crane.



A:  What internation cerfiticate does your crane passed?

B:  Our crane has passed CE, ISO, GOST, SGS, TUV, BV, and so on.



A:  Do you have local agent in our country?

B:  We have agent in Bangladesh, Uruguay, India, South Afria, Saudi Arabia, and so on. At same time, we have developing more agents all over the world. Welcome you join us to expend crane market and build long time win-win cooperation.
