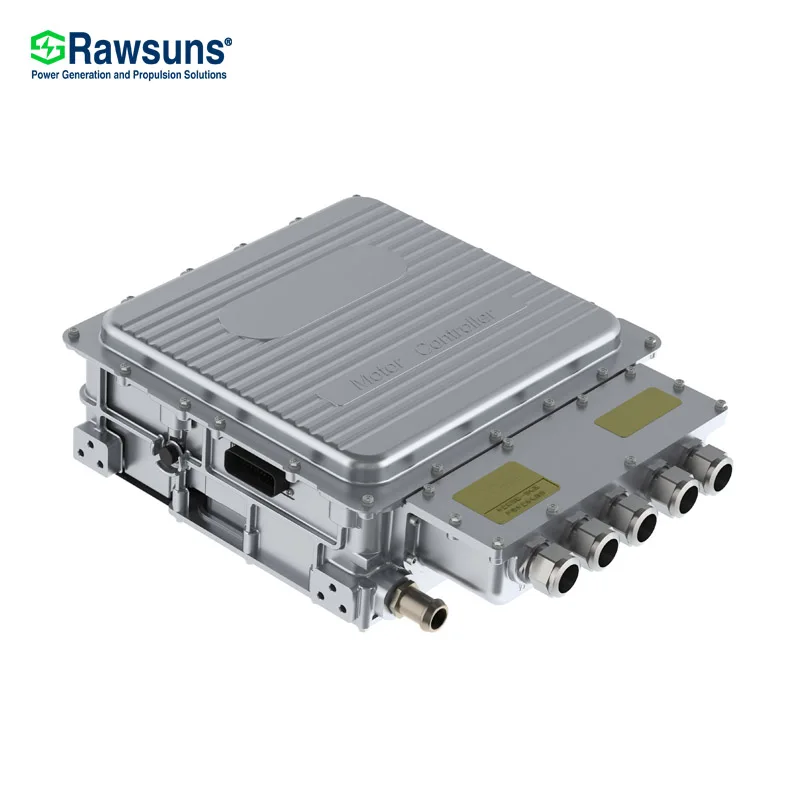

Автомобильный инвертор 240 кВт контроллер электромотора для электромобиля автобуса грузовика

Автомобильный инвертор 240 кВт контроллер электромотора для электромобиля автобуса грузовика

Категория: Инверторы >>>
Поставщик: Rawsun,Technology,(shantou),Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.79 $*	0.51 $*
Aug-16-2025	0.58 $*	0.12 $*
Jul-16-2025	0.12 $*	0.53 $*
Jun-16-2025	0.36 $*	0.53 $*
May-16-2025	0.99 $*	0.67 $*
Apr-16-2025	0.96 $*	0.90 $*
Mar-16-2025	0.34 $*	0.44 $*
Feb-16-2025	0.44 $*	0.75 $*
Jan-16-2025	0.9 $*	0.15 $*

Характеристики

Product Description

Product Description

Rawsun motor controller is mainly used in the control of permanent magnet synchronous motor for new energy vehicles. The main technical characteristics are as follows:
* Using 32-bit DSP as the main control chip.
* Using automobile IGBT module, it has the characteristics of low temperature rise and low EMI.
* Compact, robust and unique waterway design based on vehicle reliability.
* Efficient energy recovery control.

* With perfect protection of under-voltage, over-voltage, over-current, over-temperature, over-speed, etc.
* Precise motor torque control, low speed anti-jitter processing.
* Standing on the slope function, starting on the slope without hand brake can start smoothly, the distance of the car is less than 20 cm (Note: Selected for the use of motor controller).
* Efficient Energy Recovery Control Strategy.
* Intelligent Variable Carrier Control to Further Improve the Reliability of Controller at Low Speed.
* Intelligent identification of motor parameters.
* Support electronic throttle, fault display, gear control and other functions.
* Support CAN2.0 communication protocol, data monitoring and parameter modification through CAN bus.

Rawsun EV motor list

Rawsun EV Motor List

Rawsun EV motor Wide range, high quality, no worry and best choice!

Vehicle type	Range
Passenger 3P AC asyn(induction motor)	7KW(40.5Nm)-55KW(192Nm)
Passenger (3P AC PMSM motor)	45KW(120Nm)-120KW(260Nm)
Commercial (3P AC PMSM motor)	50kw(180Nm)-200kw(2800Nm)
TAD (Transmission-mounted electric drive) (3P AC PMSM motor)	110KW(320Nm)-360KW(2000Nm)
DM (Direct-drive motor) (3P AC PMSM motor)	120KW(850Nm)-200KW(2800Nm)
PHD (Parallel Hybrid drive) (3P AC PMSM motor)	130KW(335Nm)-200KW(930Nm)
MHD (Multi-mode Hybrid Drive) (3P AC PMSM motor)	135KW(450Nm)-220KW(2850Nm)
EAD(Electric Alex Drive) (3P AC PMSM motor)	105KW(320Nm)-220KW(550Nm)

We also provide motor controller, DCDC, DCAC, PDU, OBC, VCU, dashboard, Pedal, gear panel, battery pack with BMS, WireHarness to complete the ev conversion kit.

Contact me for more options!

When you do not have specific motor parameters, please contact me to get and fill in a

Vehicle technical information demand list, wewill calculate the motor requirements for you

and recommend or develop again according to your needs.

Company Introduction

Company Introduction

Rawsun Technology (Shantou) CO., LTD

Located in Shantou China, with Rawsun Power Co Ltd , one of the largest manufacturing bases of diesel generator sets and motors in Changtai, China, covering an area of 50,000 sq.m. Over the past 15 years, Rawsun Power devoted itself to researching, manufacturing and selling superb diesel generator set and permanent magnet synchronous motors, range from 10KVA to 4000KVA. Rawsun Power produces varied types of generators for different users, including soundproof type, super silent type, containerized type, mobile type, open type ect. Rawsun has established long-term cooperation with world leading companies, such as CUMMINS, PERKINS, DOOSAN, MITSUBISHI, MTU, STAMFORD,LEROY SOMER,MARATHON ect in the area of generating sets. With the excellent quality and service, Rawsun has built a good reputation with customers, and our products are exported to over eighty countries and regions, over 12000 units production capacity per year. Relying on the drive motor products and supporting the electric drive controller, Rawsun provides customers with innovative and energy-saving electric drive core components and precise and perfect motor drive solutions, and is committed to becoming the top automotive motor system manufacturer in the world. Rawsun implements the high starting point development strategy, devotes to the product innovation research and development and the enterprise's scientific management, gradually establishes the worldwide marketing service network, equipped with the first-class product sales and technical support team, and improves the pre-sales and after-sales service system. Rawsun ev motor and system has been widely used in full electric buses, electric trucks and electric boats, Rawsun adhering to the concept of lean manufacturing, adhere to the people-oriented, focusing on research and development, take the market as the guidance, take the quality as life, to innovation as the electric propulsion system, provides the omni-directional service for the customer and electric vehicle drive system with the professional solutions. Rawsun strives to create the champion products of environmental protection, precision and stability, and makes unremitting efforts to become an outstanding contributor of global power generation and propulsion solutions. Rawsun dedicate to provide the green power and propulsion solution all over the world. We will create a great future hand in hand with you - our customers, partners and friends.
