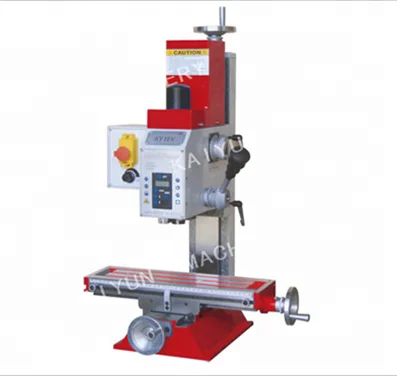

Manual Mills Drilling Machine for The Processing of Small Precision

Manual Mills Drilling Machine for The Processing of Small Precision

Категория: Manual Mills >>>
Поставщик: Yangzhou,Kaiyun,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.39 $*	0.7 $*
Aug-15-2025	0.6 $*	0.35 $*
Jul-15-2025	0.0 $*	0.59 $*
Jun-15-2025	0.41 $*	0.52 $*
May-15-2025	0.88 $*	0.94 $*
Apr-15-2025	0.74 $*	0.52 $*
Mar-15-2025	0.52 $*	0.63 $*
Feb-15-2025	0.92 $*	0.43 $*
Jan-15-2025	0.57 $*	0.96 $*

Характеристики

Product Description

SPECIFICATION
MODEL			KY16V
Drilling capacity			16mm
Face milling capacity			50mm
End milling capacity			16mm
Spindle taper			MT2
Sleeve travel			50mm
Low speed stage			50-1125mm
High speed stage			100-2250mm
Head rotation			±90°
Table size			400x120mm
X-axis travel			220mm
Y-axis travel			160mm
Z-axis travel			210mm
T-slot			10mm
Load of table			55kg
Motor			500W
Packing size			500X450X840mm
Net weight			60kg

Main Features

1.Compact, economical mini ertical drilling/mlling machine.

2.Variable speed enables to oprerate easily.

3.Spindle is supported by high precision taper roller bearing.

4.Gear head provides greater torque.

5.Mill head may be tilted ±90° Adjustable taper gibs .

6.Positive locks for table, head, quill, column.

7.Easy reading scale has satin chrome finish.

8.Dovetail column.

9.Easy to raise and lower head by hand wheel

Our Company

Since establishing, after years of effort, we, which is Kaiyun Machinery have grown into a professional supplier of Metalworking and woodworking machinery in China, with more than 50 domestic qualified factories as our long-term and OEM partners. Outstanding technical engineers & strict inspector ensure us turn out high quality products because they all know this is the absolutely vital that the quality is the basic of products. Our all products are exported to the worldwide markets, especially in America and Europe market.

Our Service

You can enjoy the best after service when you purchase our any product. Our technician take serious to the every quality information feedback of our products each time, and would reply it as soon as possible. We will keep trying our best to guarantee your satisfaction, and to assure the product we send to you will meet the high quality and durable standards. If you are interested in our products or have special requirements, pls feel free to contact us without delay. Then we, Sale Dept will give you a satisfying reply within 24 hours!
