Характеристики

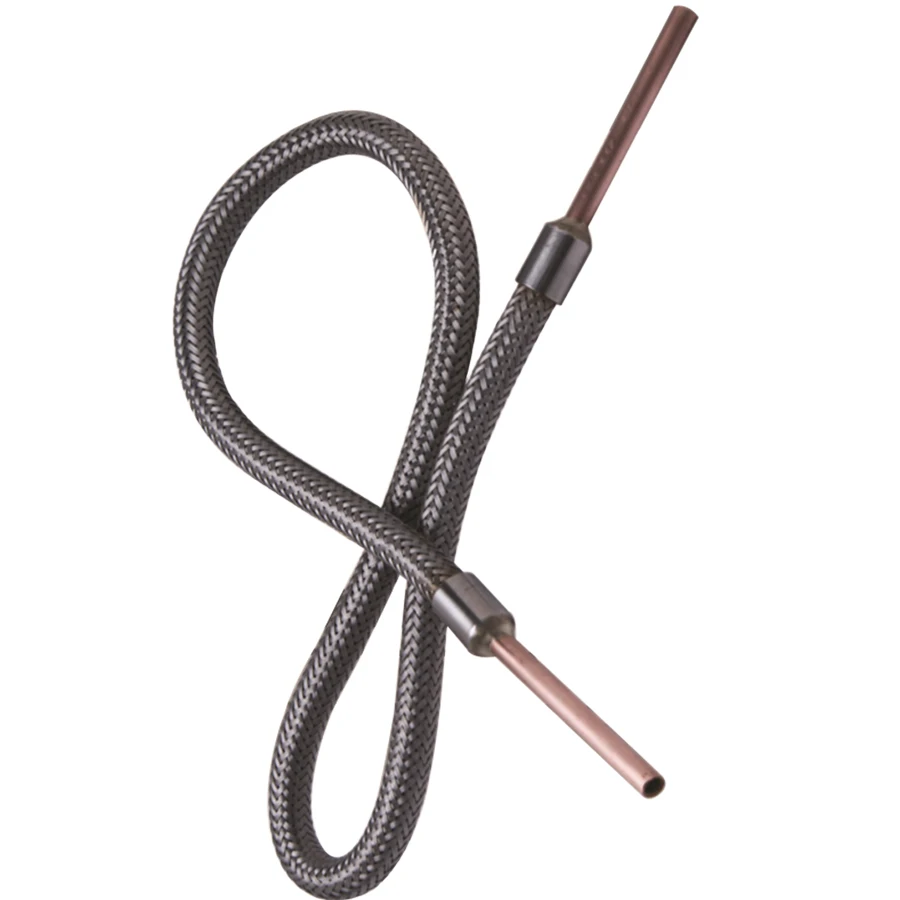

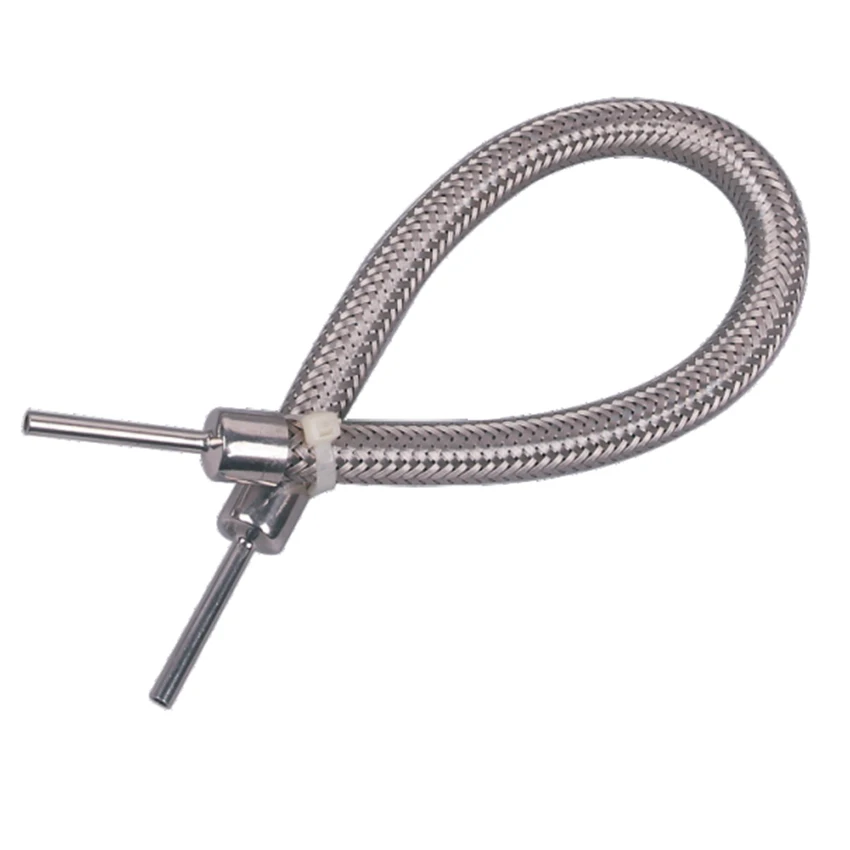

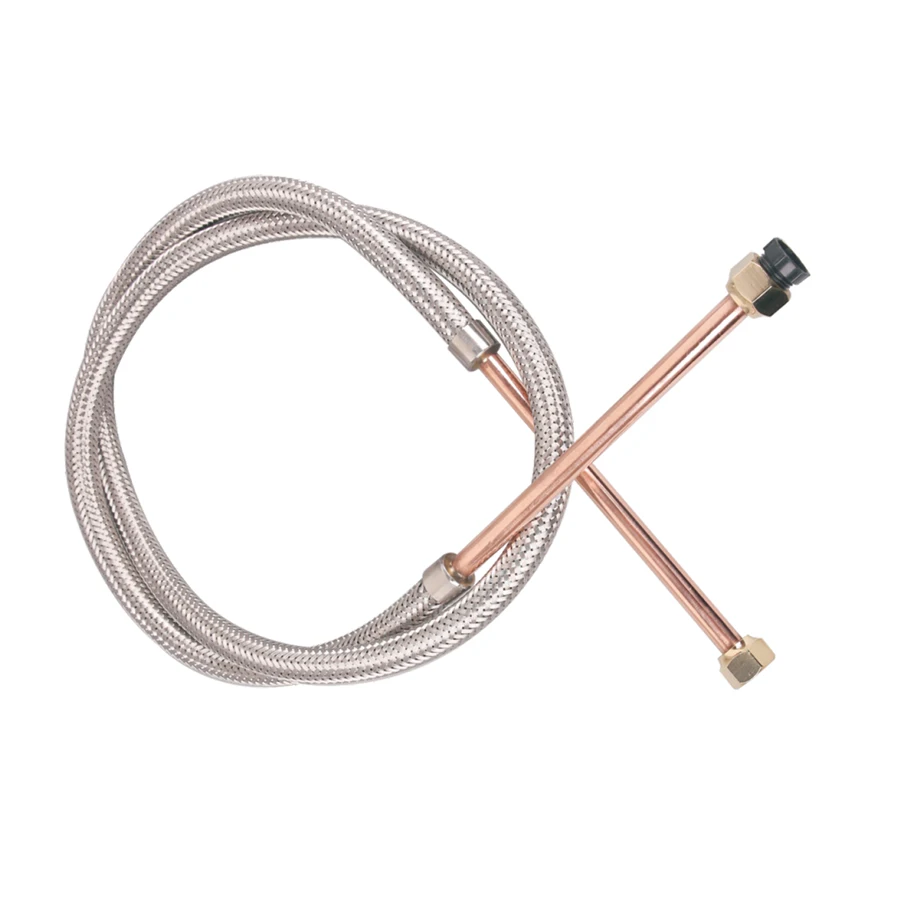

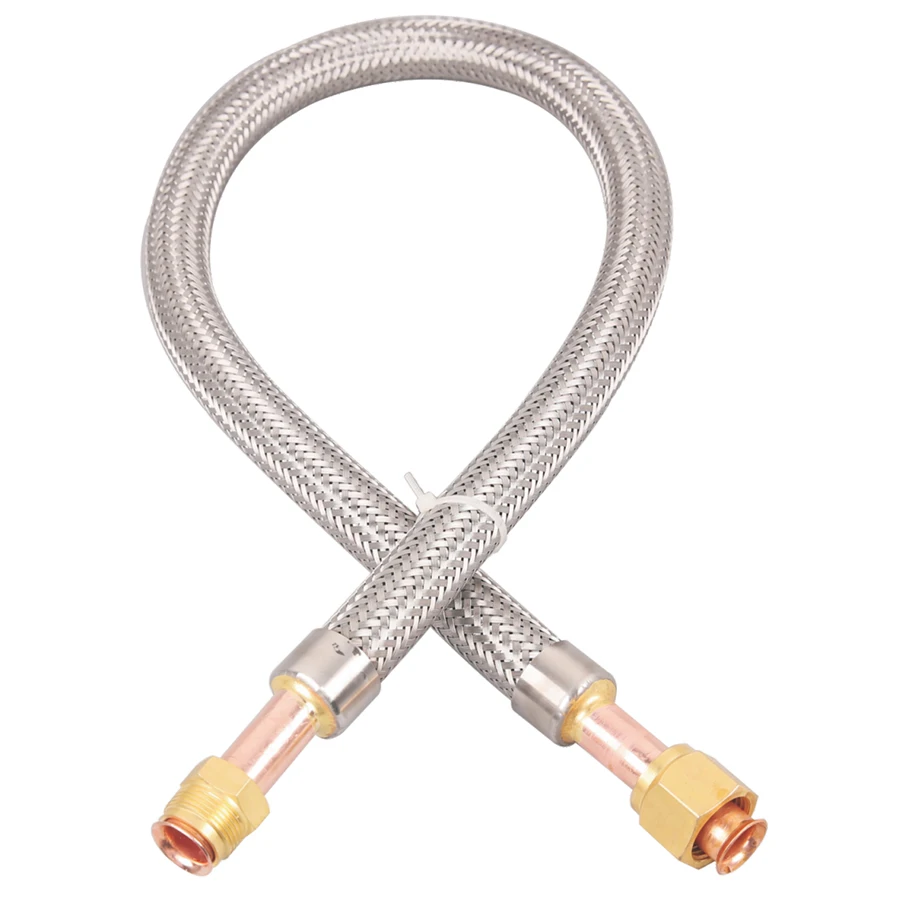

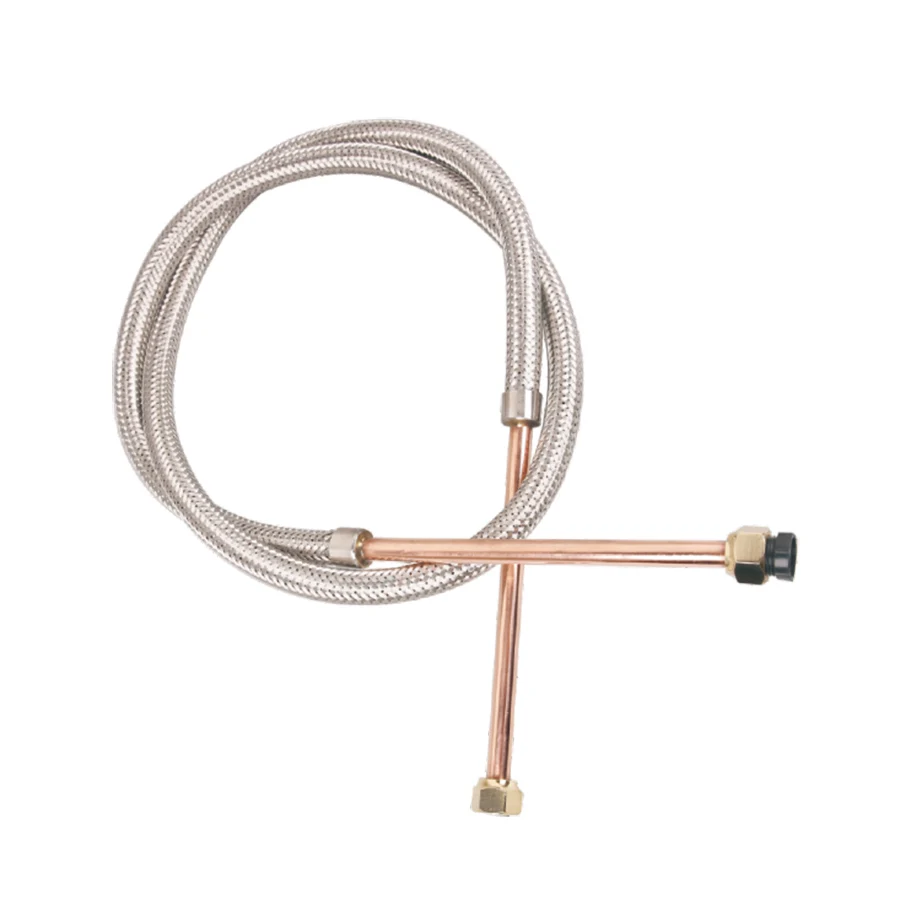

Shield Air Conditioner Refrigerant Flexible Stainless Steel Line Set Connector
Flexible Refrigerant Line Set Connector eliminates kinking of copper tubing when connecting to mini-split indoor evaporator, 3ft overall length, max length can be 50ft. The length can be customized. While copper tube is without brass nuts.
Features of Flexible Refrigerant Line Set Connector:
1. 3”copper stubs for sliver solder or flaring;
2. Stainless Steel corrugated Pipe;
3. Pressure Rating: 800 psig suitable for R410a;
4. 6 sizes available.
Installation of Flexible Refrigerant Line Set Connector:
Attach the connector to refrigerant line in the mini split evaporator unit using either silver solder or flaring. Puling in-wall copper refrigerant line through wall opening and attach it to the other end of the connector. Feed and in-wall copper refrigerant line and flexible connector back up into the wall opening, and mount evaporator to mounting bracket.
Notes: insulation can be provided according to different standards.
Part No. | Sizes | Length |
SFLC1/4 | 1/4” |
3’ 6’ 9’ 12’ 15’ 25’ 50’ |
SFLC3/8 | 3/8” | |
SFLC1/2 | 1/2” | |
SFLC5/8 | 5/8” | |
SFLC3/4 | 3/4” | |
SFLC7/8 | 7/8” |
