433 МГц беспроводной пульт дистанционного управления Переключатель DC12v 10A 1ch релейный

433mhz wireless remote control switch DC12v 10A 1ch relay receiver

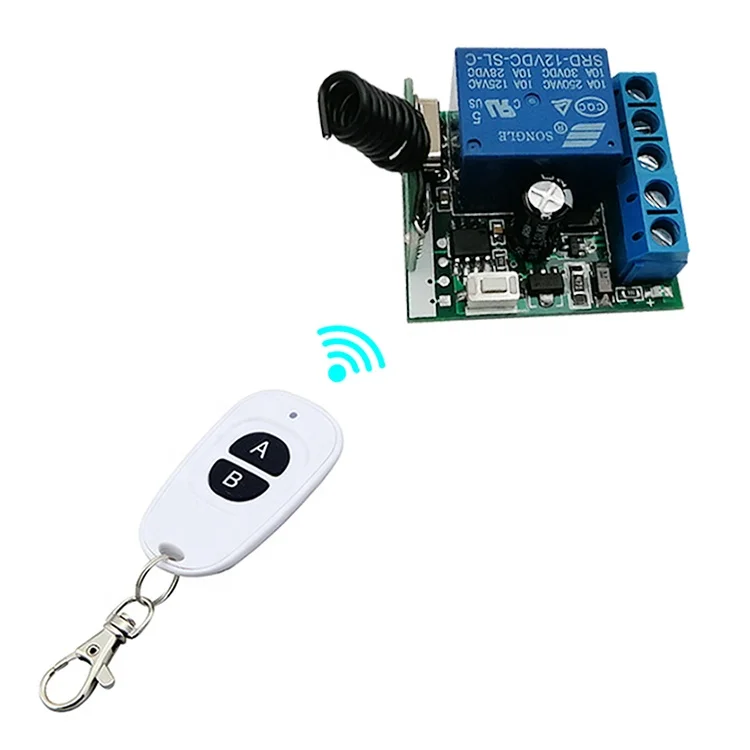

The AG-C106A with 1 relay which can make the equipment turn or reverse, on/off and so on come true. Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance. It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc. It can learn 2260 2262 or 1527 chip with the different code wireless remote control.it can learn more than 25pcs different remote controls.

Frequency: 433MHZ/ 315MHZ and other can choose
Working Voltage: DC12V ,DC24V ,AC12V ,AC24V optional
Working emperature: -20℃- +70℃
Working Current: 6MA
Receiver Sensitivity: -105 dBm
Remote Control Distance: 50-100 meter(in open environment)
Support remote control type: learning code,Fixed code
Multiple working modes: (Latched, Toggle, Momentary)
Output : output with switch signal / output with voltage
Wiring Method: Adjustable wiring terminal
Output Current: 10mA

Features:
It has 1 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2260 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 25pcs different remote controls.

The working way can change by jumper

A).Inching:Position1,2,3 vacancy, no need jumper connect

Inching function: Press remote A button the controller relay1 ON, release remote A button the controller relay 1OFF

B).Interlock:Jumper connect2,3

Interlock function: Press remote A button thecontroller relay1 ON, press remote B buttonthe controller relay 1OFF, relay2 ON

C). Self-lock: Jumper connect 1, 2

Self-lock function: Press remote A button the controller relay1 ON, Press A button again the controller relay1 OFF
Learning Remote Way

Power On,press learning button,the learning indicator light then off it means entering learning state, press any button of the remote control transmitter signal in 6 seconds,indicator light flash 4 times then ON, it means learning succeed. Remark: This controller can learning many different remote control, if beyond the first remote automatic clear

Packing include :

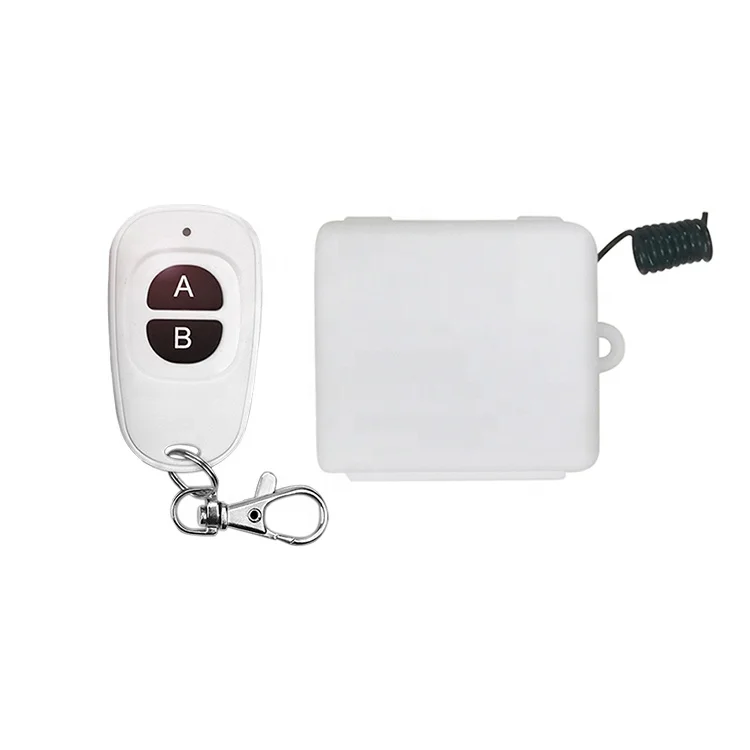

Receive control board 1pcs

Black box 1pcs
