Подгонянный любой размер 32*20*10 25*15*10 тороидальный общий режим дроссель линейный фильтр
- Категория: >>>
- Поставщик: Nantong,Tianyi,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.96 $* | 0.58 $* |
| Aug-18-2025 | 0.40 $* | 0.79 $* |
| Jul-18-2025 | 0.56 $* | 0.11 $* |
| Jun-18-2025 | 0.57 $* | 0.41 $* |
| May-18-2025 | 0.6 $* | 0.47 $* |
| Apr-18-2025 | 0.63 $* | 0.81 $* |
| Mar-18-2025 | 0.22 $* | 0.80 $* |
| Feb-18-2025 | 0.84 $* | 0.0 $* |
| Jan-18-2025 | 0.89 $* | 0.55 $* |
Характеристики
Hot sell product-Common mode chokes(Line filters) - Toroidal Type
Products of any size can be customized.

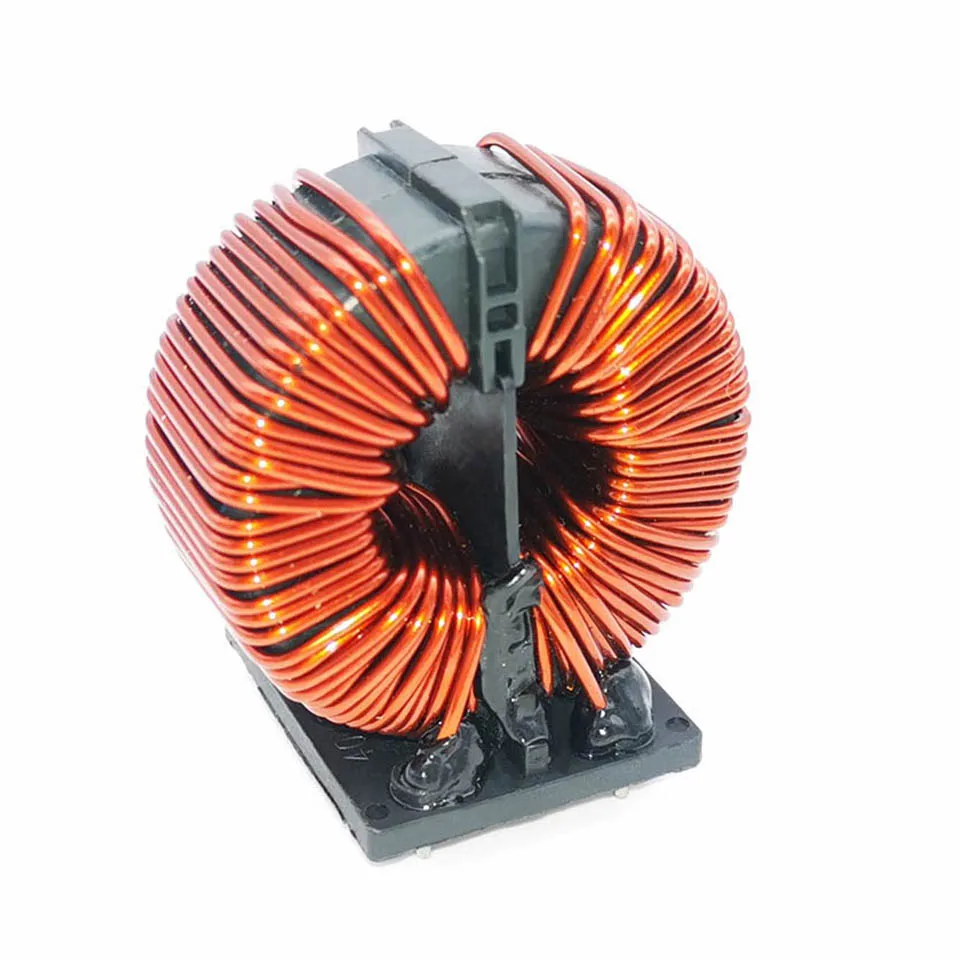

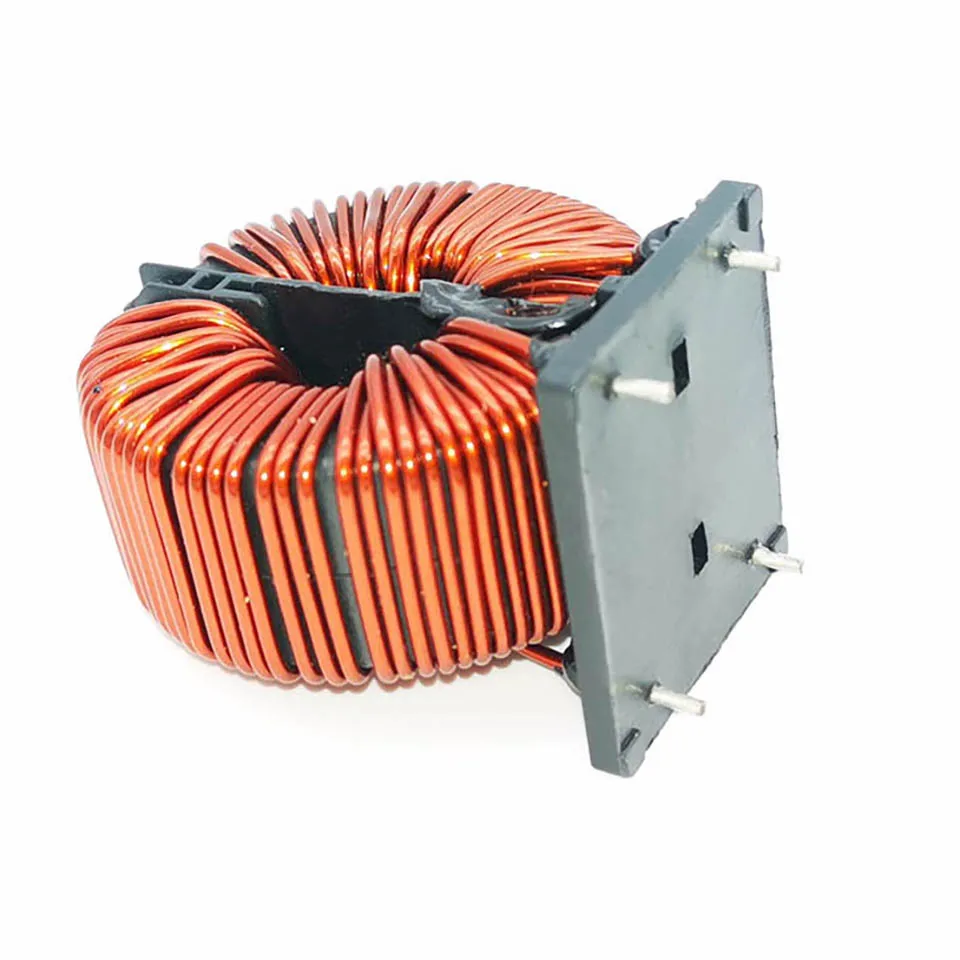

| Part No.: | TYC-25X15X10-04 | Materials: | Product Picture: | ||||||||||||||||||||||||||||||||
| Features: | Ferrite core: 25*15*10 |  | |||||||||||||||||||||||||||||||||
| Customizable, | Shell: 25*15*10/Nylon PA66 / Black | ||||||||||||||||||||||||||||||||||
| High L and impedance Z in the high frequency range | Pedestal: 25*19.5/Nylon PA66 / Black | ||||||||||||||||||||||||||||||||||
| Copper wire: 2UEW Φ0.9mm /130℃ | |||||||||||||||||||||||||||||||||||
| Low remanent fulx density Br with Dc-tolerance | Adhesive:Epoxy rosin /116-P2/Black | ||||||||||||||||||||||||||||||||||
| High permeability µi (200KHZ) | |||||||||||||||||||||||||||||||||||

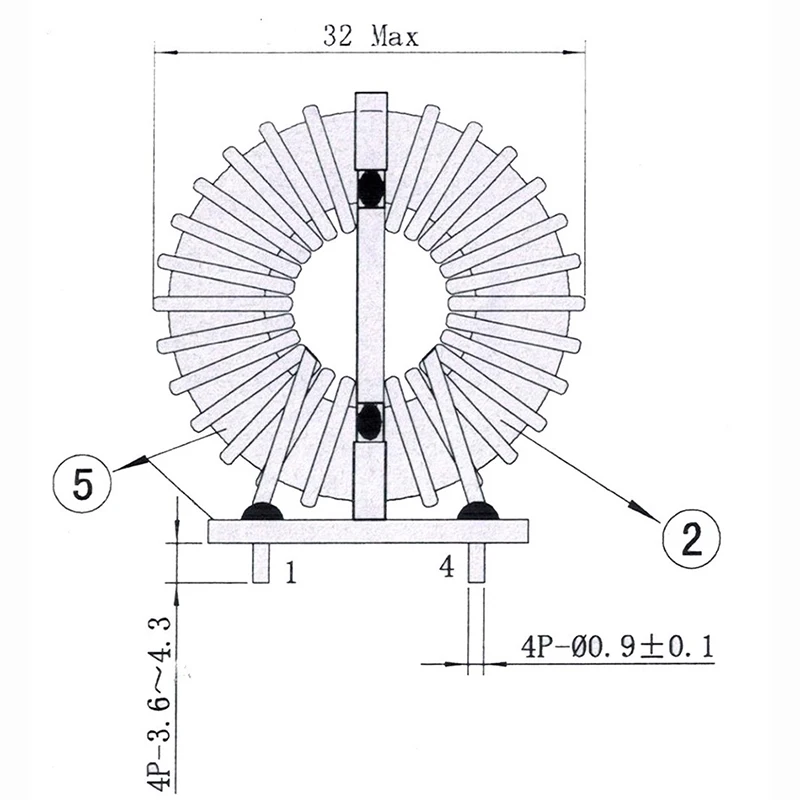

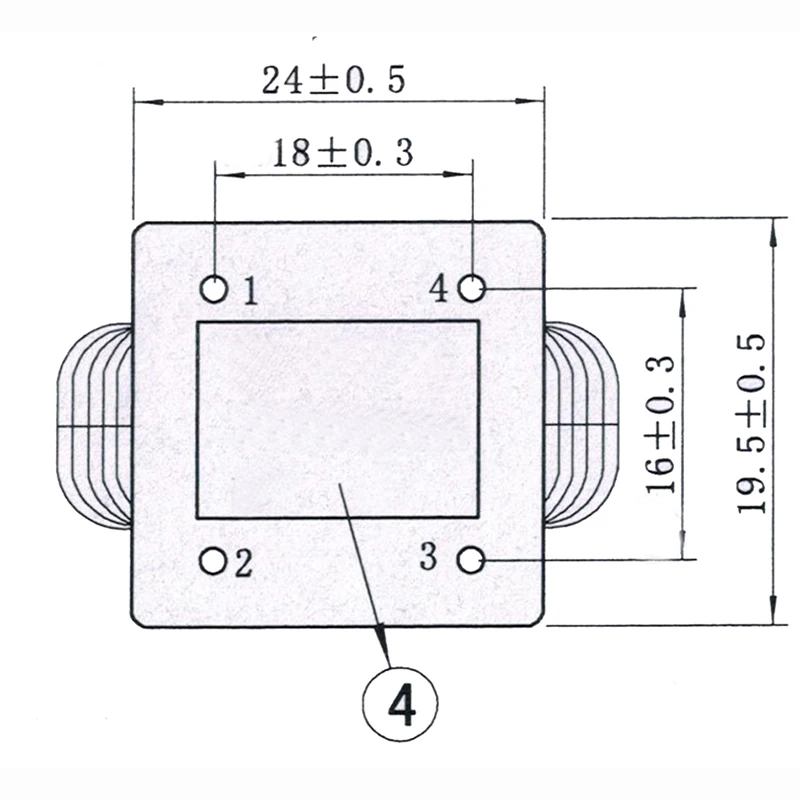

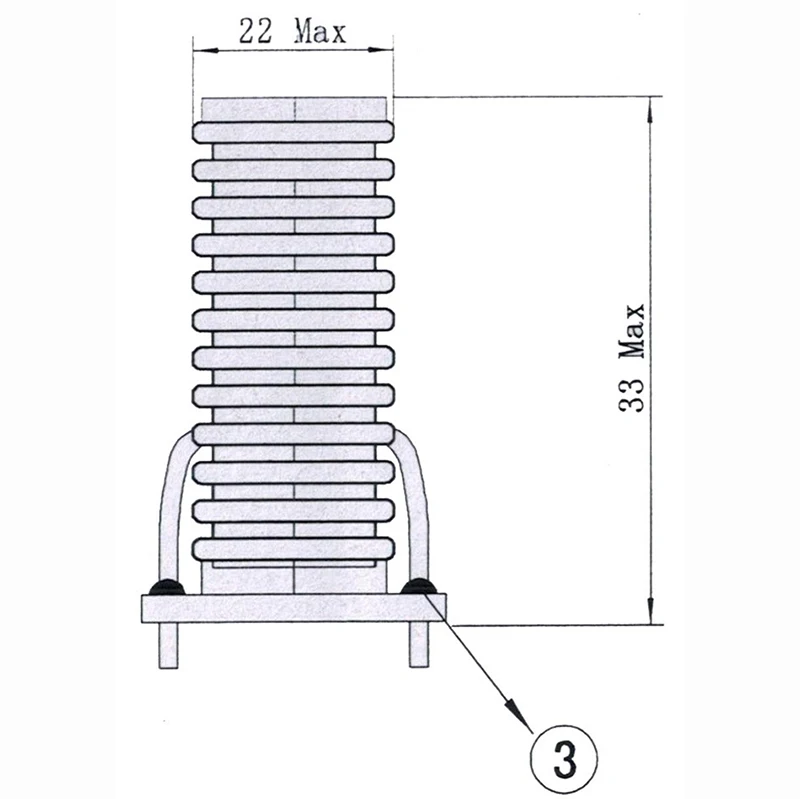

Dimensions:(Unit:mm)
 |
Electrical Charactersistics:

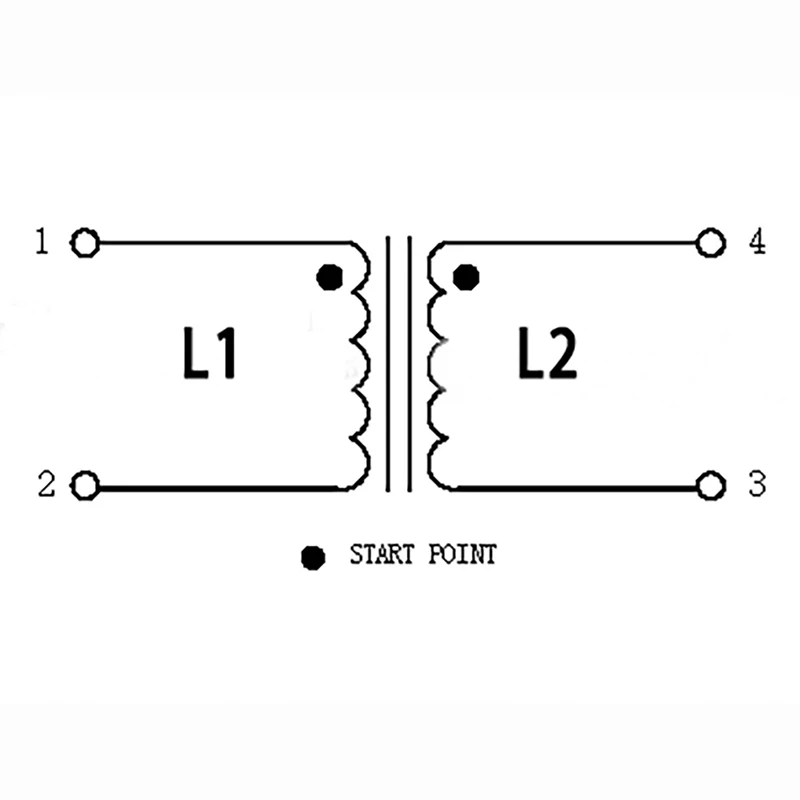

| No. | Items | Test Terminals | Specification | Test Conditions (At 25℃) | Test meters | ||||||||||||||||||||||||||||
| 1 | Inductance | 1-2 | L=6mH Min | 10KHz /1.0V | HP4284A | ||||||||||||||||||||||||||||
| 4-3 | L=6mH Min | ||||||||||||||||||||||||||||||||
| 2 | Difference inductance | |L1-L2| | 0.3mH Max | 10KHz /1.0V | HP4284A | ||||||||||||||||||||||||||||
| 3 | Insulation resistance | Coil - Coil | 100MΩ Min | DC 500V | NF2511 | ||||||||||||||||||||||||||||
| 4 | DC resistance | 1-2 | 45MΩ Max | NF2511 | |||||||||||||||||||||||||||||
Similar types:
6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 25X15X13,28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Toroidal core,Unit:mm)
We are a manufaturer, and have our own trading company(Nantong Meican International Trading Co., Ltd.) |
We have more than 12 years of experience in this industry. |
We will reply customer within an hour when there is quality complaint. Also we need customer's help to provide relevant pictures and videos, and finish the accident investigation within 24 hours. If it is our responsibility, we will give 8D report within 48 hours, and all the defective product will be returned or replaced. The warranty period is 2 years. |
Yes, we can customize products as your requirements. |
Yes, it is. |
Samples need 2-7 days, mass production time is usually about 1-3weeks, but it depends on the order quantity. |
500PCS, but any small trial orders are welcomed. |
We accept T/T, L/C. |
Yes, we 100% test before shipment, and we have full-automatic testing facilities which can reduce human error. |
Normally Shanghai. |
Fedex, DHL, EMS, SF Express with great discount. |
EXW, CFR, FOB, CIF, DDU, DDP are all acceptable, or online transactions. |
