Характеристики
Product Description
Mini reactor quimico de laboratorio
Introduction

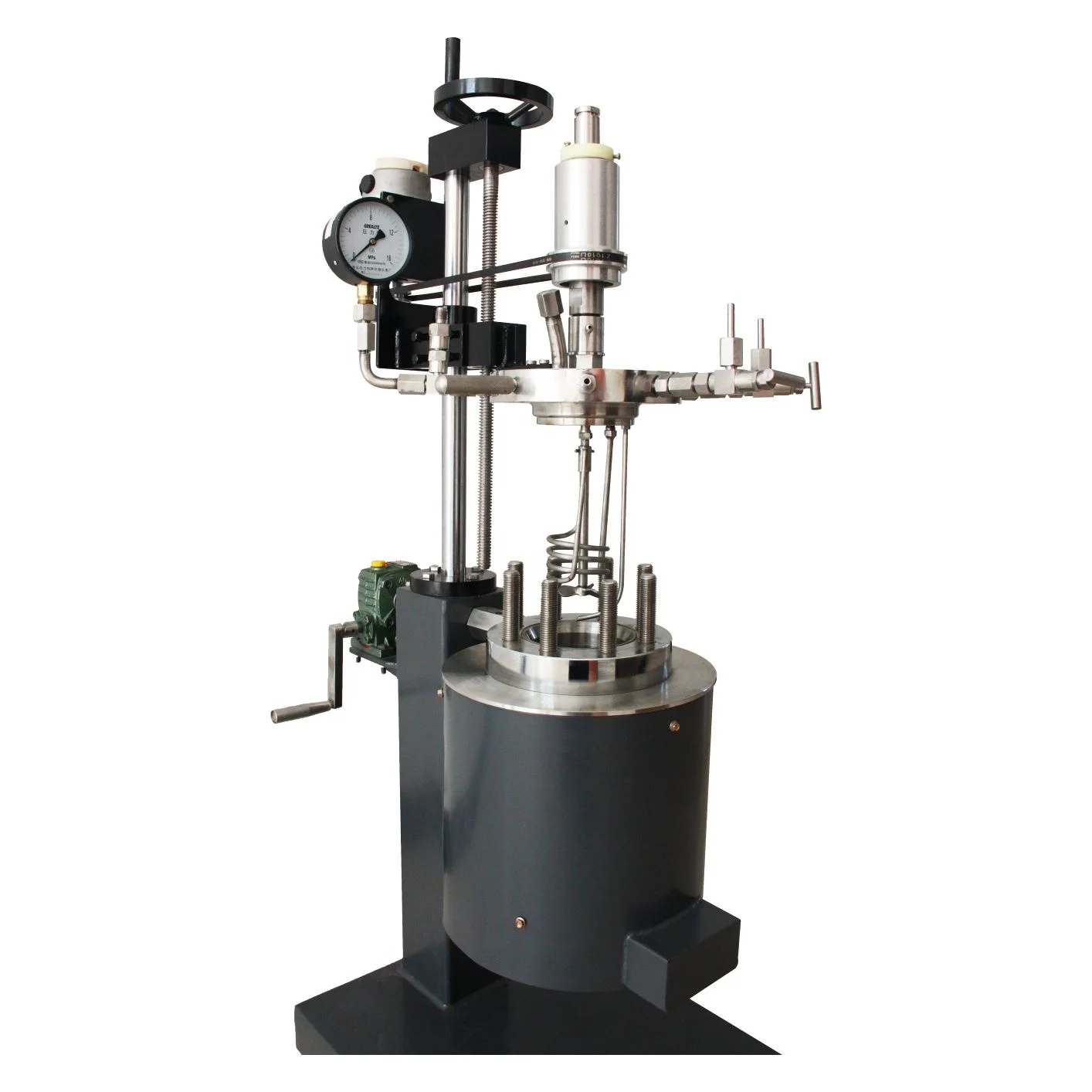

This serious reactor is a Mini reactor quimico de laboratorio with lifting and tilting. Because of the convenience and portable it brings, this reactor can widely used for valaboratory stainless steel chemical catalytic reactors with lifting and tiltingrious test and reaction in laboratory, under high pressure, high vacuum and high temperature condition. Stainless steel made give a good appearance and durable for laboratory test.
Application: Laboratory research, lab test and reaction under high pressure, high vacuum and high temperature condition.
Product Feature
Floor stands or moveable cart type.
Laboratory autoclaves with 250 ml to 5 liters volume.
Max pressure: 200 bar; Max temperature up to 500 ℃
Low to high torque magnetic couplings: static seal with no leakage.
Available material:SS304, SS316, Titanium, Nickel, Hastelloy B/C, Monel, Zirconium, Inconel.

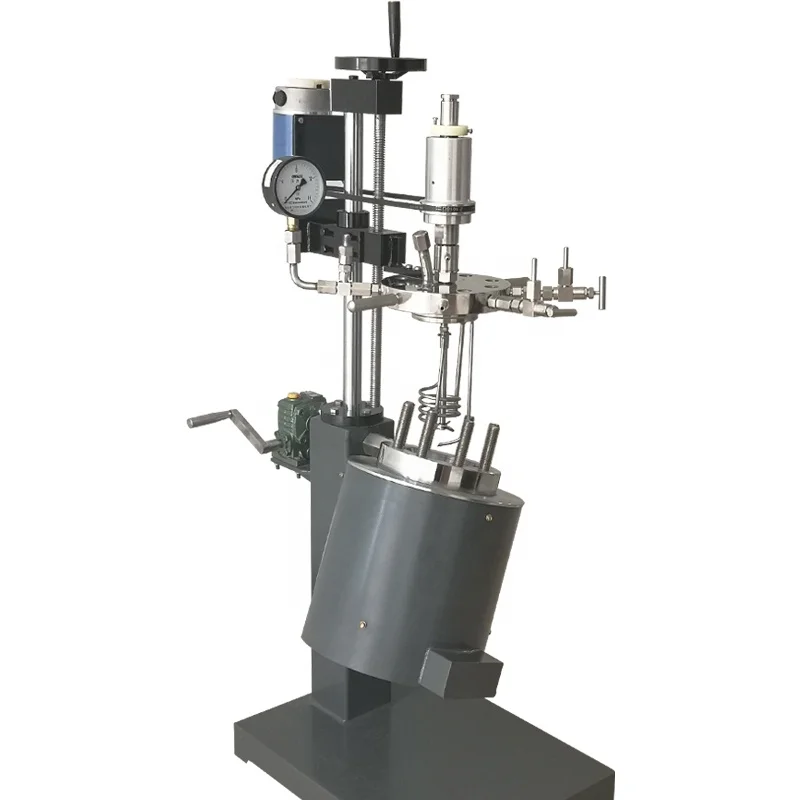

Lifting and tilting device for easy operation,low labor cost.
- Moveable head quick openning design.
Monitor and control: Temperature, pressure, motor speed, gas / liquid flow, level, etc
Safety Device (Blasting Disc) on Security Blasting Port.
Customized according to customers requirement.
Standard Specification
Model No. | GSHK-0.25 | GSHK-0.5 | GSHK-1 | GSHK-2 | GSHK-3 | GSHK-5 |
Capacity (L) | 0.25 | 0.5 | 1 | 2 | 3 | 5 |
Working Pressure (MPa) | 10 | 10 | 10 | 10 | 10 | 10 |
Working Temperature (℃) | 350 | 350 | 350 | 350 | 350 | 350 |
Stirring Speed (r/min) | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 |
Motor power (kW) | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 | 0.6 |
Heating Power (kW) | 1 | 1 | 2 | 2 | 3 | 4 |
Material | Standard SS304 OR SS316 | |||||
Heating Method | General electric heating(water recycling, thermal oil heating available | |||||
| Cooling Method | Spiral coils(Single coils, serpentine coils available) | |||||
| Charging Method | Charging from above(Bottom valve available) | |||||
| Stirring type | Propeller, paddle type, anchor type or customized | |||||
| Lifting and tilting type | Mannual operation | |||||
Control panel | Temperature, time and heating voltage display Temperature adjustment control, accuracy±1 ℃ Stirring speed display and control | |||||
| Standard fittings | Pressure Gage; Thermocouple; Internal Stirring System Liquid inlet and gas inlet with needle valve;Gas Release Valve Dip Tube; Safety Rupture Disc; Cooling Coil | |||||
Note:Customer is advised to select best suited options for most optimized price & delivery.
Customization of volume, material, pressure, temperature etc. may be possible on request.
Product Drawings
Product drawings
Internal drawings
Control details
