Высокоскоростной дисперсионный смеситель для автомобильной
- Категория: Mixing Equipment >>>
- Поставщик: Shanghai,SIEHE,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.56 $* | 0.49 $* |
| Aug-15-2025 | 0.78 $* | 0.16 $* |
| Jul-15-2025 | 0.57 $* | 0.92 $* |
| Jun-15-2025 | 0.32 $* | 0.26 $* |
| May-15-2025 | 0.45 $* | 0.3 $* |
| Apr-15-2025 | 0.10 $* | 0.73 $* |
| Mar-15-2025 | 0.35 $* | 0.45 $* |
| Feb-15-2025 | 0.46 $* | 0.11 $* |
| Jan-15-2025 | 0.83 $* | 0.81 $* |
Характеристики
Overview
Application
----for liquid with suspended solids
----visocisity range: ≤5,000cps
----capacity: 50-5000L
----visocisity range: ≤5,000cps
----capacity: 50-5000L
Applicable materials: emulsion paint, industrial paint, water-borne/solvent-based ink, fertilizer suspension, glues/adhesives, enamel, detergent, etc.

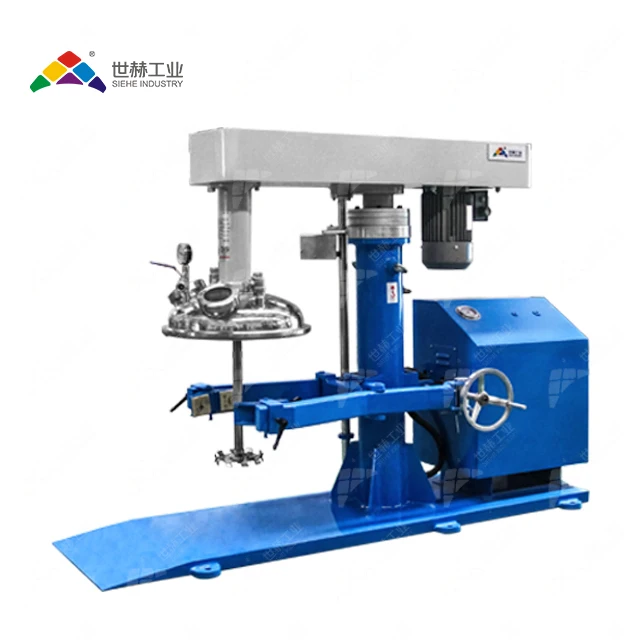

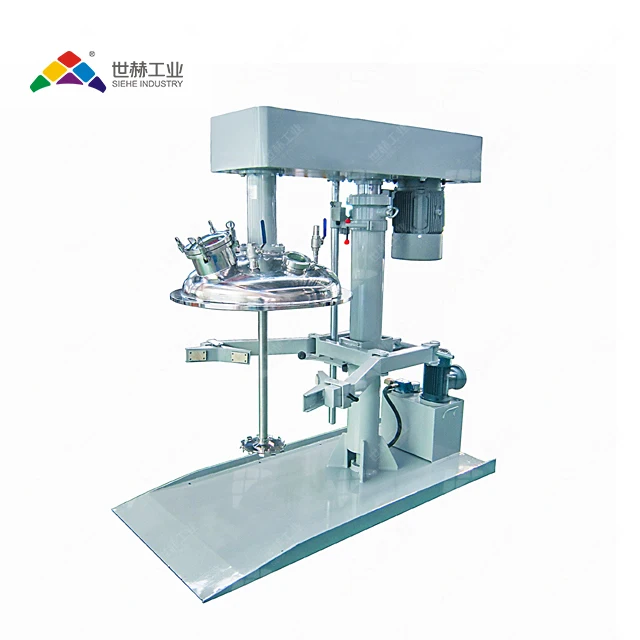

Standard type
0-1450rpm

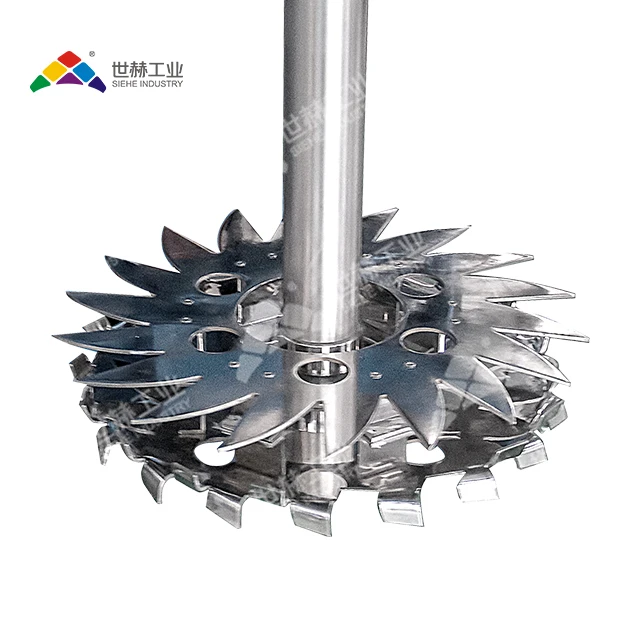

hydraulic lifting, no oil leakage double-layer dispersing disc, higher efficiency
VFD / Frequency converter control, speed display
manual rotation clamping to fix the tank
shaft processed by grinder, high precision
main went through dynamic static balance test
main went through dynamic static balance test
contact part SS304 / SS316L
button control, independent control cabinet
machine bolted to the ground
With lifted cover type
fixed cover, half folded to charging materials during process, lifted together with shaft
optional:
speed digital display
High end
pneumatic lifting cover
PLC + touch screen control
double layer dispersing disc, better mixing and dispersing result,qicker and more efficient

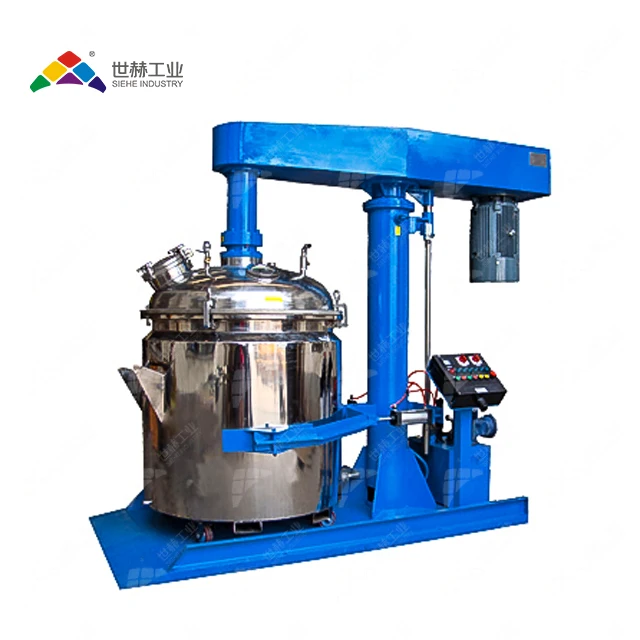

Vacuum type
for solvent based products
vacuum defoamation
elliptical cover, openings on it includes:
vacuum defoamation
elliptical cover, openings on it includes:
liquid inlet, powder charging port, vacuum gauge port, vent port, sightglasses ports, manhole, etc.
tank positioning device on the base
on-site ex-proof operation box
optional:
ATEX for machine and control cabinet
With side scraper
Telfon/PTFE scraper rotate in reverse direction of the dispersing disc
no side residue
VFD / Frequency converter control
VFD / Frequency converter control
Closed design, matched with tank by flange
Vacuum defoaming
with voltmeter, ampermeter and speed indicator
Optional:
PLC + touch screen control, digital display,
Ex-proof (ATEX), inner coated, load cells, no dust feeding, double-layer disc, etc.
Working with 2-4 tanks
electrical control direction change
with support lugs fixed on the platform
for mass production one batch such as white paste
with support lugs fixed on the platform
for mass production one batch such as white paste
bottom center with ball valve for discharging
flat cover, half open type, can be open for charging raw materials
optional:
scraper / other agitators, vacuum
optional:
scraper / other agitators, vacuum
Vessel type
Kettle type
fixed on the platform or with support legs
mass production
in production line
convenient for layout
mass production
in production line
convenient for layout
Detailed pictures
Main Features
1) Adopting advanced world famous brand components: ABB / Siemens motor, Schneider/ Danfoss / Delta inverter, Schneider electric components, NSK bearing, etc.
2) Designed based on European standard, CE certificated;
3) Intergrated industrial hydraulic station, three casing structure, lifting stable and without oil leakage.
4) Main shaft and mixing agitator went through static and dynamic balance test, with high precision; material SS304;
5) Customized options, lab type, platform type, kettle type, etc.
Certifications
Model Select
Model | Power (KW) | Speed (rpm) | Disc dia. (mm) | Tank volume (L) | Hydraulic power(KW) | Lifting (mm) | Others |
SFSY-1.5 | 1.5 | 0-1450 | 120 | ≤60 | 0.55 | 600 | SS304 / SS316L VFD, speed display |
SFSY-4 | 4 | 0-1450 | 200 | ≤200 | 0.55 | 900 | |
SFSY-7.5 | 7.5 | 0-1450 | 230 | ≤400 | 0.55 | 900 | |
SFSY-11 | 11 | 0-1450 | 250 | ≤500 | 0.55 | 900 | |
SFSY-15 | 15 | 0-1450 | 280 | ≤700 | 0.55 | 900 | |
SFSY-18.5 | 18.5 | 0-1450 | 300 | ≤800 | 0.75 | 1100 | |
SFSY-22 | 22 | 0-1450 | 350 | ≤1000 | 0.75 | 1100 | |
SFSY-30 | 30 | 0-1450 | 400 | ≤1500 | 0.75 | 1100 | |
SFSY-37 | 37 | 0-1450 | 400 | ≤2000 | 1.1 | 1600 | |
SFSY-45 | 45 | 0-1450 | 450 | ≤2000 | 1.1 | 1600 | |
SFSY-55 | 55 | 0-1450 | 500 | ≤2500 | 1.1 | 1600 | |
SFSY-75 | 75 | 0-1450 | 550 | ≤4000 | 2.2 | 1800 | |
SFSY-90 | 90 | 0-950 | 600 | ≤6000 | 2.2 | 1800 | |
SFSY-110 | 110 | 0-950 | 700 | ≤8000 | 3 | 2100 | |
SFSY-132 | 132 | 0-950 | 800 | ≤10000 | 3 | 2300 |
Remarks:
1. Not all products included, to learn more just connect us.
2. If any update of the data, without notice and subject to the official quote.
Auxiliary Devices
Water ring vacuum system
Water chiller
Self-cleaning filter
Product Related
FAQ
Q 1: Payment terms?
A 1: L/C, T/T, D/P, cash, Alibaba trade assurance;
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB Shanghai, CFR, CIP, CIF and DDU;
Q 3: Validity of quotation?
A 3: Within 30 days;
Q 4: Modes of shipment?
A 4: By sea, by railway, by air and by express;
Q 5: Warranty?
A 5: One year and lifelong service provided at cost;
Q 6: Installation & Commissioning & Training
A 6: For single set of machine, usu. tel or mail guidance for installation;
For production line, paid overseas engineering service provided to customers' factory for installation and debugging, as well as training the worker to use the production line.
A 1: L/C, T/T, D/P, cash, Alibaba trade assurance;
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB Shanghai, CFR, CIP, CIF and DDU;
Q 3: Validity of quotation?
A 3: Within 30 days;
Q 4: Modes of shipment?
A 4: By sea, by railway, by air and by express;
Q 5: Warranty?
A 5: One year and lifelong service provided at cost;
Q 6: Installation & Commissioning & Training
A 6: For single set of machine, usu. tel or mail guidance for installation;
For production line, paid overseas engineering service provided to customers' factory for installation and debugging, as well as training the worker to use the production line.
Our Services
Pre-sales
1. Muti-language consult, English, Chinese, Russia, etc.
2. Suitable, reasonable technical advise and solutions;
3. Lab room with experiments and instruments for test service to obtain data and production experience;
4. Tel: +86-021-52913185 ~120
Cell: +86-13611934398 (Whatsapp / wechat / skype)
2. Suitable, reasonable technical advise and solutions;
3. Lab room with experiments and instruments for test service to obtain data and production experience;
4. Tel: +86-021-52913185 ~120
Cell: +86-13611934398 (Whatsapp / wechat / skype)
On-sales
1. Project-Manager system: one customer, one project manager.
2. Schematic drawing for core equipments;
3. Production process follow-up;
4. Factory visit for equipment test before delivery;
5. Technical documents, e.g. English version operational manual, drawing of circuit, etc.
2. Schematic drawing for core equipments;
3. Production process follow-up;
4. Factory visit for equipment test before delivery;
5. Technical documents, e.g. English version operational manual, drawing of circuit, etc.
After sales
1. One year warranty;
2. 7×24h service line;
3. Overseas engineering service team for installation and training at your site;
4. Abundant warehouse of spare parts purchasing;
5. Equipment update service;
6. Detailed records of communications;
2. 7×24h service line;
3. Overseas engineering service team for installation and training at your site;
4. Abundant warehouse of spare parts purchasing;
5. Equipment update service;
6. Detailed records of communications;
