Система автоматического орошения сада умная система контроля для
- Категория: Система орошения для фермы >>>
- Поставщик: Shandong,Renke,Control,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.6 $* | 0.26 $* |
| Aug-18-2025 | 0.83 $* | 0.69 $* |
| Jul-18-2025 | 0.66 $* | 0.68 $* |
| Jun-18-2025 | 0.66 $* | 0.82 $* |
| May-18-2025 | 0.61 $* | 0.81 $* |
| Apr-18-2025 | 0.79 $* | 0.85 $* |
| Mar-18-2025 | 0.38 $* | 0.8 $* |
| Feb-18-2025 | 0.47 $* | 0.5 $* |
| Jan-18-2025 | 0.33 $* | 0.33 $* |
Характеристики
automatic fertigation system irrigation garden smart irrigation controller system for sale
Product Description
Operating Voltage | 12-24V DC |
Fertilizer channel | 3 channels can be expanded to 4 channels by default |
Irrigation channel | Default irrigation 10 |
screen size | 7 inch control screen |
Connect the platform | Default upload to our general cloud platform |
Upload interval | 20S |
Automatic control and control through the control system, the controller will automatically control the irrigation volume, fertilizer volume, and other important parameters of the water and fertilizer process according to the user-set recipe and irrigation process parameters, to achieve timing and quantitative control of irrigation and fertilization, saving water and fertilizer , High efficiency and high yield, integrated water and fertilizer machine can help producers to easily realize automatic integrated management of water and fertilizer. The product uploads real-time PH value, conductivity, status of each valve, flow rate, etc. to our free monitoring cloud platform.
The product has two modes: manual and automatic. The login interface supports administrator password login to prevent arbitrary operations.
The product has two modes: manual and automatic. The login interface supports administrator password login to prevent arbitrary operations.

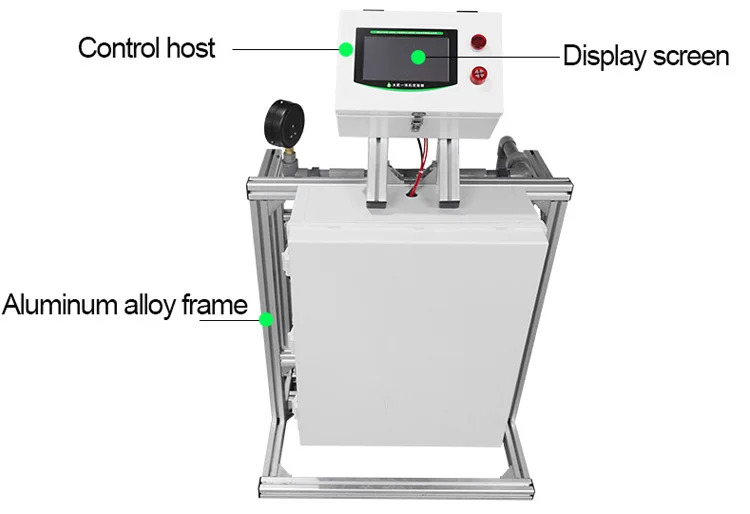

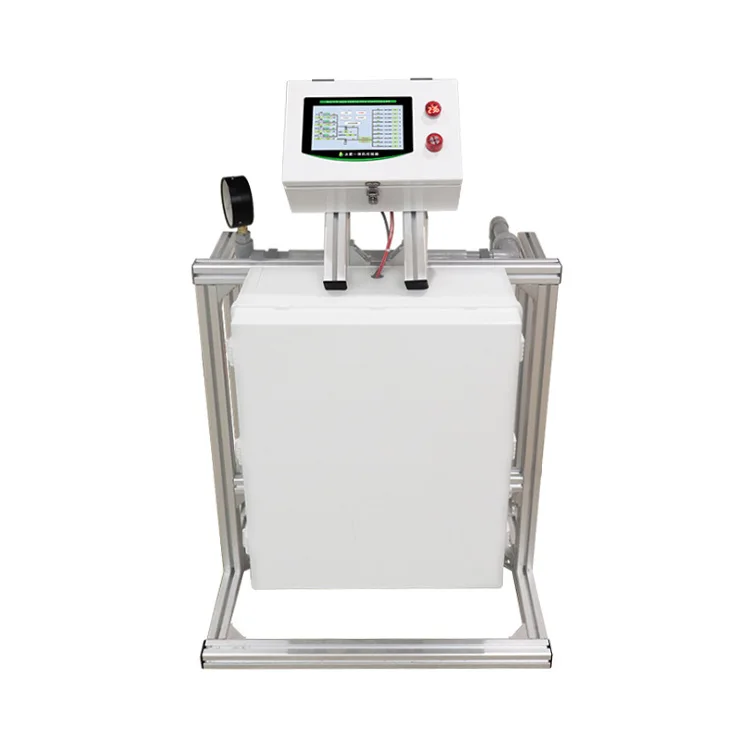

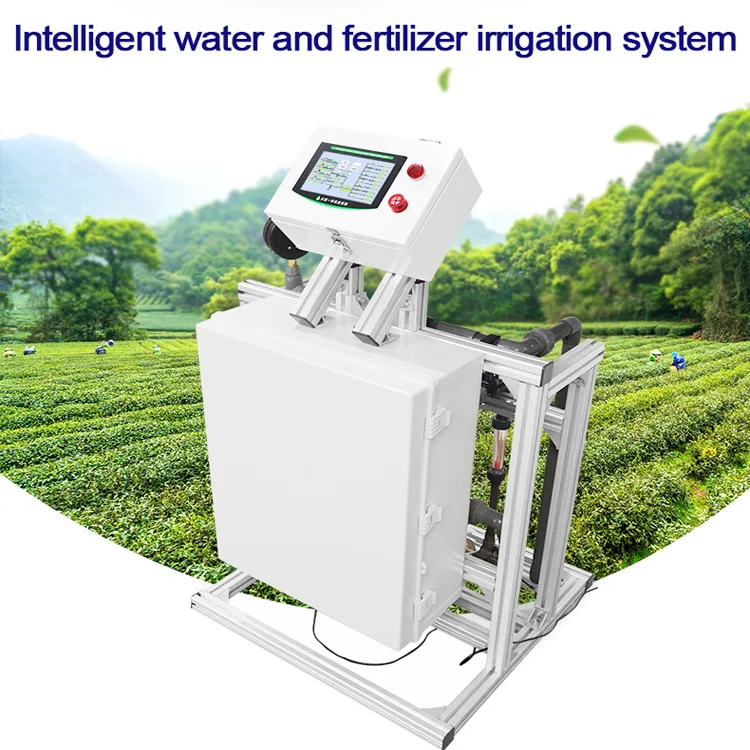

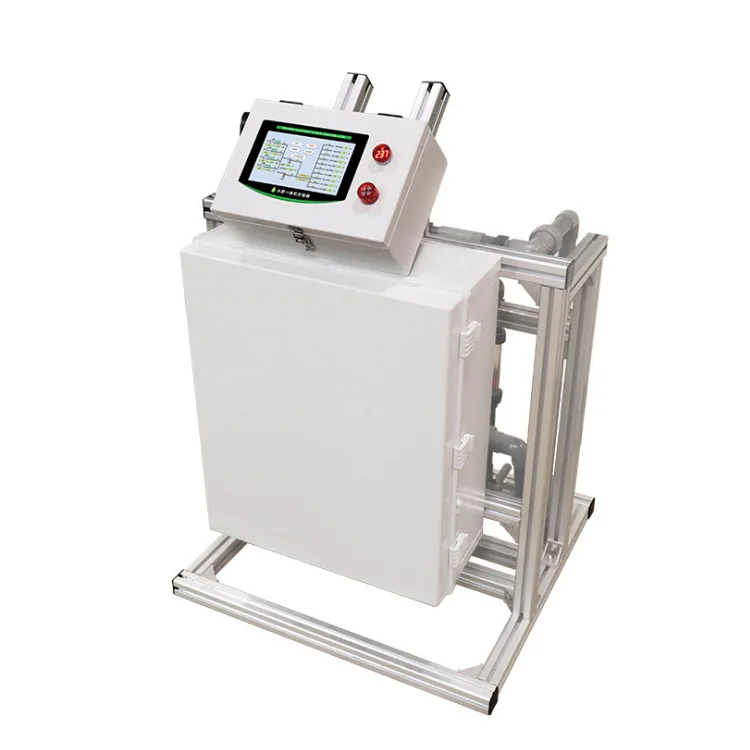

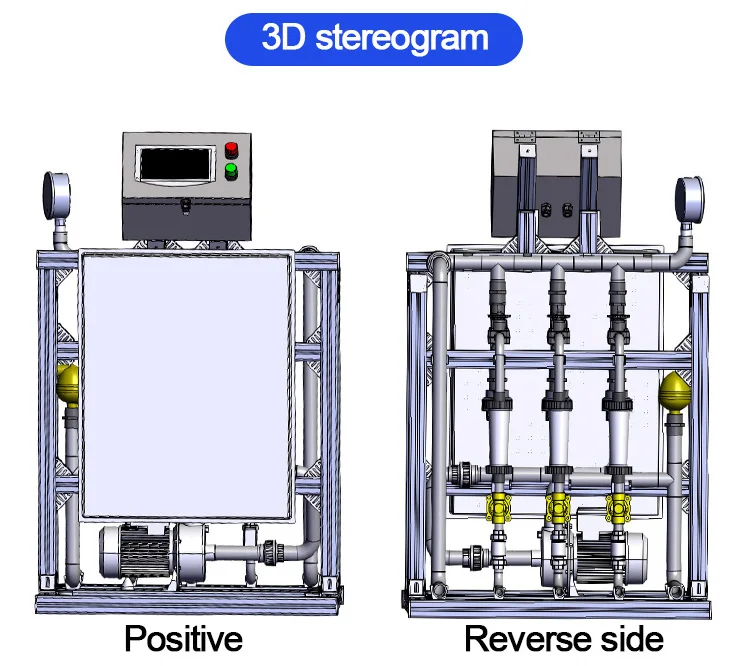

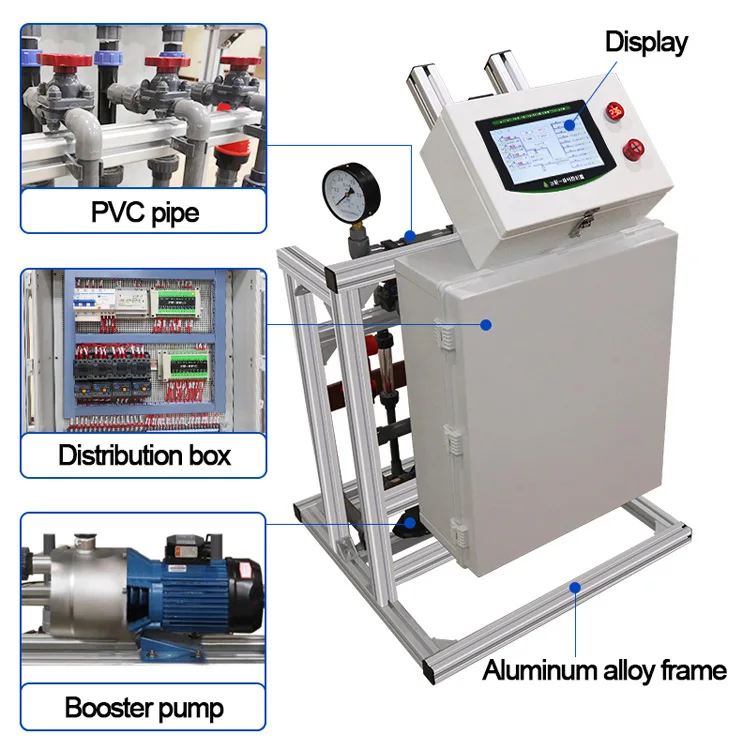

Detailed Images
FEATURES:
1.7 inch touch screen display, control, manual and automatic modes, the login interface supports administrator password registration to prevent arbitrary operations;2. GPRS/4G data upload, provide free cloud platform, WeChat platform real-time viewing, support APP viewing control;
3.1 Road pump control; 1 Road fertilizer pump control; 4 Road mixing control; 10 Road Irrigation Area Control; 4 channel flow collection instantaneous flow and total flow
4.1 voltage acquisition, 1 fault indication. 1 PH collection, 1 EC collection
5. The upper limit value of a certain element of each irrigation channel can be set. When this element of each channel reaches the upper limit value, the on-off valve of this channel element is automatically closed
6. The 8-channel relay output status of the device with slave address 1 can be controlled remotely in manual mode
Installation Instructions
Name | Explanation |
Mixer pump total flow | Shows the total flow of all outflows from the mixing pump after starting up |
Instantaneous flow | Shows the instantaneous flow out per hour after the stirring pump valve is opened |
Clear | After clicking the reset button, the total flow of the mixing pump will be reset to zero |
Auto/Manual mode | Switch between manual and automatic mode (Note: After switching the mode, all the previous state of the device is reset) |
Manual operation | In manual mode, manual operation can be clicked. Each valve can be controlled manually |
Automatic operation | In automatic mode, the automatic operation can be clicked. Set the conditions for automatic rotation irrigation |
System parameter setting | Set up data upload platform, password settings, etc. |
Fertilize | Display the time after the fertilization pump is turned on (automatic hand-switching will be cleared, and automatic round irrigation will be cleared when the next round of irrigation is turned on) |
Fertilization start | The start time of the fertilizer pump is delayed after the start time of the water pump. For example: if the start time of the fertilizer pump is 20S later than the start time of the water pump, you need to fill in 20 in this column (the manual/automatic mode switching will clear the time) |
PH/EC value | Real-time display of real-time value of PH/EC (display-please click this column manually) |
Irrigation area irrigation | Shows the duration of water and fertilizer irrigation in a certain area |
Application
Company Introduction
Shandong Renke Control Technology Co.,Ltd. is a leading environmental monitoring high technology enterprise in China.
Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service.Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service.Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
FAQ
Q: Are you manufacturer?
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patents.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the shell and logo for you.
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.
Q: How is your quality assurance service?
A: 24 months quality guarantee.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed .
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patents.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the shell and logo for you.
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.
Q: How is your quality assurance service?
A: 24 months quality guarantee.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed .
