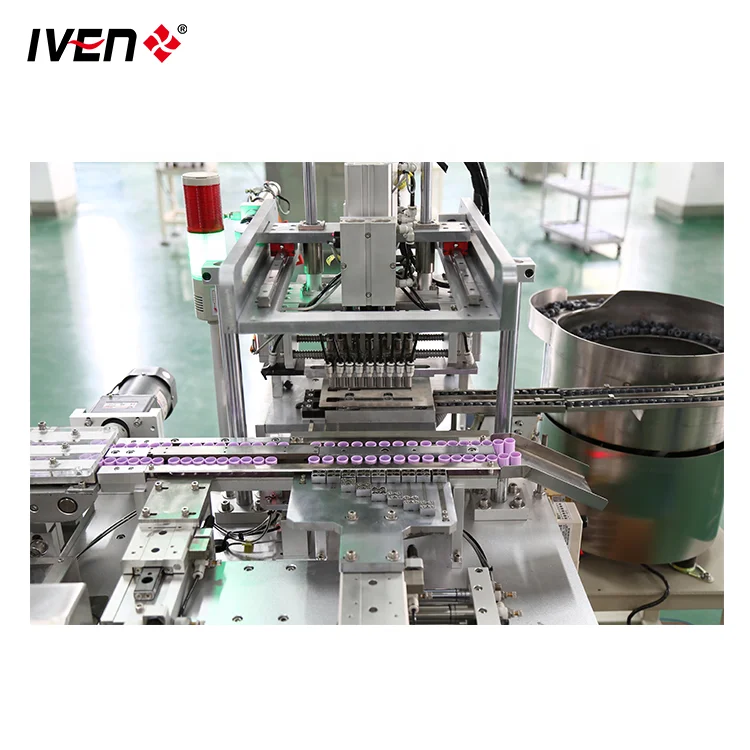

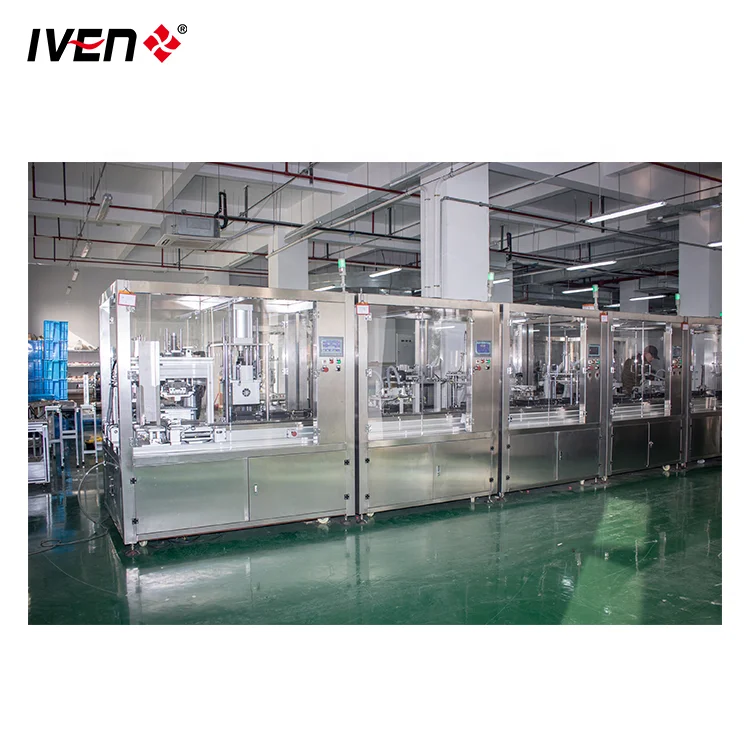

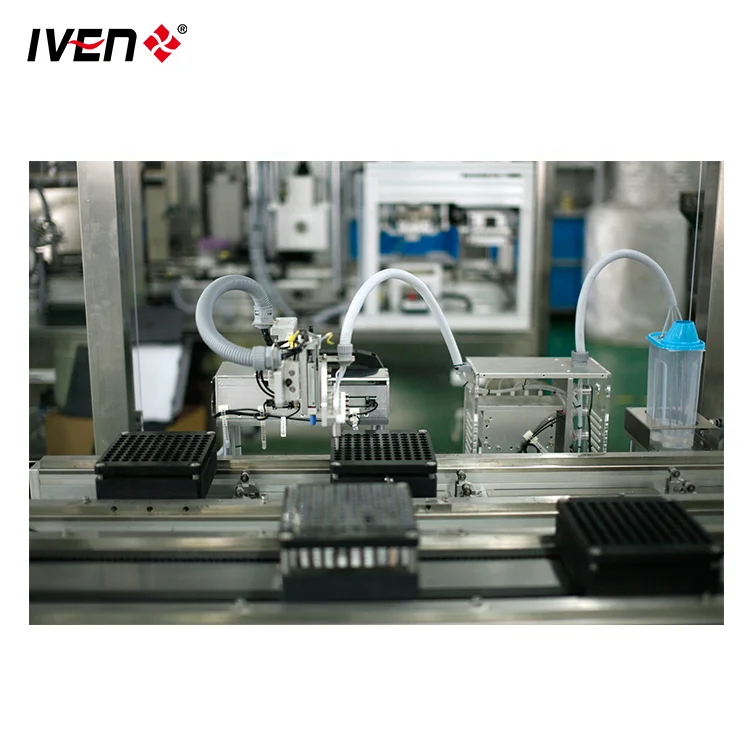

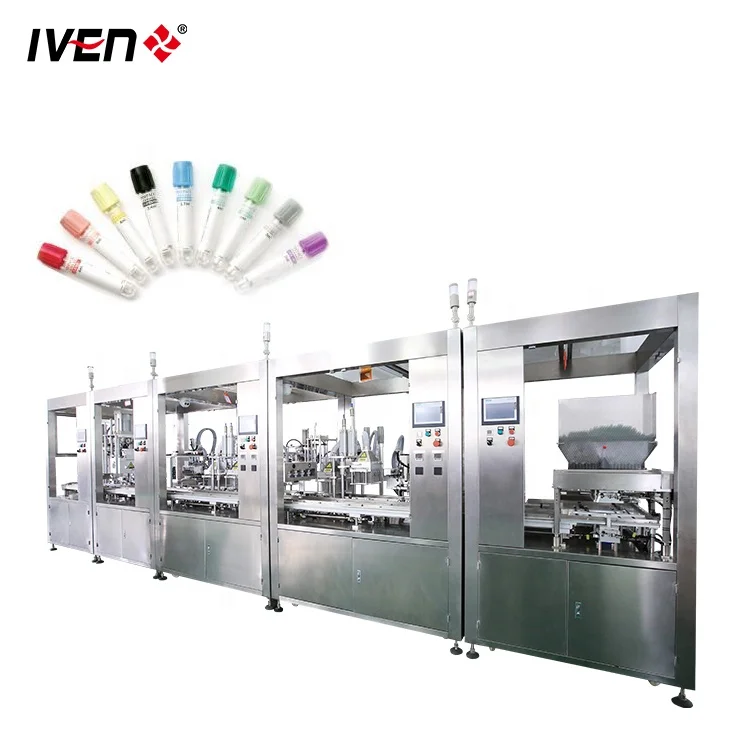

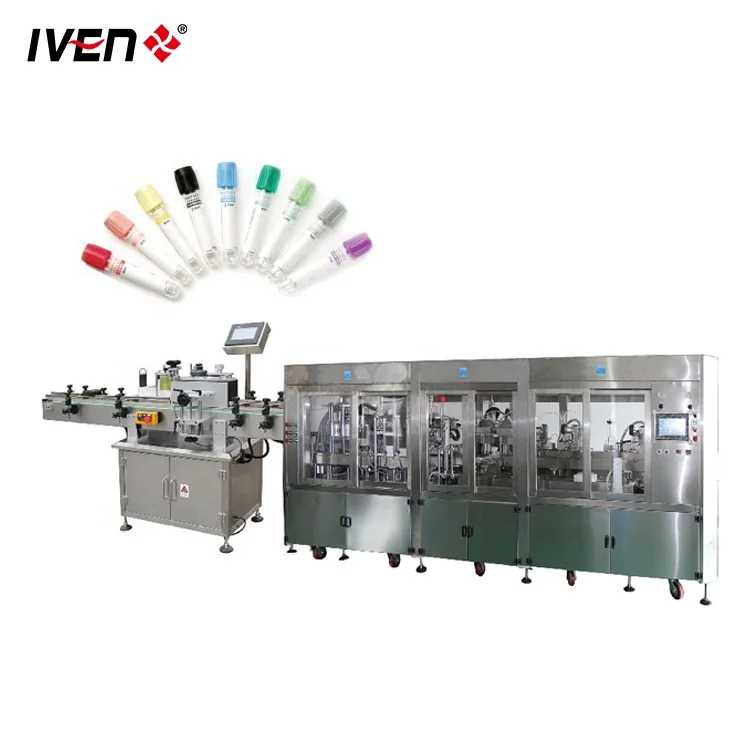

Vacuum Blood Tube Production Machine is connected by several individual but attachable function modular. Improving traditional process and realizing humanized design of online gel adding . Each modular is controlled by its own PLC, only 3 skilled workers are needed for the whole line to reach 12000-15000pcs/h capacity. No human operation online, decreasing error caused by human difference between batches, which improves production efficiency and products quality.
Product Name
Vacuum Blood Tube Production Machine
Tube size
Diameter 13mm (length 75mm or 100mm), diameter 16mm(length 100mm)
Production capacity
12,000 ~ 15,000 pcs/hour
Power supply
380V/50HZ
Power
12KW
Air consumption
Clean compressed air pressure: 0.6 ~ 0.8Mpa, clean compressed air cons
Dimensions
3.1*1.3*2.4m(L*W*H)
Weight
2T
IVEN Can Do !
IVEN provides integrated engineering solution for worldwide pharmaceutical and medical factory include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, solution preparing and conveying system, filling and packing system, automatic logistics system, quality control system and central laboratory and etc. According to the pharmaceutical industry's regulatory requirements of different countries and customer's individual demand, IVEN carefully customizes engineering solutions of turnkey projects and helps customers to win the target markets, IVEN creates value to customers.
Turnkey Project for IV Solution Plant from A to Z
• Project Design • Pharmaceutical Water Treatment • Solution Preparation • IV Solution Production Line • Sterilization • Inspections Packing • Clean Room & HVAC • Stability Chamber • Laboratory Instruments • Utilities • Documentation & Qualification • Installation, Commissioning, Training • Service
