Регулируемая шероховатая головка для мультирасточного станка
US $10.00-$50.00
Наборы сверлильных головок R8
- Категория: Сверлильный инструмент >>>
- Поставщик: Dongguan,Gushan,Precision,CNC,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 226.12 $* | 237.50 $* |
| Aug-18-2025 | 224.35 $* | 235.77 $* |
| Jul-18-2025 | 188.40 $* | 197.71 $* |
| Jun-18-2025 | 220.21 $* | 231.89 $* |
| May-18-2025 | 192.51 $* | 202.93 $* |
| Apr-18-2025 | 217.77 $* | 228.59 $* |
| Mar-18-2025 | 215.84 $* | 226.25 $* |
| Feb-18-2025 | 213.95 $* | 224.8 $* |
| Jan-18-2025 | 211.56 $* | 222.30 $* |
Характеристики
product description
Name | NBH2084 fine boring fine-tuning |
Material | high quality steel |
Accuracy | 0.01MM |
Cui knife range | 8-280MM |
Boring-fine-tuning the single-edged blade to rotate at the peripheral speed to meet the hole diameter requirement 1. Choose asuitable boring tool, so that the offset center of the fine-tuning boring is less, and it is more capable of high-speed cutting 2. Choose suitable cutting inserts. (Precision type) 3. With cutting speed, boring can be achieved. | |

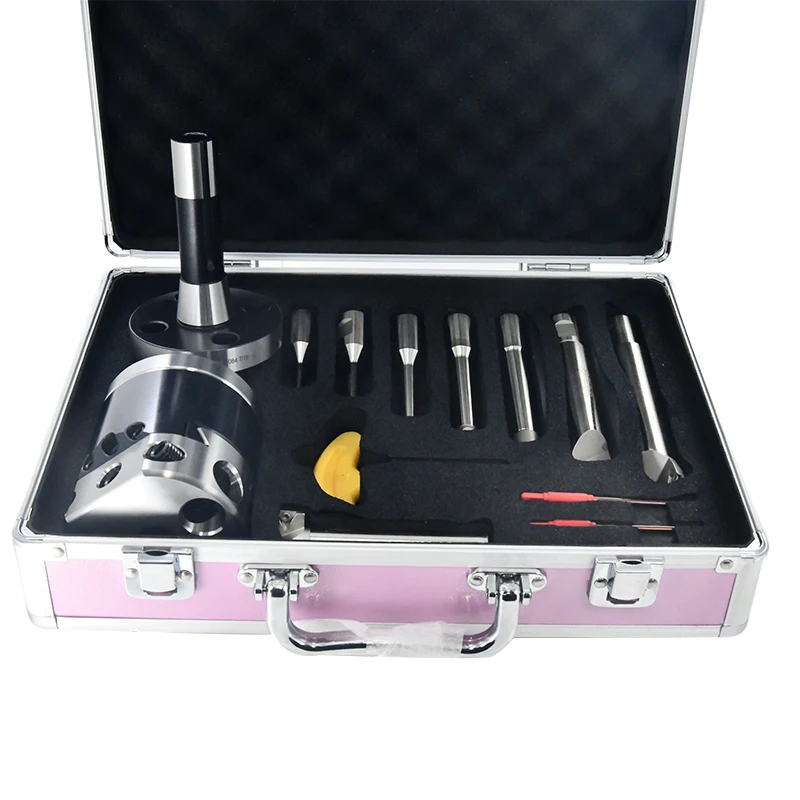

Product contains | 1. boring head*1 2. Torx wrenches*3 3. Tool handle *1 4. Tool box* 1 5. boring bar*8 6. Pull nail* 1 7. Use wrenches*2 8. manual*1 |
note:
1. Pay attention to the spindle positioning direction when using MC machine boring program
2. During the boring work, blade vibration occurs, and the spindle may rotate unbalanced
The number of revolutions should be reduced or the adjustable balance boring head NBJ16S should be used
3. If the bore diameter is too rough, the feed rate should be reduced and the number of revolutions should be increased.
4. If the boring hole diameter forms a small slope, you should pay attention to whether the reserved boring amount is too much.
Too little will make the blade wear, and the feed should not be too little.
5. This boring machine can rotate up to 1600RPM, but because of the offset center and machine conditions
The rotation should be reduced..
1. Pay attention to the spindle positioning direction when using MC machine boring program
2. During the boring work, blade vibration occurs, and the spindle may rotate unbalanced
The number of revolutions should be reduced or the adjustable balance boring head NBJ16S should be used
3. If the bore diameter is too rough, the feed rate should be reduced and the number of revolutions should be increased.
4. If the boring hole diameter forms a small slope, you should pay attention to whether the reserved boring amount is too much.
Too little will make the blade wear, and the feed should not be too little.
5. This boring machine can rotate up to 1600RPM, but because of the offset center and machine conditions
The rotation should be reduced..
