Zhixinjie высокоскоростная машина для производства влажных салфеток 5-30 штук в

Цена:25 000,00 $*

Количество:

Product Description

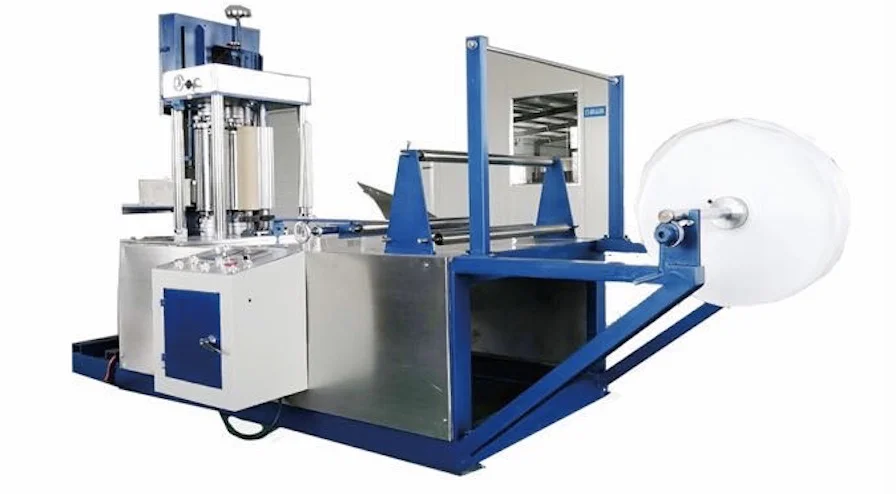

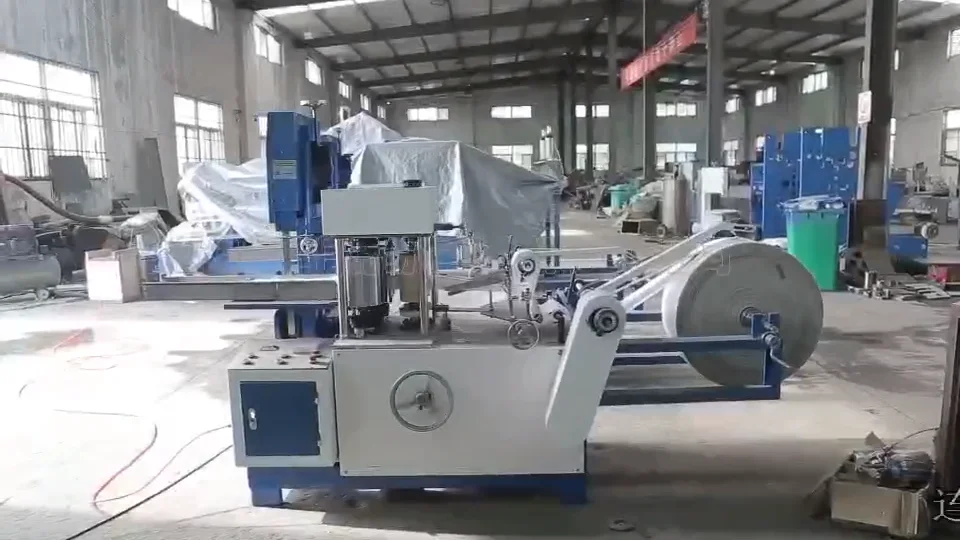

Folding machine

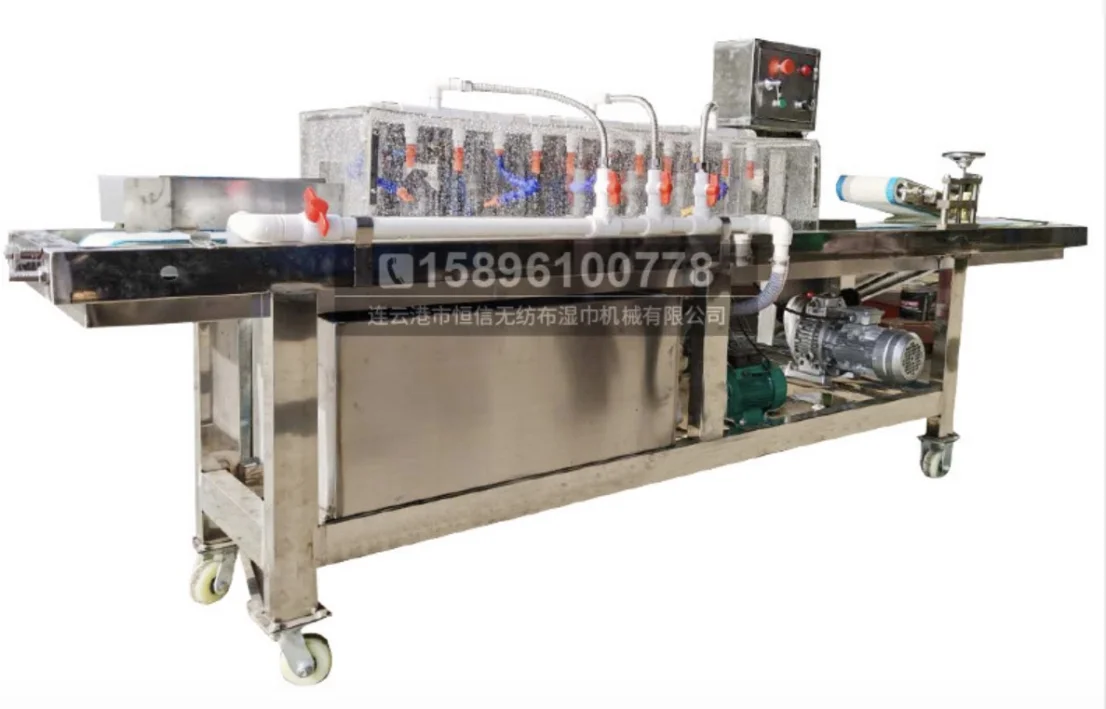

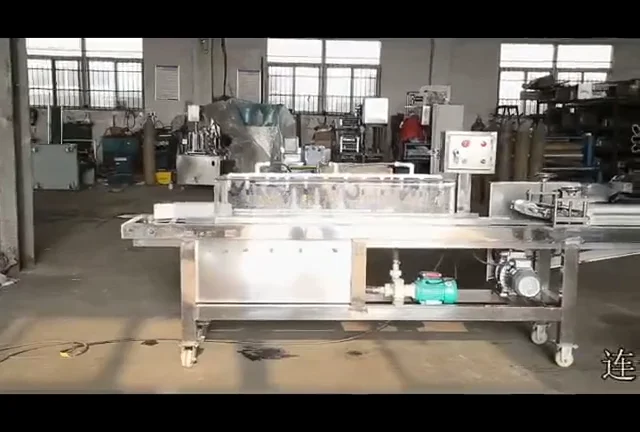

Liquid adding machine

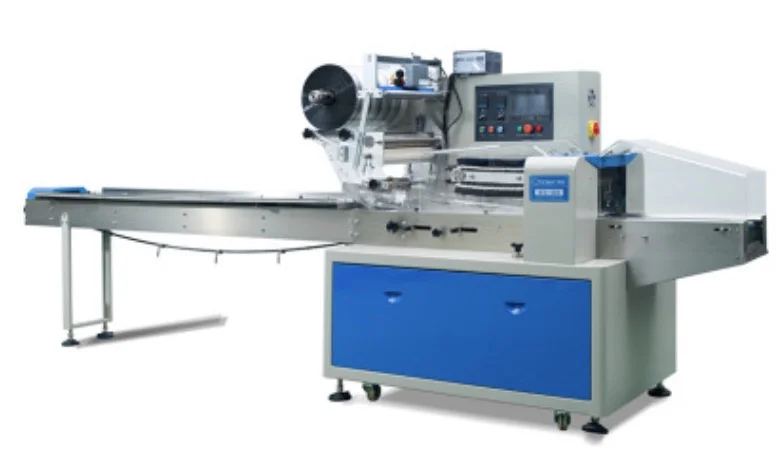

Package machine

Material specifications and main technical data
equipment name	5-30 pieces per bag wet wipes production line
Model	YWJ-QS-C
function	Wipes folding,Adding liquid,packaging
Folding method	N fold and then 1/2 Fold
Discharging mode	Speed control motor counting discharging Adjustable Speed motor counting and fast discharging
Width of raw material for non-woven fabrics	120-200mm
Unfolded dimension of non-woven fabric	170*120-200mm
Folding size of non-woven fabric	85*60-80mm
Suitable for non-woven fabric raw materials	30-80g spunlace nonwoven
Inner diameter of raw paper tube	3inch（75mm）
Raw material diameter of non-woven fabric	≦800mm
Packaging film raw material width	≦230mm
packaging film Suitable raw materials	OPP heat sealing film, aluminum-plastic composite film
Diameter of packing film raw material	≦400mm
Specification for finished packaging	Width 50-105mm(change by shaper) Length 100-300mm(change on screen) Height 0-30mm
Production speed	20-100packs / min
Power supply voltage and frequency	Folding machine 380v，50/60hz Liquid adding machine 380v，50/60hz Packaging machine Single phase electricity 220v，50/60hz
Equipment power	3.7+3+3.5kw
Equipment weight	500+300+400kg
Production area	13m2m1.8m
Air compressor	Need 0.5-0.7Mpa
vulnerable parts for free
heating rod	6 pieces
thermocouple	2 pieces
solid state relay	1 pieces
tool	1 set
knife	1 set
grinder	4
Saw blade	2
