Универсальный датчик давления водяного насоса T2000 для воды
- Категория: Pressure Transmitters >>>
- Поставщик: Zhejiang,Lefoo,Controls,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 19.25 $* | 20.66 $* |
| Aug-16-2025 | 19.24 $* | 20.0 $* |
| Jul-16-2025 | 16.62 $* | 17.47 $* |
| Jun-16-2025 | 19.42 $* | 20.20 $* |
| May-16-2025 | 16.92 $* | 17.36 $* |
| Apr-16-2025 | 18.40 $* | 19.3 $* |
| Mar-16-2025 | 18.35 $* | 19.55 $* |
| Feb-16-2025 | 18.67 $* | 19.7 $* |
| Jan-16-2025 | 18.40 $* | 19.1 $* |
Характеристики
Products Description

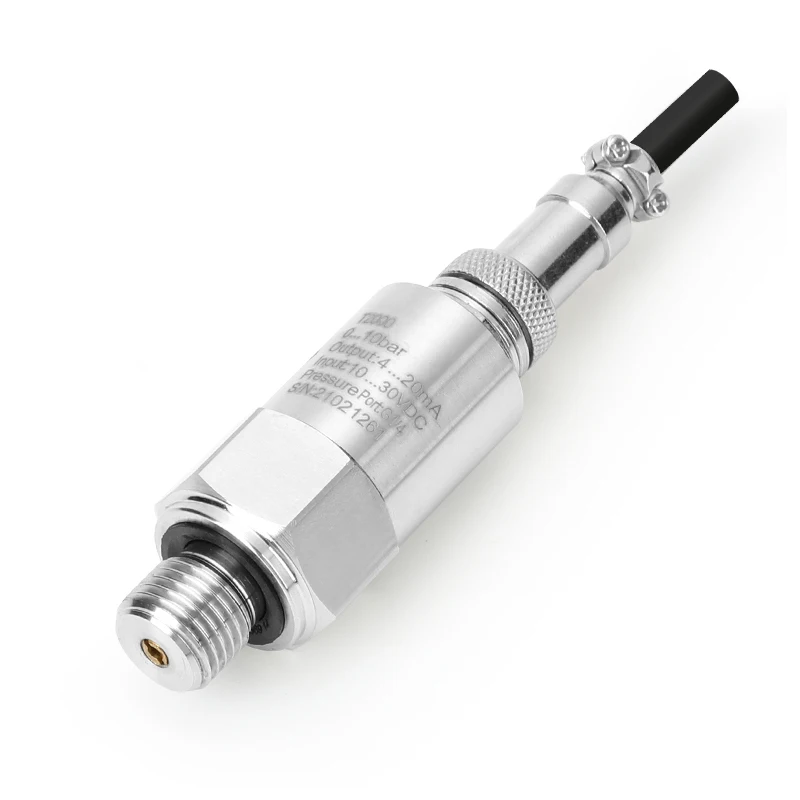

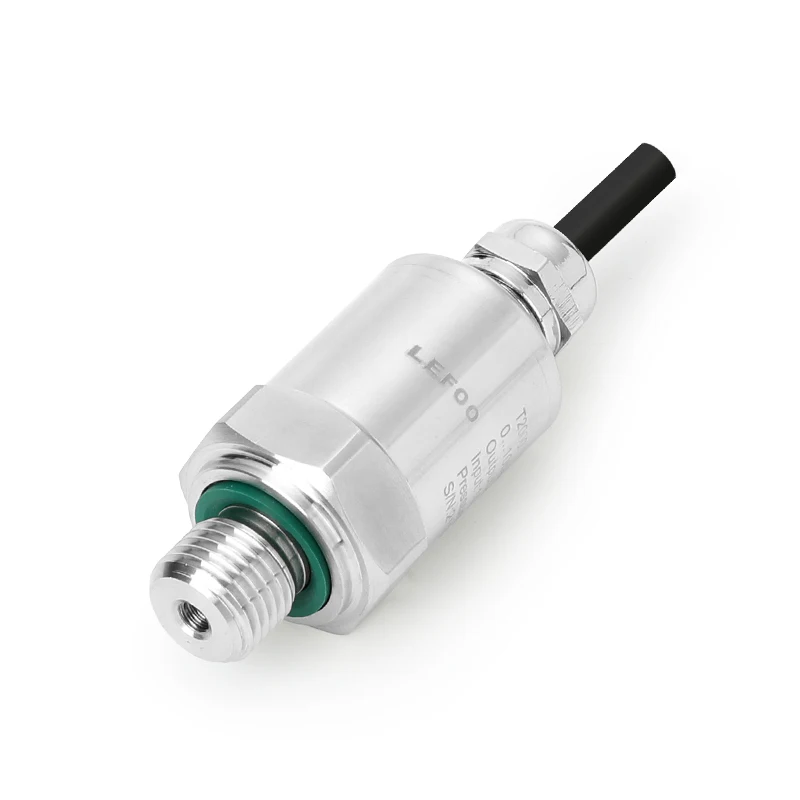

The heart of T2000 pressure transmitter is a ceramic pressure sensor that is temperature compensated and laser trimmed for accurate span and offset calibration. The typical advantage is the compact size, which make it convenient to be installed in small room.
Output: A4=4~20mA; V05=0.5~4.5V; V0=0~5V; V1=1~5V; V10=0~10V
Measurement range
Unit of measure: K=kPa; M=MPa; P=psi; B=bar
Accuracy: 0.5=0.5%F.S; 1=1.0%F.S

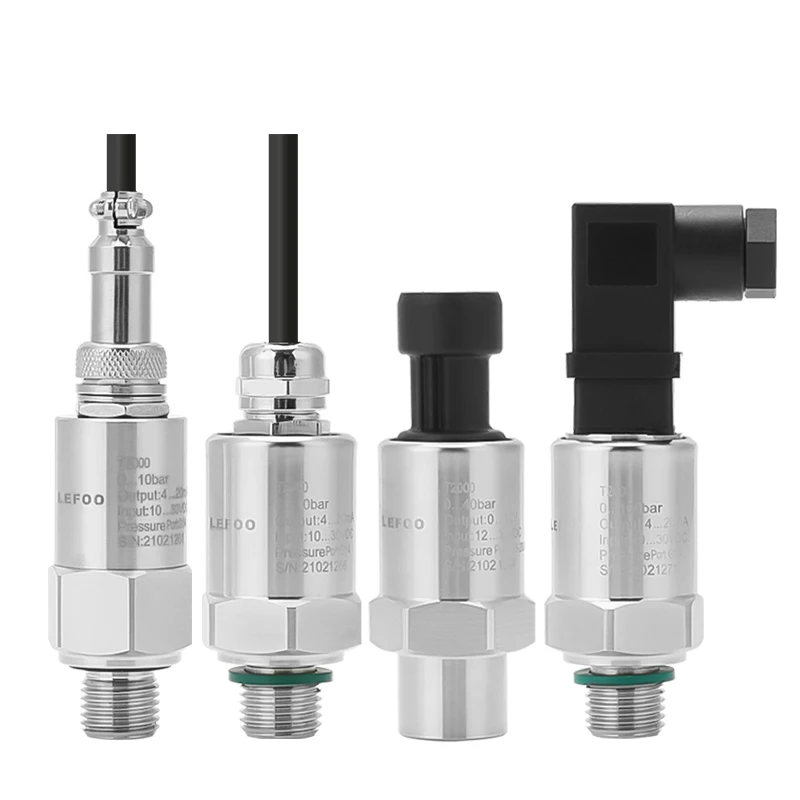

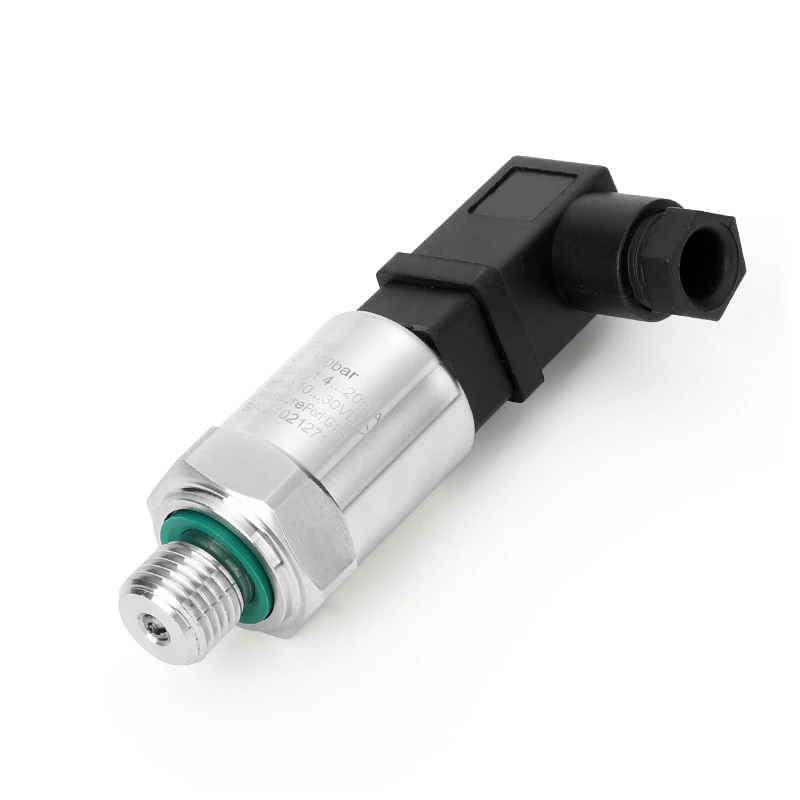

Electrical connector: P=Packard; D=Din43650C; M=M12; C=Cable
Pressure connection: G=G1/4; N=NPT1/4; R=R1/4; U=7/16-20UNF; M=M20×1.5; N2=NPT1/2; G2=G1/2; R2=R1/2
Cable length(m)
Output: A4=4~20mA; V05=0.5~4.5V; V0=0~5V; V1=1~5V; V10=0~10V
Measurement range
Unit of measure: K=kPa; M=MPa; P=psi; B=bar
Accuracy: 0.5=0.5%F.S; 1=1.0%F.S
Electrical connector: P=Packard; D=Din43650C; M=M12; C=Cable
Pressure connection: G=G1/4; N=NPT1/4; R=R1/4; U=7/16-20UNF; M=M20×1.5; N2=NPT1/2; G2=G1/2; R2=R1/2
Cable length(m)
Specification
General | Value | ||||||
Measurement Range | -1~0......100bar,0~2......3bar,0~4......60bar(normal range),0~61......600bar | ||||||
Overload Pressure | 1.5 times of full scales | ||||||
Burst Pressure | 3 times of full scales | ||||||
Accuracy | ±0.5%F.S,±1.0%F.S | ||||||
Long Term Stability | Typical value: 0.5%F.S Maximum: 1%F.S | ||||||
Working Temperature | -40℃~100℃ | ||||||
Compensated Temperature | -10℃~80℃ | ||||||
Storage Temperature | -50℃~125℃ | ||||||
Medium Compatibility | All corrosive medium compatible with 1Cr18Ni9Ti stainless steel and ceramic | ||||||
Output Mode | Two-wired | Three-wired | |||||
Output | 4~20mA | 0.5~4.5V | 0/1~5V | 0~10V | |||
Power Supply | 10~30VDC | 5VDC | 10~30VDC/AC | 12~30VDC/AC | |||
Load Resistance | (U-10)/0.02(Ω) | >100K(Ω) | |||||
Insulation | >100M(Ω)@50V | ||||||
Electrical Connection | Packard, DIN43650C, DIN72585, M12, Cable | ||||||
Protection Grade | IP67 | ||||||
Pressure Connection | Male G1/4,NPT1/4,7/16-20UNF,M20×1.5,G1/ (Female and other connection is available on request) | ||||||
Response Time | 10ms | ||||||
Pressure Form | Gauge pressure | ||||||
Electromagnetic Compatibility | Electromagnetic transmit: EN50081-1/-2; Electromagnetic sensitivity: EN50082-2 | ||||||
Conversion: 1kgf/cm²=14.2psi 1bar=14.5psi
Company Profile
ABOUT LEFOO
LEFOO CONTROLS, the company covers an area of 50,000 square meters, with more than 500 large-scale processing equipment, 30 production lines, and a strong team of more than 1,000 people.
The successful and lasting presence in North America, Europe, Asia, Australia and South America, also strengthened by the prestigious TUV ISO 9001:2008 certification and by many other specific product approvals prove LEFOO to be a qualified international manufacturer able to suit the most various and demanding technological requirements.
HIGH-QUALITY
120+ certifications and patents
HIGE STORAGE
With a production base of 50000 square meters and above and more than 1000 strength team
CUSTOMIZED
OEM,ODM supported as requested
EXHIBITON
LEFOO FACTORY
LEFOO CERTIFICATE
PACKING&SHIPPING
FAQ
1.What kind of products do you offer ?
Zhejiang Lefoo Controls Co., Ltd. develops and manufactures reliable, high quality standard pressure sensors, pressure transmitters, differential pressuhttps://lefoo.en.alibaba.com/contactinfo.htmlre transmitters, pressure switches Pressure Control,temperature control Devices offering innovative solutions and components able to outfit at best machines and production systems and give a single answer to any requirements in pressure control systems.
Zhejiang Lefoo Controls Co., Ltd. develops and manufactures reliable, high quality standard pressure sensors, pressure transmitters, differential pressuhttps://lefoo.en.alibaba.com/contactinfo.htmlre transmitters, pressure switches Pressure Control,temperature control Devices offering innovative solutions and components able to outfit at best machines and production systems and give a single answer to any requirements in pressure control systems.
2.Are you manufacturer ?
Yes, we are manufacturer with 3 factories.
3. How can I get the quotation?
Send your inquiry to us by the inquiry from on the right-side or the bottom of this page,
4.Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
5. Can you make customized products ?
Yes, customized is accept, please contact us for specific requirements.
6.Can I to be your distributor ?
Please contact us directly for details. Looking forward to work with distributors all over the world.
Yes, we are manufacturer with 3 factories.
3. How can I get the quotation?
Send your inquiry to us by the inquiry from on the right-side or the bottom of this page,
4.Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
5. Can you make customized products ?
Yes, customized is accept, please contact us for specific requirements.
6.Can I to be your distributor ?
Please contact us directly for details. Looking forward to work with distributors all over the world.
