Преобразователь сигнала тока в Fieldbus с

Категория: Inverters & Converters >>>
Поставщик: Microcyber,Corporation

Цена:530,00 $ - 580,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	631.10 $*	663.59 $*
Aug-19-2025	625.43 $*	656.86 $*
Jul-19-2025	525.52 $*	551.26 $*
Jun-19-2025	615.52 $*	646.25 $*
May-19-2025	535.69 $*	562.85 $*
Apr-19-2025	604.33 $*	634.20 $*
Mar-19-2025	599.2 $*	629.74 $*
Feb-19-2025	594.66 $*	624.26 $*
Jan-19-2025	588.69 $*	617.77 $*

Характеристики

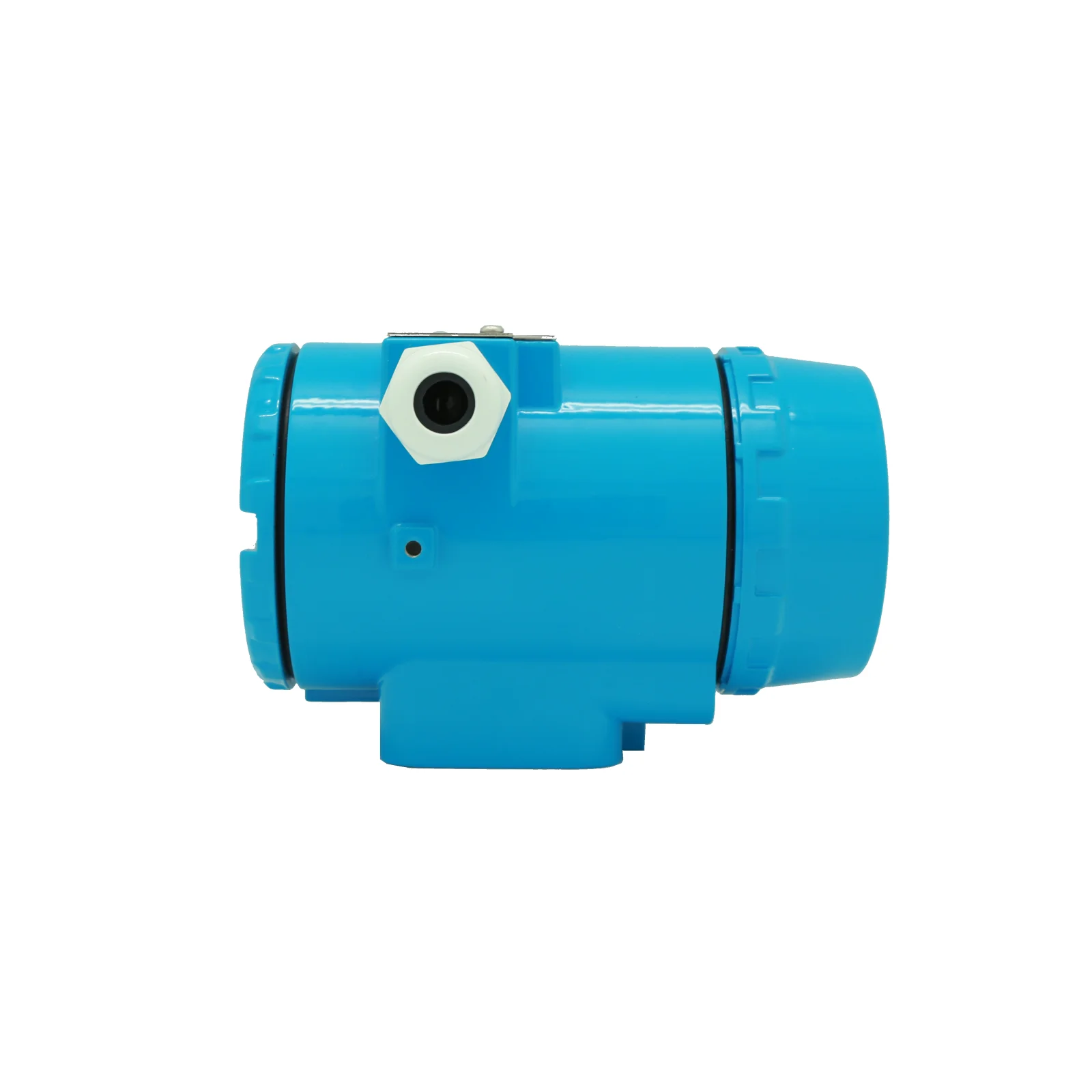

Product Description

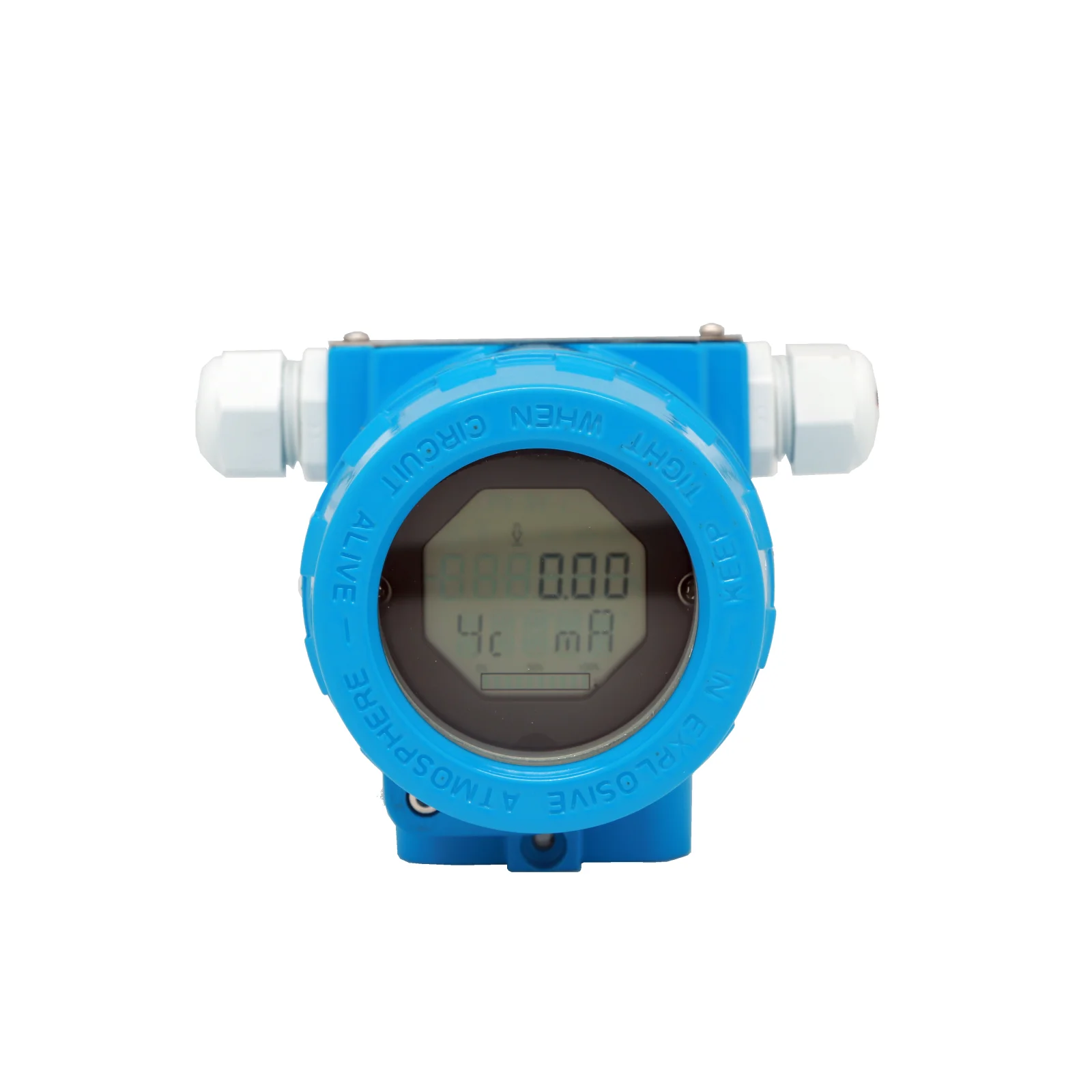

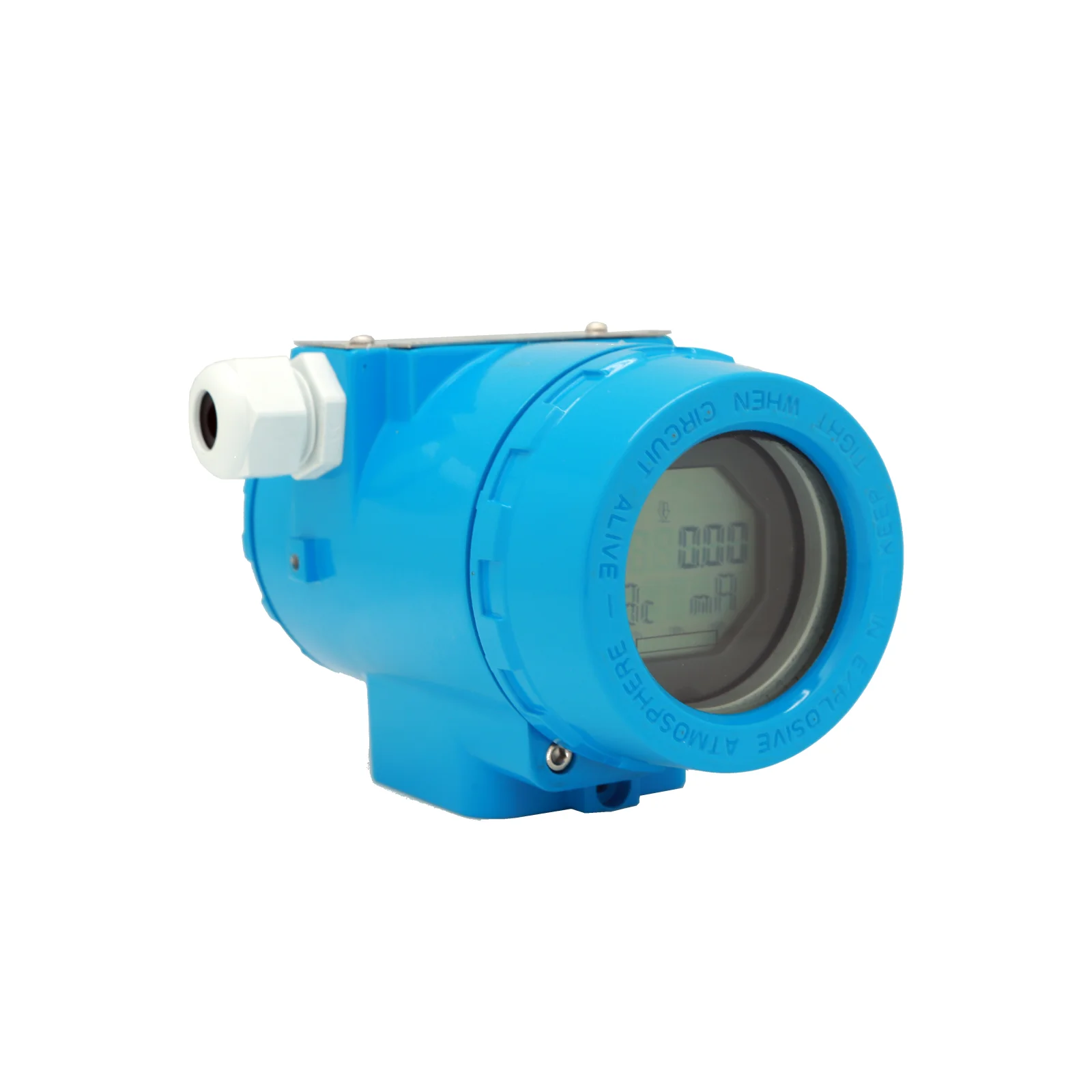

As intelligent transition device, NCS-IF105 converter receives 0~20mA or 4~20mA analog signal (4 channels) and converts into fieldbus signal. NCS-FI105 converter uses digital communication technology, and makes the interface between field device and controller easier, and reduces the expense of installation and maintenance.

NCS-IF105 converter fulfills the need of FF fieldbus intelligent instrument and can connect with several FF fieldbus devices. NCS-IF105 converter has abundant function blocks and realizes not only normal measurement function also complex control strategy. In order to realize different function, user can choose different function blocks according to requirements and specific application environment.

Specification

Installation

For installation of NCS-IF105 converter, three types of bracket (pipe mounting flat bracket, plate mounting angle bracket and pipe mounting angle bracket) are provided. Accordingly there are three installation methods as the following.

The installation of pipe mounting flat bracket: the typical installation as picture shows. Fix NCS-IF105 converter in flat bracket using four bolts provided, and then fix the flat bracket on the vertical pipe in Φ50mm around through the U-shape bolt provided.

The installation of plate mounting angle bracket: the typical installation as picture shows. Fix NCS-IF105 converter in angle bracket using four bolts provided, and then fix the angle bracket on the plate through the M10 bolt not provided.

The installation of pipe mounting angle bracket: the typical installation as picture shows. Fix NCS-IF105 converter in angle bracket using four bolts provided, and then fix the angle bracket on the horizontal pipe in Φ50mm around through the U-shape bolt provided.

Principle and Structure

NCS-IF105 converter convert input current signal that generate by most conventional transmitters to fieldbus signal.

NCS-IF105 converter is consisted of five components, as shown inpicture.

2)A/D board: it can convert input current signal to digital signal provided to communication board.

1)Terminal board: it is used to connect with fieldbus, current output signal, A/D board and communication board.

4)Isolation board: it is used for isolation between communication board and instrument board (power isolation and signal isolation).

3)Communication card: it is core component of intelligent instrument, which implements the communication, control, diagnosis and maintenance of Foundation Fieldbus.

5)LCD Card (optional): it is used to display function block parameters.

1	Front cover	2	O-ring	3	LCD cover	4	Electronics/LCD
5	Post	6	Communication board	7	Capture board	8	Isolation board
9	Terminal board	10	Screw	11	Wire hole	12	Screw
13	Name plate	14	Z/X button	15	Housing	16	Pin/block
17	Rear cover	18	Bottom cover
