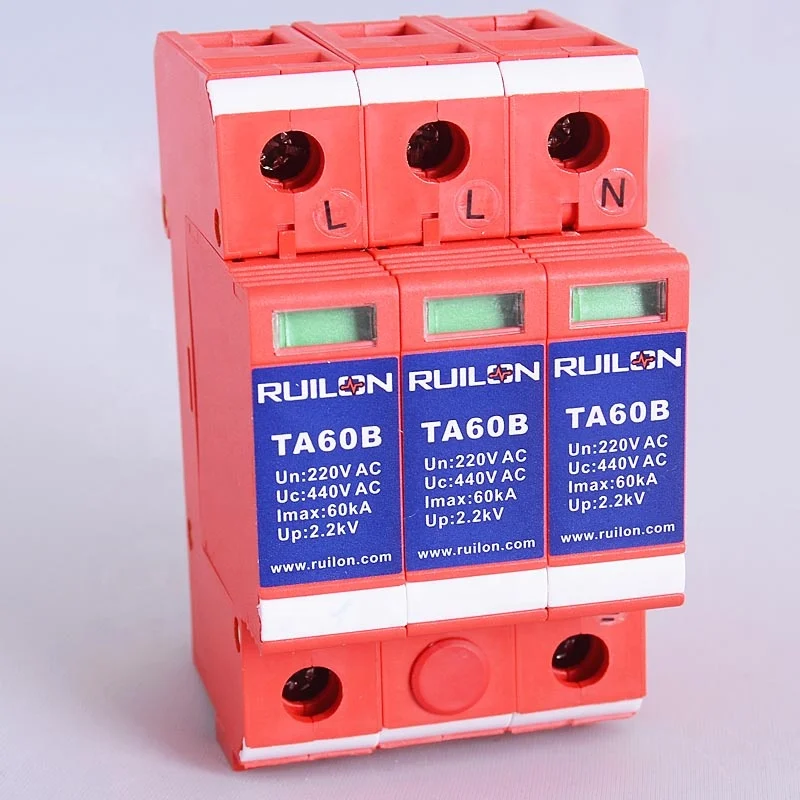

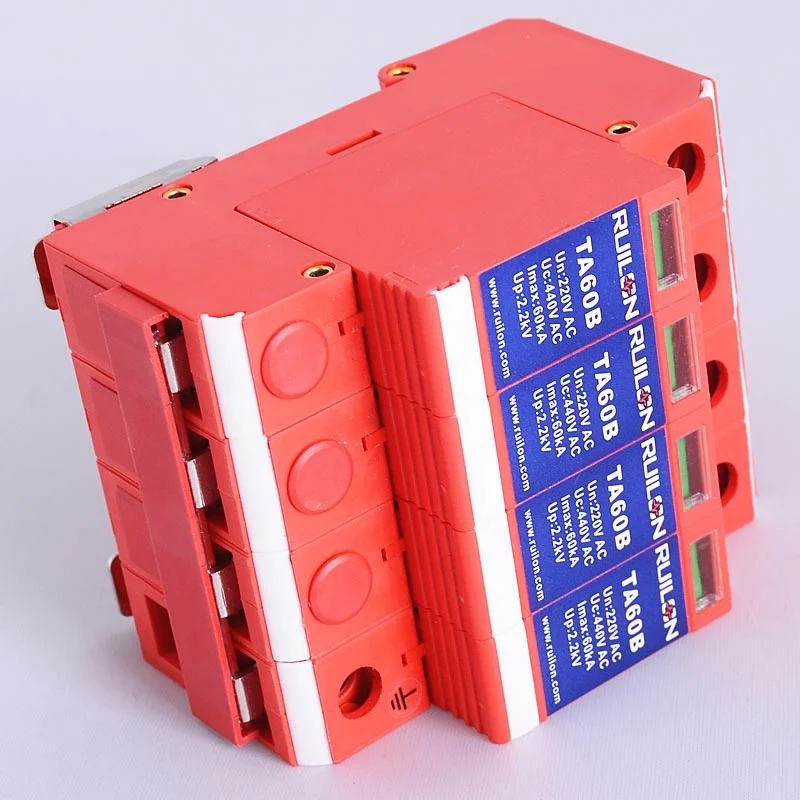

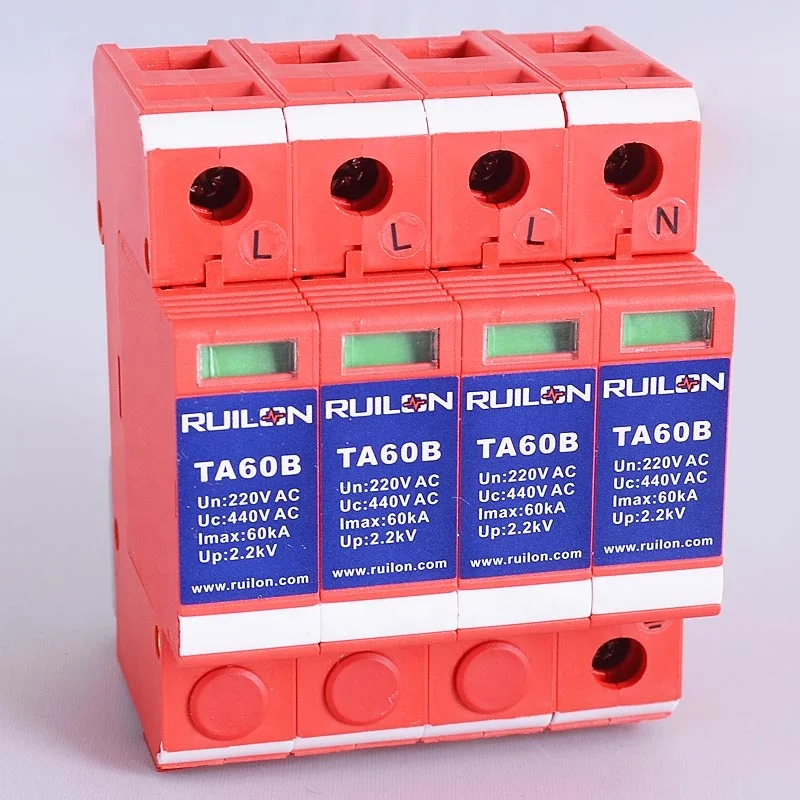

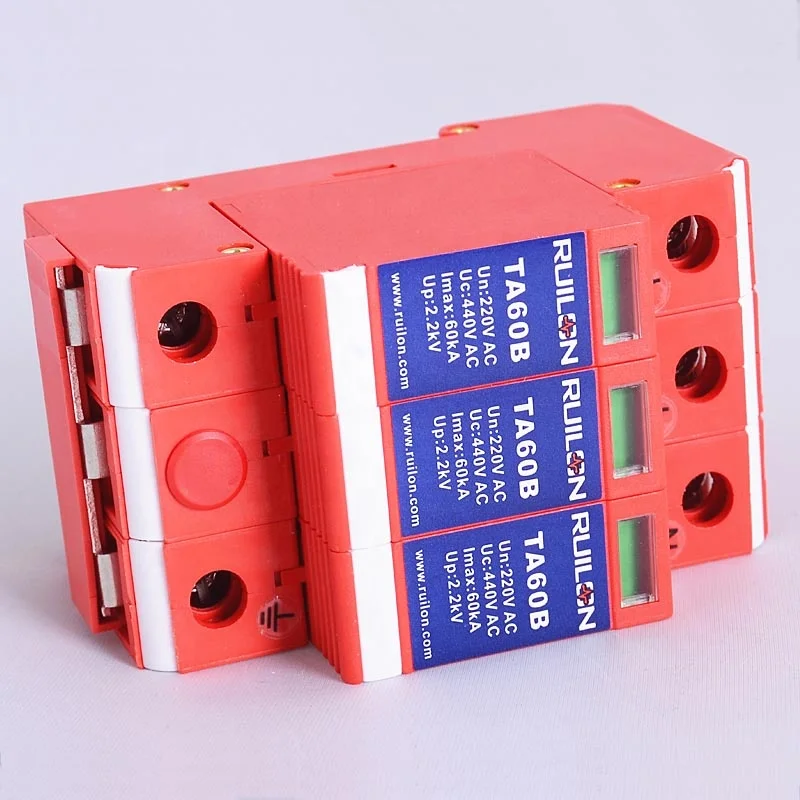

Высокоразрядное устройство защиты от перенапряжения TA60B молния защита для системы

Описание и отзывы

Трекер стоимости

Характеристики

High Discharge Capacity Surge Protective Device





Description:
This product is designed to ptotect low voltage device from  surge damages, mainly used in power supply system such as power distribution room, distribution cabinet and other
important power supply system, widely used to protect mobile communication station, telecommunication centre, airport, finance, and so on.



Feature:

Rate voltage(Un)                                                     220V
Max.continuous voltage                                          275~440V
Norminal discharge current(8/20)                           30kA
Max. discharge current(8/20)                                  60kA
Voltage protection level                                           1.8kV~2.2kV
Response time                                                         25ns
Max. Backup fuse                                                    125A gl/gG
Operating temperature range (Parallel wiring)         -40℃~+80℃
Operating temperature range (through wiring)        -40℃~+60℃
Test standards                                                         GB18802,1-2011;IEC61643-1:2005
Outer casing protection protection grade                IP20
Enclosure material                                                  Thermoplastic
Mounting on                                                            35mm DIN rail
Warranty                                                                 1year





Functions:
Standard signal chip struture, high discharge capacitance pulggable
Consist of varistor and thermal disconnection device
Quick response
Thermal disconnection device, provide more reliable protection
Multifunction connection for conductor and busbars
Window will display red when fault occurs









Application & Advantage of Surge protector/overvoltage protector/ Power surge protector:



1.Usually installed at: power supply equipment, DC power distribution screen and various DC power equipment, loor distribution boxes, distribution cabinets, outdoor distribution rooms in public places...

2.Dust-proof/anti-corrosion/flame-retardant, complies with IEC/GB standards.



3.Adopt temperature control circuit breaking technology, built-in overcurrent protection circuit.

Large flow rate, small leakage, low residual energy, fast response.





FAQ:



Promises:

The manufacturer promises that during the warranty period, if our products have any defects, we will apply for a free replacement for you. We are sincere to every customer and our service is very good. If you have any questions, you can call our customer service immediately. Until you are satisfied with our sevice.









Contact us:

Ruilongyuan Electronics Co., Ltd. We are a manufacturer of electronic components in China, the brand is RUILON, the ex-factory price, and there is no middleman. New original, Price and quality are guaranteed. if you are interest, please contact us at any moment!



Main Products:
Transient Voltage Suppressors(TVS)
Thyristor Surge Suppressors(TSS)
Protection Device TVS/ESD Arrays
Glass Gas Discharge Tubes (GGD)
Positive Thermal Coefficent (PTC)
Metal Oxide Varistors (MOV)
Surge Protective Device (SPD)
