Монтажная конструкция солнечных панелей кронштейн заземляющий
- Категория: Other Solar Energy Related Products >>>
- Поставщик: Tianjin,TEDA,YADA,Steel,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 4.12 $* | 4.31 $* |
| Jul-20-2025 | 3.76 $* | 3.24 $* |
| Jun-20-2025 | 4.82 $* | 4.91 $* |
| May-20-2025 | 4.60 $* | 4.58 $* |
| Apr-20-2025 | 3.15 $* | 3.65 $* |
| Mar-20-2025 | 4.80 $* | 4.76 $* |
| Feb-20-2025 | 4.23 $* | 4.43 $* |
| Jan-20-2025 | 4.31 $* | 4.17 $* |
Характеристики

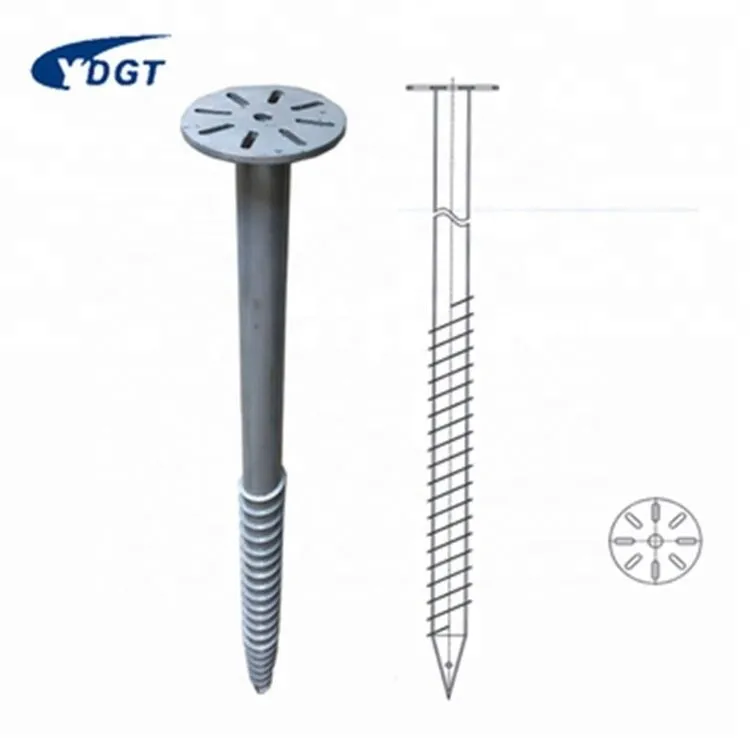

Solar Panel Mounting Structure Solar Panels Bracket Ground Screw
Product Description
Other Name:
Pole Anchor Pointed/ Adjustable pole anchor/ post anchor/ post support/ screw pole anchor/ screw ground anchor/ Ground screw anchor/ Metal Post Spike/ Drive-In Post Spike/ Earth Anchor/ pole ground plate/ fence post metal anchors/ concrete post anchor
Usual type Specification:(Or we make it according your request)
length | 650mm,800mm,1000mm,1.2m,1.6m,1.8m, others | ||||||||||
Material | Q235B | ||||||||||
Diameter/mm | 48-219,48,76,89,114,140,others customized | ||||||||||
Flange diameter/mm | 200-250 | ||||||||||
Flange thickness/mm | 8-10 | ||||||||||
Nut | M10-M16 | ||||||||||
Reinforced tablets | 40*40*4 | ||||||||||
Blade diameter/mm | 10 | ||||||||||
Blade thickness/mm | 2-6,2mm,3mm,3.5mm,4mm,others customized | ||||||||||
Hot dip galvanizing | DIN | EN | ISO | 1461-1999 | |||||||
Thickness of zinc layer | 65-100 | ||||||||||
Hot Drawing parameters | 10.5KN | 18.75kN | 21.5KN | 27KN | 32.5KN | 35.25KN | |||||
Bearing capacity Parameters | 25KN | 32.5KN | 35KN | 40KN | 45KN | 47.5KN | |||||
Horizontal torsion | 5.5KN | 7.75KN | 8.5KN | 10KN | 11.5KN | 12.25KN | |||||
Standard:
ISO DIN ANSI EN
Applications:
*Fencing Systems
*Flag Poles and Banners
*Garden and Leisure
*Sheds and Containers
*Solar Power Systems
*Street Lamp
*Traffic sign and Event Structures
Feature:
It is save time, easily Assembled,
save power, save money,
more environmental than Concrete Foundation method.

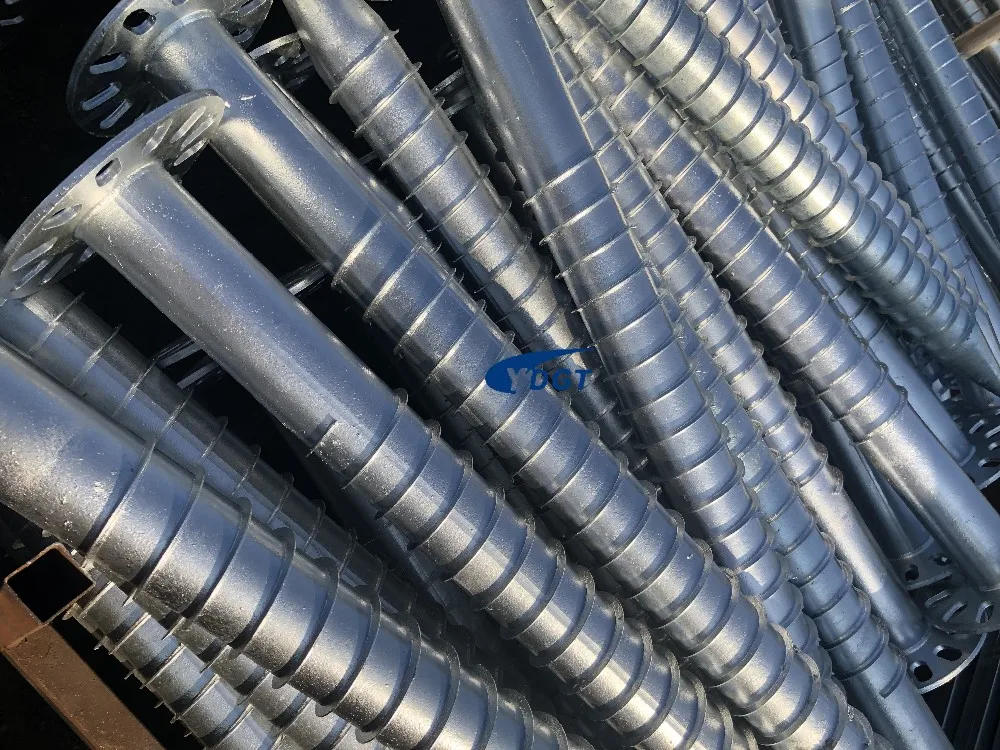

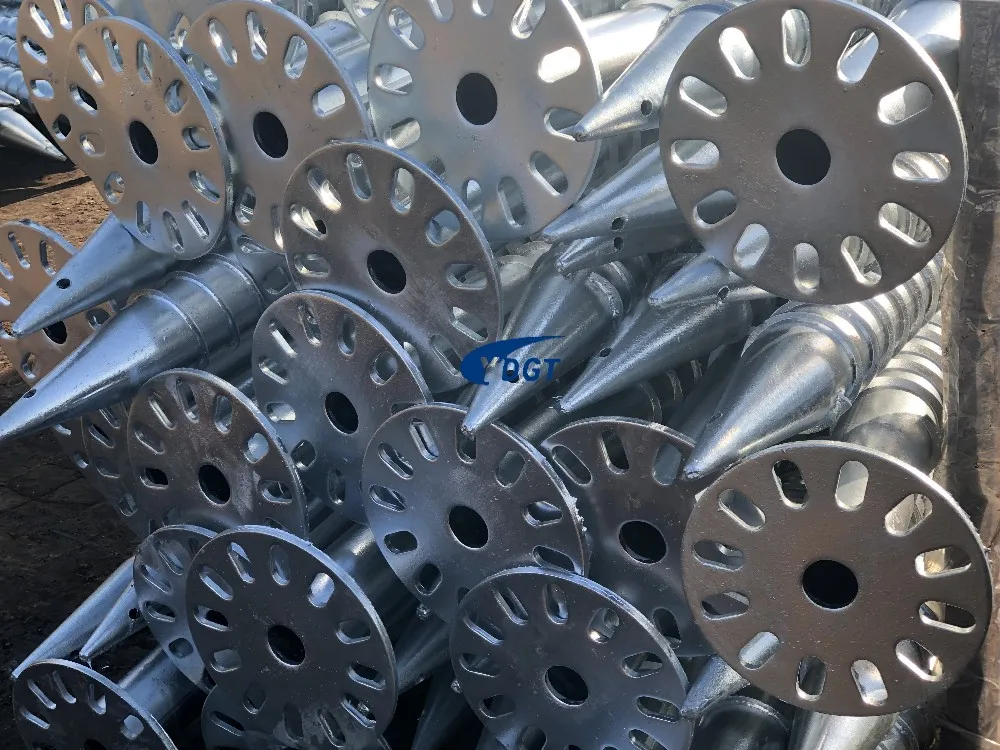

Detailed Images
our service
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please contact with us freely by E-mail or Telephone.

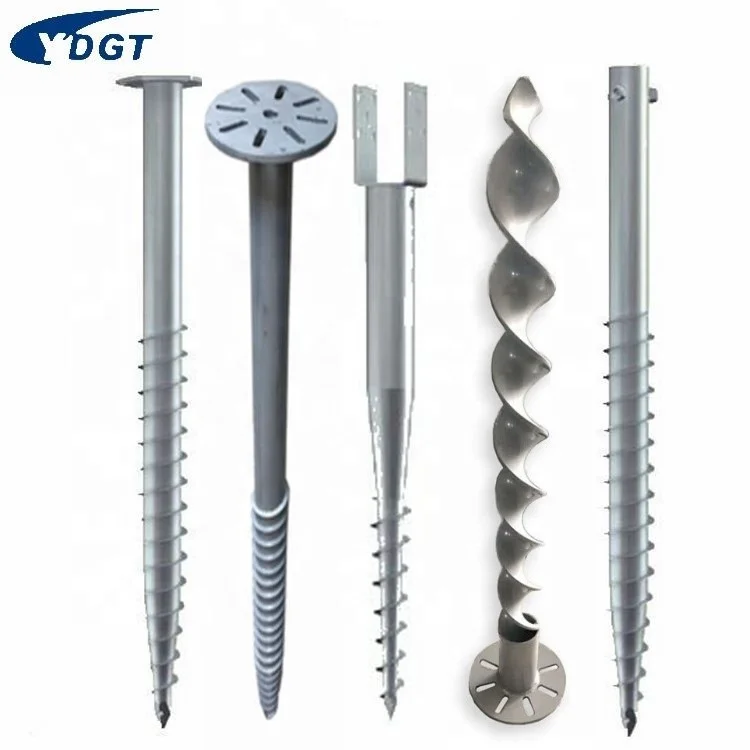

Ground screw type
Application
YADA has developed special and large foundations for all known tracking systems on the market.Compatibility is one of the major advantages of this system. Materials, dimensions, joints and connections are designed to be compatible with all static and tracking photovoltaic systems. Using special drivers, each team can insert as many as 30 foundations per hour.
Foundation depths down to 3.5 meters and the high quality of YADA ground screws allow even expansive constructions to be completed on a tight schedule. Garden, industry or high-security fences. For safety, decoration or security purposes.
Building with wood is a sustainable and future-oriented solution. So it is only logical to choose Krinner ground screws for the foundation. The terrain remains untouched, there is no soil sealing and the overall logistical effort is minimal. A big advantage, since the designs and the building process can be planned much more effectively and without loss of time.
YADA ground screws allow selective construction without major construction sites. Building the foundation is complete in just a few minutes. No earth removal and no concrete. That not only saves enormous amounts of time, but also saves residents the burden of major construction sites.

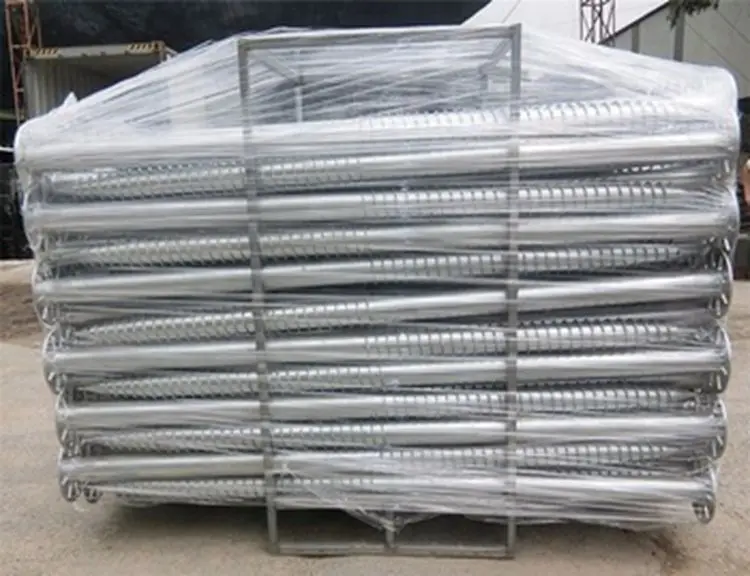

Packing & Delivery
Packing:Pallet. Usually we shipping the products in 20ft or 40ft container, or according to your demand.
Delivery:Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Our Company
Company Profile
TIANJIN TEDA YADA STEEL CO.LTD was established in1993, it has development into a large--scaled enterprise, located in the city of TIANJIN, which is the economic center and major port in north China.
We have factry in BAZHOU. Covering an area of 70000m2. Including workshop and factory building area of 30000m2. This factory have over 200 workers, 6 technicians,30 professional and technical personnel , and 30 professional managers. Moreover, we use top-of-the-line three hot dip galvanizing line and six laser cutting machine.
Our company has set up a complete quality guarantee system and passed ISO9001:2008 quality system certification and British BM TRADA certification. Our products are extensively used in petrochemical industry, foodstuff, medicine, tableware, metallurgy, mining, boiler plant, coal, machinery, shipbuilding and other industries.
We provide high-quality products, best prices and first-class service for customers. We welcome new and old customers to contact us for future business relationships and achieving mutual success.
Company Activities | ||||||
Certifications
YDGT BM TRADA Certificate
★ Stainless steel chamber of commerce unit
Issued by Tianjin Development and Reform Commission and Tianjin Federation of Industry and Commerce
★Administrative efficiency supervis
Issued by Tianjin Supervision Bureau and Tianjin Federation of Industry and Commerce.ion posts
FAQ
Q1: What is your terms of payment?
A: 30% T/T as the upfront deposit, 70% before delivery. We will show you the photos of products and package before you pay the balance.
Q2: what is the terms of delivery?
A: EXW, FOB, CIF, CFR,
Q3: What is the terms of packing?
A: Generally, Pallet. Usually we shipping the products in 20ft or 40ft container,or according to your demand
Q4: What is your delivery time?
A: For stocks, we could transport the goods to loading port within 7 days after we received your deposit.
For production period, it usually takes about 15 days-30 days after receiving the deposit.
Q5: Could you produce according to the samples?
A : Yes, we could customer-made by your samples or technique drawings, we could build the mold and fixtures.
Q6: Could you provide the compliment samples?
A: Yes, we could provide the free samples on conditons it is available in stocks, however, the the transportation fee is borne by buyer.
Q7: How could you guarantee your products?
A: Each piece of products is manufactured by certified workshops, inspected by SORUN piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q8: How do we trust your company?
A: We specialise in steel business for20 years, headquarter locates in Tianjin province, you are welcome to investigate in any ways, by all means, you could place an order in alibaba with trade assurance which could secure your payment.
Q9: What's advantages of ground screw pile?
A: 1. Our ground screw pile is extremely environmentally friendly and economical, can be recycled.
2. Installed ground screw pile in a matter of minutes without digging and concrete.
3. Ground screw pile is more efficiency, lower cost, low labor strength anchor.
4. Operated anchorew precisely, flexible during drilling process.
5. There is no negative effects on landscape, no damaging on surrounding area by ground screw pile.
6. Ground screw pile is long lifetime. Ground Screw Pole Anchors For Asia
7. Subjected to strict quality assurance, ground screw pile approved by LGA in Germany.
8. We have many types solar panel mounting structure solar panels bracket ground screw
