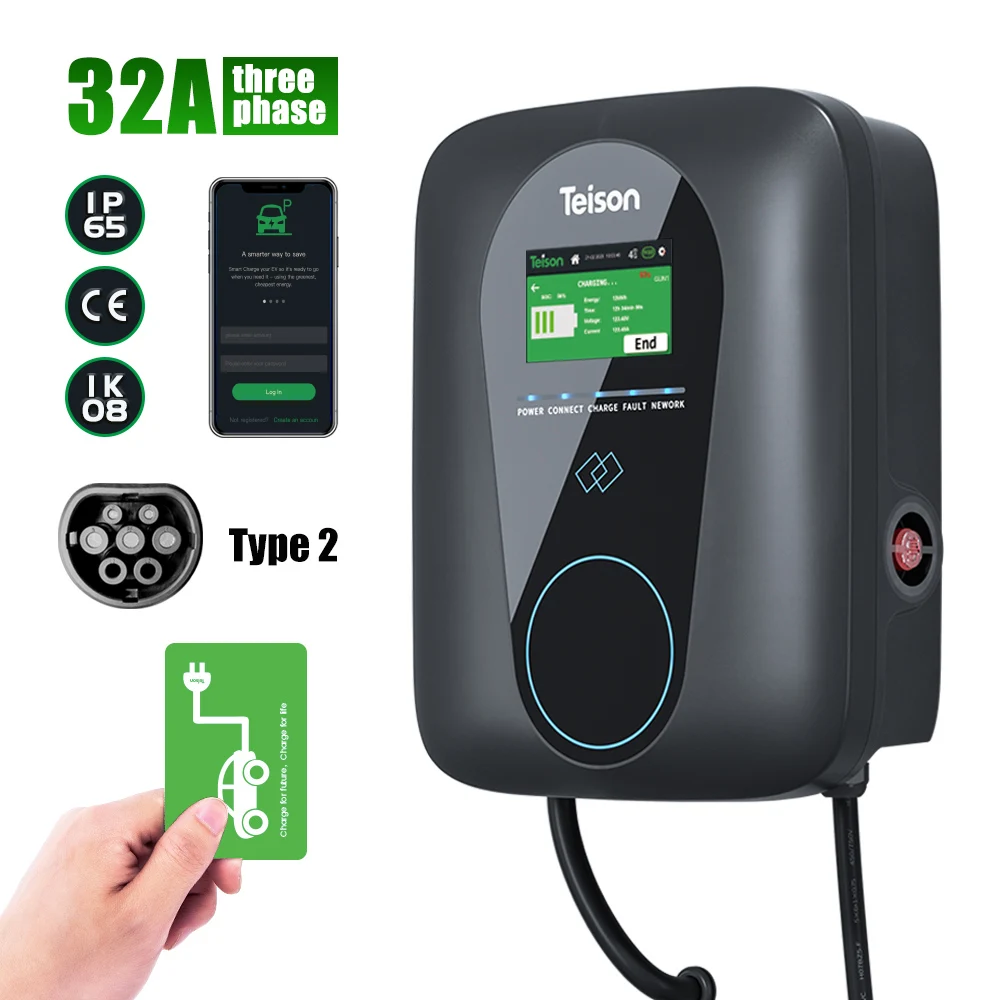

Teison 22 кВт трехфазные OCPP 1.6J смарт-зарядные станции для электромобилей RFID 4G
- Категория: ЗУ для авто >>>
- Поставщик: Teison,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.21 $* | 0.60 $* |
| Aug-18-2025 | 0.47 $* | 0.73 $* |
| Jul-18-2025 | 0.35 $* | 0.52 $* |
| Jun-18-2025 | 0.70 $* | 0.46 $* |
| May-18-2025 | 0.19 $* | 0.22 $* |
| Apr-18-2025 | 0.35 $* | 0.46 $* |
| Mar-18-2025 | 0.45 $* | 0.79 $* |
| Feb-18-2025 | 0.73 $* | 0.33 $* |
| Jan-18-2025 | 0.50 $* | 0.46 $* |
Характеристики
Product Description
Specification
Teison factory 22kw three phase OCPP 1.6J smart Ev charger stations RFID 4G and Wifi | ||||
Specification | Model | TS-EVC22-002C-001 | ||
AC Nominal Input | Phase | 3phase+neutral+PE | ||
Voltage | 380v±10% | |||
Frequency | 50HZ | |||
Voltage | 380v±10% | |||
Current | 32A | |||
Power | 22KW | |||
Housing Material | PC+PBT | |||
Front Panel | Temper glass | |||

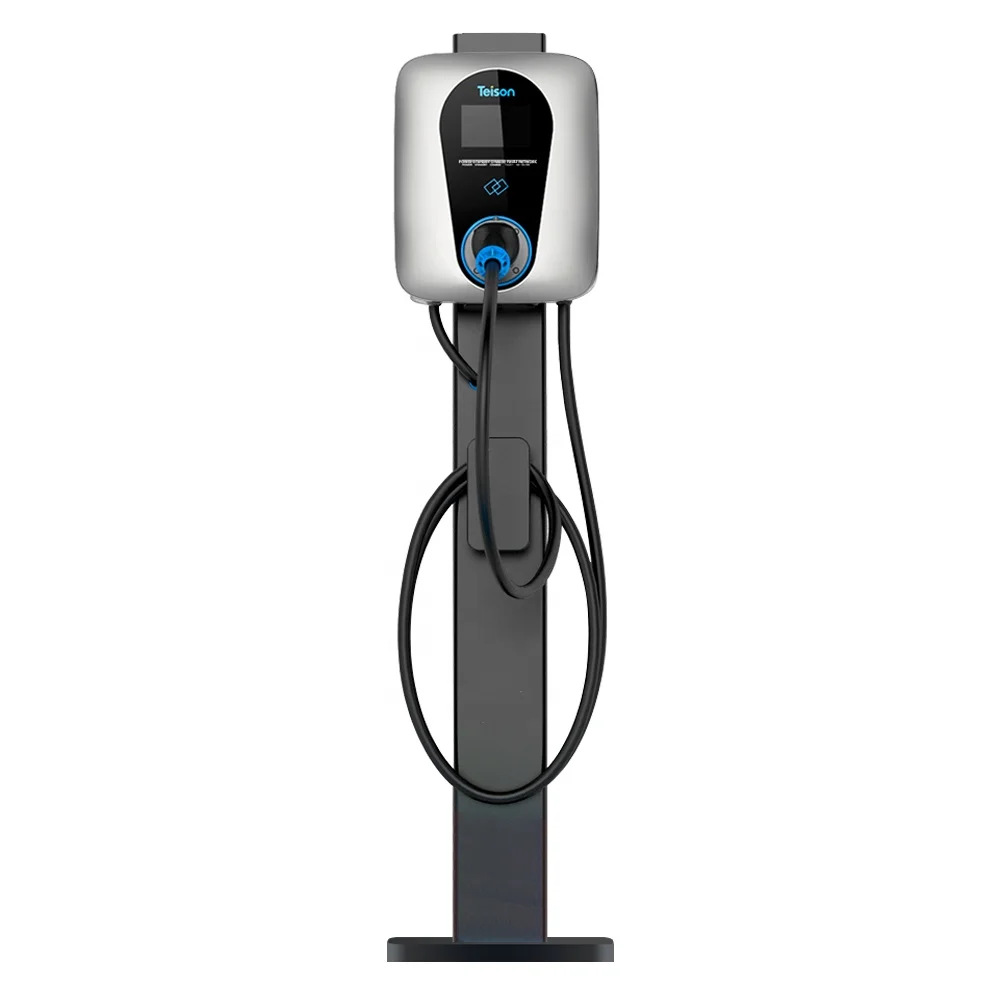

Installation Method | Wall-mount/Floor-stand | |||
Charging Outlet | 4M charging cable (Type2) | |||
LED Indicator | Green /yellow/red/blue for different status | |||
LCD Display | Display charging data | |||
Emergency Stop Button | Yes | |||
RFID Function | 2pcs cards | |||
Protection Level | IP65 for Box | |||
Temperature/Humidity | -30-50℃/5%-95% without condensation | |||
Working altitude | ＜2000M | |||
Application Site | Indoor /Outdoor | |||
Security Protection | Over current&Under voltage&over voltage&Residual current&Surge protection&short circuit&over temperature&ground fault¤t leakage protection | |||
Safety Standard | EN61851-1 | |||
MTBF | 10000 Hours | |||
Warranty | 2 years | |||

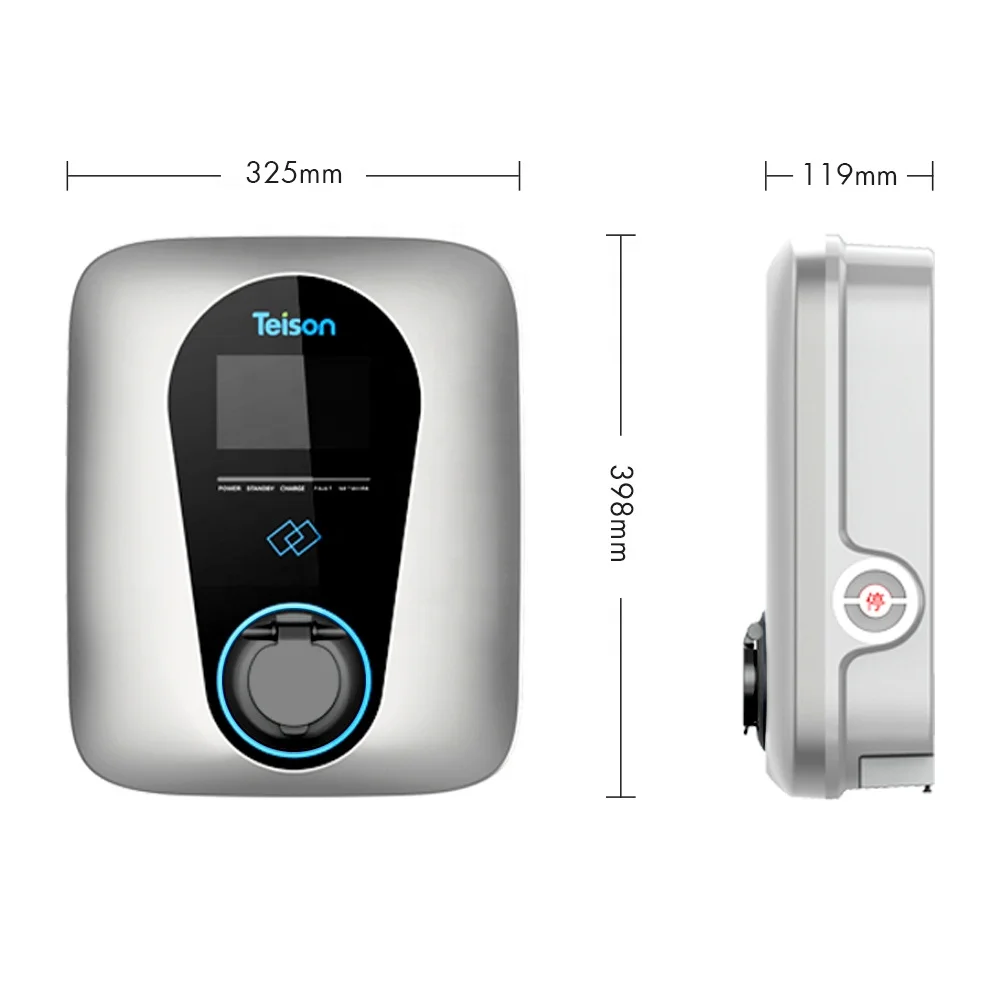

Package Information | Protection Dimension | 398*324*120mm | ||
Package size | 490*385*275mm | |||
Net Weight | 11.5kg | |||
Gross Weight | 14kg | |||
External Packing | carton | |||
Optional Parts | Network Gateway | Ethernet/WIFI/4G communication | ||
Communication Protocol | OCPP1.6(JSON) | |||
RCD | TYPE B | |||
Energy Meter | MID certified | |||
Attention to know
Teison's ev chargers are splash, water and dust resistant and have been tested under strictly controlled laboratory
conditions to achieve an IP65 rating in accordance with IEC standard 62196. However, the resistance to splashes, water and dust is not permanent and may weaken over time under normal use. Damage caused by liquids is not covered by the warranty.
To prevent damage to your charger from liquids, please avoid the following situations ：
1. Exposing the charger to pressurised water or high velocity water flow.
2. Intentionally submerging the charger in water.
3.Operating the charger beyond the recommended temperature range or in extremely humid environments
4. Dropping the charger or subjecting it to other shocks.
5. Disassemble the charger, including removing the screws.
If the charger comes into contact with liquid, turn off all power until it is completely dry.
Placing the unit in front of a fan so that cold air is blowing directly on the charging connector may help to speed up the drying process.
Do not use an external heat source to dry the charger, or insert foreign objects such as cotton swabs or paper towels into the charging port.
conditions to achieve an IP65 rating in accordance with IEC standard 62196. However, the resistance to splashes, water and dust is not permanent and may weaken over time under normal use. Damage caused by liquids is not covered by the warranty.
To prevent damage to your charger from liquids, please avoid the following situations ：
1. Exposing the charger to pressurised water or high velocity water flow.
2. Intentionally submerging the charger in water.
3.Operating the charger beyond the recommended temperature range or in extremely humid environments
4. Dropping the charger or subjecting it to other shocks.
5. Disassemble the charger, including removing the screws.
If the charger comes into contact with liquid, turn off all power until it is completely dry.
Placing the unit in front of a fan so that cold air is blowing directly on the charging connector may help to speed up the drying process.
Do not use an external heat source to dry the charger, or insert foreign objects such as cotton swabs or paper towels into the charging port.
Packing & Delivery
*small pieces via DHL/UPS/FEDEX/TNT by Air express
*large quantity via LCL/FCL(20GP&40GP*40HQ) by shipment
Company Profile
FAQ
Q1: What is your terms of payment?
Our payment terms are flexible to keep customer convenient .
Normally suggestion is less than USD5000,PayPal&Ali online& telegraphic transfer,more than USD5000 LC is ok as well.
Q2:How about your delivery ?
*small pieces ,3-5 working days
*large quantity 10-40days ,it depends on the quantity.
Q3:How about the after-sale service?
Q3:How about the after-sale service?
2 years warranty ,on the premise of proper use, we can exchange the old ones for new ones in case of quality problems ,except for man-made damage and violent use
Q4:Can you supply OEM ?
We can supply OEM and customized service ,and without any extra fee.The more details ,can communicate via email or Ali trade message online.
We can supply OEM and customized service ,and without any extra fee.The more details ,can communicate via email or Ali trade message online.
