Характеристики

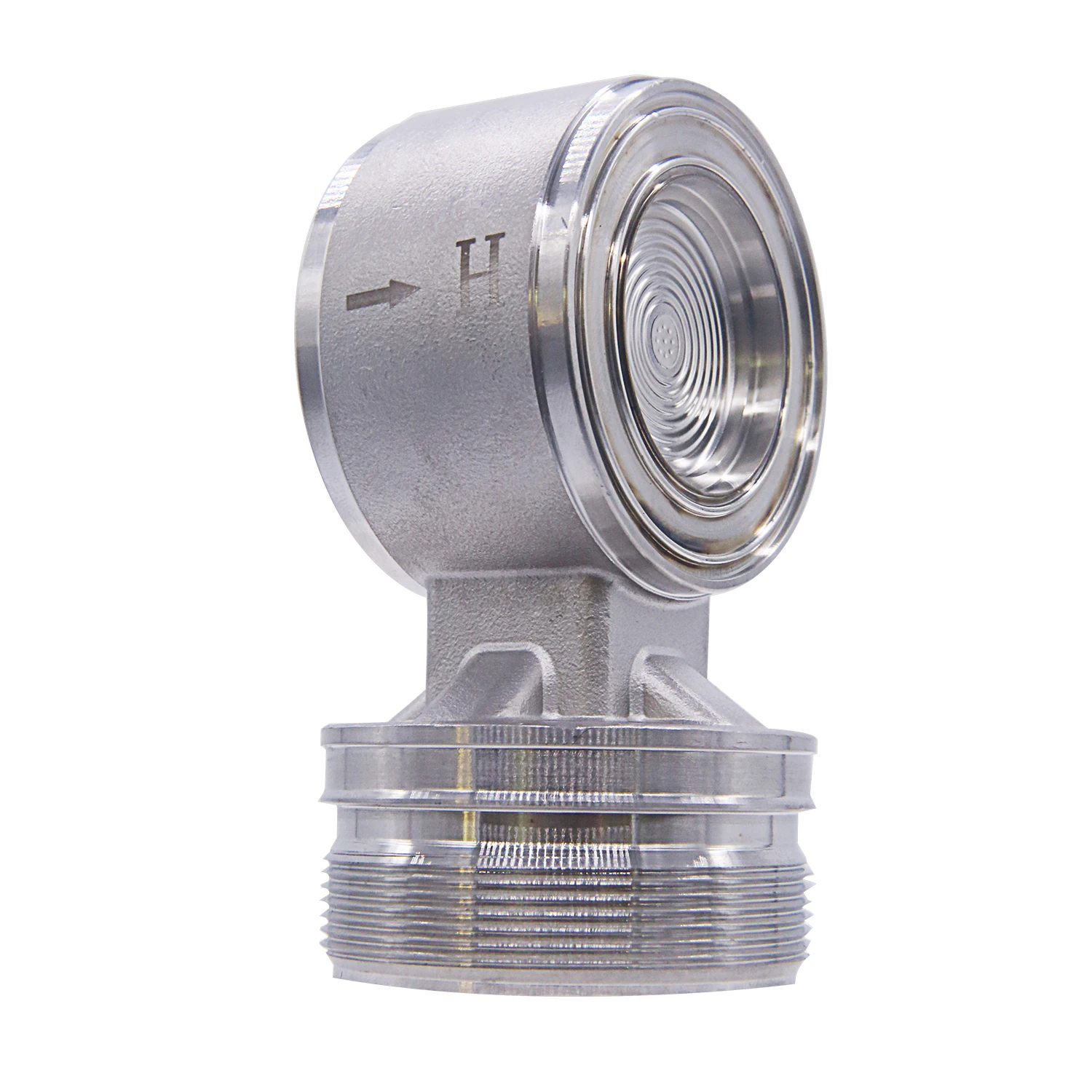

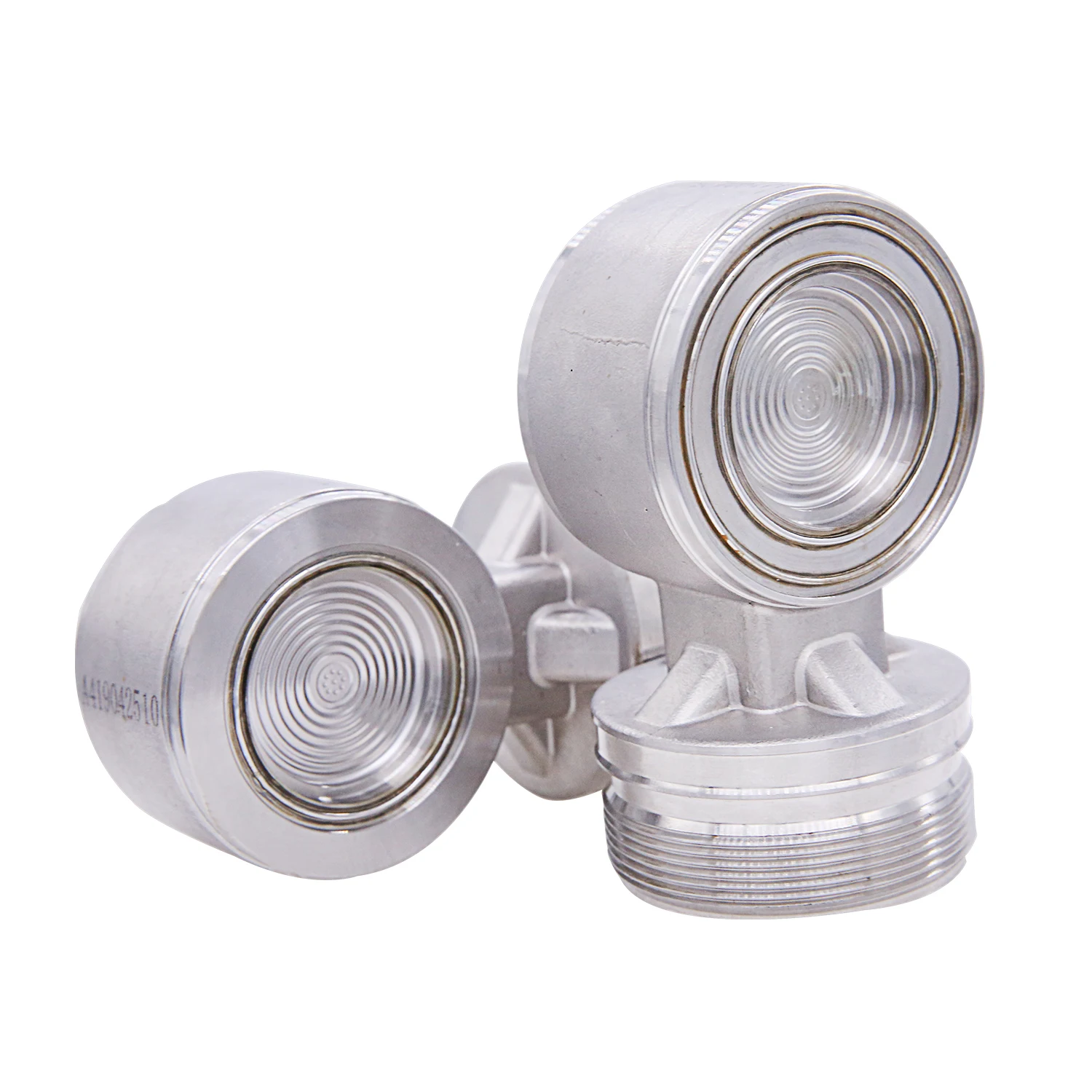

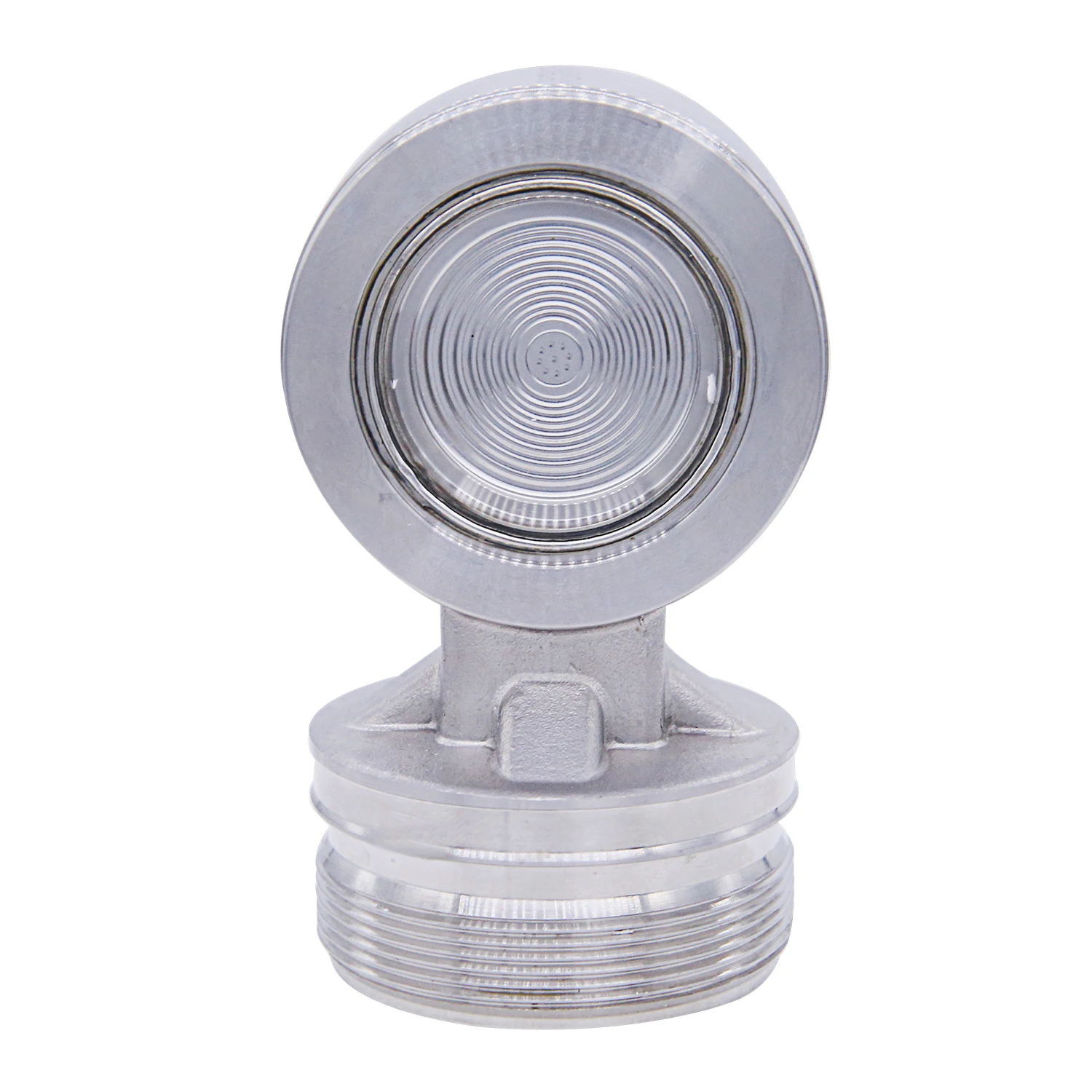

Capacitive Pressure Transducer Differential Pressure Sensor For Transmitter 3351/1151

8888

Product description

The medium pressure is transferred to the test diaphragm in the middle of δ room by the barrier diaphragm

and Silicon oil, as the test diaphragm is tight flexible element, it produce displacement following the pressure

differential.

The displacement of the diaphragm and pressure differential are in direction proportion, the max displacement

is 0.1mm, It is tested by the by the capacitiveplat on the both side, Then the differential capacitor between the

test diaphragm and capacitive board switched to standard output by the Circuit Current.

Differential/ Pressure range:

Product name	Code	Range
capacitive pressure sensor	4E	0-6.2-37.4kPa
	5E	0-31-186.8kPa
	6E	0-117-690kPa
	7E	0-345-2068kPa
	8E	0-1170-6890kPa
	3E	0-1.3-7.5kPa
	9E	0-3480-20680kPa
	0E	0-6890-41370kPa
	2E	0-0.125-1.5kPa

Performance

Item	Parameters
Accuracy	±0 . 1 %
Stability	±0 . 2% ( 12 mo n th s)
Temp range	-40℃ ~+ 14 0 ℃
Temp affect	ze ro erro r: ±0 . 25 %/ 55 ℃
Temp affect	ra ng e erro r: ±0. 5 %/ 55 ℃
Static pressure	DP 13.8MPa HP 25MPa DR 6.9MPa
Overpressure limit	AP GP 13.8MPa DR DP HP
Diaphragm material	316Lss Hastelloy C Tant alum

Model	Stability	Temp limit	Pressure limit	Range
AT3051DP	±0 . 1 %UR L	-40~14 0 ℃	13.79MPa	1.3~6890KPa
AT3051GP	±0 . 1 %UR L	-40~14 0 ℃	13.79MPa	1.3~41370KPa
AT3051DR	±0 . 2 %UR L	-40~14 0 ℃	6.9MPa	0.125~1.5KPa
AT3051HP	±0 . 1 %UR L	-40~14 0 ℃	31.02MPa	6.2~2068KPa
AT3051AP	±0 . 1 %UR L	-40~14 0 ℃	13.79MPa	6.2~6890KPa
AT3051LT	±0 . 2 %UR L	-40~14 0 ℃		635~70380mmH2O
AT3051DP	±0 . 1 %UR L	-40~14 9 ℃	13.79MPa	635~6895KPa
AT3051GP	±0 . 1 %UR L	-40~14 9 ℃	51.71MPa	635~6895KPa
AT1151GP	±0 . 1 %UR L	-40~14 0 ℃	51.71MPa	1.3~41370KPa
AT1151DR	±0 . 2 %UR L	-40~14 0 ℃	6.9MPa	0.125~1.5KPa
AT1151HP	±0 . 1 %UR L	-40~14 0 ℃	31.02MPa	6.2~2068KPa
AT1151AP	±0 . 1 %UR L	-40~14 0 ℃	13.79MPa	6.2~6890KPa
AT1151LT	±0 . 1 %UR L	-40~14 0 ℃		635~70380mmH2O
AT1151DP	±0 . 1 %UR L	-40~14 0 ℃	13.79MPa	6.2~6890KPa
AT1151GP	±0 . 1 %UR L	-40~14 0 ℃	13.79MPa	6.2~6890KPa
AT2088	±0 . 5 %UR L	-40~12 0 ℃		-0.1~40KPa
SP	±0 . 5 %UR L	-20~80 ℃		-0.1~40MPa
SH-A	±0 . 5 %UR L	-20~80 ℃		0~200m

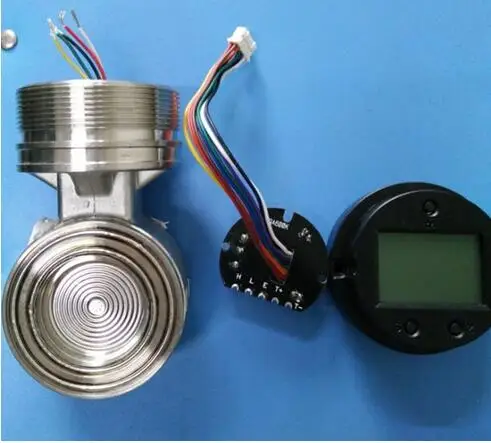

5-wire high accuracy differential pressure sensors

3-wire high accuracy differential pressure sensors

paste-pic-dp_uuid_crnoq

.jpg

paste-pic-dp_uuid_bjg8v

pressure sensor 5 pressure sensor cell5

paste-pic-dp_uuid_rb8ek

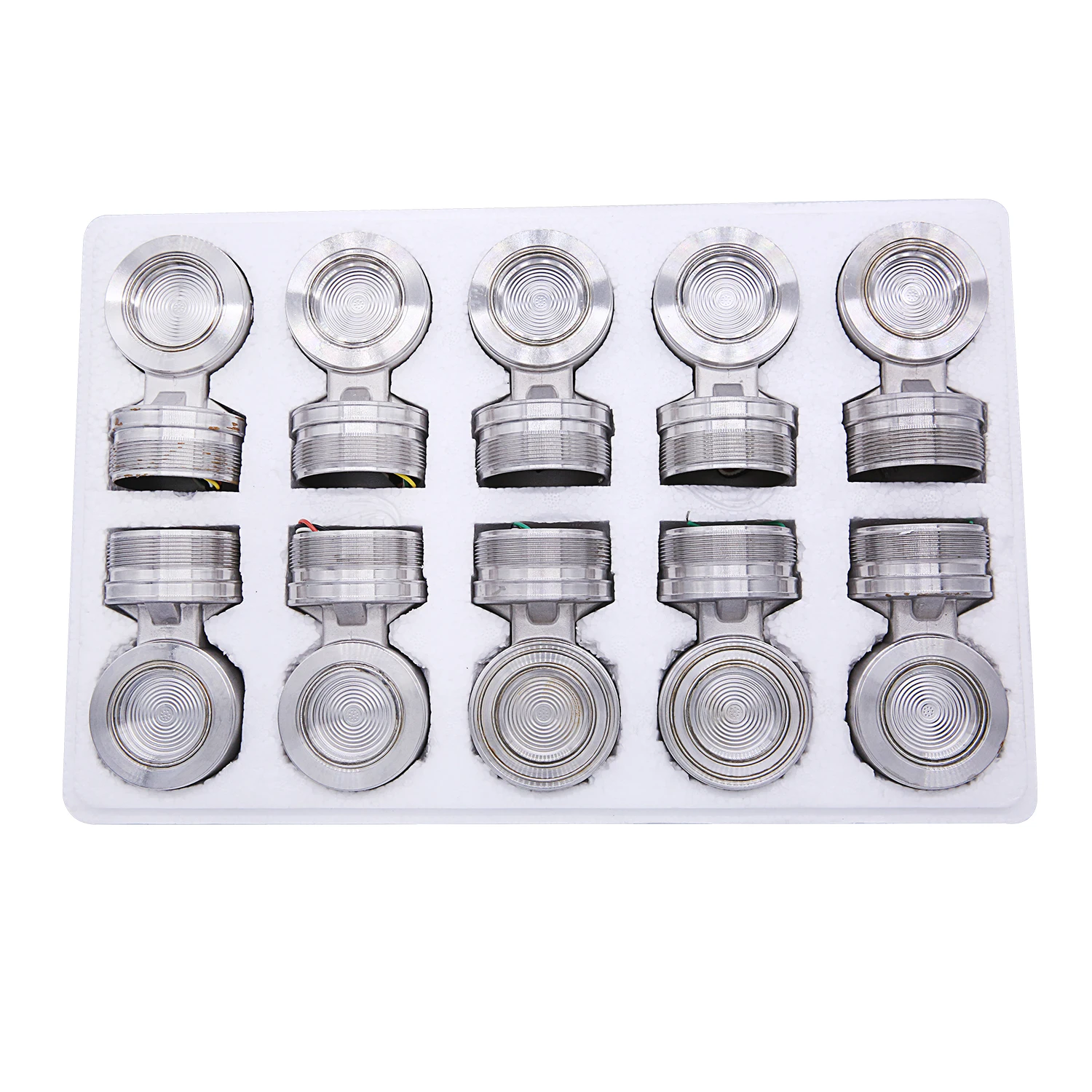

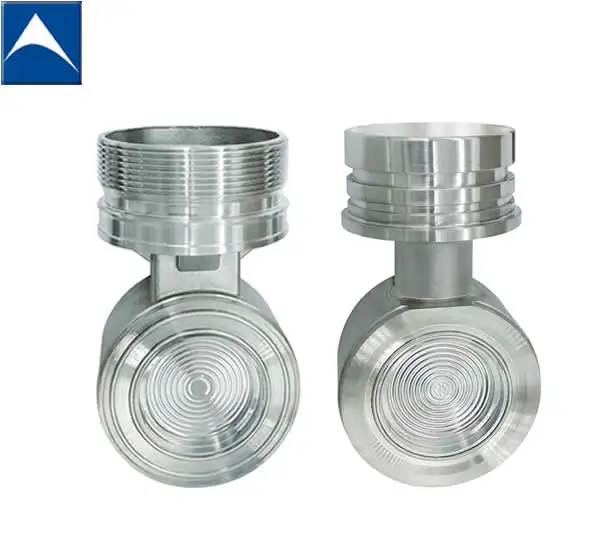

Metal Capacitance Differential Pressure dp Sensors

photobank

24 hours online

Capacitive Pressure Transducer Differential Pressure Sensor For Transmitter 3351/1151
