2020 высокопроизводительная машина для брикетирования коровьего навоза
- Категория: Biomass Briquette Machines >>>
- Поставщик: Gongyi,Xiaoyi,Hongji,Machinery,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 3927.72 $* | 4123.1 $* |
| Aug-15-2025 | 3894.67 $* | 4089.16 $* |
| Jul-15-2025 | 3267.98 $* | 3430.11 $* |
| Jun-15-2025 | 3828.49 $* | 4019.17 $* |
| May-15-2025 | 3333.30 $* | 3500.74 $* |
| Apr-15-2025 | 3762.56 $* | 3950.16 $* |
| Mar-15-2025 | 3729.76 $* | 3915.29 $* |
| Feb-15-2025 | 3696.63 $* | 3881.89 $* |
| Jan-15-2025 | 3663.60 $* | 3846.7 $* |
Характеристики
Product Description

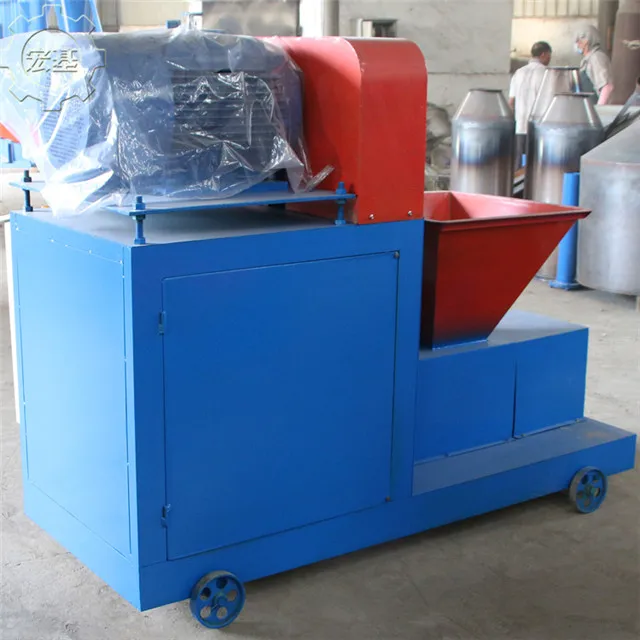

Our sawdust briquette machine uses a large screw to grind, compress and extrude the biomass into briquettes. The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature. In the briquetting process lignin serves as the glue and combines the particles of wood together, thus binding, compressing the biomass to form into various model of high density briquette, such as hexagonal, quadrangular, square, etc. During this process, non-binder needs to be used.
Raw matetrial suitable for press biomass briquette
1)Any type of Agro-Forestry waste can be used. But the Moisture Content Should be Less than 12%, grain size is below 5×5mm.
2) For example: Sawdust ,Coffee Husk ,Paddy Straw ,Sunflower Stalk, Cotton Stalks ,Tobacco waste ,Mustard Stalk, Jute waste ,Bamboo Dust ,Tea waste ,Wheat Straw ,Palm husk ,Soybeans husk ,Rice Husks Forestry wastes ,Wood Chips and many other Agro wastes.
Moisture: 8-12%,
Size: 3mm ~ 5mm
You could also used sawdust briquette machine and charcoal making machine to produce charcoal briquette.
The production line is flowing : crusher---dryer---sawdust briquette machine---carbonizaiton furnace

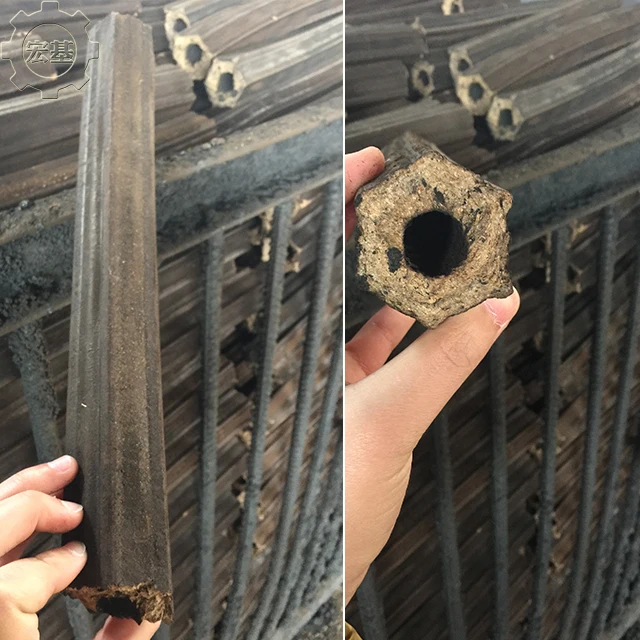

Biomass briquette/Sawdust briquette
End product: Charcoal briquette
SPECIFICATIONS FOR SAWDUST BRIQUETTE MACHINE | ||||||
Model | ZBJ-I | ZBJ-II | ZBJ-III | |||
Output( kg/h) | 180-210kg | 250-300kg | 300-350kg | |||
Motor Power (kw) | 15+6kw | 22kw | 22+6kw | |||
Net/Gross Weight(kg) | 500/585kg | 650/700kg | 1080/1180kg | |||
Overall dimension(m) | 1.8X0.76X1.29 | 1.8X0.76X1.29 | 2.02X0.87X1.5 | |||
Diameter of finished products (mm) | 30,40, 50mm | 30,40,50mm | 50,60,70,80,90mm | |||
Main Features
1. No binder or noxious chemical need to use.
2. The humidity of the raw materials is controlled in 8-12%.
3. Using the advanced Hot air drying system with the perfect performance.
4.After the processing of high temperature, purification, smoke removing, the carbonizing equipment
transforms the semi-finished bio-fuel briquette intoa smoke-free, tasteless, non-toxic cleaning carbon
Certifications
Machine accessories

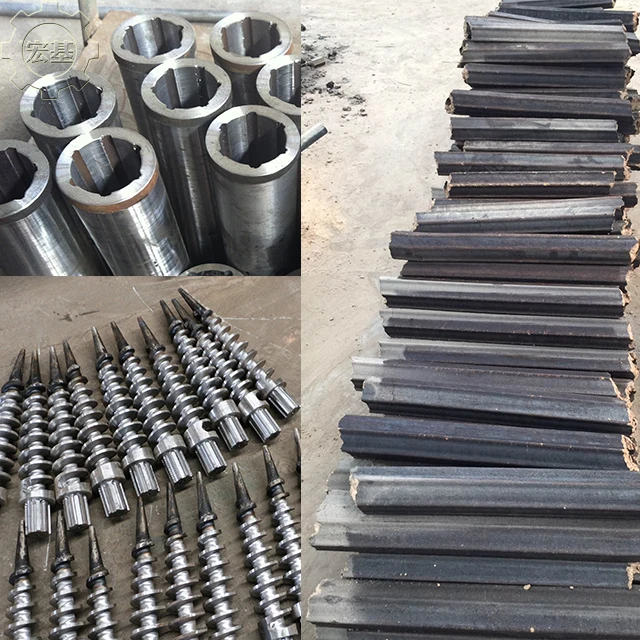

Machine Parts-Propeller
Name: propeller of sawdust briquette machine
Brand:HONG JI
Domestic famous propeller, strong driving force, low fuel consumption, high economic benefits .
Machine Parts-Wear-resistant alloy welding rod
Name: Wear-resistant alloy welding rod of sawdust briquette machine
Brand: HONGJI
Domestic famous Wear-resistant alloy welding rod, strong driving force, low fuel consumption, high economic benefits
Machine Parts Wear-proof sleeve/inner sleeve
Name: Wear-proof sleeve of sawdust briquette machine
Brand: HONG JI
Domestic famous Wear proof sleeve, strong driving force, low fuel consumption, high economic benefits
Machine Parts-Forming cylinder
Name:forming cylinder of sawdust briquette machine
Brand: HONG JI
Domestic famous forming cylinder, strong driving force, low fuel consumption, high economic benefits
Machine Parts-Heating ring
Name:Heating ring of sawdust briquette machine
Brand: HONG JI
Domestic famous heating ring, strong driving force, low fuel consumption, high economic benefits
Machine Parts-Ceramic Heating ring
Name:Ceramic Heating ring of sawdust briquette machine
Brand: HONG JI
Domestic famous heating ring, strong driving force, low fuel consumption, high economic benefits
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
*Explain the machine
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Testing machine before delivery
*Engineers available to service machinery overseas.
Packing & Delivery
ZBJ-I ZBJ-II Packaging | ||
Size | 180(L) * 76(W) * 129 (D) | |
Weight | 585-700KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H).or put in one container with other machine. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
ZBJ-III Packaging | ||
Size | 202 (L) * 87 (W) * 150 (D) | |
Weight | 1180KG | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
