Высокая эффективность молока UHT стрилизатор

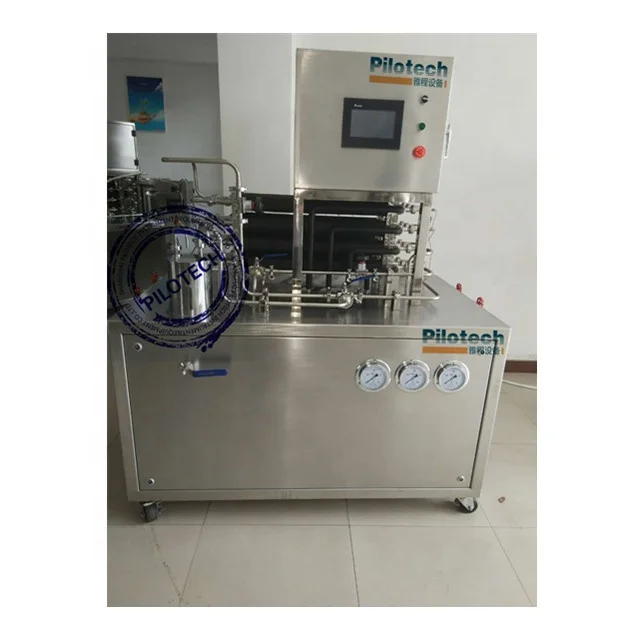

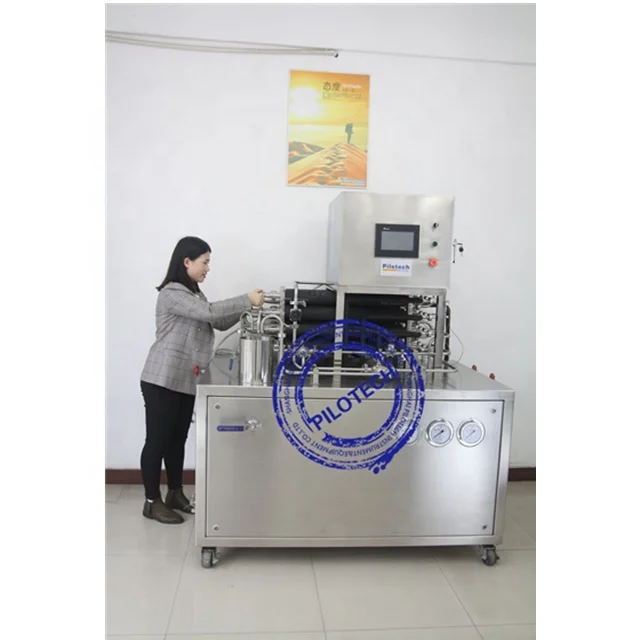

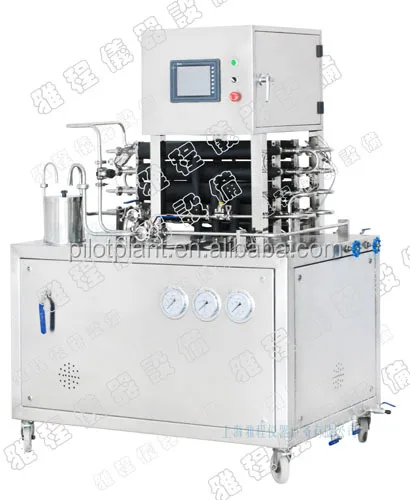

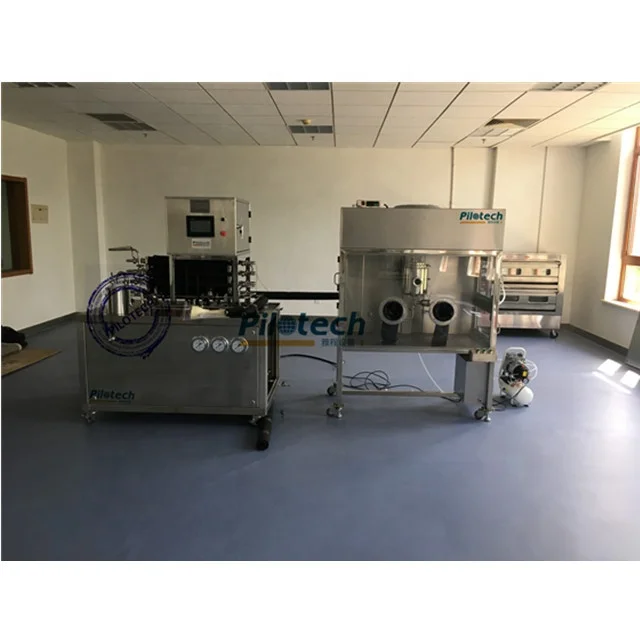

YC-02 mini uht sterilizer is manufactured for simulating industrial manufacture and research in laboratory, completely duplication the industrial production, which is adaptive to wide ranges of viscidity, and be same with preparation of fibers and granules, precisely mimic prepare, homogenizing, aging, pasteurism, fast sterilization under ultra-temperature and aseptic filling. The whole system is integrated with the CIP and SIP online, which can be configured optionally a homogeniser and a aseptic filling cabinet on your needs.

Such as beverage,fruit juice, fresh milk, yogurt,tea, sauce dressings, soups and so on.

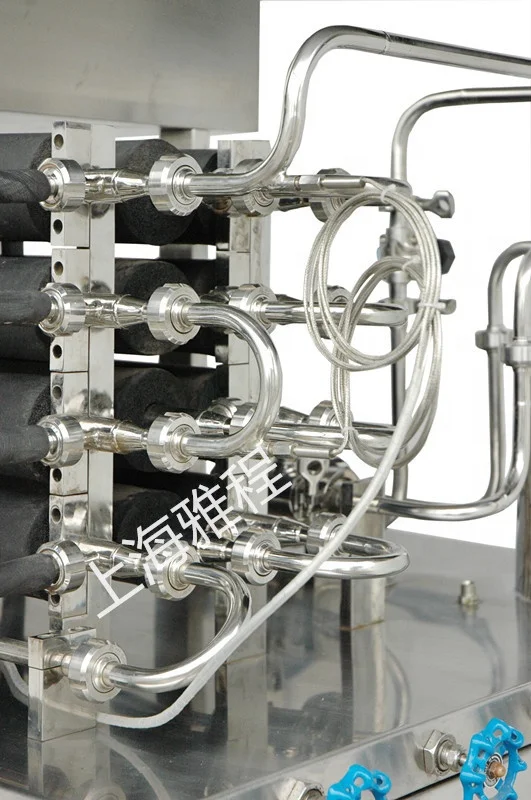

(1)Tube preheating & sterilizing: to sterilize the tube by superheated water and last for some time, then chill out to normal temperature and stand by.

(2) Material sterilizing: to ensure the sterilizing temp. & time according to experiment requirement(In line homogeniser can be added either upstream or downstream).

(3) Aseptic filling: hot filling or normal temp. filling based on laboratory needs.

(4) CIP cleanup .
Material→ hopper→screw pump→preheating tube→(homo.) →sterilizing tube(137~150℃)→water-cooling→(homo.)→(→ice-cold)→aseptic filling
