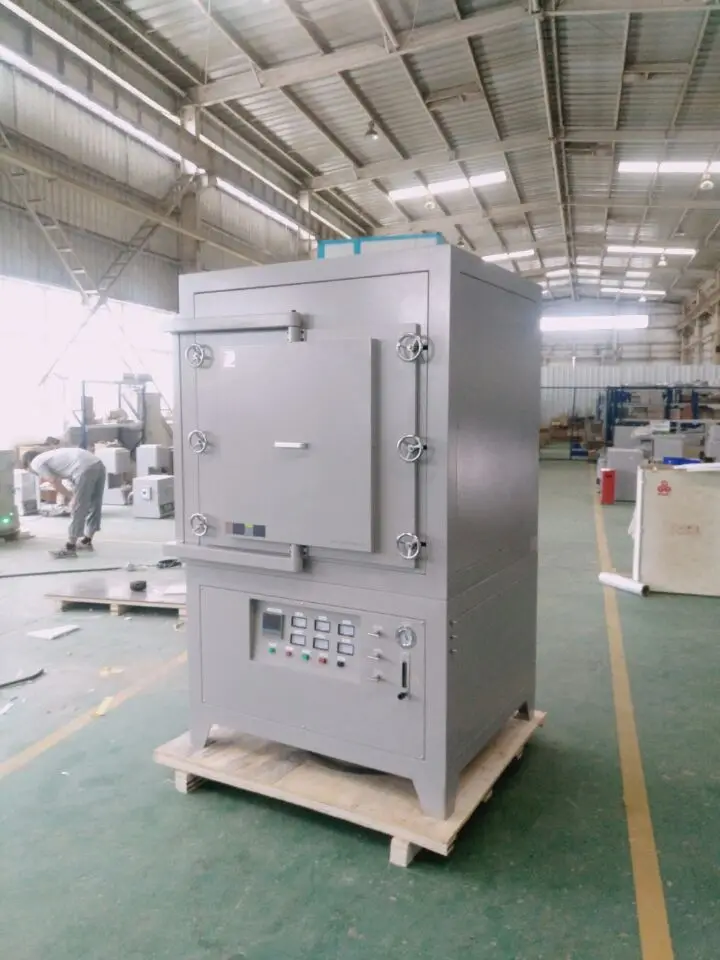

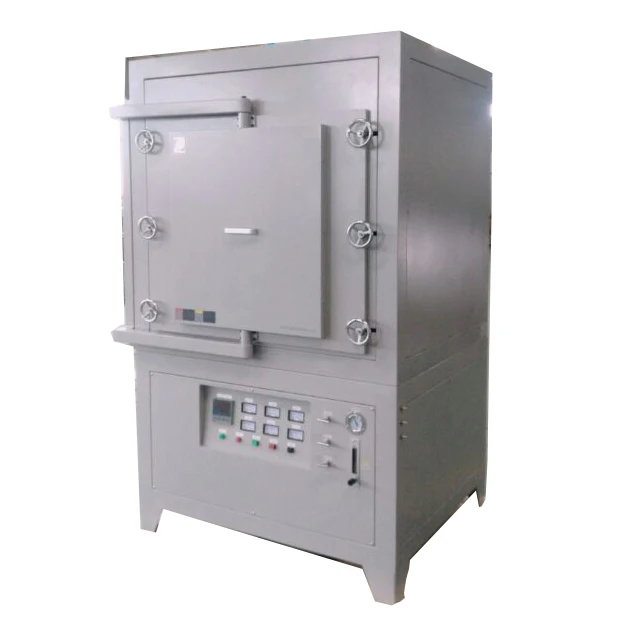

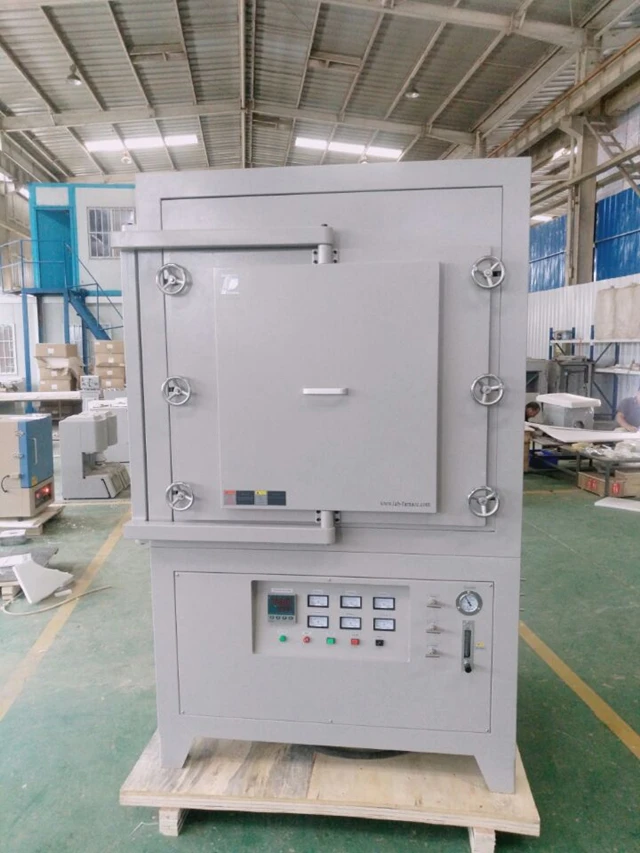

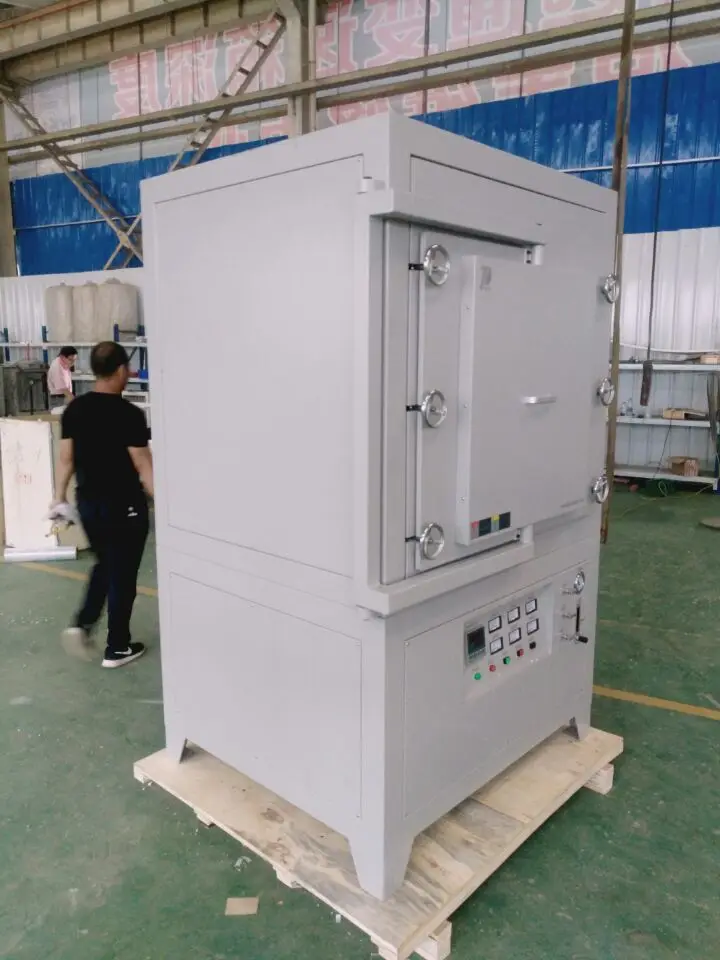

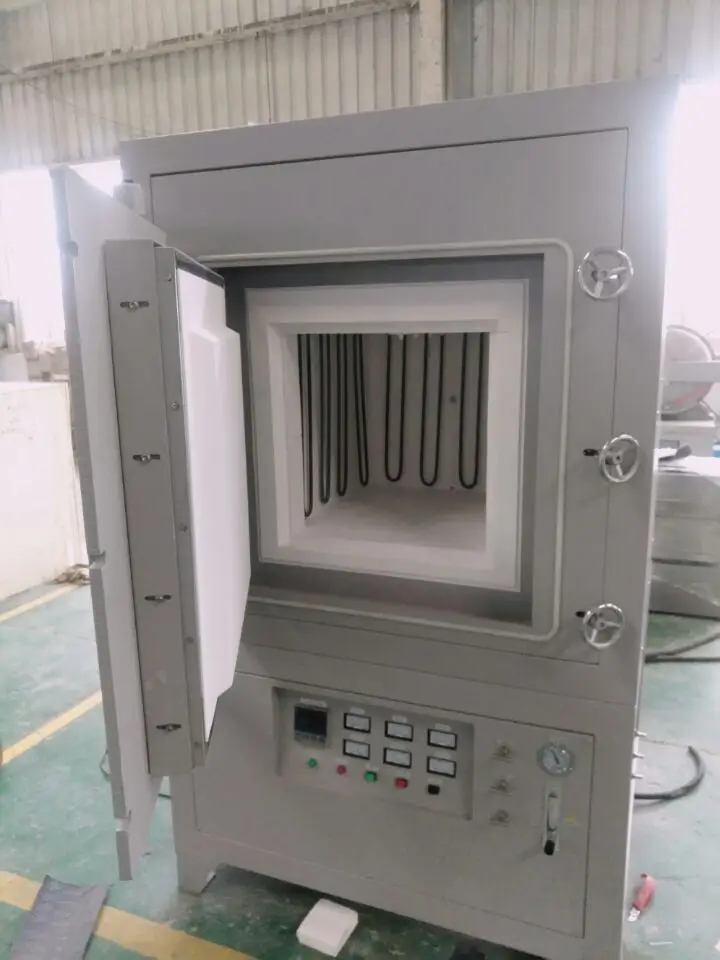

PT-A series atmosphere furnace adopts imported heat-preservation material,high purity alumina polycrystalline fiber.Temperature is controlled by double platinum rhodium thermocouple and Al intelligent temperature controller 708P.The furnaces can protect materials from oxidation and decarburization with flowing Nitrogen,Argon and other inert gas,balanced temperature field,fast temperature rising and cooling,energy-efficient,delicate appearance,practical.It is widely used for sintering,reducing with inert atmosphere in labs of colleges and universities,research institutes and industrial and mining enterprise.
Model
PT-A1200
PT-A1400
PT-A1700
Max. temperature
1200℃
1400℃
1700℃
Work temperature
1100℃
1300℃
1600℃
Heating element
Resistance wire with Mo
SiC
MoSi2
Thermal couple
K type
S type
B type
Chamber material
Ceramic fiber
Heating rate
0-20℃/min
±1℃
Temp.uniformity
±5℃
Power supply
110-415V,50/60Hz
Standand stocks
(mm)
Chamber size
(L)
Effective volume
(mm)
Chamber size
(L)
Effective volume
150x150x150
3.4
300x300x400
36
150x150x200
4.5
400x400x400
64
200x200x200
8
500x500x500
125
200x200x300
12
600x600x600
216
300x300x300
27
800x800x800
512
Customer design sizes and volume is accepted
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Our Services
1.We have a professional foreign trade staff to provide you with the explanation. 2.24 hours to provide you with services, ready to communicate with you 3.We have a service center, mainly responsible for after-sales service work, technical advice and so on. To ensure that engineers at all times to provide a variety of technical services. 4.Vulnerable accessories: the company spare a variety of commonly used parts of the spot, to ensure that the shortest possible time to solve the problem

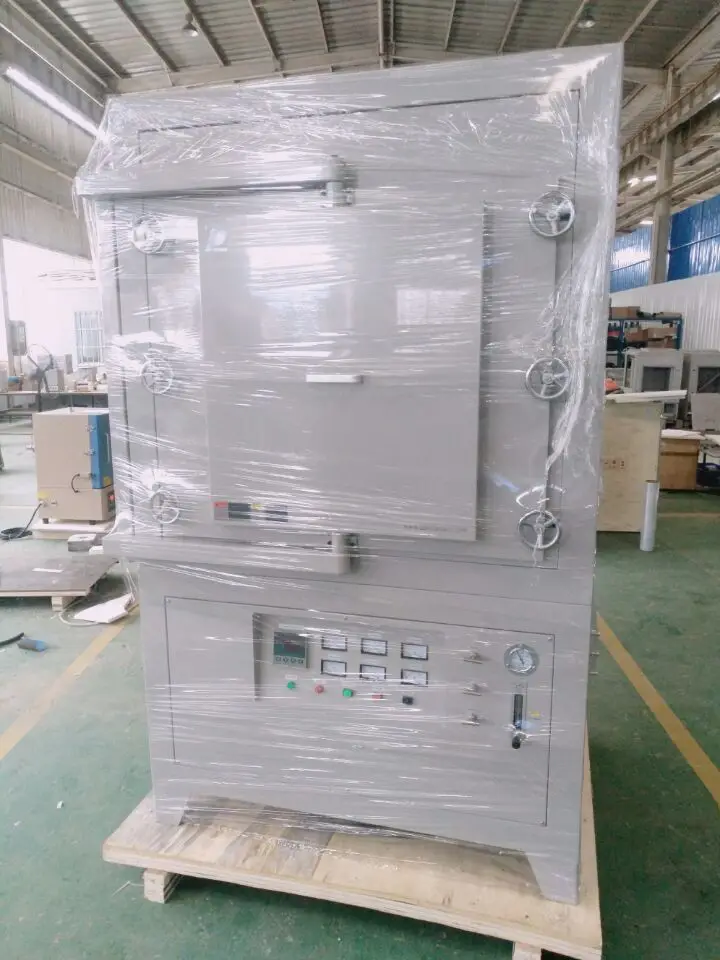

Packaging & Shipping
Zhengzhou Protech Technology Co., Ltd. is a professional engaged in electric furnace product development, production and sales of high-tech enterprises. Our products have fast heating, energy saving, high temperature control, high insulation performance, programmable automatic heating and cooling. The main products are box-type muffle furnace tube resistance furnace, vacuum furnace, atmosphere furnace, crucible furnace, CVD system, dental furnace, lifting furnace, track furnace, trolley furnace, annealing furnace, lifting furnace, microwave sintering furnace Porcelain furnace and other standard and non-standard experimental electric furnace and industrial furnace, and provide all kinds of electric furnace accessories, heating elements and refractories
FAQ
v Are you a manufacturer or just a trading company?
Our factory is in Zhengzhou city of China, we welcome you visit us anytime, and we are not only manufacturing, but also developing newest furnace with our own patent!
v How is the your furnace quality? We need a low price but high quality furnace
We do not label our furnace is the top quality in China, but the tremendous well feedback from our clients is a proving; our furnace price may not the lowest, but the high cost performance and service is our company key strength!
v What control systems do you offer?
Our thermal control system includes EUROTHERMAL,SHINKO and YUDIAN, other brands are also available according to customer requirement.
Our operating control can be digital and touch screen as while
v 4. We need one reliable and technical know-how supplier, efficient technical support is very important, are you the one?
The founder of our company is one furnace engineer, and our technical team is all much experienced engineers, we are probing both the furnace producing and applications, we are open to share our experiences on the furnace making and thermal applications with our clients.
