Ферритовый сердечник EE8.3 катушка дроссельной катушки Индуктор для потолочного
- Категория: Ferrites >>>
- Поставщик: Nantong Tianyi Electronics Co., Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 7.41 $* | 7.2 $* |
| Aug-18-2025 | 7.78 $* | 7.53 $* |
| Jul-18-2025 | 6.77 $* | 6.23 $* |
| Jun-18-2025 | 7.4 $* | 7.63 $* |
| May-18-2025 | 6.76 $* | 6.91 $* |
| Apr-18-2025 | 7.68 $* | 7.87 $* |
| Mar-18-2025 | 7.81 $* | 7.24 $* |
| Feb-18-2025 | 7.79 $* | 7.37 $* |
| Jan-18-2025 | 7.32 $* | 7.21 $* |
Характеристики

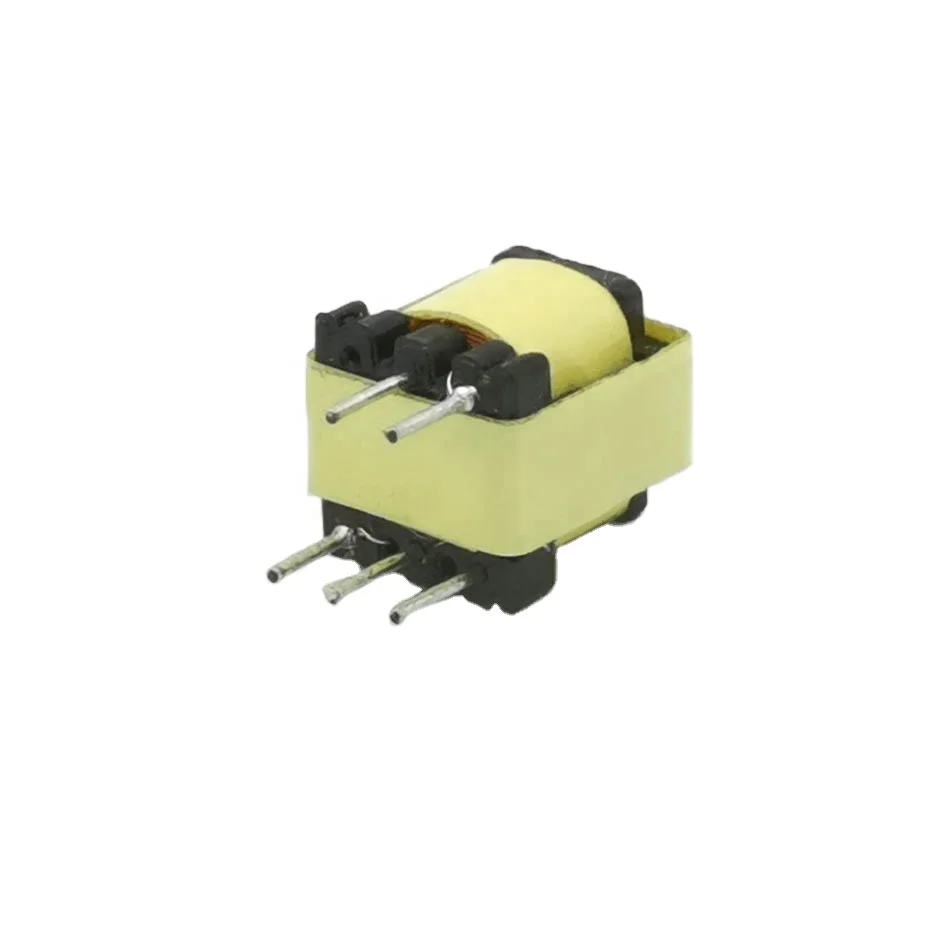

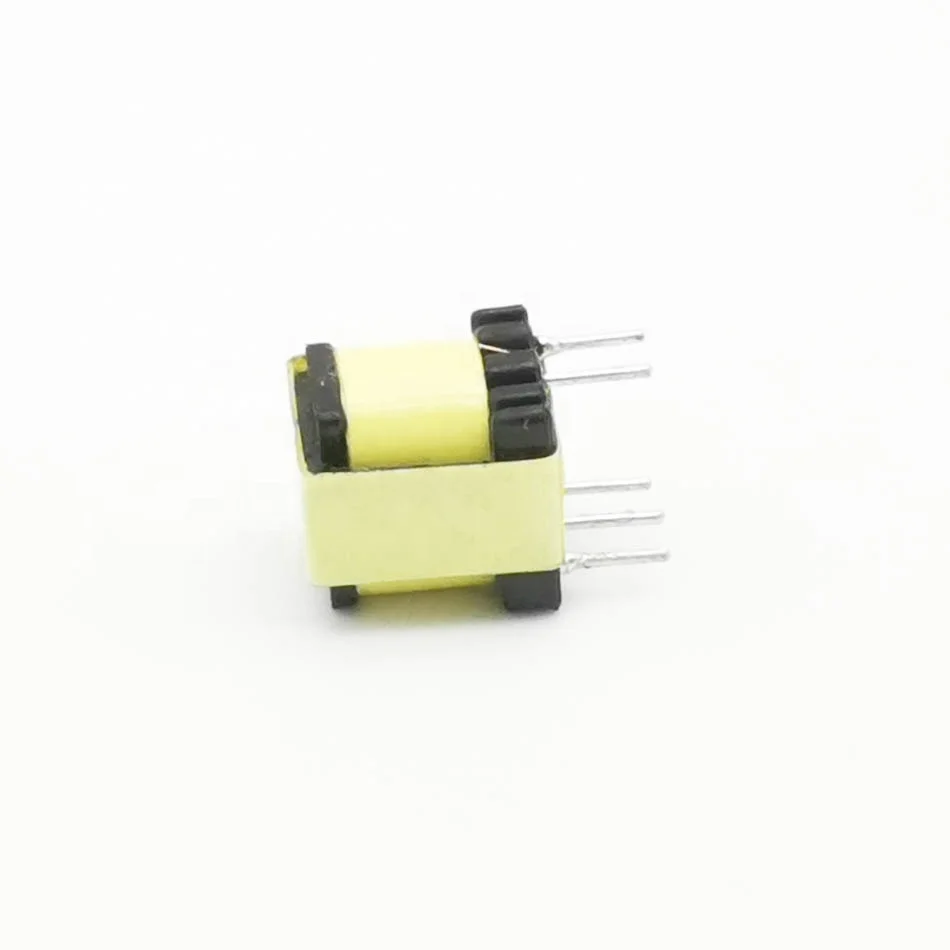

Customized EE8.3 bobbin Inductors

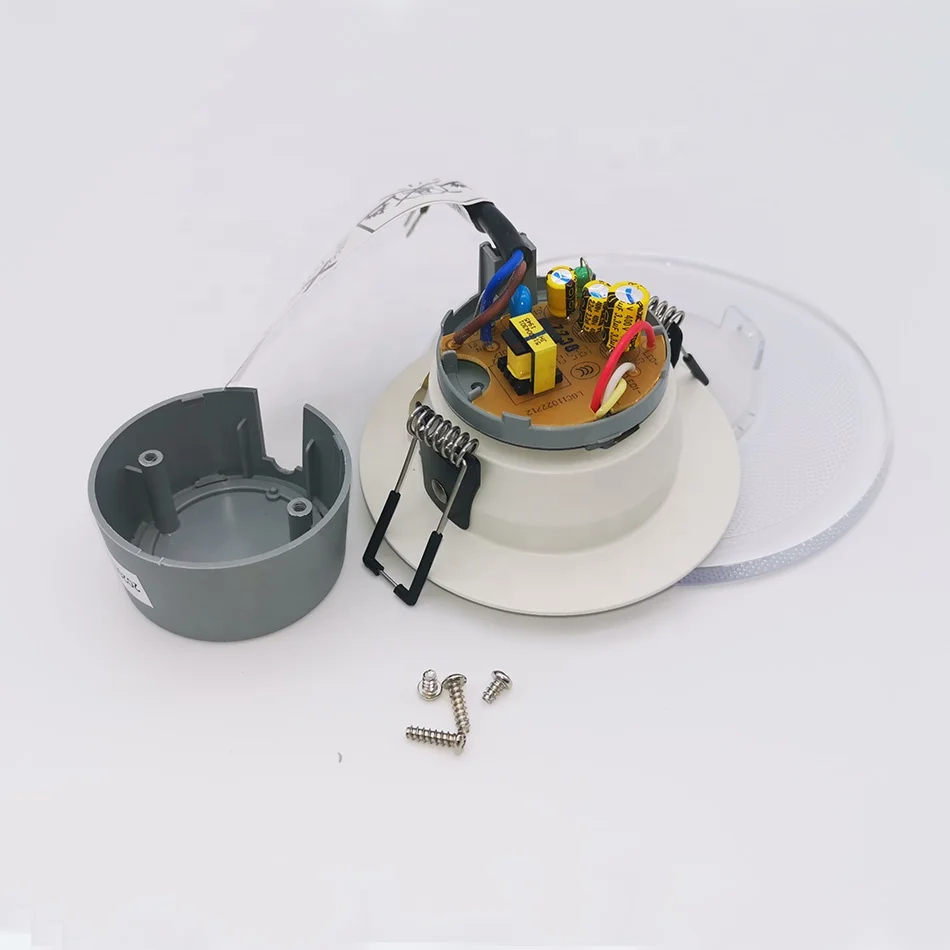

Inductance:2.7mH, this product is used in 9W Downlight.
We can design and produce the inductors according to your requirements.
All raw materials are UL certified.
 |
 |
All of our product types
| NO. | Product Name | TYPE | Detailed Type | ||||||||||
| 1 | High frequency transformers | EE | EE8.3, EE10, EE13, EE16, EE19, EE20, EE25, EE28, EE30, EE33, EE40, EE42, EE49, EE50, EE55, EE60, EE65, EE70, EE75, EE80, EE85 | ||||||||||
| EC/ER | ER/EC20, ER/EC25, ER/EC28, ER/EC28, ER/EC29, ER/EC35, ER/EC40, ER/EC42, ER/EC49 | ||||||||||||
| ETD | ETD29, ETD35, ETD40, ETD49 | ||||||||||||
| EF | EF16, EF20, EF25 | ||||||||||||
| EFD | EFD15, EFD20/21, EFD25/26, EFD30 | ||||||||||||
| EDR | EDR2009, EDR2037, EDR2809, EDR2828, EDR3012, EDR3909, EDR4008 | ||||||||||||
| EP | |||||||||||||
| EPC | EPC11.5, EPC13, EPC19, EPC25 | ||||||||||||
| EQ | |||||||||||||
| POT | POT3016, POT3930 | ||||||||||||
| PQ | PQ2016, PQ2020, PQ2625, PQ2620, PQ3225, PQ3520, PQ3525, PQ3535, PQ4040, PQ49 | ||||||||||||
| RM | RM6, RM8, RM10, RM12, RM14 | ||||||||||||
| 2 | Common mode chokes(Line filters) | EE Bobbin | EE8.3, EE12, EE19, EE25 | ||||||||||
| UU | UU9.8, UU10.5, UU16 | ||||||||||||
| ET | ET20, ET24, ET28, ET35 | ||||||||||||
| FT | FT20-22, FT20-21, FT20-15, FT20-13, FT20-10 | ||||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 25X15X13, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 (Ferrite core); 16X10X6, 20X12.5X8, 25X16X10, 30X20X10, 30X20X15, 40X25X15, 50X40X20, 63X50X25, 80X63X25, 100X80X25, 130X100X25(Nanocrystalline core) | ||||||||||||
| 3 | Inductors(Choke coils) | Peaking/Drum | 4*6, 5*7, 6*8, 8*10, 9*12, 10*12, 10*16, 14*15, 16*18, 18*20 | ||||||||||
| Toroidal | 6X3X2, 6X3X3, 8X5X3, 9X5X3, 9X5X4, 10X5X4,10X6X3, 10X6X3.5, 10X6X5, 13X8X6, 14X9X5, 20X12X6, 22X14X8, 25X15X10, 25X15X12, 28X14X10, 31X19X11, 31X19X13, 32X14X11,36X23X15, 38X18X13, 49X32X16 | ||||||||||||
| Rod | 3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30 | ||||||||||||
| EE Bobbin | EE8.3(I), EE10(I), EE13(I), EE16(I) | ||||||||||||
| 4 | SMD power inductors | Unshielded | SM , SMQ , SMF , SMG | ||||||||||
| Shielded | SMH, SMHII , SMP , SMB, SME, SML, SLF | ||||||||||||
| Features | Low loss, Large transmission power, Low temperature rise, Stable performance |
| Material | Ferrite core, bobbin, copper wire, coper foil, tape,margin tape, tube |
| Shape Type | Horizontal,vertical,SMD |
| Working Frequency Range | 10~1000KHZ |
| Output Power | 1W-3000W |
| Output Voltage | 0.5V-5000V |
| Output Current | 0.01A-100A |
| Storage Temperature | -25℃ to +95℃ |
| Working Temperature | -40℃ to +125℃ |
| Storage Humidity | 30% to 95% |
| Test Items | Appearance, Inductance, Phase test, Inductance leakage, Turns ratio, DC resistance test, Withstand voltage, Insulation resistance, etc. |
| Certifications | ISO9001,CE, CQC,SGS, RoHS |
| Packing | EPE foam + export carton, or plastic tray+export carton |
| Applications | Electric car charger, switching power supply,electrical equipments, medical equipments industry ,communication equipments, solar energy & inverter equipments, vehicle electronic equipment |
Hot sell products- Inductors(Choke coils) - Rod Type
All the raw materials are certified by UL.
This type of product is used in Household appliances,Television sets, DC-DC converters, etc.
| Part No.: | TYI-5X20-04 | Materials: | Product Picture: | ||||||||||||||||||||||||||||||||
| Features: | Ferrite core:R5*20/ PC40 |  |
|||||||||||||||||||||||||||||||||
| Competitive price,Free sample,Customizable | Copper wire: 2UEW Φ0.7mm /130℃ | ||||||||||||||||||||||||||||||||||
| Excellent nisulated characteristic | |||||||||||||||||||||||||||||||||||
| Inductance values available from 0.07mH to 5.86mH | |||||||||||||||||||||||||||||||||||
| Minimized distributing capacitance hence high SRF | |||||||||||||||||||||||||||||||||||
Dimensions:(Unit:mm)
 |
Electrical Charactersistics:
| No. | Items | Test Terminals | Specification | Test Conditions (At 25℃) | Test meters | ||||||||||||||||||||||||||||
| 1 | Inductance | S-F | L=6.5uH±10% | F=1KHz, U=0.25V | HP-4284 | ||||||||||||||||||||||||||||
Similar types:
3X12, 3X15, 4X15, 4X20, 5X15, 5X20, 5X25, 5X30, 6X15, 6X20, 6X25, 6X30, 6X32, 6X35, 8X20, 8X30 (Rod core,Unit:mm)
