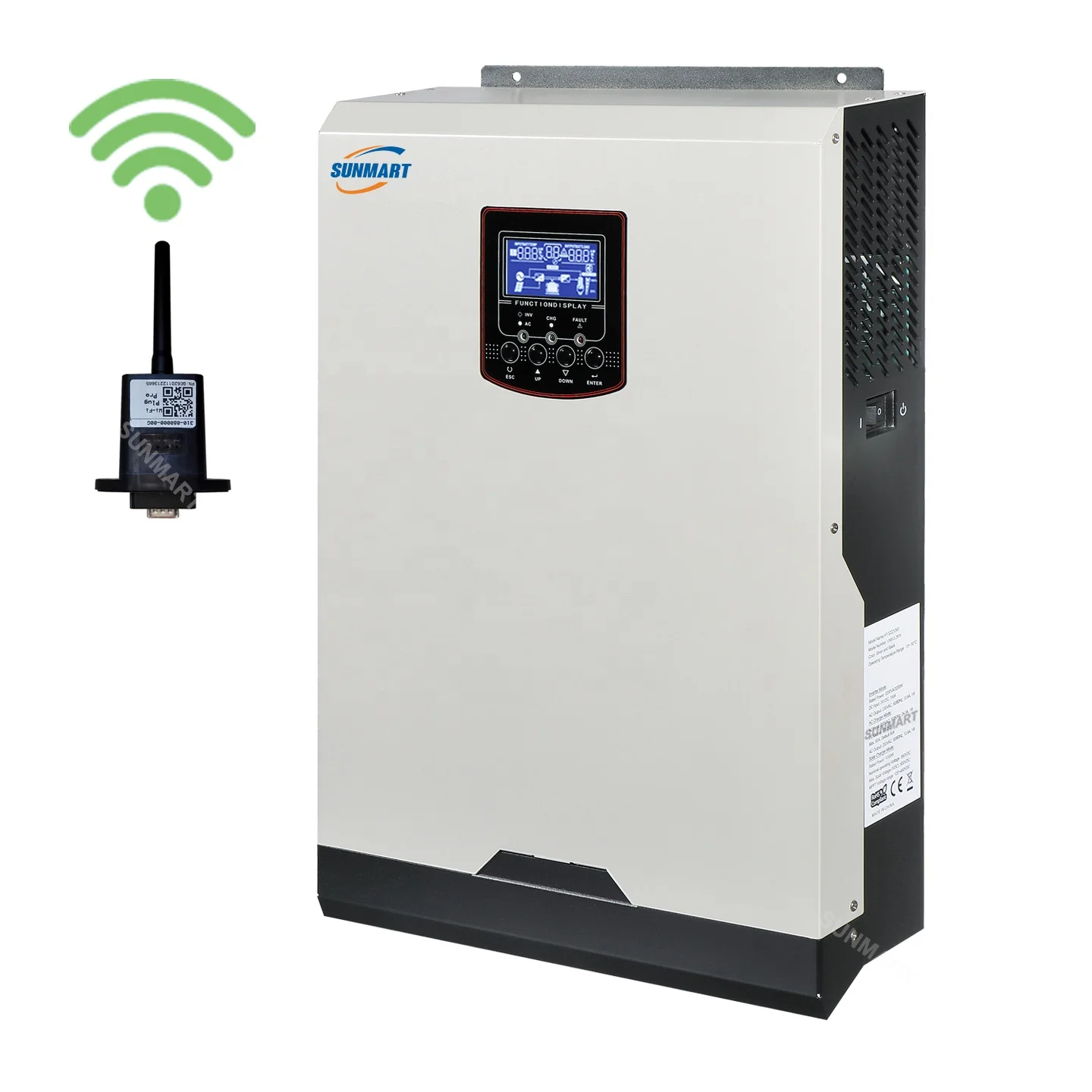

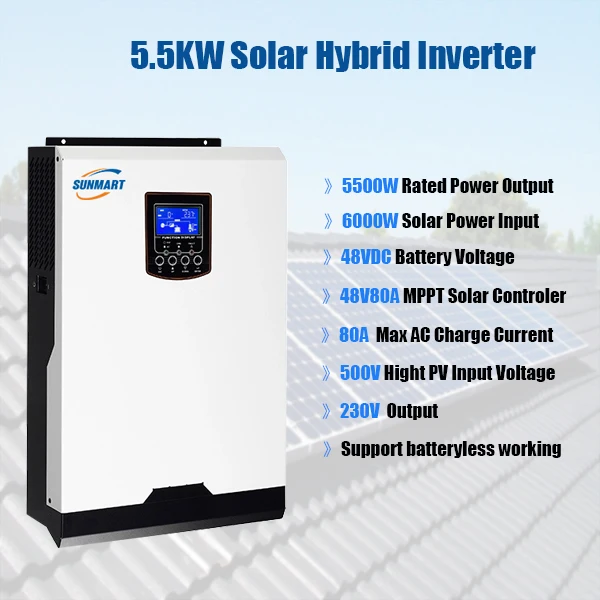

 VM II PLUS 5.5KW Solar Hybrid Inverter with MPPT 100A

DC Input 120-500Vdc/Working with or without battery





Description:

This is a multi functional inverter/charger, combining functions of inverter,solar charger and battery charger to offer uninterruptible power support in portable size. Its comprehensive LCD display offers

user-configurable and easy-accessible button operation such as battery charging current,

AC/solar charger priority, and acceptable input voltage based on different applications.





Features:

1.High effciency pure sine wave inverter(PF=1);Wide PV input range (12V dc -50V dc) 80A MPPT SCC;Intelligent 3stage 80A AC battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.

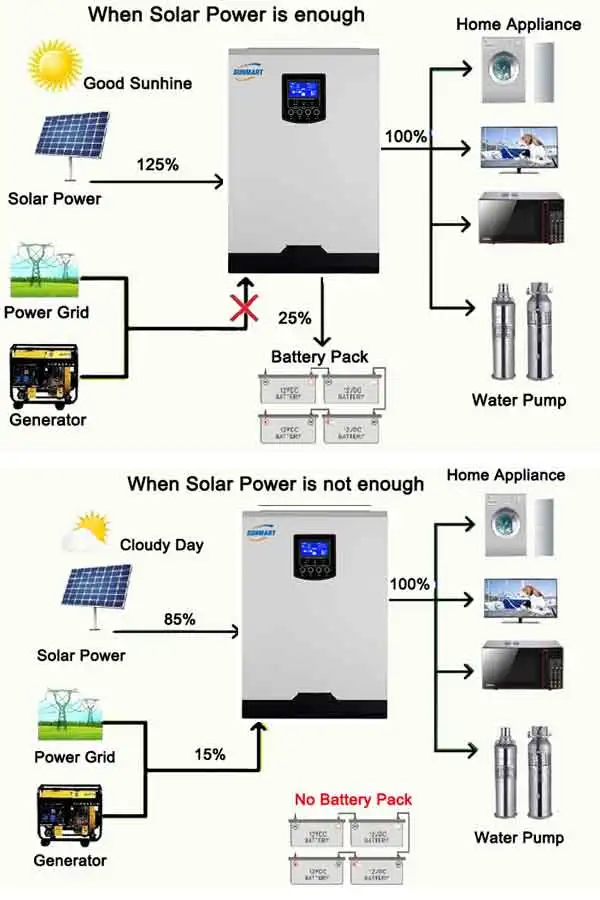

3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communication with USB/RS 232.
7. System configures quickly into compact, wall-mounted system.

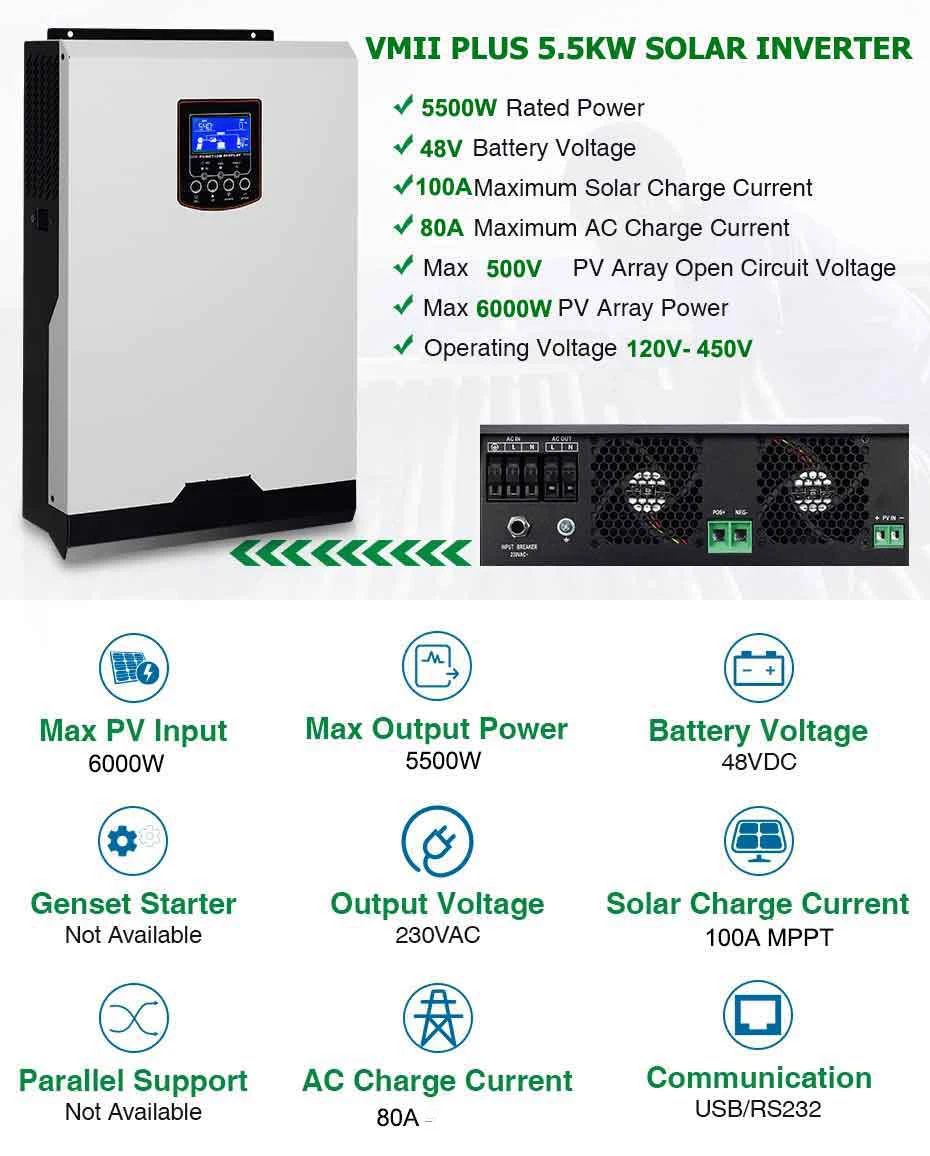

Specifications:



Model	VM II PLUS 5500-48
RATED POWER	5500VA / 5500W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	11000VA
Efficiency (Peak) PV to INT	97%
Efficiency(Peak)Battery to INT	93%
Transfer Time	10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	63 VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage	500VDC
Max. PV Array Power	6000W
MPP Range @operating Voltage	120~450VDC
Max. Solar Charge Current	80 A
Max. AC Charge Current	80 A
Max. Charge Current	80 A
PHYSICAL
Dimension, D x W x H (mm)	100 x 300x 440
Net Weight (kgs)	12

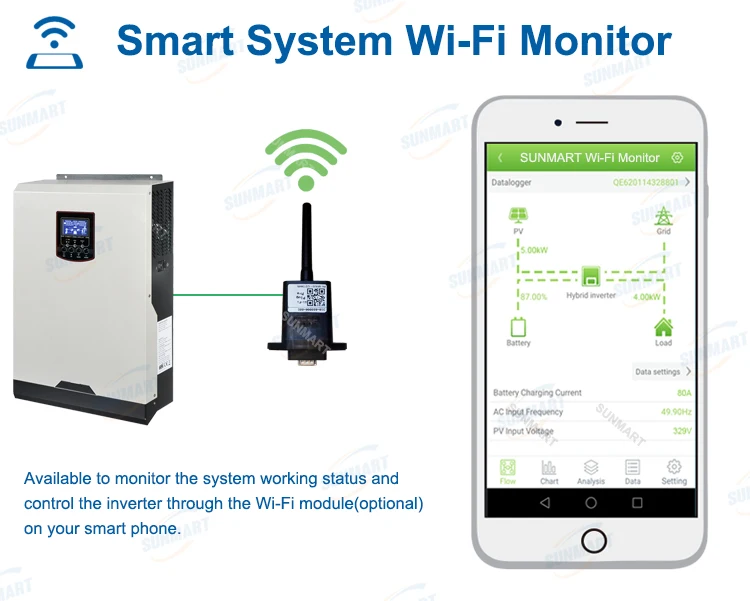

Communication Interface	USB/RS232/GPRS/WIFI
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

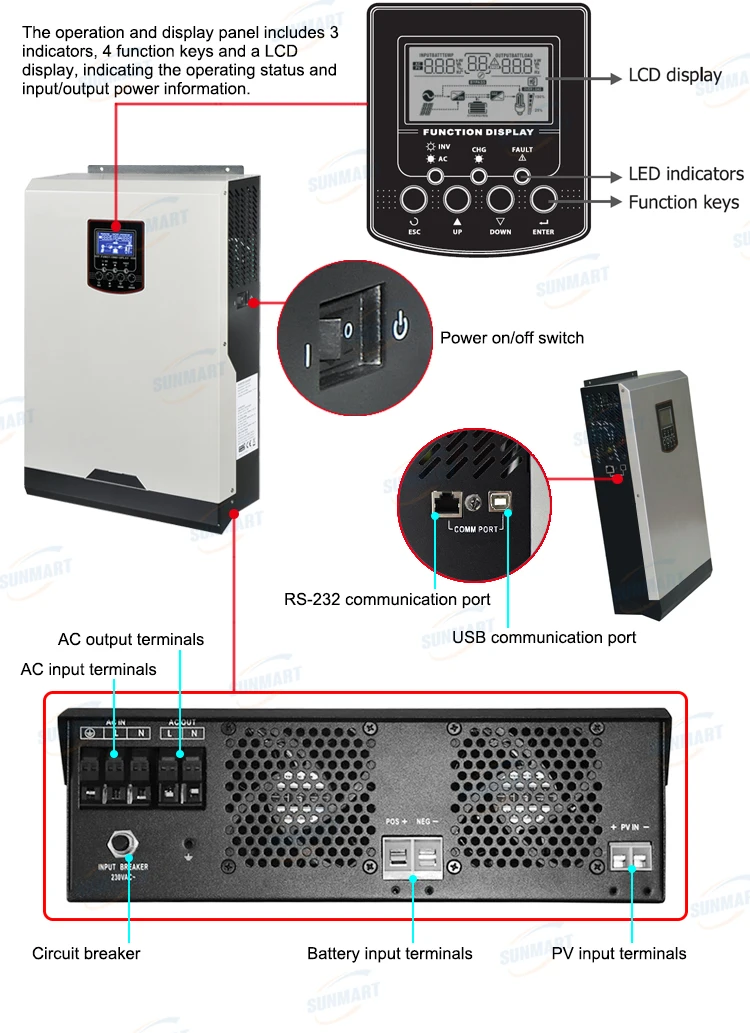

Inverter Detail
