Микроскоп с зумом 6 7 X-45X высокоточный оптический микроскоп для промышленных биологических
- Категория: Microscopes >>>
- Поставщик: Shenzhen,Youfu,Tools,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 314.83 $* | 330.84 $* |
| Aug-16-2025 | 312.48 $* | 328.38 $* |
| Jul-16-2025 | 261.5 $* | 274.0 $* |
| Jun-16-2025 | 306.1 $* | 321.99 $* |
| May-16-2025 | 267.57 $* | 280.60 $* |
| Apr-16-2025 | 301.54 $* | 316.30 $* |
| Mar-16-2025 | 298.52 $* | 313.99 $* |
| Feb-16-2025 | 296.88 $* | 311.86 $* |
| Jan-16-2025 | 293.73 $* | 308.90 $* |
Характеристики
Introduction：
6745 Series Stereo Zoom Microscope is fully coated optical system with super high resolution. It is characterized by brand-new optical design, the best reproduction and true color image. It is ideally suited for industrial as well as for biological research where high precision, maximum working distance and large field coverage is required.
Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 1.5X | Auxiliary Lens 2X | |||||||||||
W.D. 105mm | W.D. 177mm | W.D. 47mm | W.D. 26mm | ||||||||||||
Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | ||||||||
10X/22mm | 6.7X | 32.8mm | 3.4X | 65.7mm | 10.1X | 21.9mm | 13.4X | 16.4mm | |||||||
45.0X | 4.9mm | 22.5X | 9.8mm | 67.5X | 3.3mm | 90.0X | 2.4mm | ||||||||
15X/16mm | 10.1X | 23.9mm | 5.0X | 47.8mm | 15.1X | 15.9mm | 20.1X | 11.9mm | |||||||
67.5X | 3.6mm | 33.8X | 7.1mm | 101.3X | 2.4mm | 135.0X | 1.8mm | ||||||||
20X/12mm | 13.4X | 17.9mm | 6.7X | 38.5mm | 20.1X | 11.9mm | 26.8X | 9.0mm | |||||||
90.0X | 2.7mm | 45.0X | 5.3mm | 135.0X | 1.8mm | 180.0X | 1.3mm | ||||||||
25X/9mm | 16.8X | 13.4mm | 8.4X | 26.9mm | 25.1X | 9.0mm | 33.5X | 6.7mm | |||||||
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225.0X | 1.0mm | ||||||||
30X/8mm | 20.1X | 11.9mm | 10.1X | 23.8mm | 30.2X | 7.9mm | 40.2X | 6.0mm | |||||||
135.0X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270.0X | 0.9mm | ||||||||
Magnification | 6.7X-45X, 3.4X-270X with optional eyepieces and objectives | ||||||||||||||

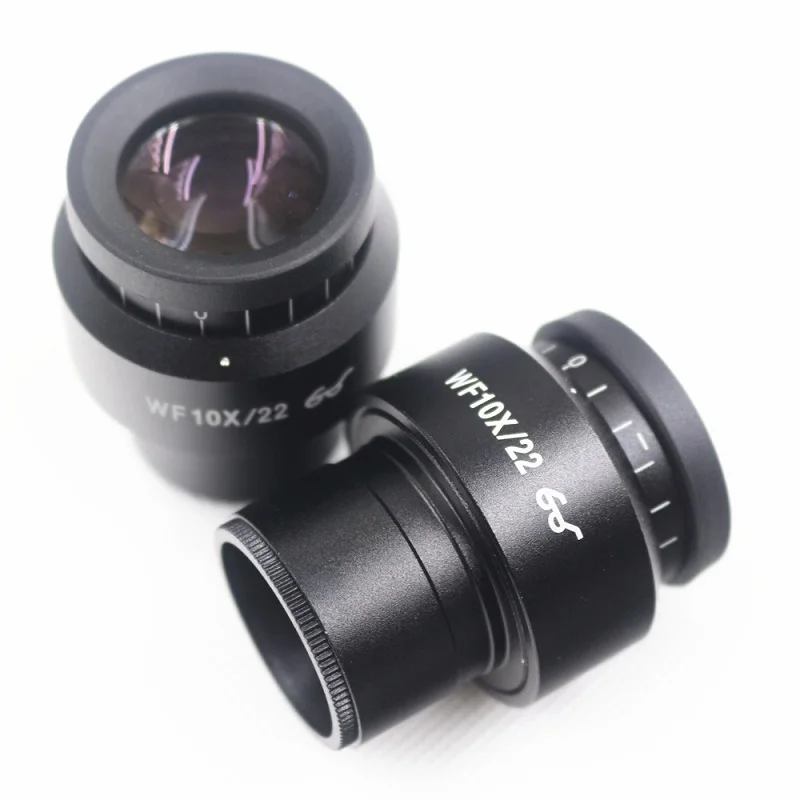

Eyepiece | WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses | ||||||||||||||
Optional Eyepiece | WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm, WF30X/8mm | ||||||||||||||
Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | ||||||||||||||
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters | |||||||||||||||
Objective | 0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1 | ||||||||||||||
Aux Lens | 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X | ||||||||||||||
Focusing Mount | Focusing track mount with vertical working distance 106mm | ||||||||||||||

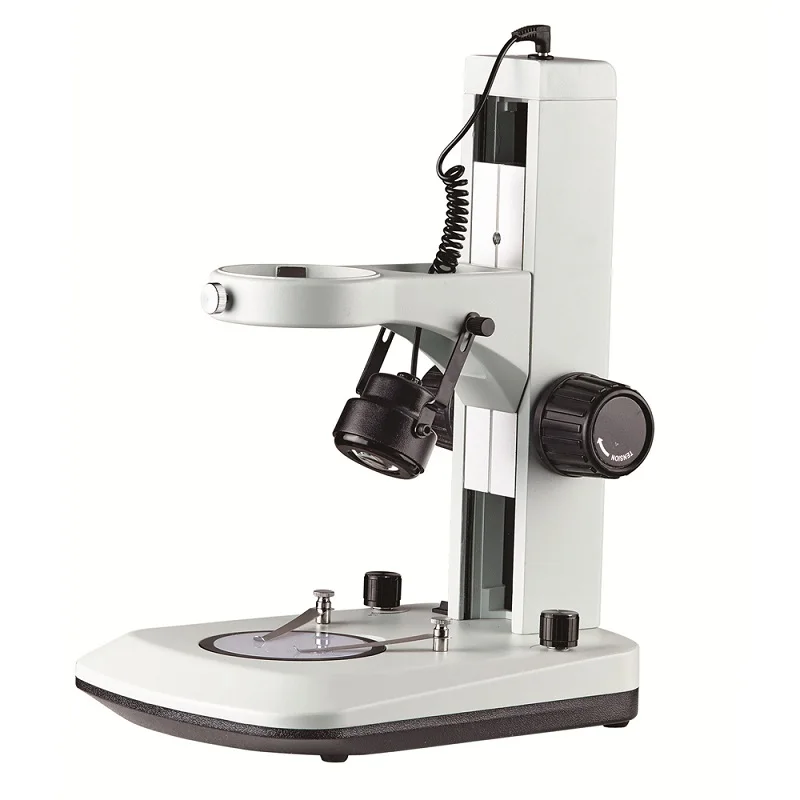

Stand | B9L track stand, for more options, please refer to “ACCESSORIES-MICROSCOPE STAND” | ||||||||||||||
Illumination | Transmitted and reflected 5v/3w LED illumination with independent switches and adjustable intensity | ||||||||||||||
Details Images
