Характеристики

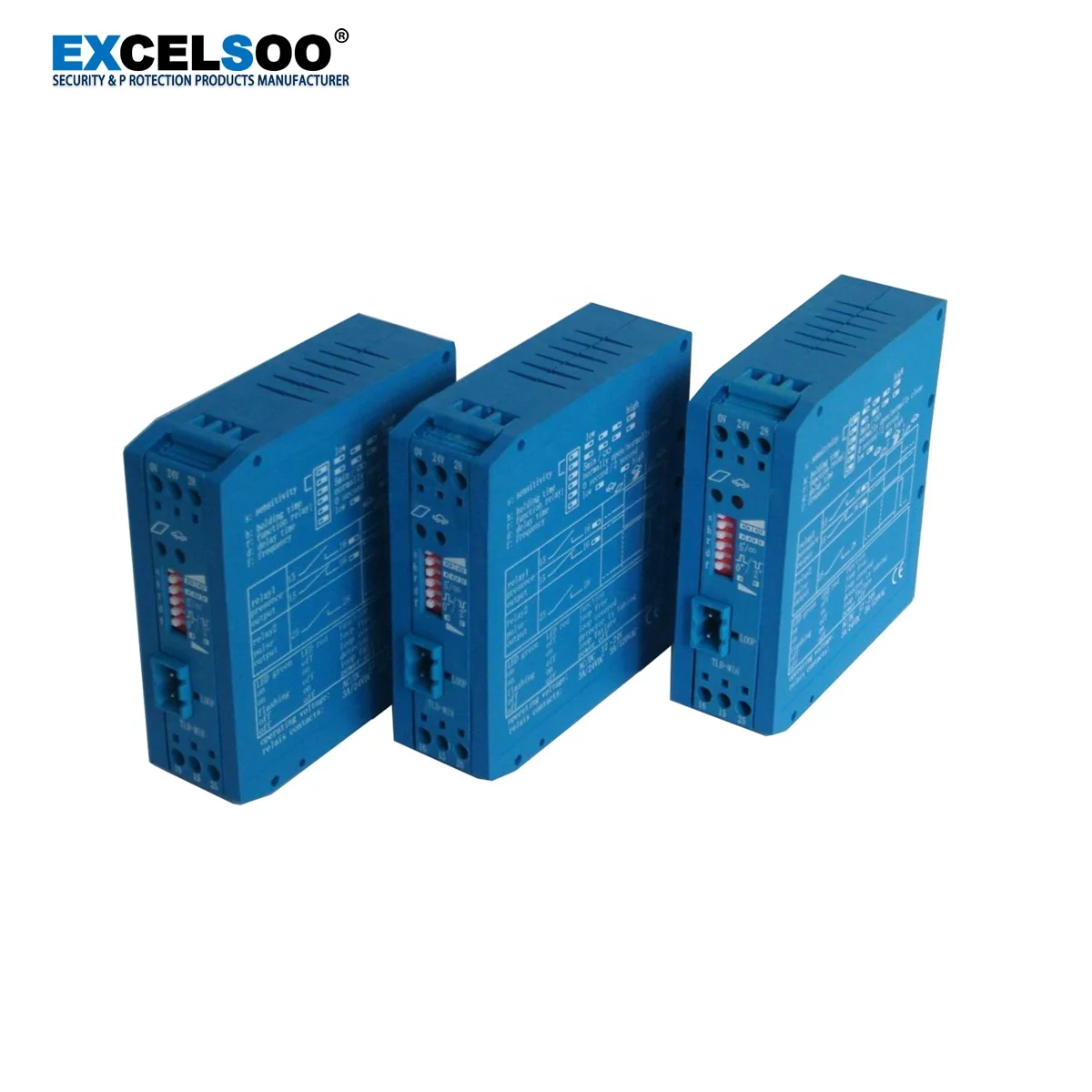

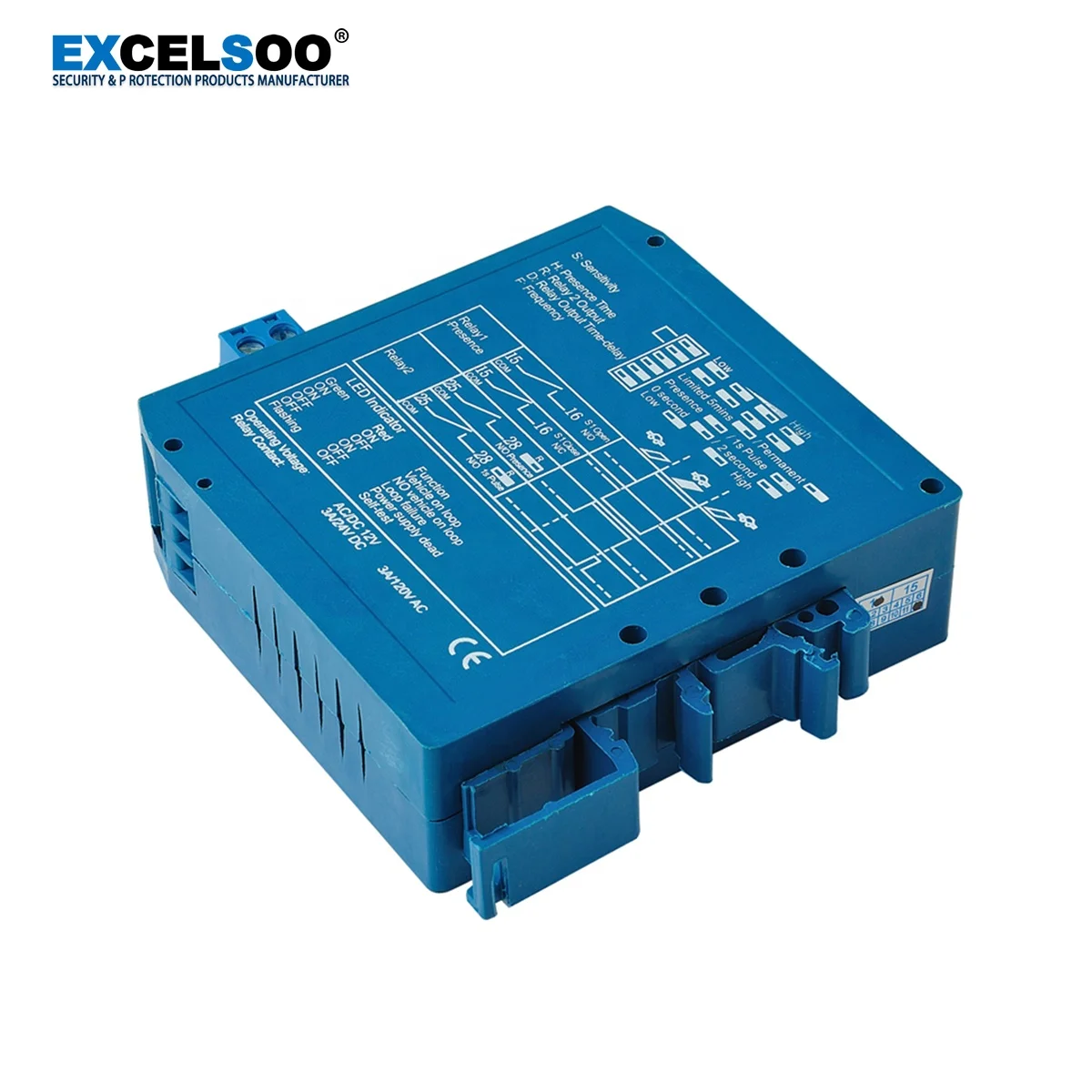

About M1H
M1H is a single channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.
Product Description
Key Features
1) When the DIP switch is on position or changing the presence output time, Self-detection would be done ;
2) ABS align to the pillar which can combine with each other compactly ;
3) Presence output time can be adjustable ;
4) Work mode can be set by the DIP switch ;
5) Pulse output or permanent output can be adjustable .
Loop detector is used in vehicle access control areas to keep
the barrier gate opening until the vehicle leaves the covering area.
2) ABS align to the pillar which can combine with each other compactly ;
3) Presence output time can be adjustable ;
4) Work mode can be set by the DIP switch ;
5) Pulse output or permanent output can be adjustable .
Application & Advantages
Loop detector is used in vehicle access control areas to keep
the barrier gate opening until the vehicle leaves the covering area.
Specification
Technical Data | Power Supply | DC 12V | |
Power Consumption | Max. 3W | ||
Voltage Tolerance | AC: +10% / -15% DC: ±15% | ||
Operating Temperature | -20°C to +65°C | ||
Storage Temperature | -40°C to +85°C | ||
Frequency Range | 20 kHz to 170 kHz | ||
Reaction Time | 10ms | ||
Presence Time | Unlimited /limited when loop is permanently covered 10 minutes | ||
Sensitivity | Adjustable | ||
Loop Inductance | Total loop plus connection wiring: 50μH to 1000μH; Ideal is 100μH to 300μH | ||
Feeder Wire | Max. 20 meters, twisted at least 20 times per meter | ||
Size | 79*22.5*90mm(L*W*H ) | ||
Package | Paper Carton | ||
Trade Terms | EXW, FOB and so on. | ||
Payment Terms | 100% TT before delivery or Western Union, Paypal and so on. | ||
Delivery Time | Sample:3 working days;Bulk orders: 5 to 7 days; | ||
MOQ | 1 pc | ||
Packing & Delivery
Package: Carton, 5pcs/box; 20box/carton
Company Profile
Production Flow Chart
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if QTY less than 10pcs; we need to negotiate if QTY is more than 10pcs.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: T/T.
Please feel free to contact us if any further information or clarification needed.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if QTY less than 10pcs; we need to negotiate if QTY is more than 10pcs.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: T/T.
Please feel free to contact us if any further information or clarification needed.
