Новинка 2019 миниатюрный персонализированный GPS-трекер PCBA для OEM-трекера
- Категория: Navigation & GPS >>>
- Поставщик: Shenzhen,Xiyuan,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.11 $* | 0.30 $* |
| Aug-16-2025 | 0.28 $* | 0.58 $* |
| Jul-16-2025 | 0.68 $* | 0.48 $* |
| Jun-16-2025 | 0.57 $* | 0.98 $* |
| May-16-2025 | 0.18 $* | 0.18 $* |
| Apr-16-2025 | 0.67 $* | 0.14 $* |
| Mar-16-2025 | 0.12 $* | 0.42 $* |
| Feb-16-2025 | 0.41 $* | 0.74 $* |
| Jan-16-2025 | 0.92 $* | 0.88 $* |
Характеристики

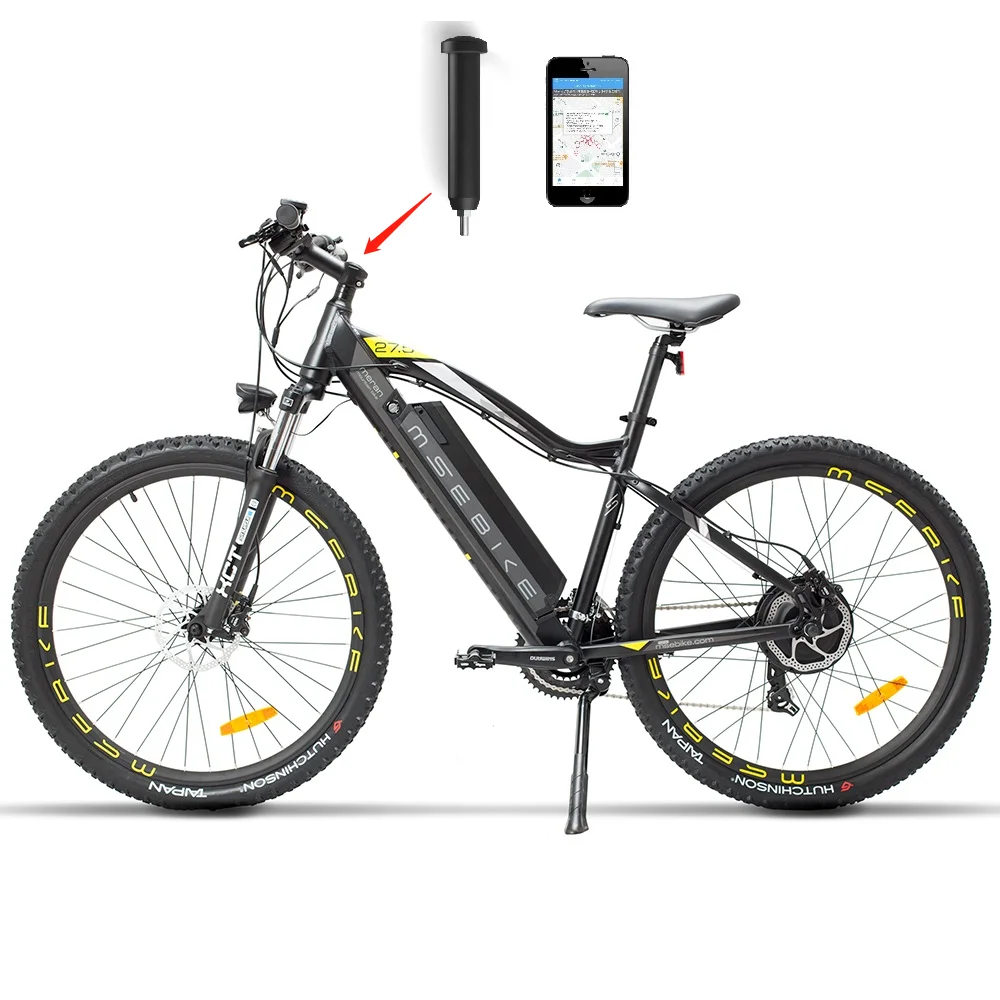

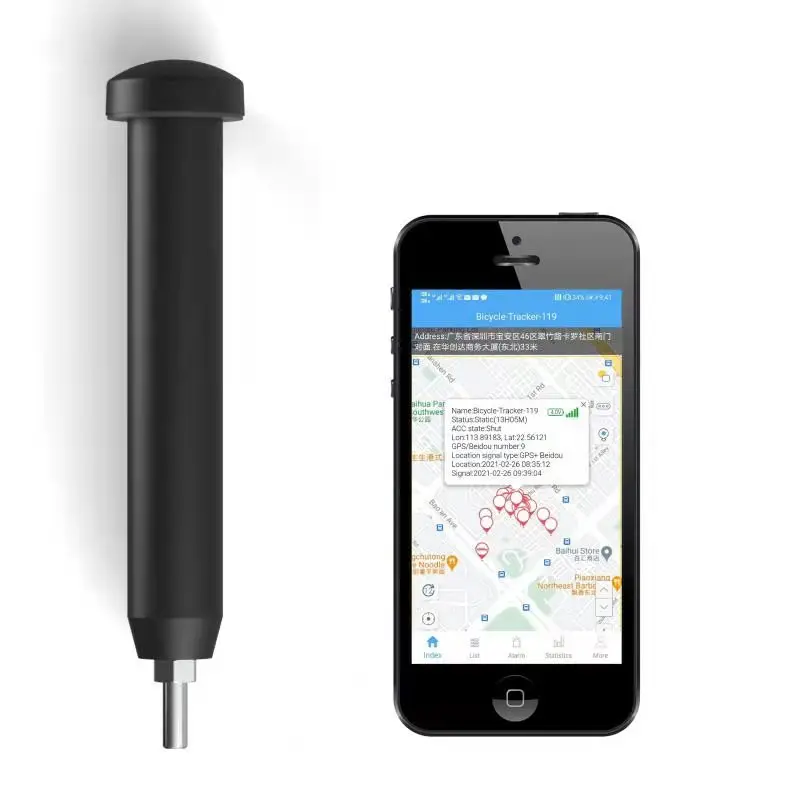

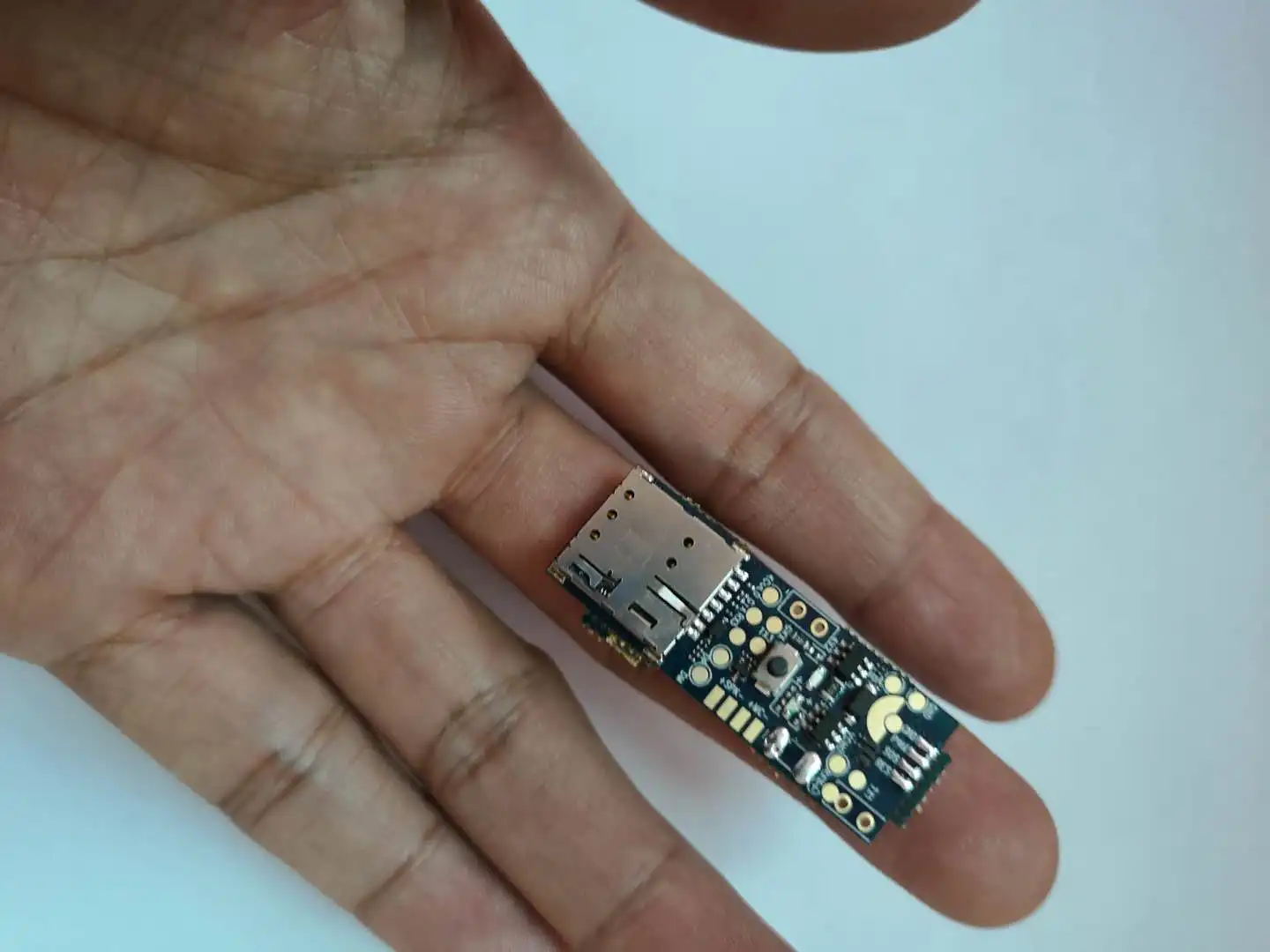

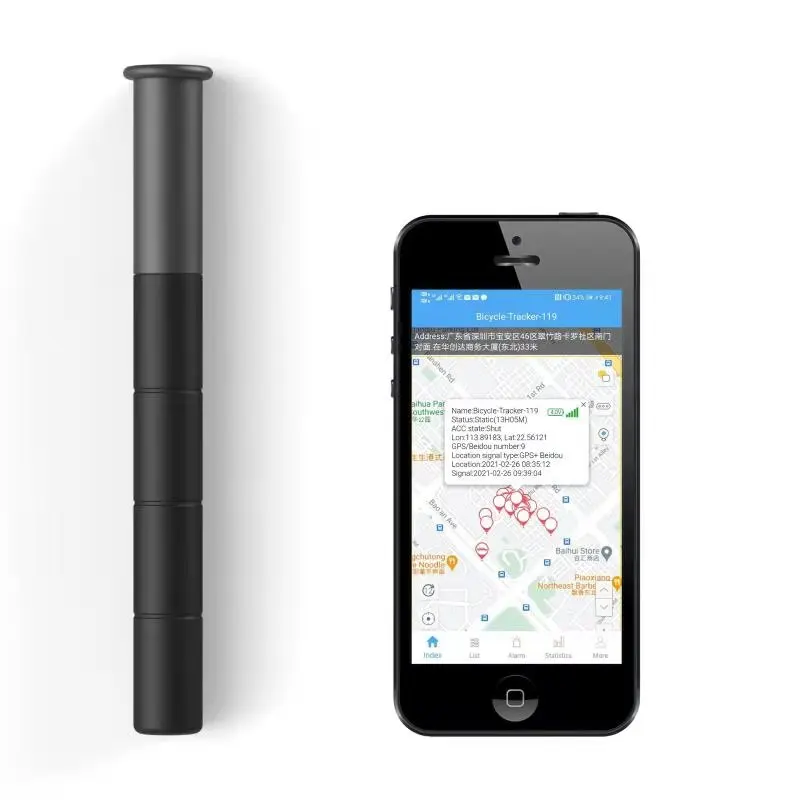

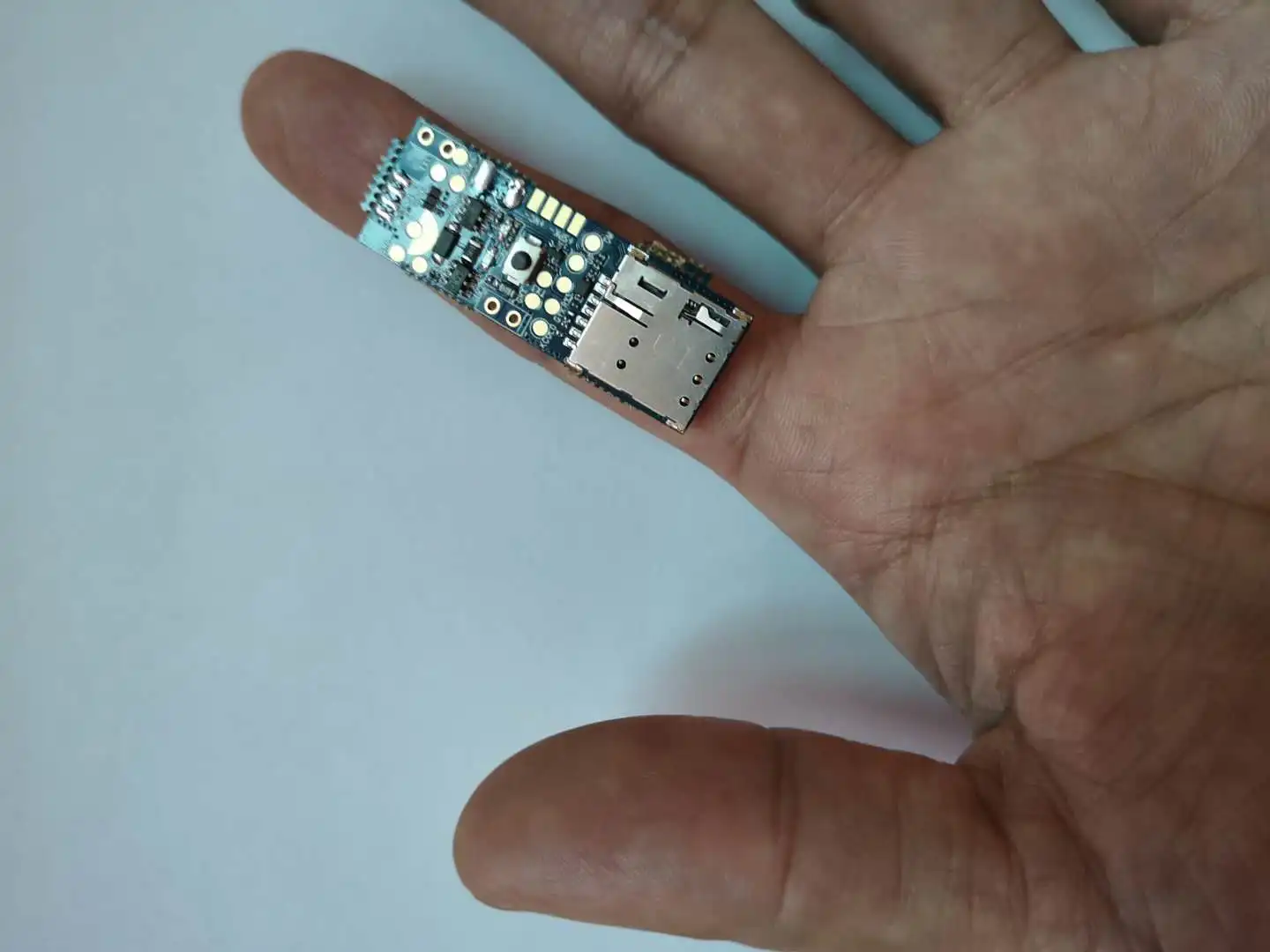

2019 New mini customized GPS Tracking PCBA for Pet Tracker/Cattle Tracking/GPS Shoes/Bicycle Tracking/GPS Tracking Bracelet motherboard/OEM Bike Tracker
OEM service is available
Free tracking software
Supports both SMS and GPRS
Tracking by calling the device
Tracking by sending SMS (preset the interval and times)
Voice Surveillance
Geo-fence alarm
Movement alarm
Overspeed alarm
SOS alarm
Low battery alarm
Support Google map positioning on smart phone
Report the battery strength,number of satellite,altitude etc.
Indicate the charging status
Stop sending coordinates if the target stops moving
The minimum postioning interval is 5s instead of 30s
Shake alarm
Cell ID positioning
Item | Specification |
Charging Voltage | DC 5V/500mA (Micro USB port) |
Internal Battery | Rechargeable and removable 830 mAh battery (3.7V) |
Operating temperature | -20° to 55° C |
Humidity | 5% to 95% Non-condensing |
GSM module | GSM 900/1800/1900Mhz |
GPS Chipset | latest GPS (AGPS) |
GPS Sensitivity | -158Db |
GPS Frequency | L1, 1575.42 MHz |
C/A Code | 1.023 MHz chip rate |
Channels | 20 all-in-view tracking |
Position Accuracy | 10 meters, 2D RMS |
Velocity Accuracy | 0.1 m/s |
Time Accuracy | 1 us synchronized to GPS time |
Default datum | WGS-84 |
Reacquisition | 0.1 sec., average |
Hot start | 1 sec., average |
Warm start | 38 sec., average |
Cold start | 42 sec., average |
Altitude Limit | 18,000 meters (60,000 feet) max. |
Velocity Limit | 515 meters/second (1000 knots) max. |
Acceleration Limit | Less than 4g |
Jerk Limit | 20 m/sec |
Work time | 60 hours in sleep mode and 10 hours in normal mode |
LED | 3 LED indicators showing power, GPS, GSM status and other operation status. |
