Ветеринарный портативный рентгеновский аппарат для

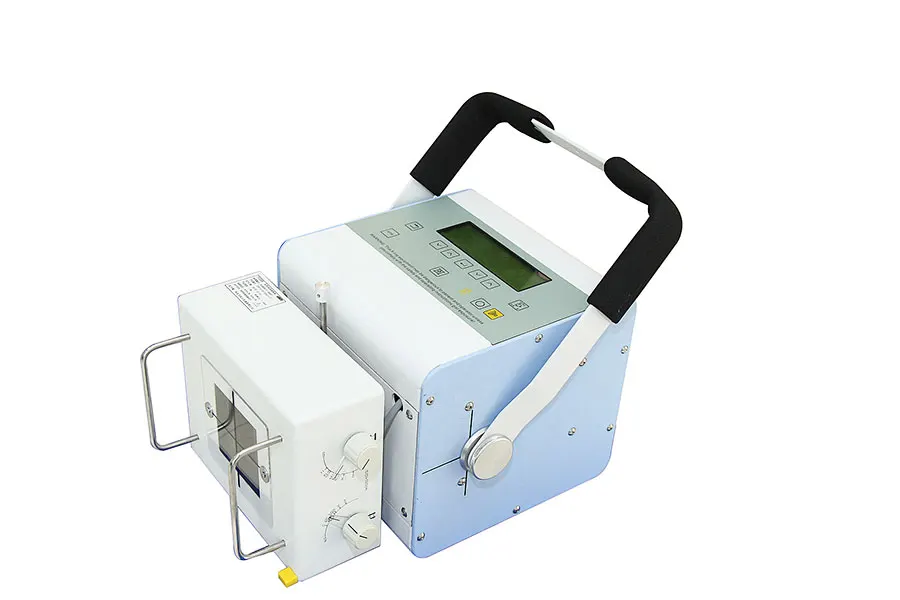

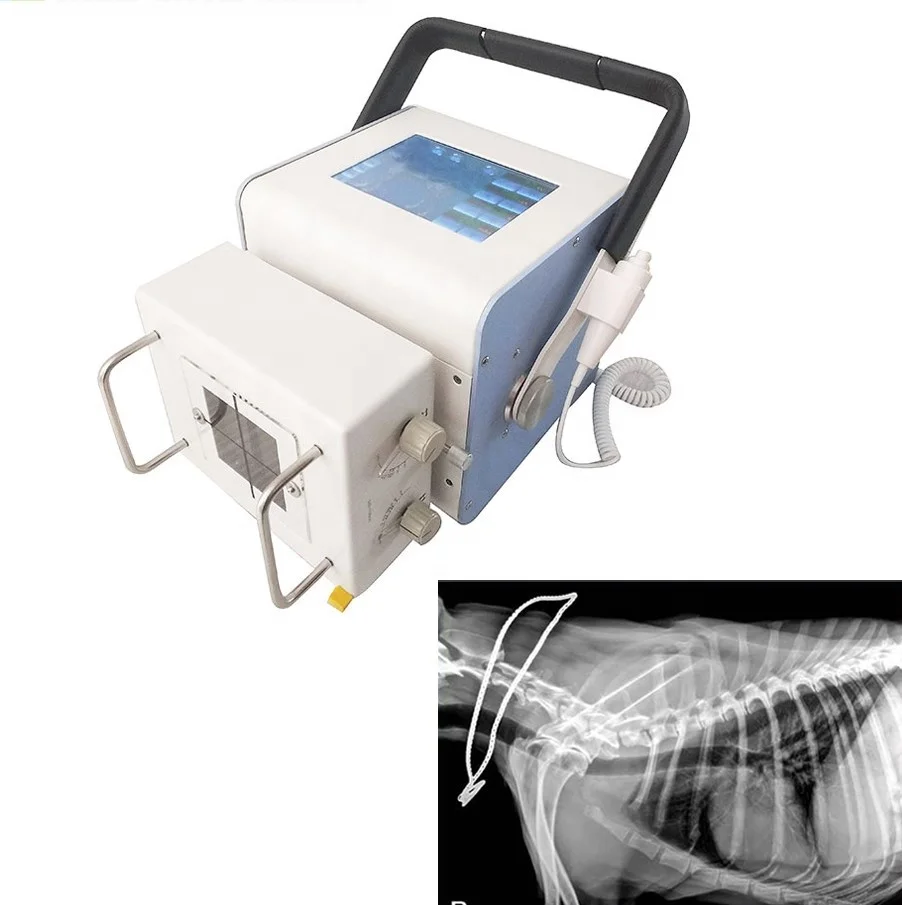

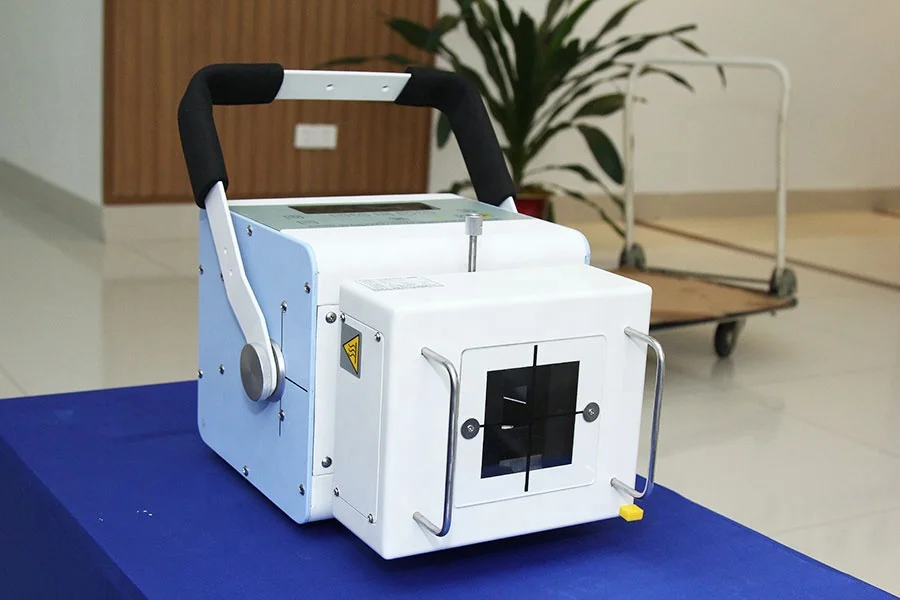

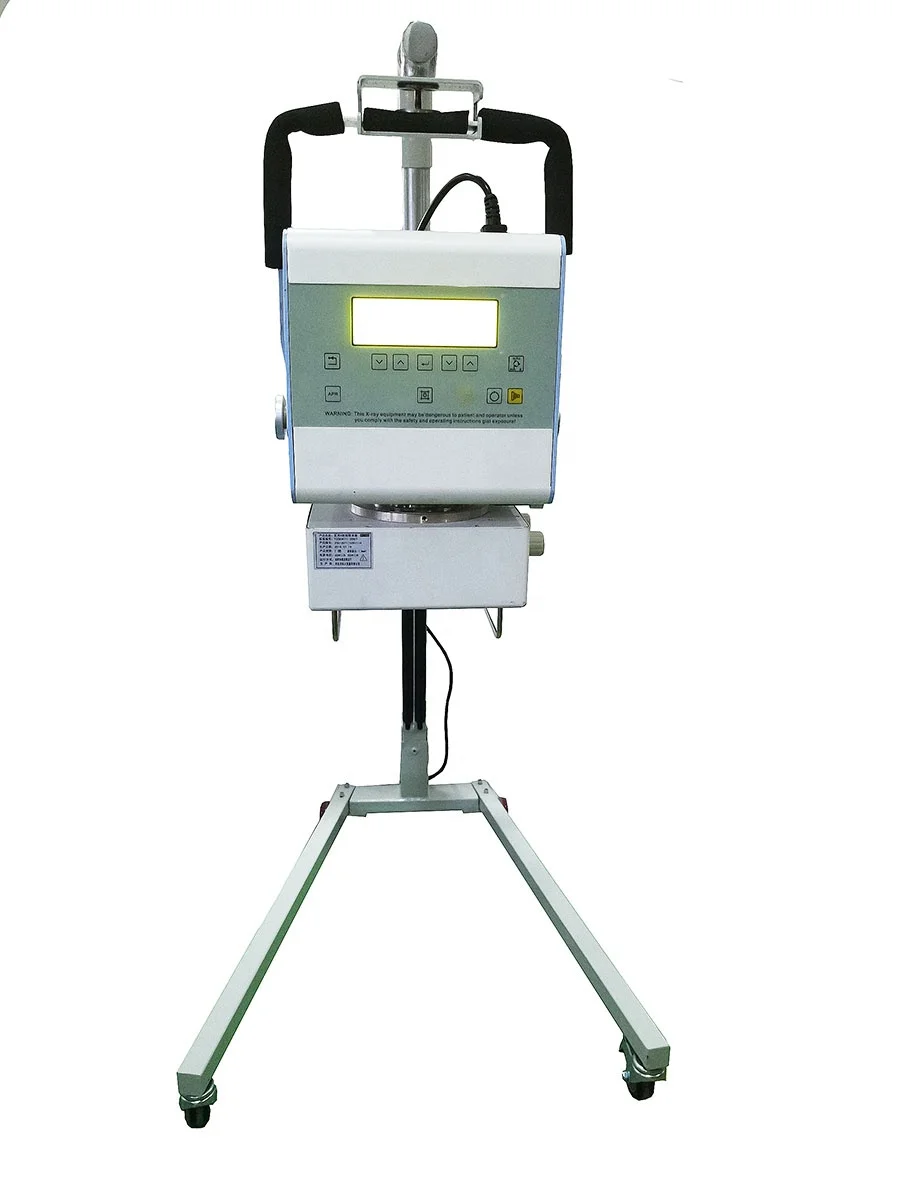

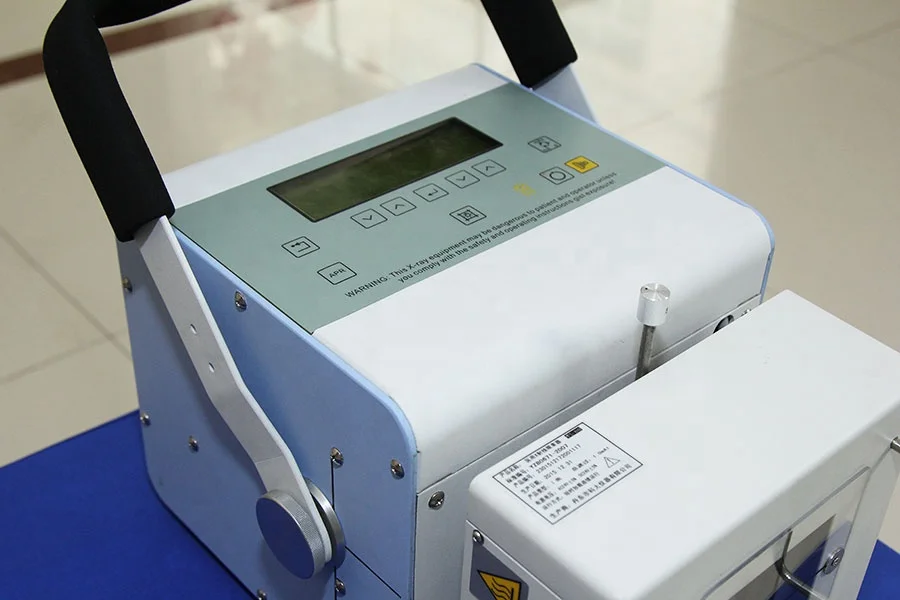

Veterinary portable radiographic x-ray machine

1.High frequency inverter technology is adopted to produce,output high pressure is stable,good image quality can be obtained;

2.The compact design makes it easy to carry out work in different areas and locations;

3.With three exposure control methods:Tekecontrol/hand brake/Interface button;

4.Fault self-diagnosis,self-protection;

5.With flexible digital interface,offer SDK protocol,users can control the core programming deeply and can be suitable for different DR detectors

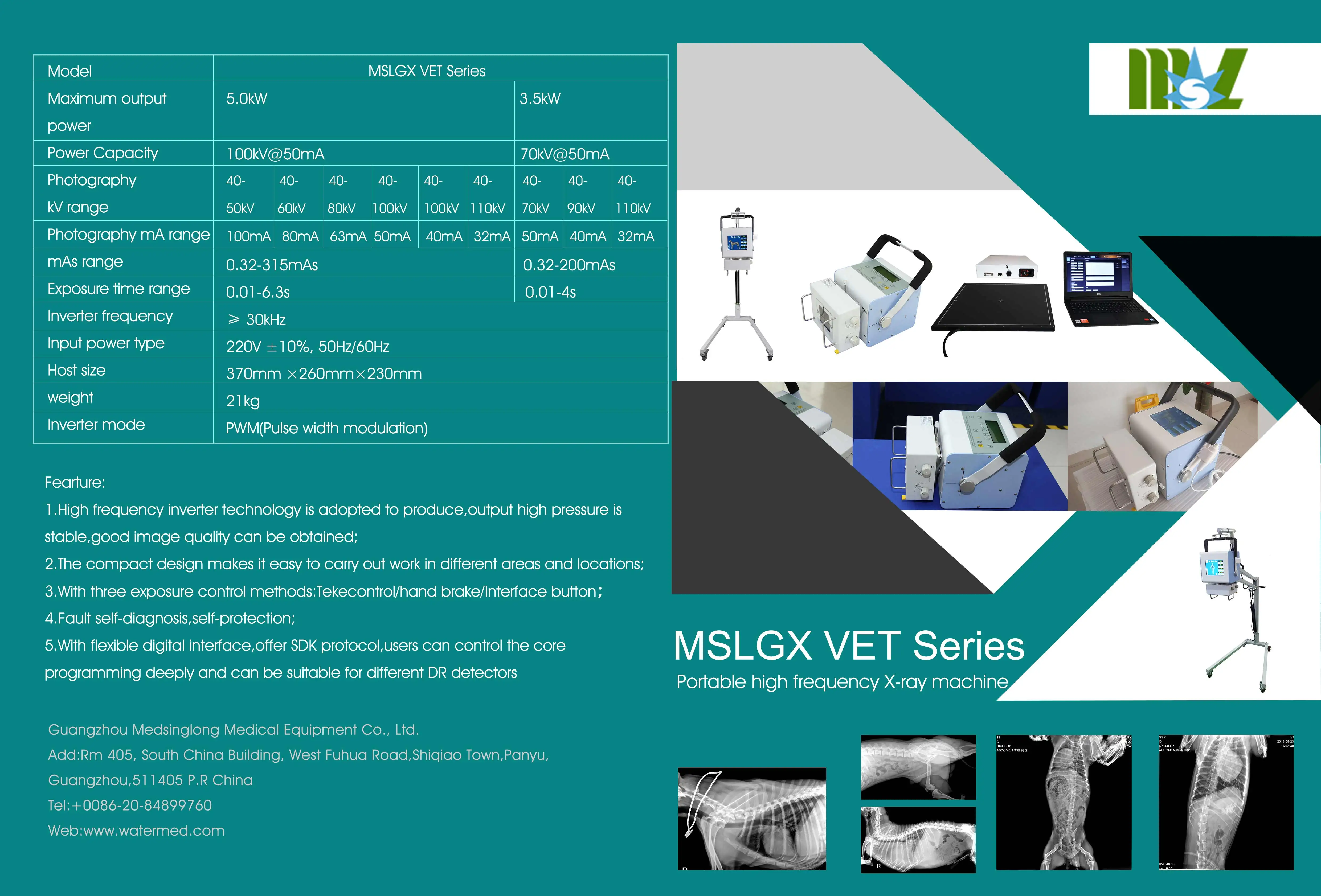

model\tMSLGX Series\t

Maximum output power\t5.0kW\t3.5kW\t

Power Capacity\t100kV@50mA\t70kV@50mA\t

Photography kV range\t40-50kV\t40-60kV\t40-80kV\t40-100kV\t40-100kV\t40-110kV\t40-70kV\t40-90kV\t40-110kV\t

Photography mA range\t100 mA\t80 mA\t63mA\t50mA\t40mA\t32mA\t50 mA\t40 mA\t32 mA\t

mAs range\t0.32-315mAs\t0.32-200mAs\t

Exposure time range\t0.01-6.3s\t0.01-4s\t

Inverter frequency\t

≥ 30kHz

Input power type\t220V ±10%, 50Hz/60Hz

Host size\t

370mm ×260mm×230mm

weight\t21kg

Inverter mode\tPWM(Pulse width modulation)
