Характеристики
Product Description
High Quality Water Cooling Machine Used for Protecting Jewelry Metal Smelting Furnace and Saving Water

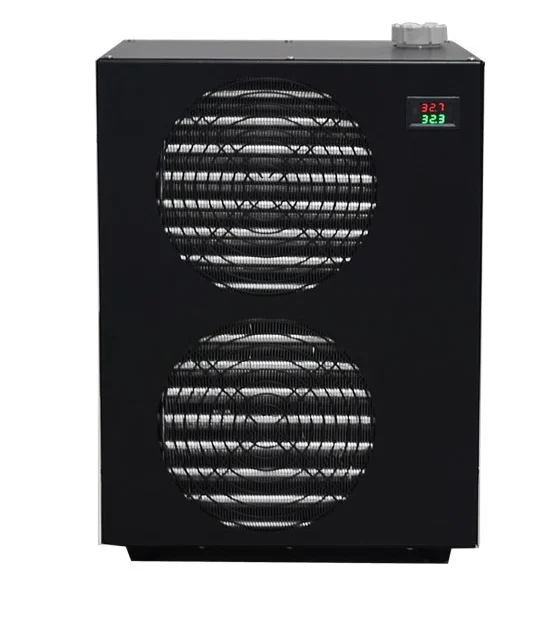

Water Cooling Machine
Application of Water Cooling Machine:
Application of Water Cooling Machine:
protect jewelry metal smelting furnace and saving water
Advantages of Water Cooling Machine:
Advantages of Water Cooling Machine:
1、Water cooling machine is an optional part. Smelting Furnace can also be operated with the water pump hanging behind the machine. Without water cooling the machine will automatic stop heating. But it wasts the water largely. And when it's not enough water providing, using the smelting furnace is not very safe alone.
2、Equipped with the water cooling machine, when metal smelting the water will be recycled very well. It's saving water and protect the smelting furnace better.
3、It's 4 Liters when full of water, it can be used nearly half of year.
Technical Parameters of High Quality Water Cooling Machine Used for Protecting Jewelry Metal Smelting Furnace and Saving Water | ||||||
Power Supply | Supplied by smelting furnace | |||||
Water Capacity | 4 liters for water cooling machine | |||||
Inlet Temperature | less than 70 degrees for water cooling machine | |||||
Max Inlet Temperature | 80 degrees for water cooling machine | |||||
Dimension | 345 * 316 * 495 mm for water cooling machine | |||||
Power | 130 W for water cooling machine | |||||
Water Recycle | 0.7 L/min for water cooling machine | |||||
Net Weight | 18 KG for water cooling machine | |||||
Prdoduct Feature
Illustration of Smelting Furnace without Water Cooling Machine
1、Water Inlet: Prepare a container to store water (tap water), use a PVC tube to connect inlet container. Make sure there is adequate water in the container, which keeps the machine to work normally and continuously. Water consumption is 0.7L/min.
*****
Without water cooling machine, if there is not adequate water in the container, the machine will not work normally and not be safe. And the water consumption is 0.7L/min and it will waste the water largely.
2、Water outlet: Used water goes out from this tube. The water will be heated when machine is working, the water in this container can not recycle to use. To start another melting pocess, please replace it with new water of normal temperature.
*****
Without water cooling machine, the heated water can't be cool so fast, so it can't be recycled in time. It will waste the water.

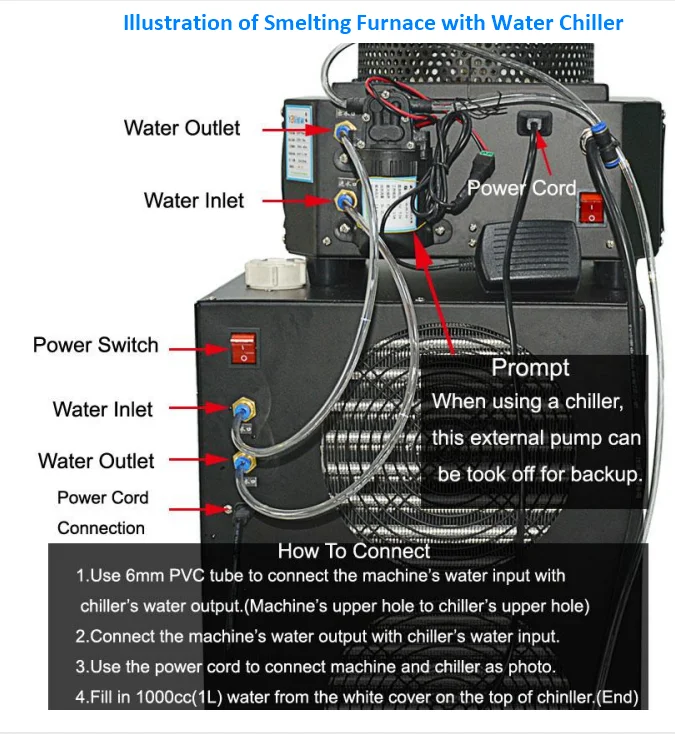

Illustration of Smelting Furnace with Water Cooling Machine

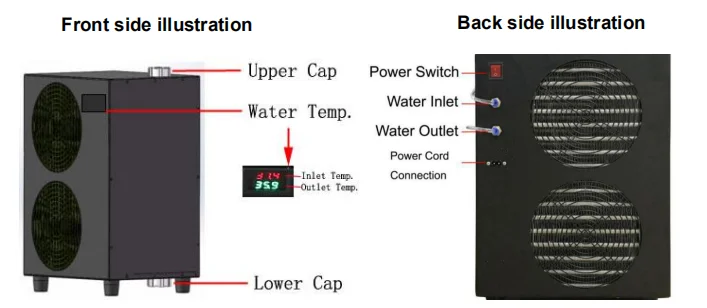

Water inlet illustration with water cooling machine:
Water inlet illustration with water cooling machine:
Advantages of water cooling machine:
With water cooling machine, the water can be recycled and more safe, and it can protect the smelting furnace better. Only put 4 liters of water full of water chiller, it can be used half of month. But for more safety, we advise check the water chiller every 3-4 months from upper cap whether there is enough water inside. If not enough, refill rom upper cap until it's full.
Attention of water cooling machine:
1、Water cooling machine is an optional part. The smelting furnace can also be operated with the water pump hanging behind the machine. Without water cooling machine the machine can be automatically stop heating.
2、When first time use, add 2 liters water from the upper cap of the water cooling machine. Total water capacity inside is 4 liters. If not enough, refill rom the upper cap until it's full.
3、When the room temperature is high (more than 35 centigrade degrees), the normal water temperature will increase to 35-40 centigrade degrees.
4、When the inlet temperature of the water chiller exceeds 80 centigrade degrees, or the outlet temperature exceeds 45 centigrade degrees, the smelting should be stopped immediately and the smelting furnace's working switch should be closed. Keep the water cooler open and wait for more than 2 minutes.After the inlet and outlet water temperature drops, turn on the working switch again.
.
