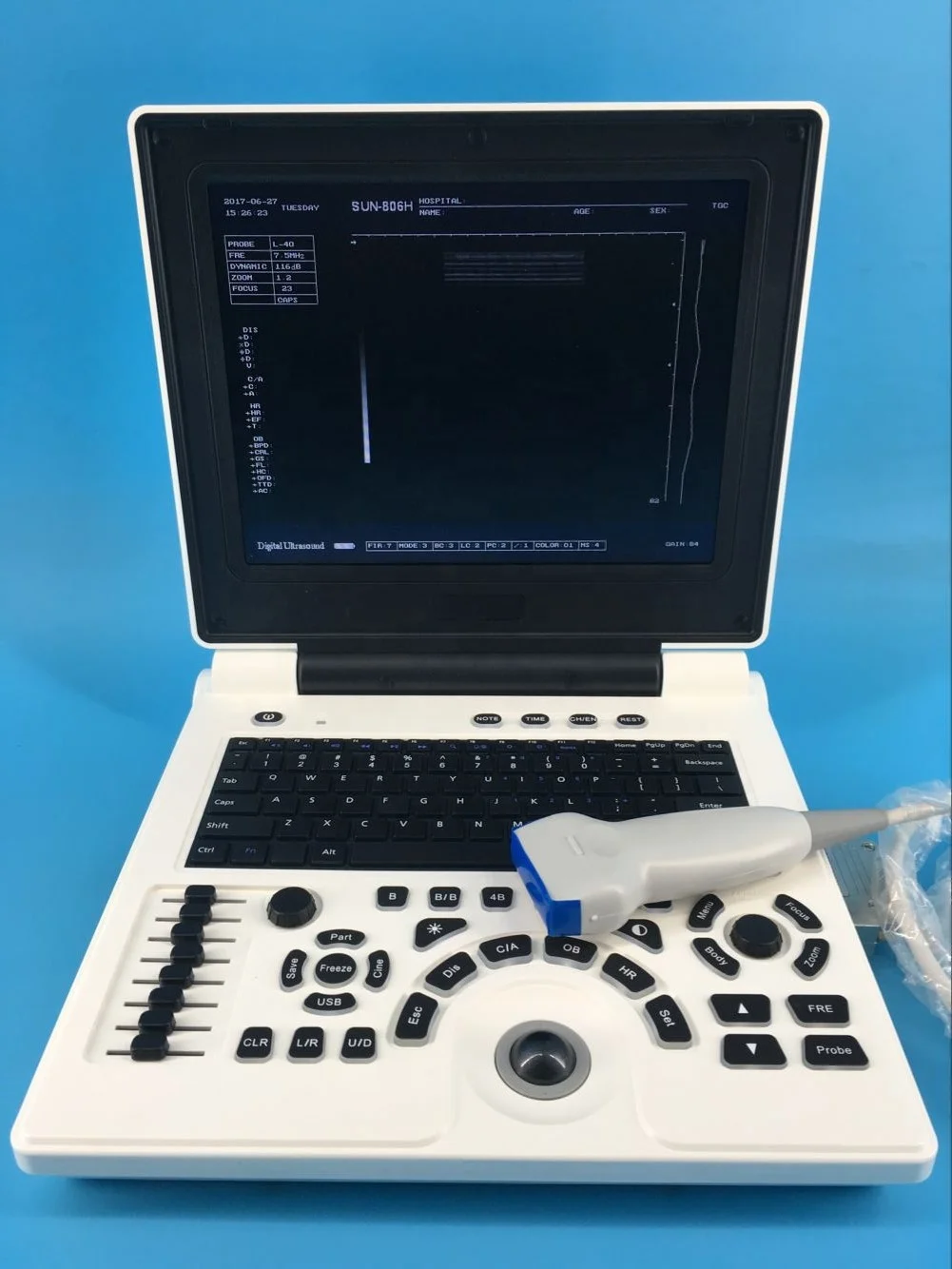

Недорогой ультразвуковой ноутбук Sunbright OB GYN ecograph

This Ultrasonic diagnostic instrument (here in after referred as instrument) using 3.5 MHz electronic convex array probe, adopts full digital beam former(DBF); real-time dynamic aperture imaging (RDA); full digital dynamic receive focusing (DRF); frequency conversion; 8 segments TGC; dynamic digital filtering; dynamic digital filtering; image enhancement; line correlation, frame correlation, point correlation, linear interpolation and many other image processing technology, etc.;

Display modes as B, B/B, 4B, B+M and M, image multiplying factors of *0.8, *1.0, *1.2, *1.5, *1 .8, *2.0 under the B mode;

With 128 a large memory and offers permanent storage, cine loop in real time; 256 images available after diagnosis of real-time playback or by image viewer,

Has measurements of distance, area, circumference, heart rate, gestational weeks(BPD,GS,CRL,FL,HC,OFD,TTD,AC 8 measurement kinds) and so on;

Chinese and English transformation; 16 kinds of pseudo color processing; real-time clock; serial number of medical record; many note functions as full-screen character noting;

Adopts large scale integrated circuit FPGA, MSF, mass memory, surface mounting technology and so on.

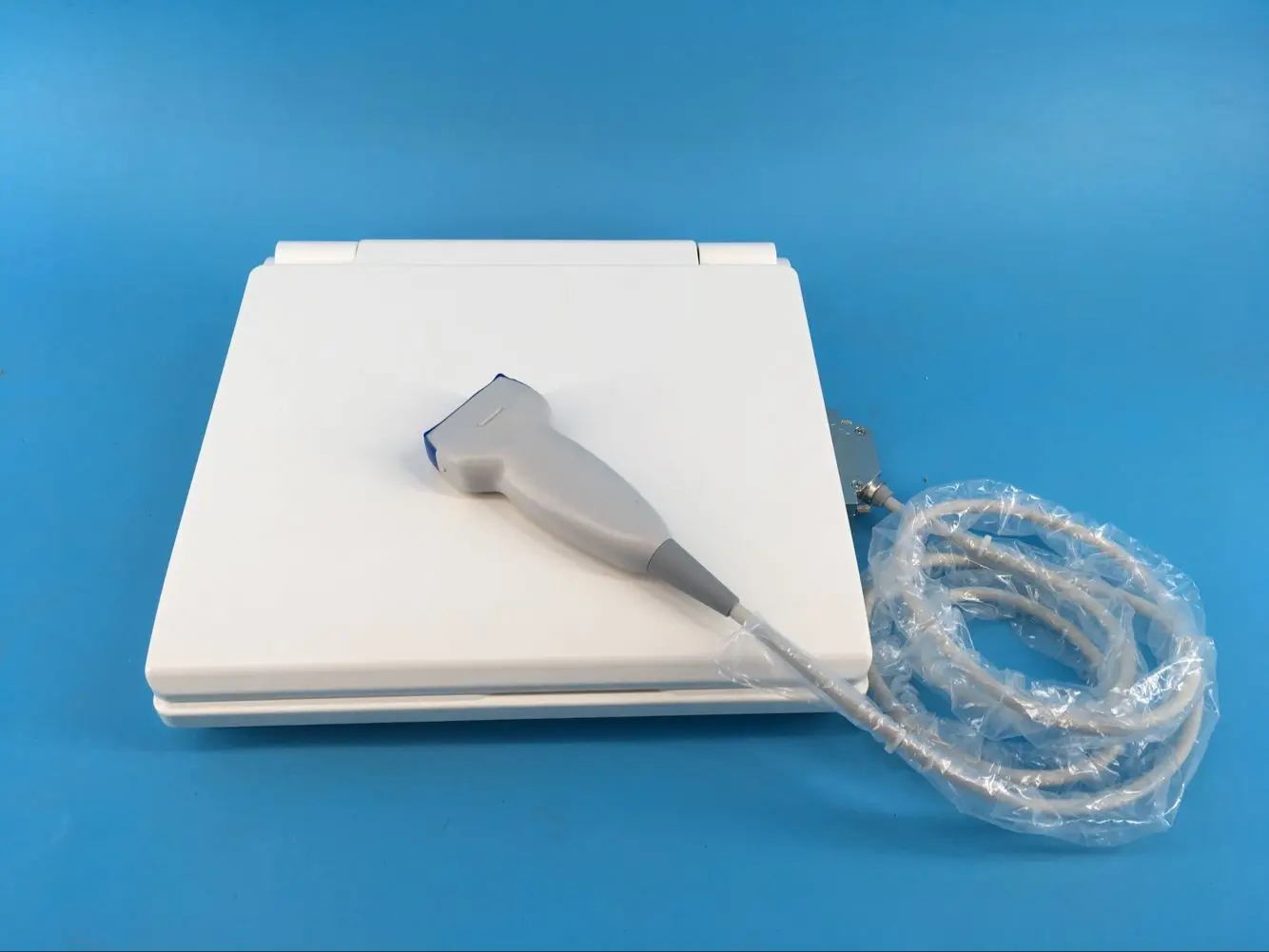

Probe configuration: T35R60GB convex array probe (standard);

Display modes:
T35R60GB convex array probe: B, B/B, 4B, B+M, M;
T50R20GB type micro convex probe: B, B/B, B+M, M;
T65R13GB type cavity probe: only B;
T75L40GB type linear array probe: only B;


Image multiplying factor:
35R60GB convex array probe, Type B, real-time state:*0.8, *1.0, *1.2, * 1.5,*1 .8, *2.0;
*0.8, *2.0 (display penetration depth);
T65R13GB type cavity probe: *0.8, *1.0, *1.2, *1.5.


M type:
M type scanning has eight kinds of speed can be selected;
M mode or B+M mode :When the heart rate of more than 100, measurement error will increase
Zoom: Local * 2.0 magnification rate
Dynamic range: 0~120dB adjustable.


Frequency:
T35R60GBconvex array probe real-time
scan:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion;
T65R13GB type cavity probe/ T75L40GB type linear array probe real-time scan:
5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz five periods of frequency conversion.


Focus position:

Send: 1, 2, 3 and 4-segments dynamic electron focusing; when 1,2-segments focus,
the focus can be moved.

Receive: receive real-time dynamic focus by focus

Measuring function: Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, HC,TTD,OFD,AC), expected date of confinement and fetus weight, etc.

Annotation function: hospital name, patient's name, age and gender;

64 body marks (with probe's position); Full-screen character annotation; Real-time clock display;

Puncture guide: 3.5MHz convex array probe can display puncture guide line in B mode.

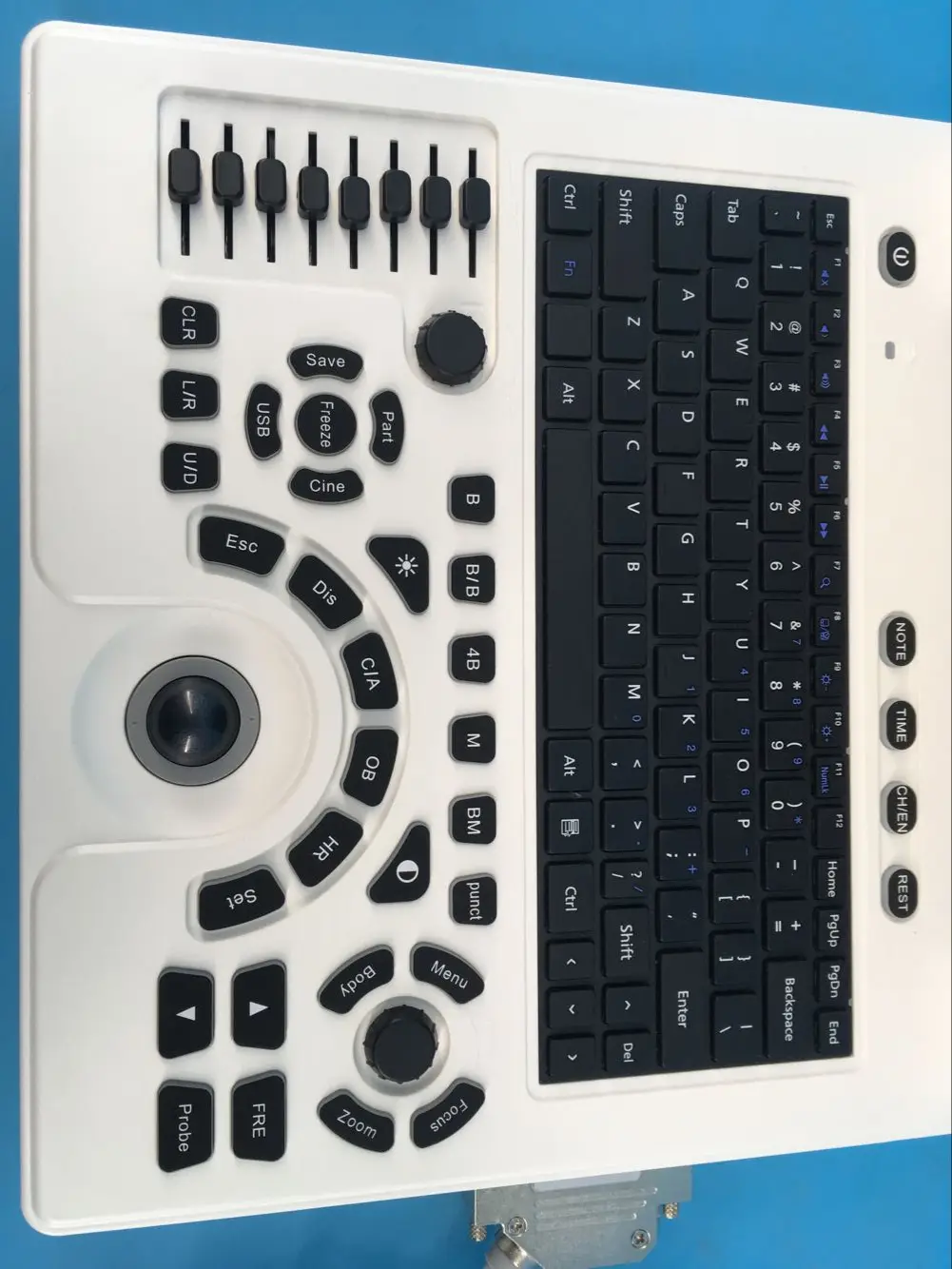

Gain control: 8 segments TGC and overall gain can be adjusted respectively.

Image polarity: left and right flip, black and white flip, up and down flip.

Permanent storage: more than 128 images.

Image playback: series playback or check one by one.

Image processing:  V correction, frame correlation, point correlation, line correlation,
digital filtering, digital edge enhancement and pseudo color processing, etc.

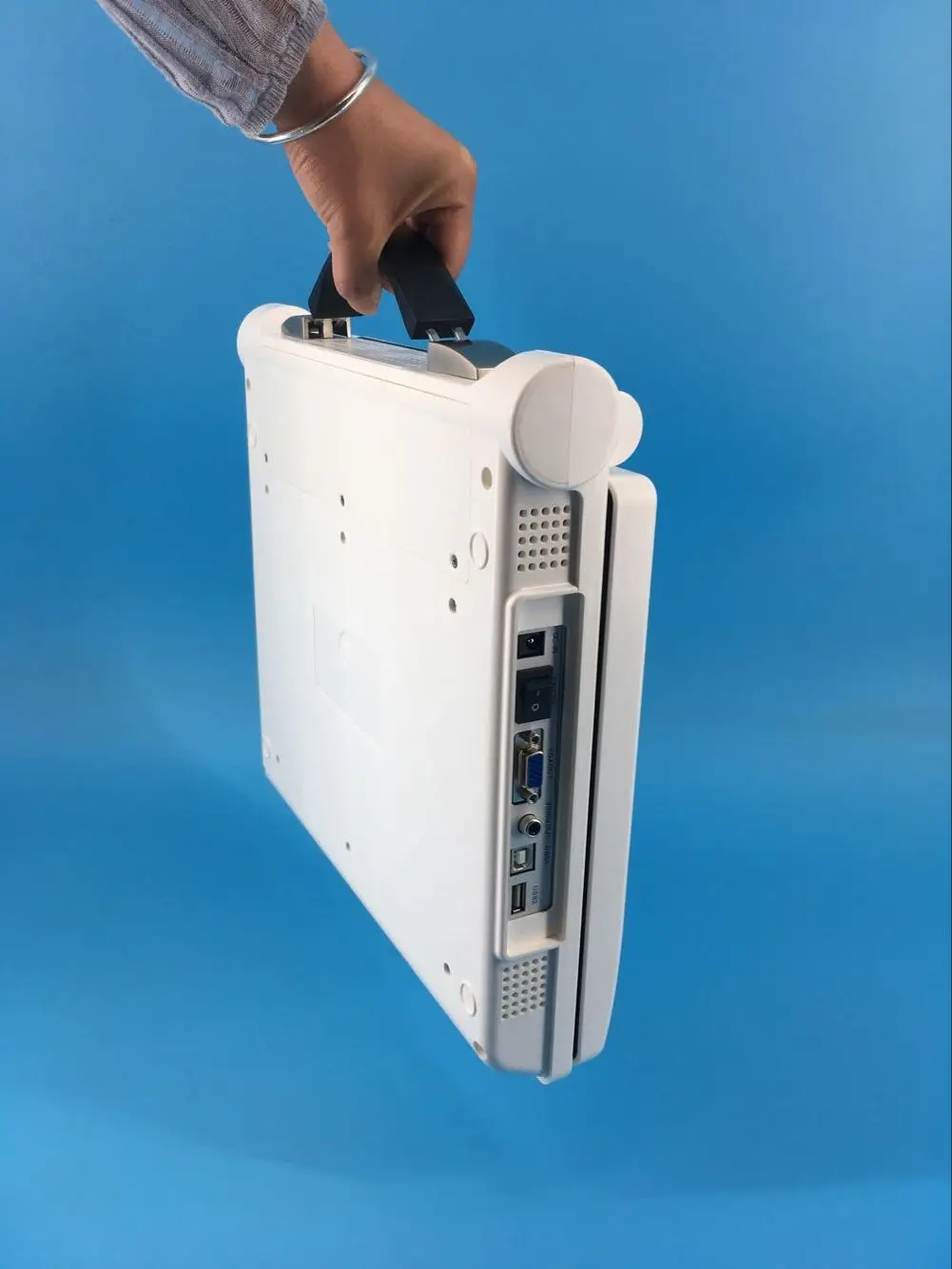

Output interface: SVGA video output offers connection to SVGA color display; workstation, etc.
PAL video output offers connection to PAL display, video image recorder and image

USB interface: Only for U disk storage image, image format is BMP.

Running hours:  more than 8h.
The battery pack continuous working time: more than 2h.
Input power: no more than 110VA.
Host weight: about 2.5 kg.
Host appearance size: 309 *312 * 68 (length *width * height) (mm3).

1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
