Traveling Head Cutting Press for Leather/PVC Desk Pad/Shoes Insoles/Ball Panels

The computer-controlled cutting machine can rotate and cut at any angle during cutting, and it is suitable for shoes, masks, and other materials cut with a small knife die. Because of the flexibility of cutting, the travel head shoe insoles cutting machine is more suitable for mass production in factories, and the work efficiency is doubled compared with the original machine.



Parameter:

Model	HG-CA30T
Cutting Force	30 tons
Dimension D*W*H(mm)	3000*2200*1900mm
Cutting area	2000*610mm
Cutting belt width	1600mm
Moving Cutting Plate W*D(mm)	300*300mm
Motor (Kw)	4
Stroke (mm)	40-160mm
Net Weight	3500kg



Feature:

1. Travel head shoe cutting press machine is used for the cutting of all kinds of small knife molds for leather, shoes(sole,insole,shoe-pad,upper of the shoe), cloth, masks, toys, etc. in the industry, and is suitable for large-scale cutting factory operations.



2, Double oil cylinders, precision four-column auto-balancing link structure,which can guarantee uniform cutting depth of each cutting position.



3. The input and output of the material are conveyed on the conveyor belt, and the die cutting of the material is also automatically performed on the conveyor belt.



4. The device with cutting board and fixed mold makes the operation more convenient.



5. Special specifications of the product can be customized.



6.Travelling head can rotate freely in any angle of 360°.

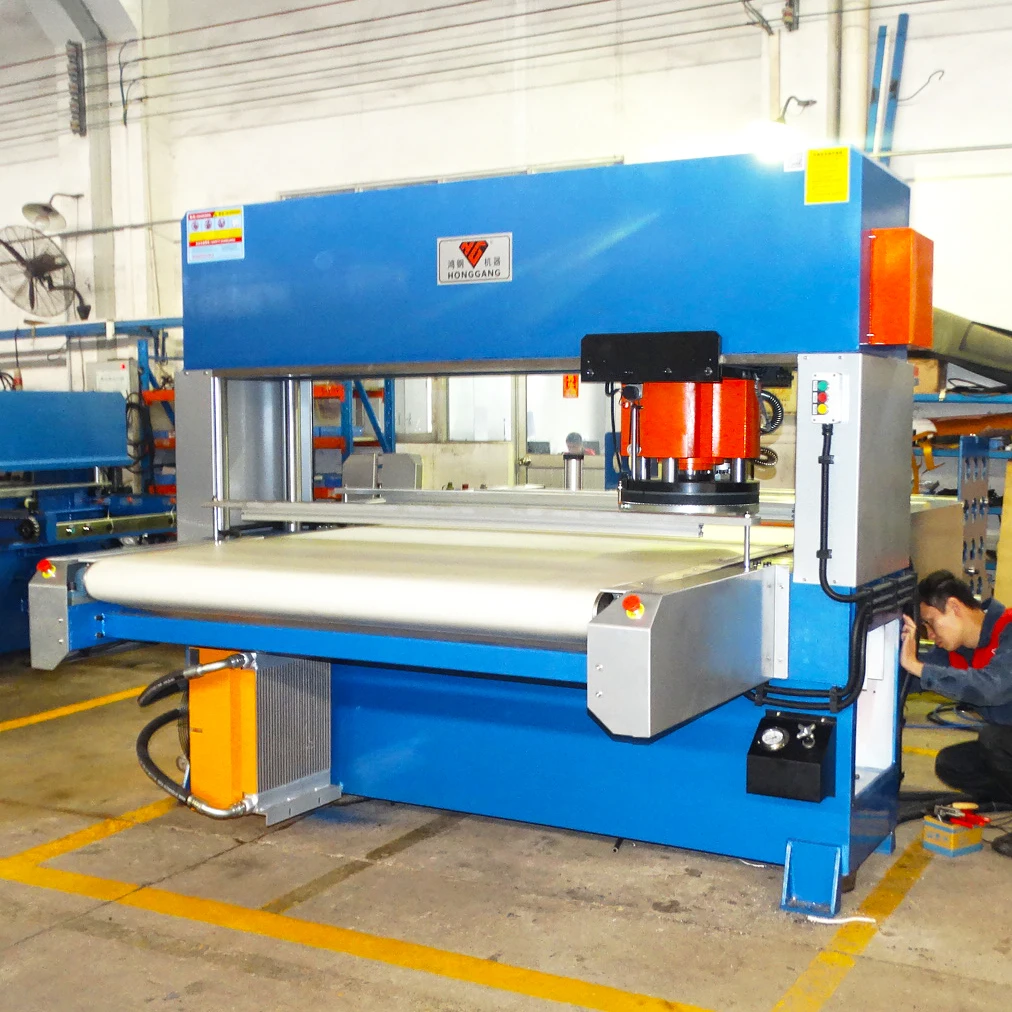

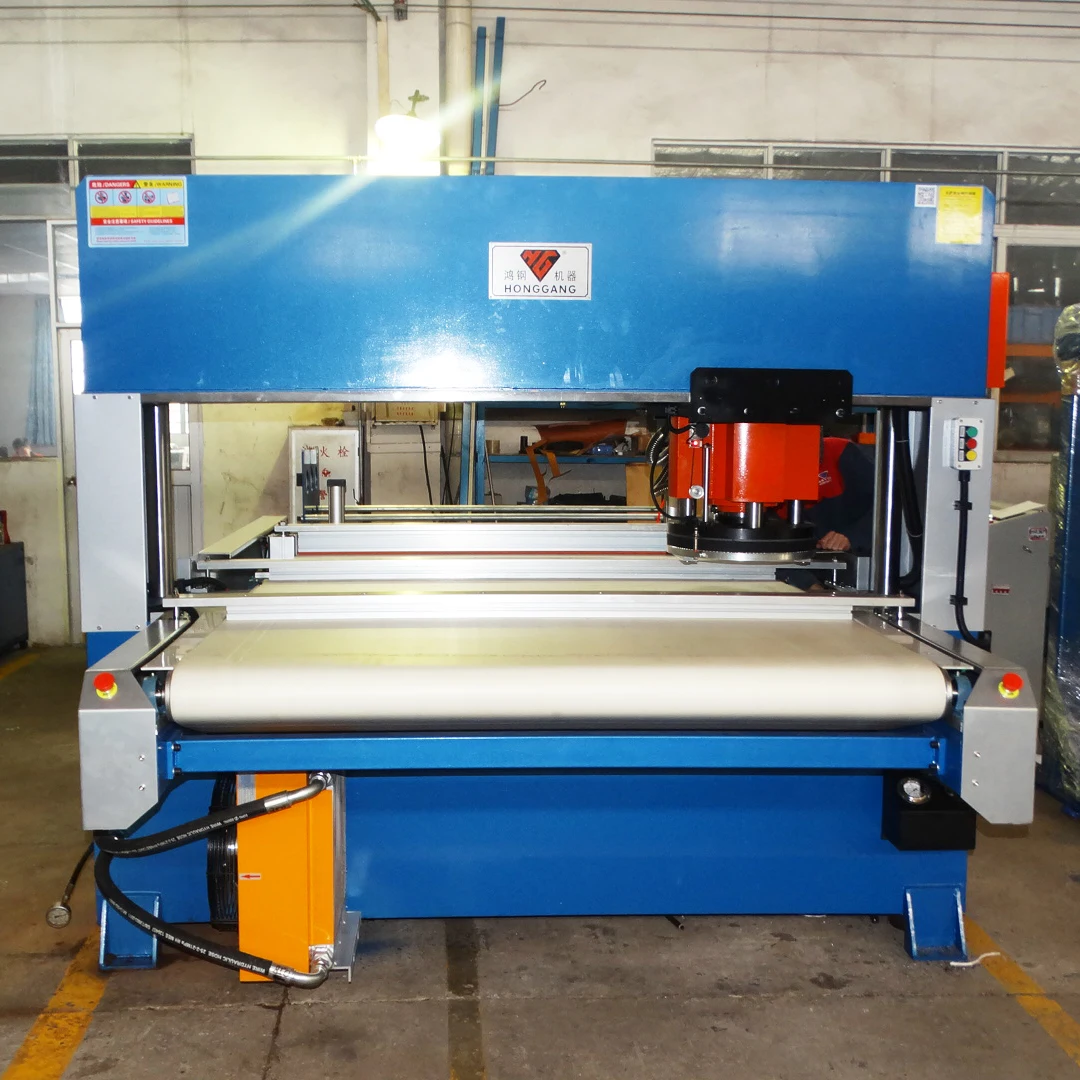

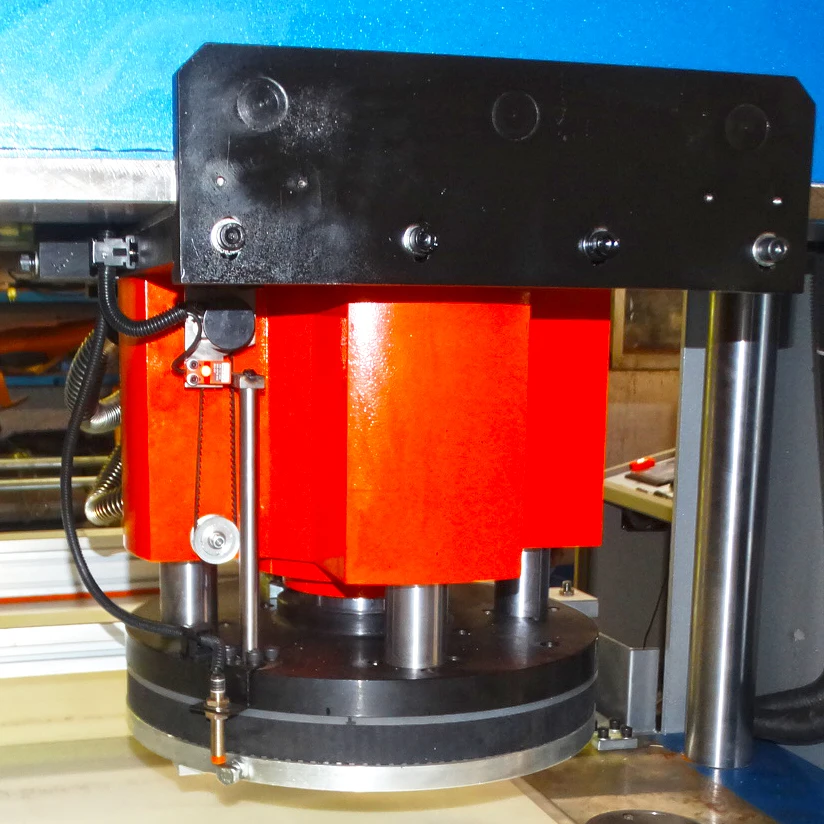

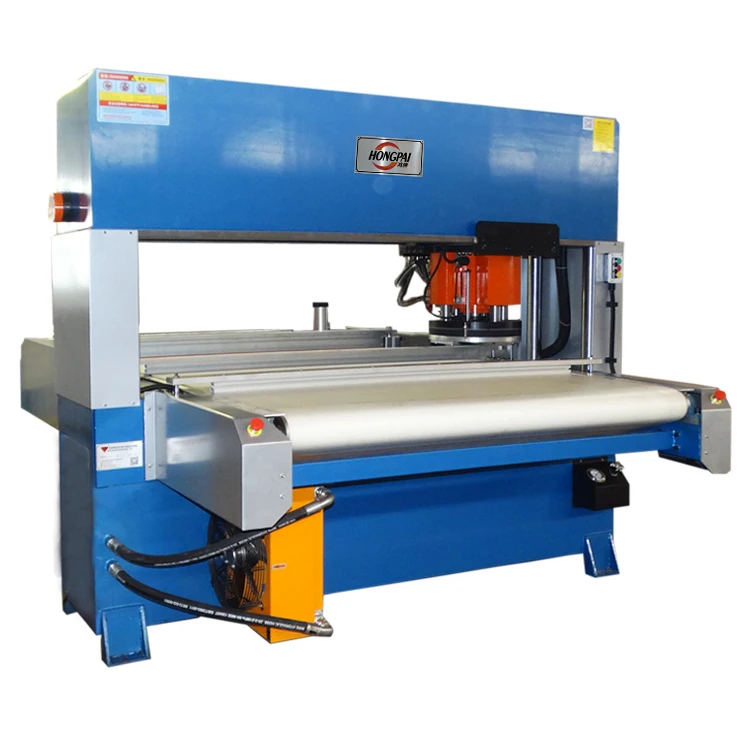

Detail of  travel head shoe insole cutting press machine:



Application:

Mainly used in a variety of leather, rubber, cardboard, fabric, chemical fiber, non-woven fabrics, and other multilayer materials.



Advantage:

1. The machine adopts a walking head frame and the operation is very firm.



2. The cutting point setting is simple and effective.



3. This travel head shoe cutting press machine has two-hand operation function and is very safe.



4. The motion cutting is controlled by the cross switch and the travel switch to ensure safety.



5. Motion cutting can be automatically moved to improve work efficiency.



6. The machine can add accessories to save labor.





Our Customer:



About Us:



FAQ:

1)What's your after-sales service?

->Engineer available to serve machines over seas; Email and calling service in working hour;  24 hours door to door in domestic.



2)Can we test the our material by your machine free?

->Yes, please contact us to send your matrial.



3)Are you a factory or trading company?

->We are a factory and manufacturer



4).What is the guarantee of product quality?

->We offer our customers a one-year free maintenance service. In general, our technical staff will identify the cause of the problem based on customer feedback.
