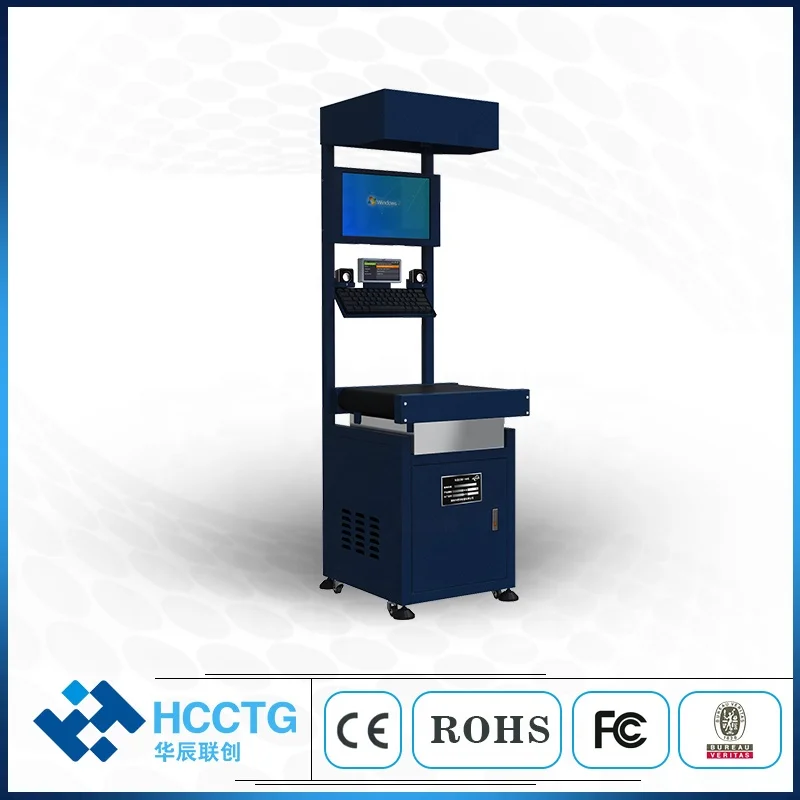

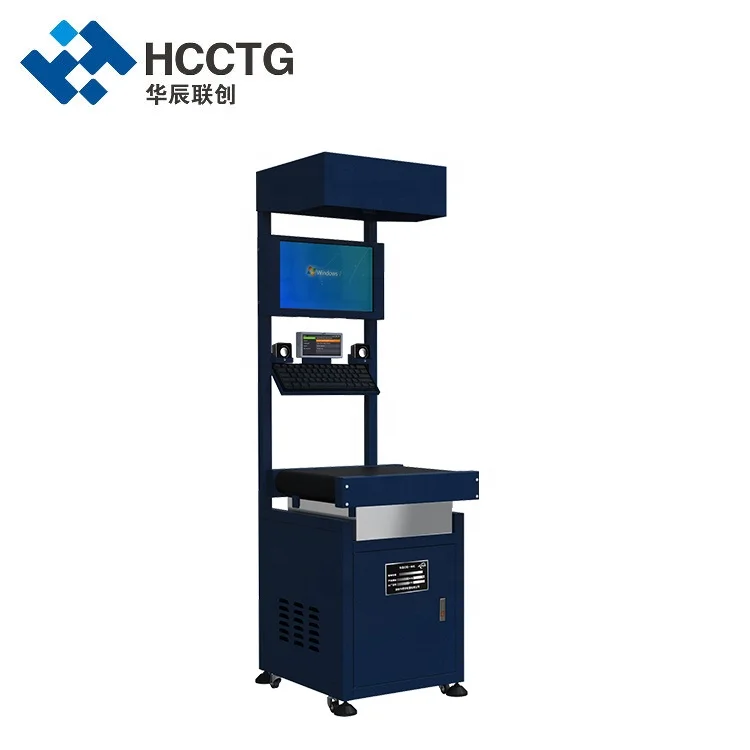

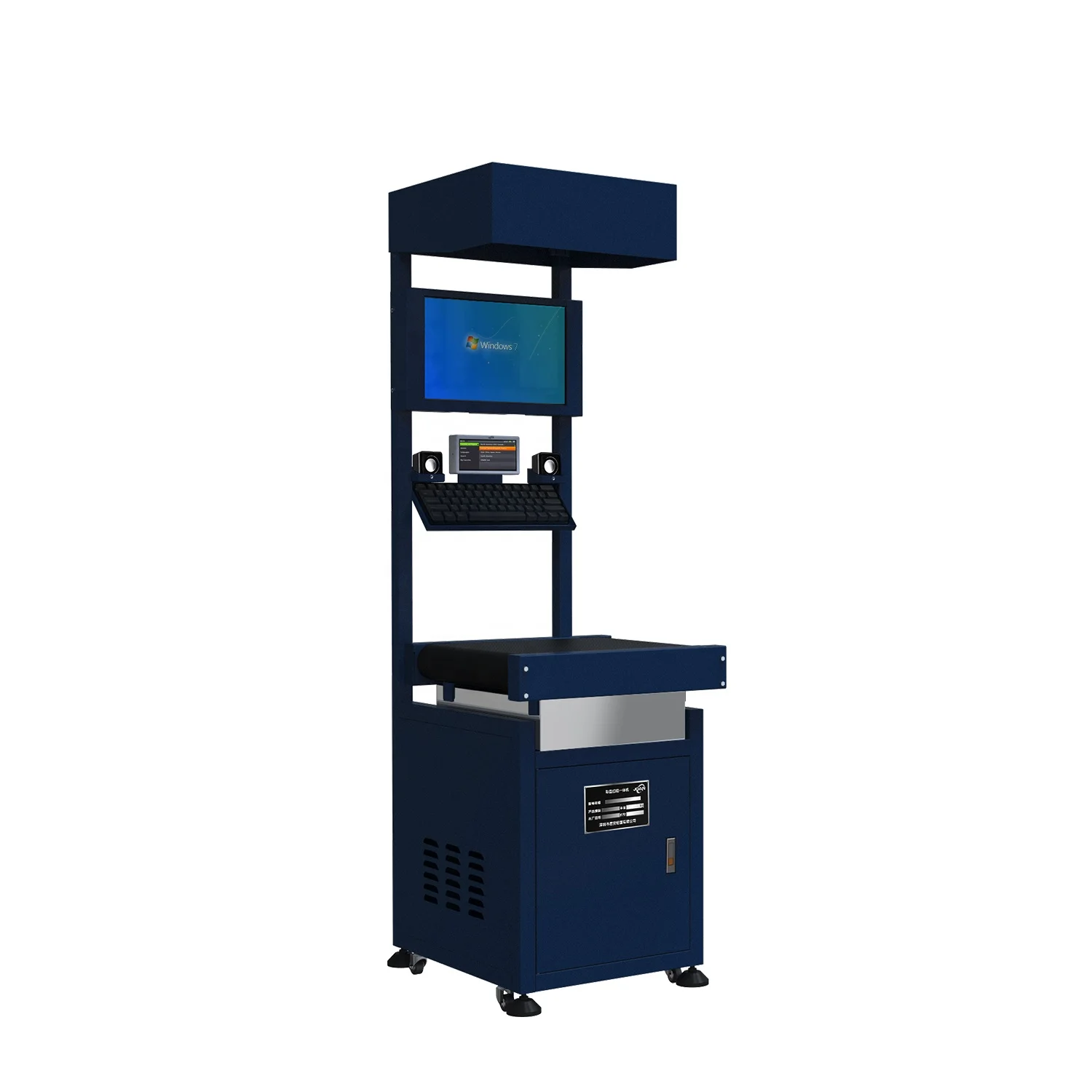

2 в 1 Автоматическая сканирующая машина для измерения веса проверки и отслеживания посылки
- Категория: Cargo & Storage Equipment >>>
- Поставщик: Shenzhen,Hcc,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 3273.91 $* | 3437.57 $* |
| Aug-19-2025 | 3245.74 $* | 3407.65 $* |
| Jul-19-2025 | 2723.7 $* | 2859.28 $* |
| Jun-19-2025 | 3190.85 $* | 3350.96 $* |
| May-19-2025 | 2778.24 $* | 2917.83 $* |
| Apr-19-2025 | 3135.9 $* | 3292.33 $* |
| Mar-19-2025 | 3108.75 $* | 3263.25 $* |
| Feb-19-2025 | 3080.59 $* | 3234.84 $* |
| Jan-19-2025 | 3053.92 $* | 3206.63 $* |
Характеристики
Product Description
Product Paramenters
General
This product is used for weighing and scanning of small parcels. It integrates automatic scanning, photo taking, volume measurement, weighing and piece counting, it also integrates the collected barcode, volume and weight data through software, and can be docked into E-commerce, express delivery, logistics management systems.
Feature
* Simplify the operation process, improve work efficiency and reduce labor costs.
* Skilled operators can sort parcels up to 3000 pieces / hour.
* Trim and correct the recognized picture and enhance the effect, and save it to the local or server.
* High-accuracy binocular stereo camera with built-in high-accuracy algorithm to efficiently output the original image data, depth data and volume measurement data of the measured object.
* The collected data can be seamlessly connected with the customer's existing management system.
* Multiple data transmission modes, support custom development.
* Skilled operators can sort parcels up to 3000 pieces / hour.
* Trim and correct the recognized picture and enhance the effect, and save it to the local or server.
* High-accuracy binocular stereo camera with built-in high-accuracy algorithm to efficiently output the original image data, depth data and volume measurement data of the measured object.
* The collected data can be seamlessly connected with the customer's existing management system.
* Multiple data transmission modes, support custom development.
Specifications | ||||
Industrial host | IPC-2400 I5/4G/120G/ 2 gigabit network cards / 1 serial port | |||
System | Support Win XP/Win 7/Win 10/64bit OS | |||
Monitor | AOC,E2070SWNE,19.5 inch | |||
Audio | Xmusic D100 | |||
Keyboard and mouse | Wireless mouse and keyboard | |||
Weighing display | T0.1 | |||
Metal plate size | 510*550*2170mm (With movable caster) | |||
Belt size | 400*500mm | |||
Weighing | High-precision belt scale (accuracy class C5) | |||
Scan acquisition | 6MP HD Industrial Camera | |||
Volume measurement | High-precision binocular stereo camera | |||
Operating temperature | -10℃ to 40℃ | |||
Depth of field | Up to 600mm | |||
Communication connection | Gigabit Ethernet card | |||
Minimum barcode interval | 7mil(0.18mm) | |||
Data output speed | 60-80 records and weight sending per minute | |||
WLAN | Wi-Fi 802.11b/g/n | |||
WPAN | Bluetooth 4.0 | |||
1D Scanning | UPC-A, UPC-E, EAN-13, EAN-8, 39 code, Cross 25 code, Matrix 25 code, code bar 128, UCC/EAN 128(GS1-128), ISBT 128, 93 code, China Post, China Finance, GS1 Data Bar, GS1 Data Bar Truncated 3, GS1 Data Bar Limited, GS1 Data Bar Expanded | |||
2D Scanning | Coda block A, Coda block F, PDF417, MicroPDF417, QR Code, Data Matrix, Maxi Code, Chinese Sensible(Han Xin) code, Aztec Code, Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Plant Code, Potent | |||
RFID | 13.56 MHz, ≤5cm, ISO14443A/14443B/15693, Support NFC near field communication | |||
GPS | A-GPS | |||
Infrared Meter Reading | Working frequency 37.9K | |||
Interface | USB Interface | |||
Standard | Battery, Adapter, USB cable for power and communication, Hand strap | |||
Card Slot | 2 SIM card slots, 1 TF card slot, 1 PSAM card slot | |||
Development Tool | Android SDK +JDK +Eclipse | |||
Programming Language | Java, C | |||
Operating Temperature | -27℃ ~ 50℃ | |||
Storage Temperature | -27℃ ~ 60℃ | |||
Humidity | 0 ~ 95% | |||
Drop Specifications | Multiple 1.5m drop to tile over concrete | |||
Tumble Specifications | Exceeds 500 (0.5m) tumbles | |||
Sealing | IP67 | |||
ESD Protection | ±12kV air, ±8kV contact | |||
