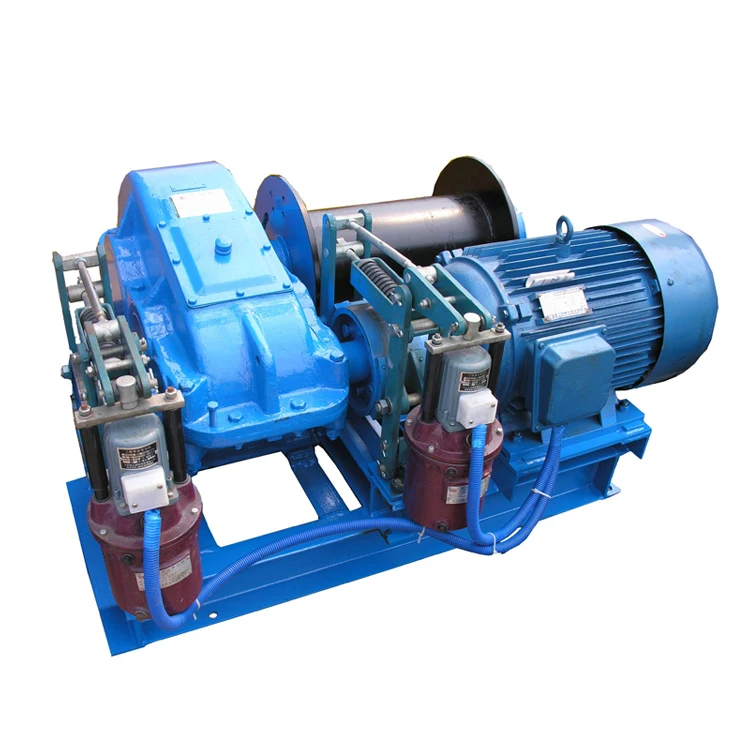

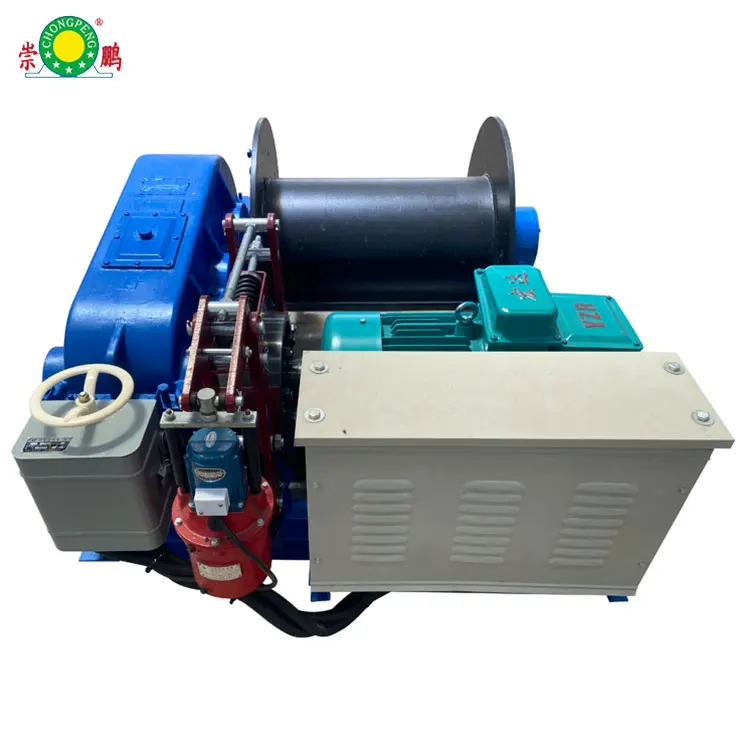

sale high quality Industrial 10ton compact electric winch
Product features
Basic Parameters | Rated Load | Average Speed of Rope | Capacity of Rope | Rope Diameter | Motor Power | Overall Dimension | Total Weight |
Model | KN | m/min | m | mm | KW | mm | kg |
JM1 | 10 | 15 | 100 | 9.3 | 3 | 620×701×417 | 270 |
JM1.6 | 16 | 16 | 150 | 12.5 | 5.5 | 945×996×570 | 500 |
JM2 | 20 | 16 | 150 | 13 | 7.5 | 945×996×570 | 550 |
JM3.2 | 32 | 9.5 | 150 | 15.5 | 7.5 | 1430×1160×910 | 1100 |
JM3.2B | 32 | 12 | 195 | 15.5 | 7.5 | 1082×1014×610 | 536 |
JM6 | 60 | 9.5 | 270 | 24 | 15 | 1235×1509×805 | 1800 |
JM8 | 80 | 8 | 250 | 26 | 15 | 2090×1475×956 | 2900 |
JM8B | 80 | 9.5 | 350 | 26 | 15 | 1075×1598×985 | 2650 |
JM10 | 100 | 8 | 170 | 30 | 22 | 2090×1475×956 | 3000 |
JM10B | 100 | 9.5 | 250 | 21.5 | 22 | 1705×1598×985 | 3500 |
JM12.5 | 125 | 8 | 300 | 34 | 30 | 2880×2200×1550 | 5000 |
JM13.5 | 135 | 8 | 290 | 28 | 22 | 2990×2362×1650 | 6500 |
JM16 | 160 | 10 | 500 | 37 | 37 | 3750×2400×1850 | 8800 |
JM20 | 200 | 10 | 600 | 43 | 45 | 3950×2560×1950 | 9900 |
JM25 | 250 | 9 | 700 | 48 | 55 | 4350×2800×2030 | 13500 |
JM32 | 320 | 9 | 700 | 56 | 75 | 4500×2850×2100 | 14800 |
JM50 | 500 | 9 | 800 | 65 | 90 | 4930×3050×2250 | 19500 |
JM65 | 650 | 10.5 | 3600 | 64 | 160 | 5900×4680×3200 | 46000 |
The above technical parameters and dimensions are not fixed,they can be designed specially in according with customer requirements
click me! Learn more product details.
Henan Chongpeng Machinery Co., Ltd.
Henan Chongpeng Machinery Co., Ltd. was established in 2014 with a registered capital of 68 million yuan, total assets of 200 million yuan, and an area of about 100,000 square meters. The total number of employees is about 650, including about 30 technical research and development personnel; The company is mainly engaged in the research and development, design, manufacturing, installation, import and export business of various non-standard winches, hoists and kinds of industrial cranes.
Henan Chongpeng Machinery Co., Ltd. is the first manufacturer in Henan to obtain the production qualification certificate for winches and gate hoists; we are China’s first 20,000-ton bridge crane main lifting mechanism design and manufacturing unit, and the company’s products are exported to Southeast Asia, Central Asia, and the Middle East , Africa and more than 100 countries. The company's hoist products cover: fast hoists, slow hoists, slow turbine worm hoists, friction hoists, diesel-powered series hoists, and fast-rolling series hoists. Hoist products cover: fixed hoist, mobile hoist, mobile dam crest gate hoist, water conservancy gate, sewage cleaner (and grab), etc. The company has participated in the Chinese construction hoist manufacturing standards, and has successively won honors such as the famous brand of Henan Province and the annual AAA credit of the enterprise; Chongpeng's products are widely used in road and bridge, metallurgy, mining, railway, petroleum, chemical, and hydropower engineering construction projects. Our main customers are China Water Conservancy and Hydropower Construction Group, China Railway Science and Engineering Design Institute, China Railway Bridge Bureau, China Communications First Company, Armed Police Xiluodu Hydropower, Xi'an Xidian, Tangshan Ganglu Iron and Steel, Hebei Iron and Steel Group, Rizhao Iron and Steel Group, Anyang Iron and Steel , MCC South, etc.;
Create the Chongpeng quality brand and promote the Chinese famous family industry. Henan Chongpeng Machinery Co., Ltd. will provide innovative, intelligent, green and environmentally friendly systemic complete equipment solutions as the starting point, take responsibility for the society, create profits for customers, and seek happiness for employees. Noble quality, we will work together!
1.We can discuss details and solutions with you according to your needs, and produce high-quality products suitable for you.
2.The company has professional business staff to answer your questions online 24 hours a day.
3.Perfect after-sales service, solve problems for you in time
4.have a dedicated engineer to provide you with overseas guidance installation services.
5.We have trained service technicians who will be able to get your material handling equipment up and running , and have been providing our customers an effective service solution.
Customize products, please click on me!
1. Q: What’s your MOQ?
A: 1 Set;
2. Q: What’s your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;
3. Q:If I want to customize my product, what should I do?
Please contact the customer service, tell us your needs, there will be a professional technical personnel and you discuss the details and solutions.
4.Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
