Китайский гидравлический мини Электрический самосвал 4
- Категория: Electric Tricycles >>>
- Поставщик: Gongyi,City,Yuxiang,Heavy,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.1 $* | 0.78 $* |
| Aug-15-2025 | 0.99 $* | 0.8 $* |
| Jul-15-2025 | 0.9 $* | 0.88 $* |
| Jun-15-2025 | 0.10 $* | 0.30 $* |
| May-15-2025 | 0.85 $* | 0.73 $* |
| Apr-15-2025 | 0.60 $* | 0.42 $* |
| Mar-15-2025 | 0.60 $* | 0.24 $* |
| Feb-15-2025 | 0.99 $* | 0.41 $* |
| Jan-15-2025 | 0.25 $* | 0.62 $* |
Характеристики
Product Description

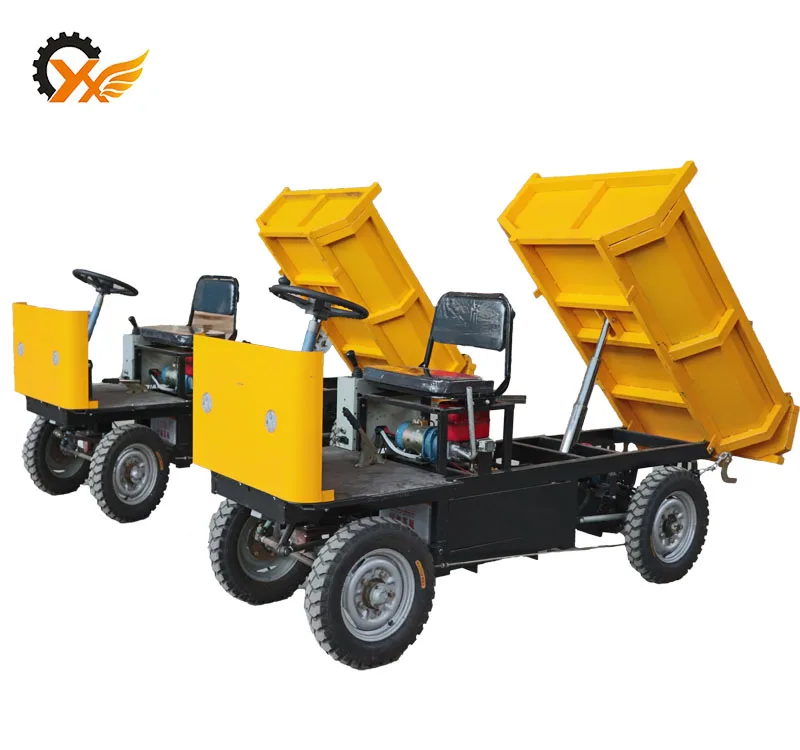

The 4 wheels mine dumpers is a new type of self-unloading tricycle, driven by electric for fuel, in the form of hydraulic movements. It consists of chassis, hydraulic lifting mechanism, cargo hold, equipment and other components. The use of this tricycle is very extensive, can be used in mining transport, garbage transport, and construction site transport and so on. Dump tricycle has a very convenient pull cargo and unloading capacity, and easy to operate, can save more time and efficiency.
Parameter
Technical specification of 4 wheels mini dumper | ||||||
Loading capacity | 1000kg | Front tire | 4.50-12 | |||
weight | 600kg | Rear tire | 5.00-12 | |||
Oversize | 2900*1000*1500mm | Lifting motor power | 1120w | |||
Box size | 1500*1000*500mm | Drive motor power | 1120w | |||
Thickness of box | 5mm | Operating speed | 15-20km/h | |||
Battery model | 185 Ah | Maximum gradeability | 25 degrees | |||
Charging time | First is 12 h, normal is 8h | Net weight | 600kg | |||
Charge Voltage | 48v | Insulation | Level B | |||
Detailed Images
Main features
1) Large capacity, wide application
2) Simple operation, convenient maintain
3) Big power, small demands for road
4) No pollution, energy saving
Brake pedal,Accelerator
Name: battery
No pollution, no noise, energy saving, and low cost
They use electric as power source, and an electric
charge can achieve sustained discharge 10-12
hours. Effectively reduce the cost.
Name: tire
As to tire, our factory adopts the high quality tire of chaoyang brand, which is heavy-duty and durable. So it can apply to any road condition.
It can support body, buffer external shocks, deformation under various load force and the function of the high and low temperature, ensure the security and stability of vehicle.
This is the battery Quick Charger.
The charger can use the household power 110v or 220v to charge directly. Charger jack is Chinese two pin plug, it can be customized the standard US or European plug.
Spring steel plate
It is made of special steel, and it has high tensity, capricious, so it can buffer shock absorption.
Hydrocylinder lifting control handle, the controller and Hydrocylinder lifting system
Near the lifting control handle the red tank is hydraulic oil tank, the Hydrocylinder and lifting motor can achieve self-unloading, very easy to opearte.
