Products Description

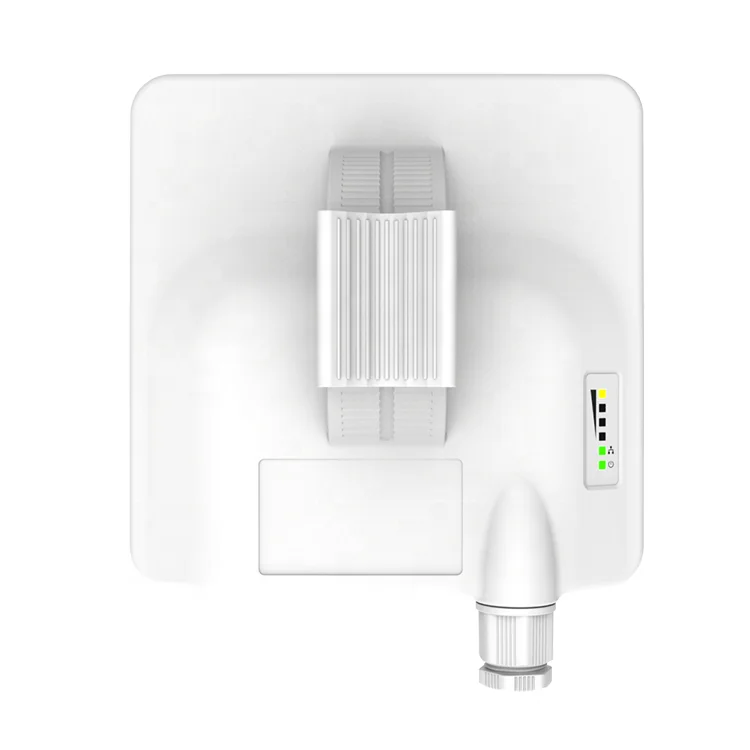

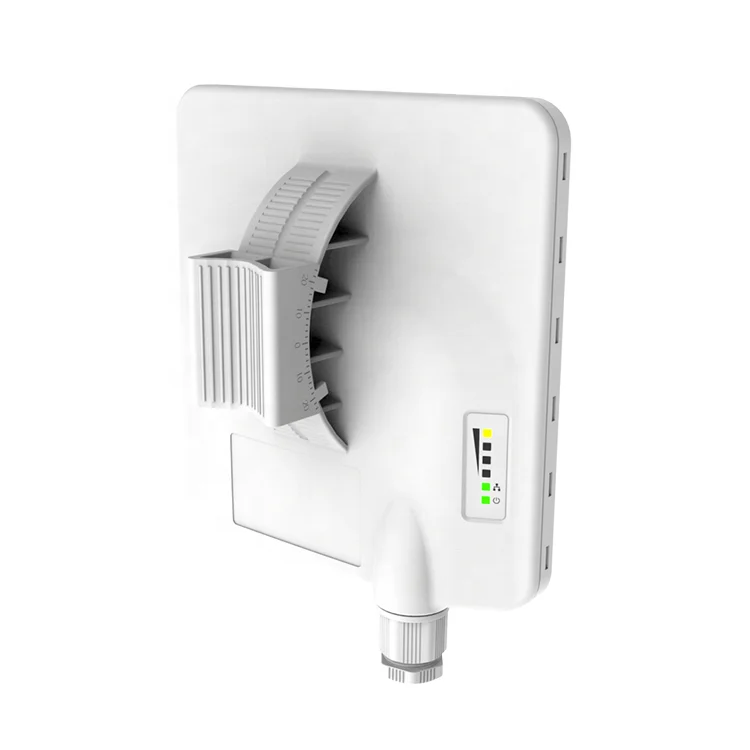

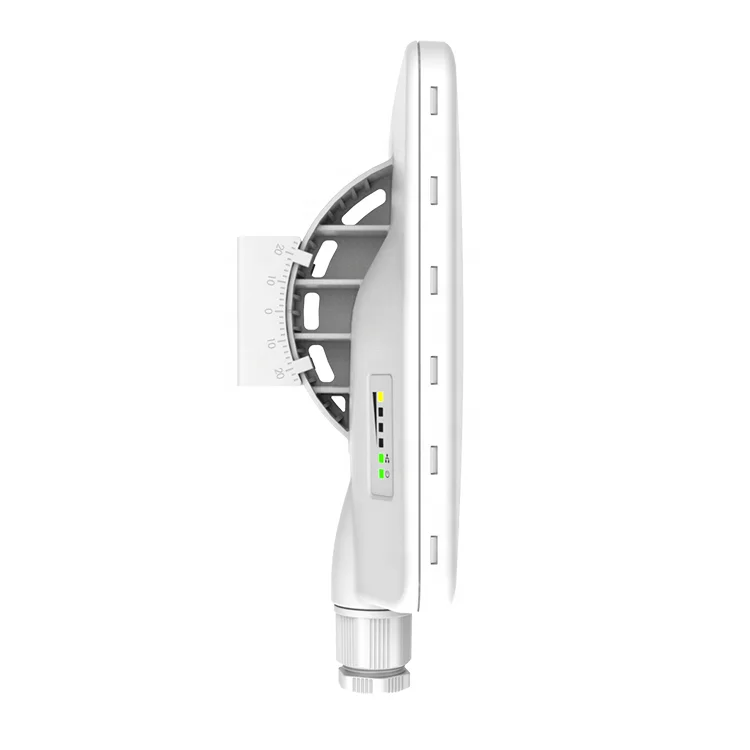

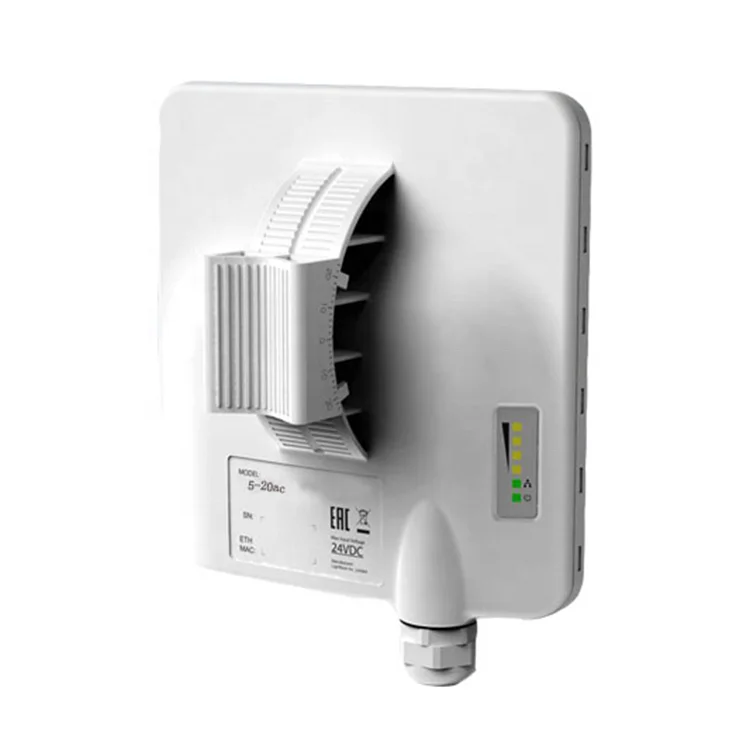

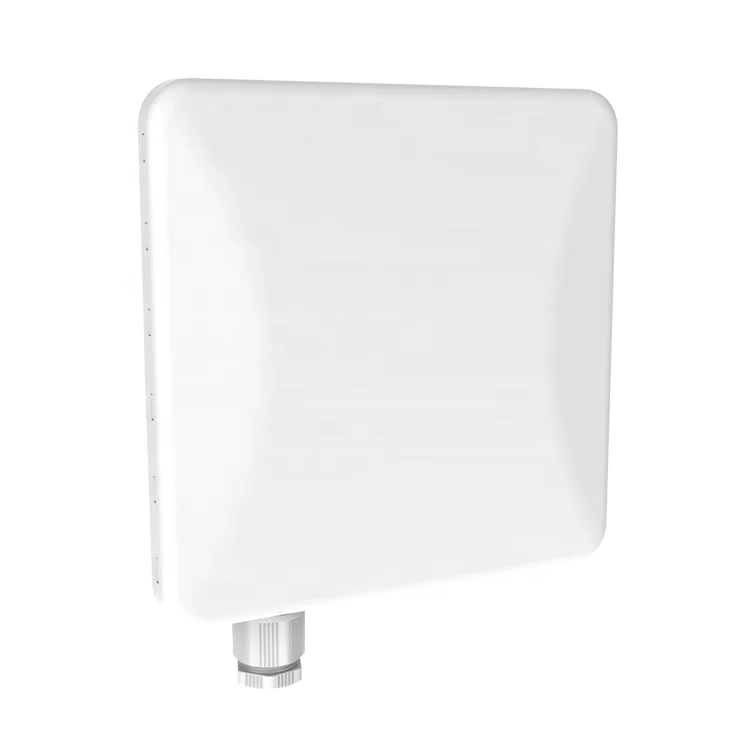

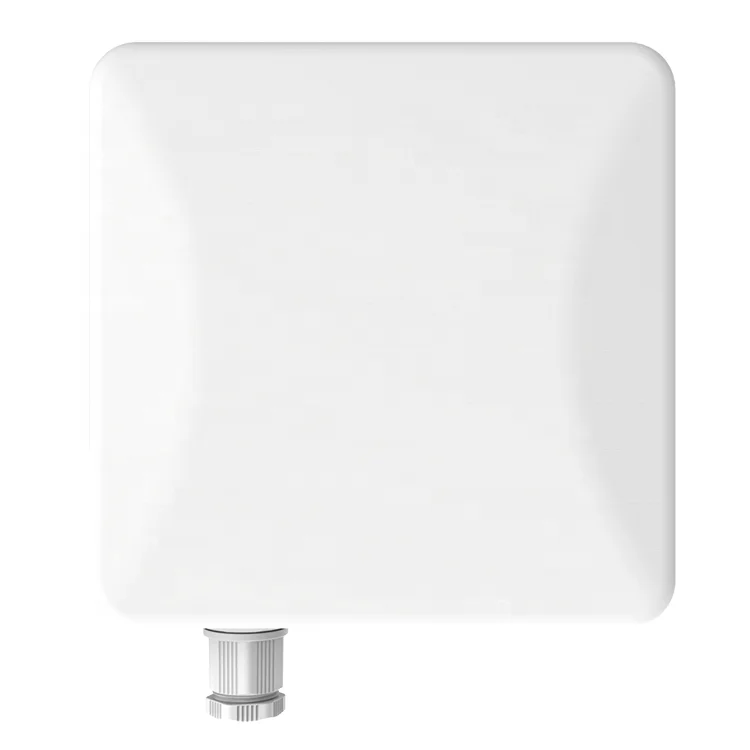

URwave QT 6-20ac 6GHZ MIMO CPE
The URwave 6G Series—an extension of the time-tested URwave line of wireless data transfer devices—empowers users to deliver superb connectivity over 6GHz frequencies. The 6GHz band provides more leg room for all types of wireless networks, allowing users to find minimally crowded channels, experience less noise and interference, and achieve greater range and throughput.
Equipped with a 750MHz QCA 9563 CPU, a QCA 9882 radio, and 64MB RAM/16MB Flash Memory, the URwave 6ac brings efficiency to the next level.
The state-of-the-art RF design with an integrated 20 dBi antenna(supports external antennas over N-Connectors, ) delivers great output power, improves range, and enables high-capacity transmission over 256-QAM.
+500Mbps of throughput—the result of a powerful hardware platform with an 802.11ac technology-based radio and the URwave iPoll 3 Proprietary Protocol.
The shape of the enclosure is now smaller, lighter but retains the IP-65 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.




Specification


Radio specifications
Wireless technology
IEEE 802.11 a/n/ac, iPoll 3 , 2x2 MIMO
Operating mode
Bridge, router iPv4, router IPv6
Radio frequency band
6GHz Models: 5.9–6.4GHz
Channel size
Configurable 5,10,20, 40,80 MHz
Max transmit power
30 dBm (country dependent )
Modulation schemes
802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
Data rates@80Mhz
802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps
802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps
Error correction
FEC, LDPC
Duplexing scheme
Time division duplex
Antenna
Type
Integrated dual-polarized directional panel antenna
Gain
20 dBi
Cross-pol Isolation
27dBi
Elevation beamwidth
H pol: 16deg, V pol: 16deg, Elevation: 16deg
Data Interface
Physical interface
10/100/1000 BaseT with POE
Protocol
Ethernet IEEE 802.3
Connector type
RJ45
Surge protection
Built-in (IEC 61000-4-2 (ESD) and IEC 61000-4-5 (SURGE))
Link performance
Real data throughput
500 Mbps aggregate (250 Mbps full-duplex)
Max packets per second
80,000
Packet latency
2 ms (64 bytes packet)
Recommended link distance
8~10 km
Security
Data encryption
Hardware based AES
Physical
Dimensions
216 mm (8.5 ‘’), 184 mm (7.2 ‘’), 80 mm (3.1 ‘’)
Weight
413g (0.91 lb) (mount included)
Power supply
24 VDC passive PoE (AC to 24 VDC adapter is included in the package)
Power source
100 – 240 VAC
Power consumption
10W
Environmental
Operating temperature
-40°C (-40 F) ~ +65°C (+149 F)
Humidity
0 ~ 90 % (non-condensing)
Management
System configuration
Web UI, WNMS
Management system
SNMP, Syslog, Web UI, WNMS
Regulatory
Certification
FCC/IC/CE
Ingress protection
IP-66
Safety
RoHS compliant
