Настраиваемый размер горячее погружение легкое чистый холст автомобильный стеллаж укрытие для теста

Описание и отзывы

Трекер стоимости

Характеристики

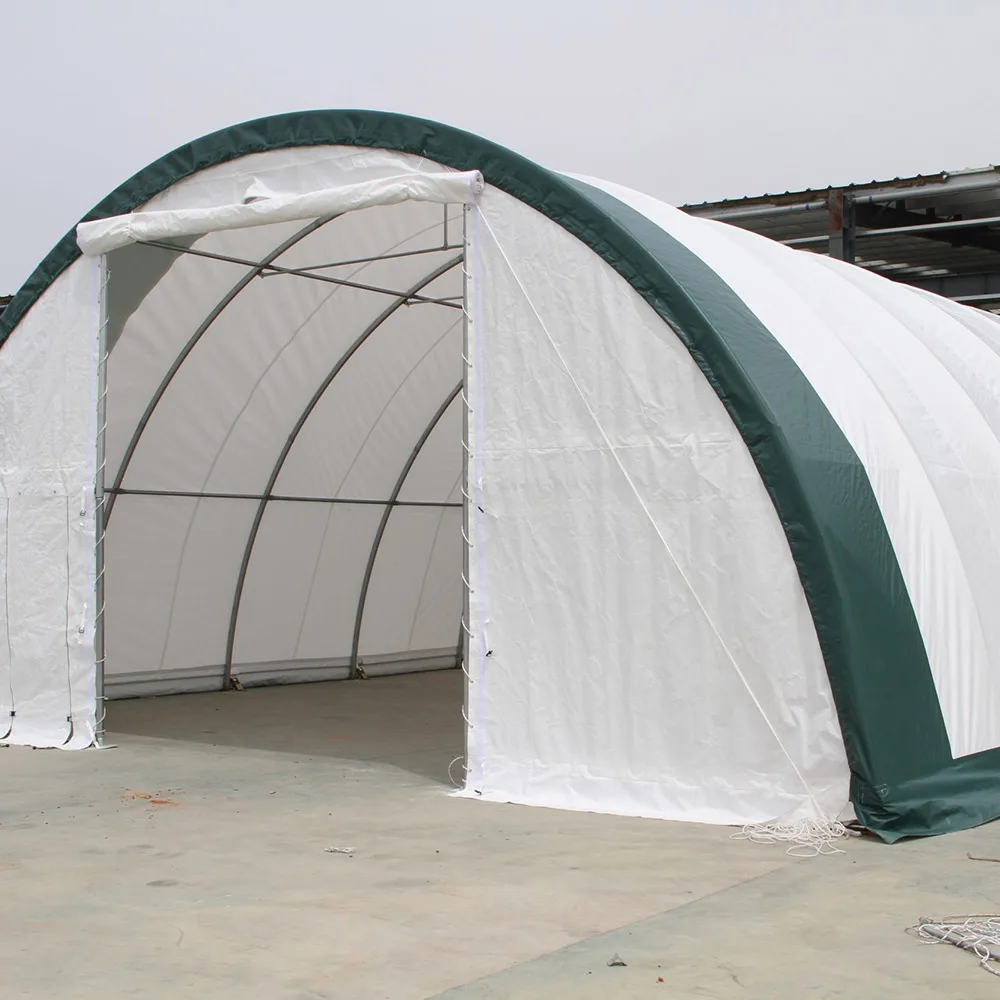

Size Customize hot dip easy erect canvas car shelterdough shelter for sale

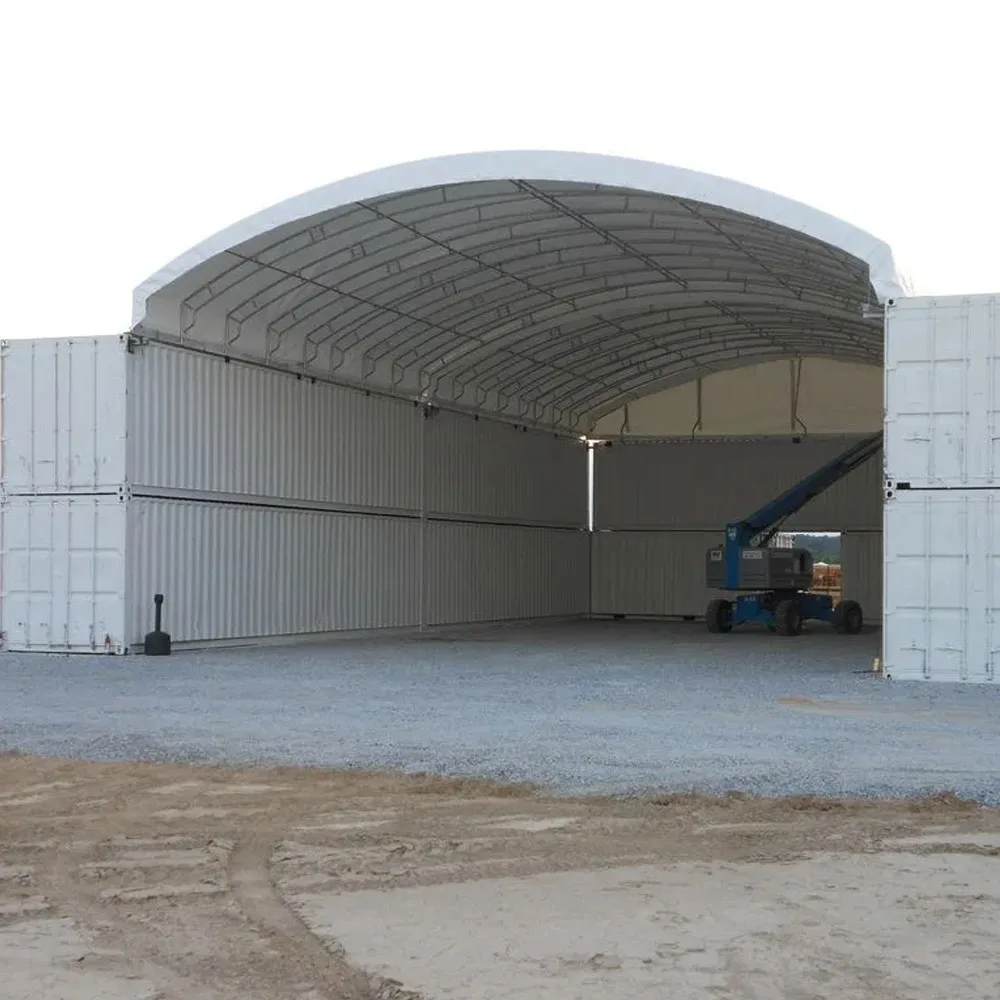

 Guangzhou Hot galvanized steel modular 24*12m container shelter for storage shelter garden metal custom

Aluminum tent size:	20*30*10 meters  double layer arc Steel frame shelters storage  /50x50x2,5mm
Span width:	20.0m
Tent Length:	30.0m
Eave Height:	6.0m
Ridge height:	10.0m
steel tube size	50*50*2.5mm/32*32*25mm/40*40*2.5mm ( see the drawing details)
Bay distance:	3.0m
Roof pitch:	n/a
Number of gable uprights:	0
Longest component (m):	6.0m
Snow loading compliance:	45kgs/m²
Max allowed wind speed to:	120 to 150 km/h
Main Truss profile size:	50*50*2.5mm/30*30*25mm/40*40*2.5mm ( see the drawing details)
connection type:	Class 8.8 Bolts Connection.
Roof pvc	850gsm pvc for roof covering
Main frame materia:	50*50*2.5mm for main truss, 40x40x2.5mm for purlins
Textile roof covering:	Premium grade, high gloss white,850gsm PVC coated polyester fabric - UV resistant and flame retardant according to: NFPA­701,DIN4102­B1, M2,
Life of using:	Be able to use more than 30 Years. 20 Years quality Warranty.
Doors	the front and end be able to pening for doors, and the side has security doors
